Galaxian (Olympia)
From Citylan
Jump to navigationJump to search
| dumper | IZ8DWF |
| date | 09/06/2026 |
| emulator | |
| dev |
| name | 1806 |
| description | Galaxian (Olympia) |
| year | 1980 |
| manufacturer | Olympia |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 10x | 2708 | 1x-10x | dumped |
| 2x | TMS2716 | 1h,1k | dumped |
| 1x | PROM | ? | not dumped yet |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume)
1x 8 DIP switches bank
Notes
PCB is marked: "10-50051" on component side
PCB is marked: "10-50051" on solder side
Gameplay is identical to "Galaxian".
No game name in attract mode, "OLYMPIA" instead.
Slightly more difficult in the first 2 levels, no extra ship at 7000 (only from 10000 upward).
Files
-

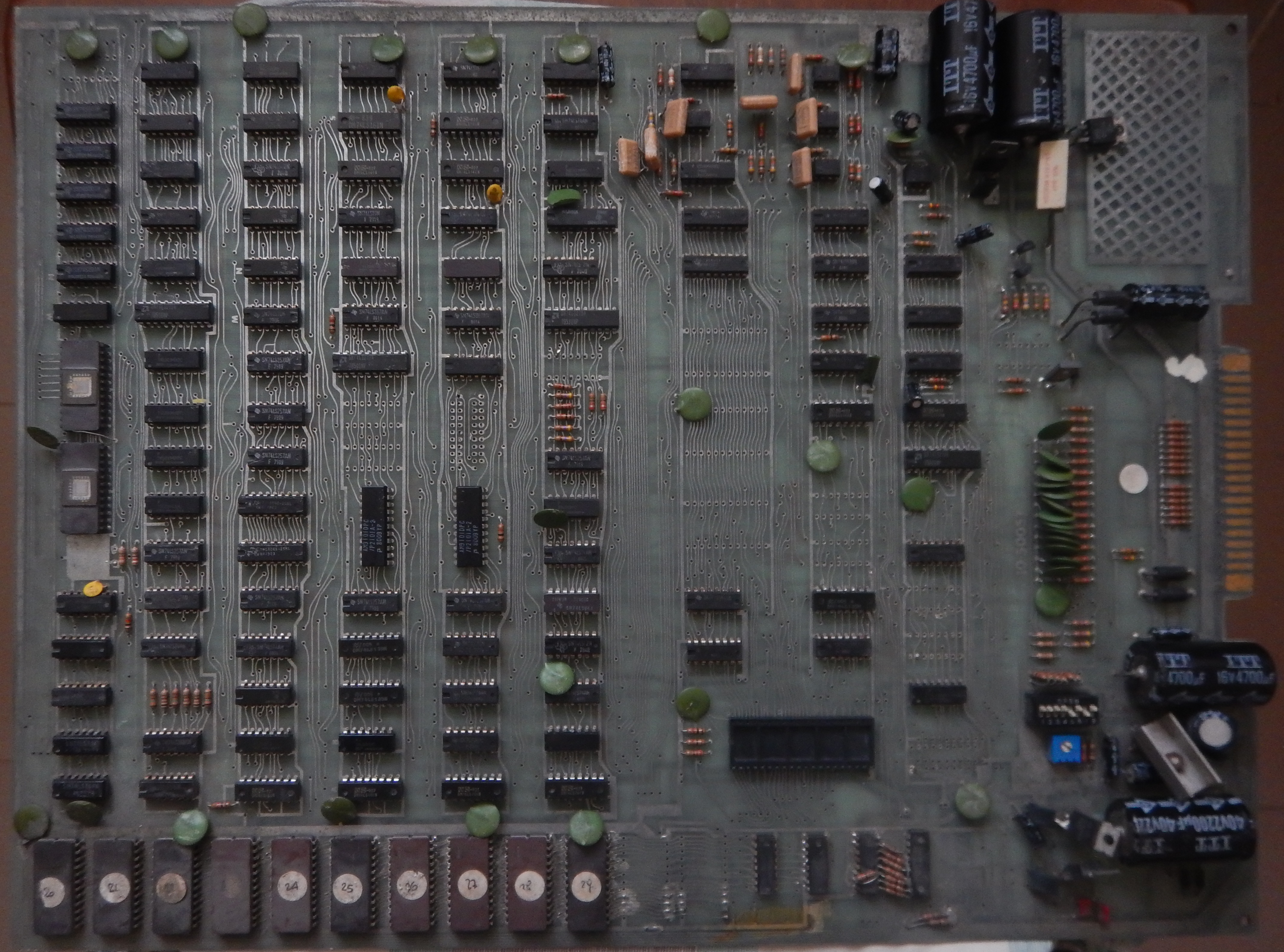

PCB component side -

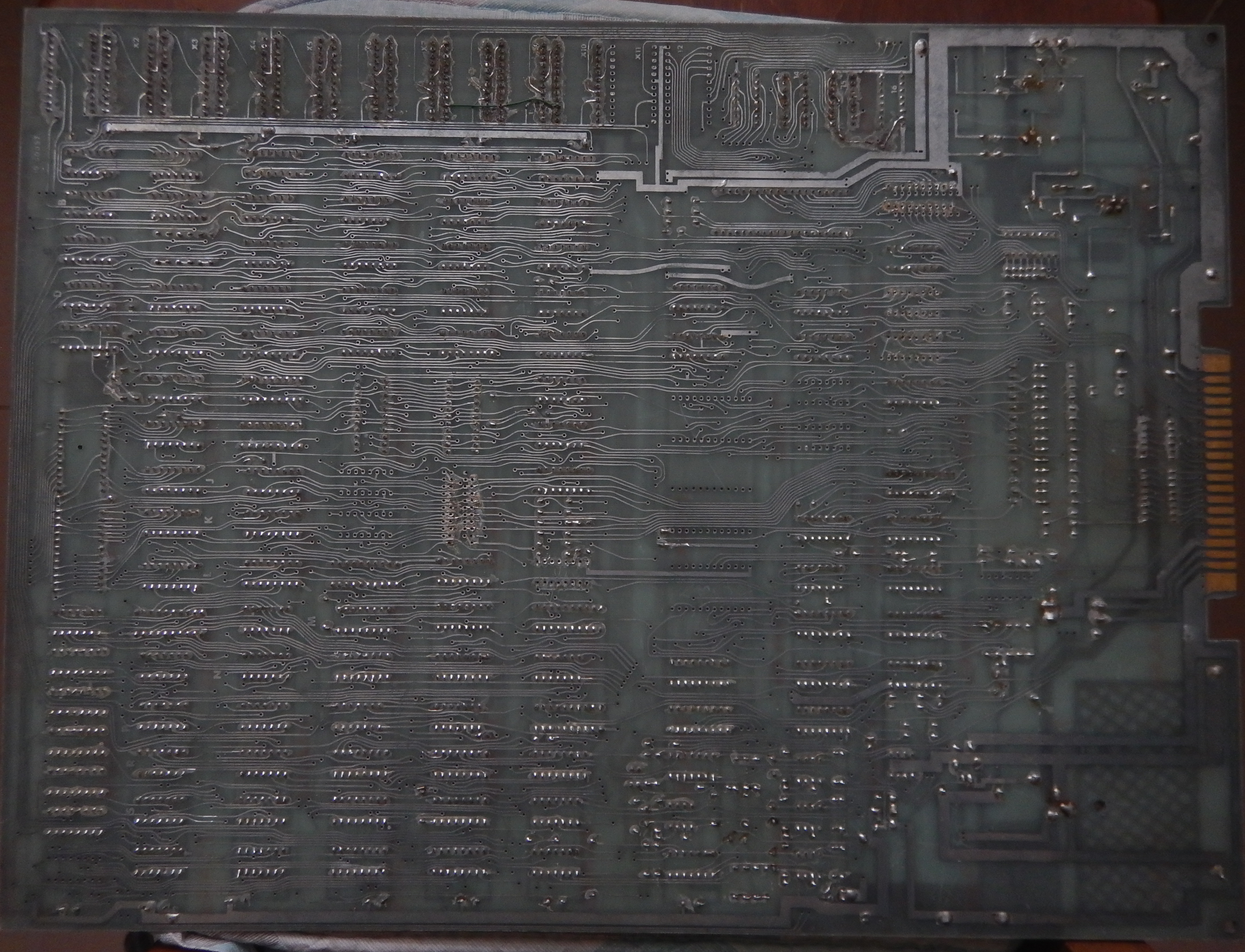

PCB solder side -
Readme -
ROMs
1806
