Revision as of 15:56, 4 December 2023
| dumper | f205v |
| date | 18/09/2005 |
| emulator | MAME 0.106u11 |
| dev | Roberto Fresca |
| name | magicfly on ProgettoEMMA magicfly on Arcade Database |
| description | Magic Fly |
| year | 198x |
| manufacturer | P&A Games |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | R6502AP | 8-bit Microprocessor - main | ||
| 1x | MC6845P | CRT Controller (CRTC) - Video | ||
| 1x | TDA2002 | - | Audio Amplifier - sound | |
| 1x | oscillator | 10.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | M2764A | 0,1,2 | dumped |
| 1x | M27128A | 3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | HM6116LP-4 | |
| 1x | MK48Z02B-20 | dumped |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PAL16R4A | mf | read protected |
Others
1x 30x2 edge connector
1x 10 legs connector
1x trimmer (volume)
1x 4 DIP switches bank
Notes
update 20231130: better description
Files
-

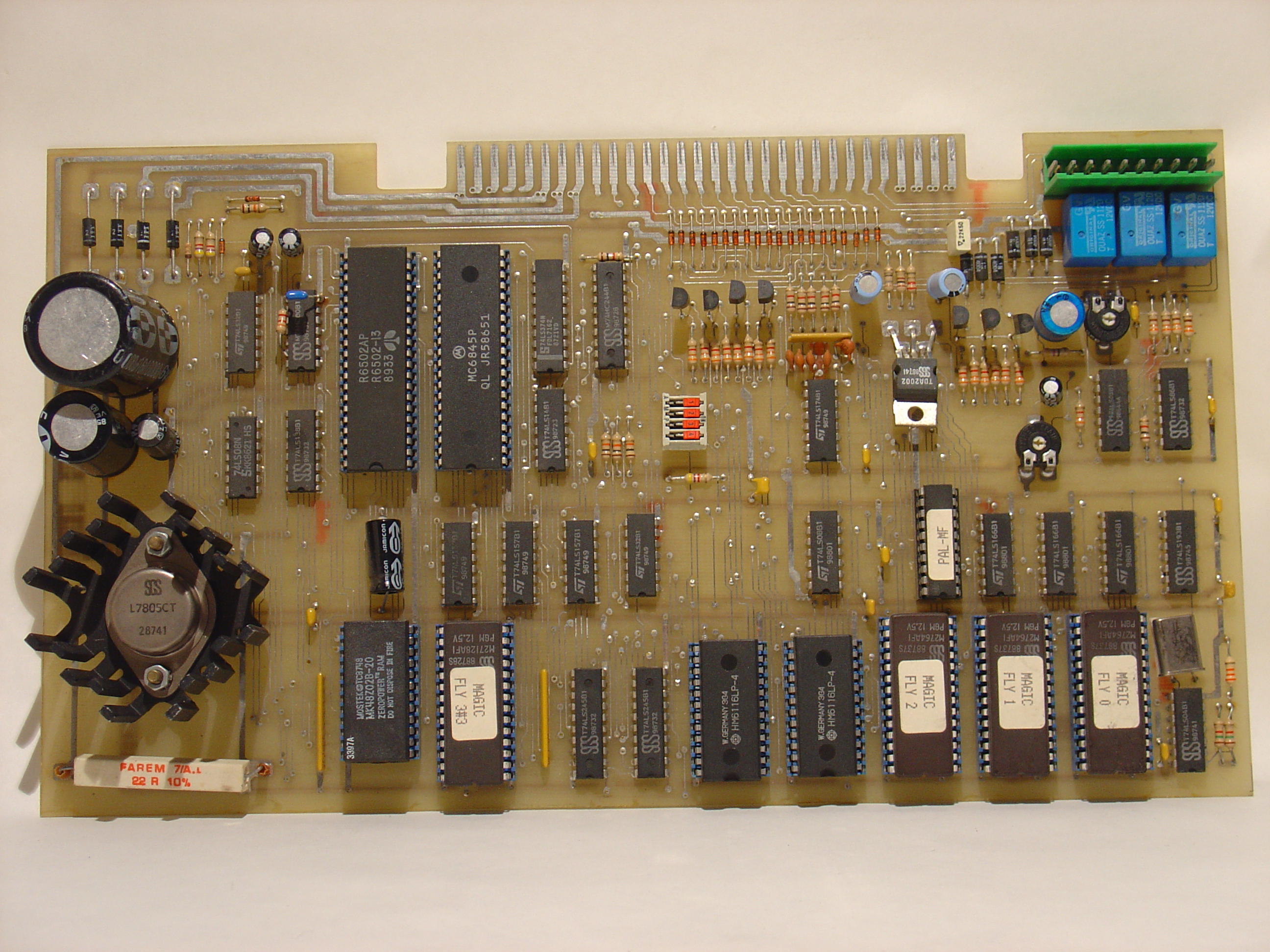

PCB component side -

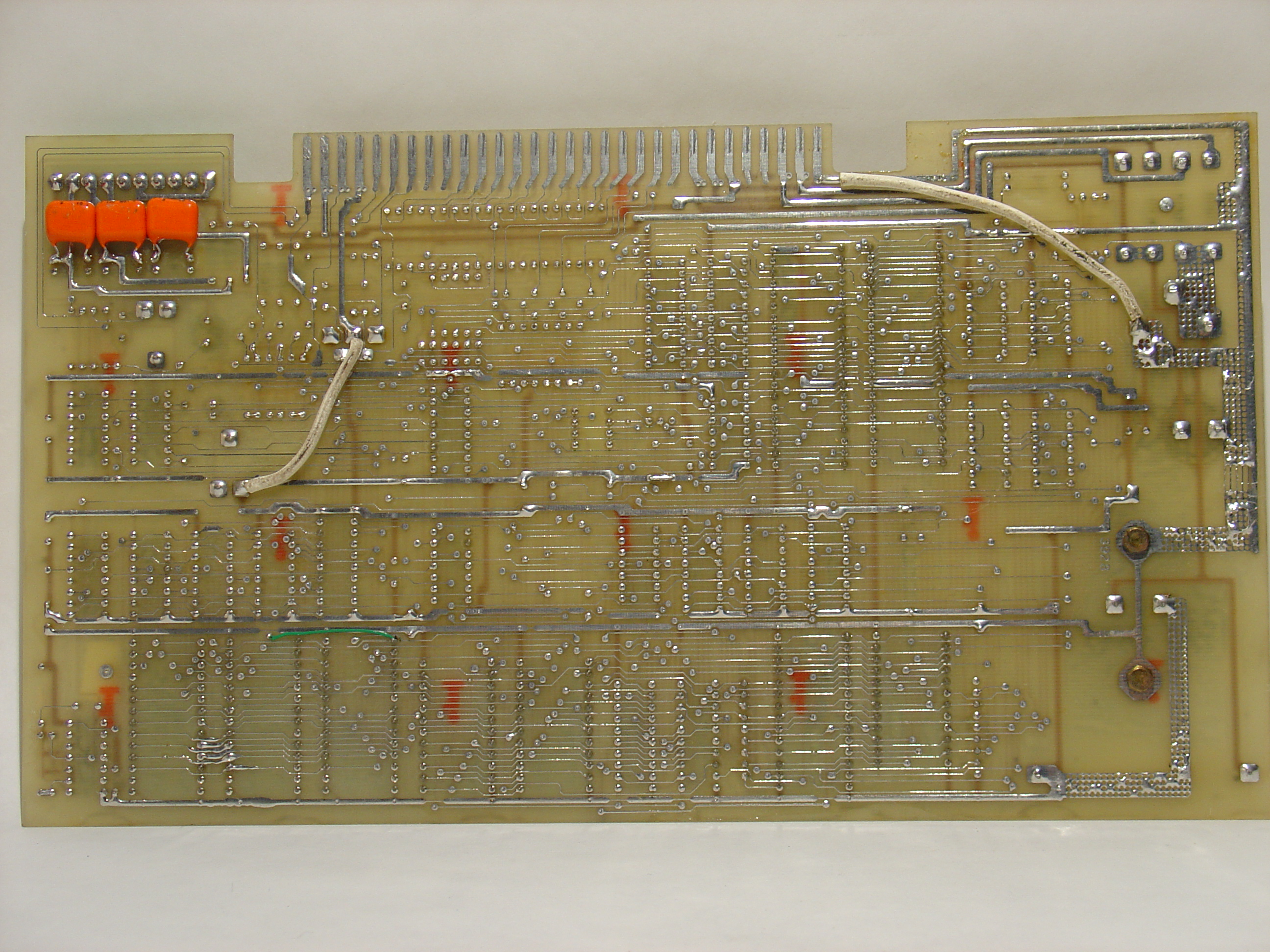

PCB solder side
