Latest revision as of 14:51, 27 September 2024
| dumper | f205v |
| date | 03/01/2006 |
| emulator | MAME 0.129u1 |
| dev | Roberto Fresca |
| name | ladylinr on Arcade Database |
| description | Lady Liner (set 1) |
| year | 198x |
| manufacturer | TAB Austria |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80 | 8-bit Microprocessor - main | ||
| 2x | P8255A | Programmable Peripheral Interface | ||
| 1x | 76489 | Digital Complex Sound Generator - sound | ||
| 1x | AY8930 | Enhanced Programmable Sound Generator - sound | ||
| 1x | TDA1010 | - | Audio Amplifier - sound | |
| 1x | oscillator | 12.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 7x | M27C64A | 1,2,3,4,71,72,73 | dumped |
| 1x | NM27C256Q | ladybrd | dumped |
| 2x | AM27S19PC | 39,73 | dumped |
| 2x | AM27S21PC | 37,38,96 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 5x | HY6116ALP-10 |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 18x2 edge connector
1x 22x2 edge connector
This 2 are wired to a connector PCB with: 1x 6x2 edge + 1x 60x2 edge with smaller spacing + 2x 8 switches dip + 1x 4 switches dip.
1x trimmer (volume)
1x 8 DIP switches bank
Notes
main PCB is labelled: "TAB AUSTRIA" and "MADE IN AUSTRIA" on component side
main PCB is labelled: "TAB AUSTRIA" on solder side
main PCB is marked: "TAB AUSTRIA", "TEL.:07229/45910 07229/45910 TELEX:022345" on component side
connector PCB is labelled: "TAB AUSTRIA LL 2690" on component side
connector PCB is marked: "TAB AUSTRIA", "TEL.:07229/78040" and "TAB-ADAPTER 120polig Rev1" on component side
connector PCB is marked: "TAB AUSTRIA", "Et.Nr.:414184480" and "LOETSEITE" on SOLDER side
update 20201012: better description and pics
Files
-

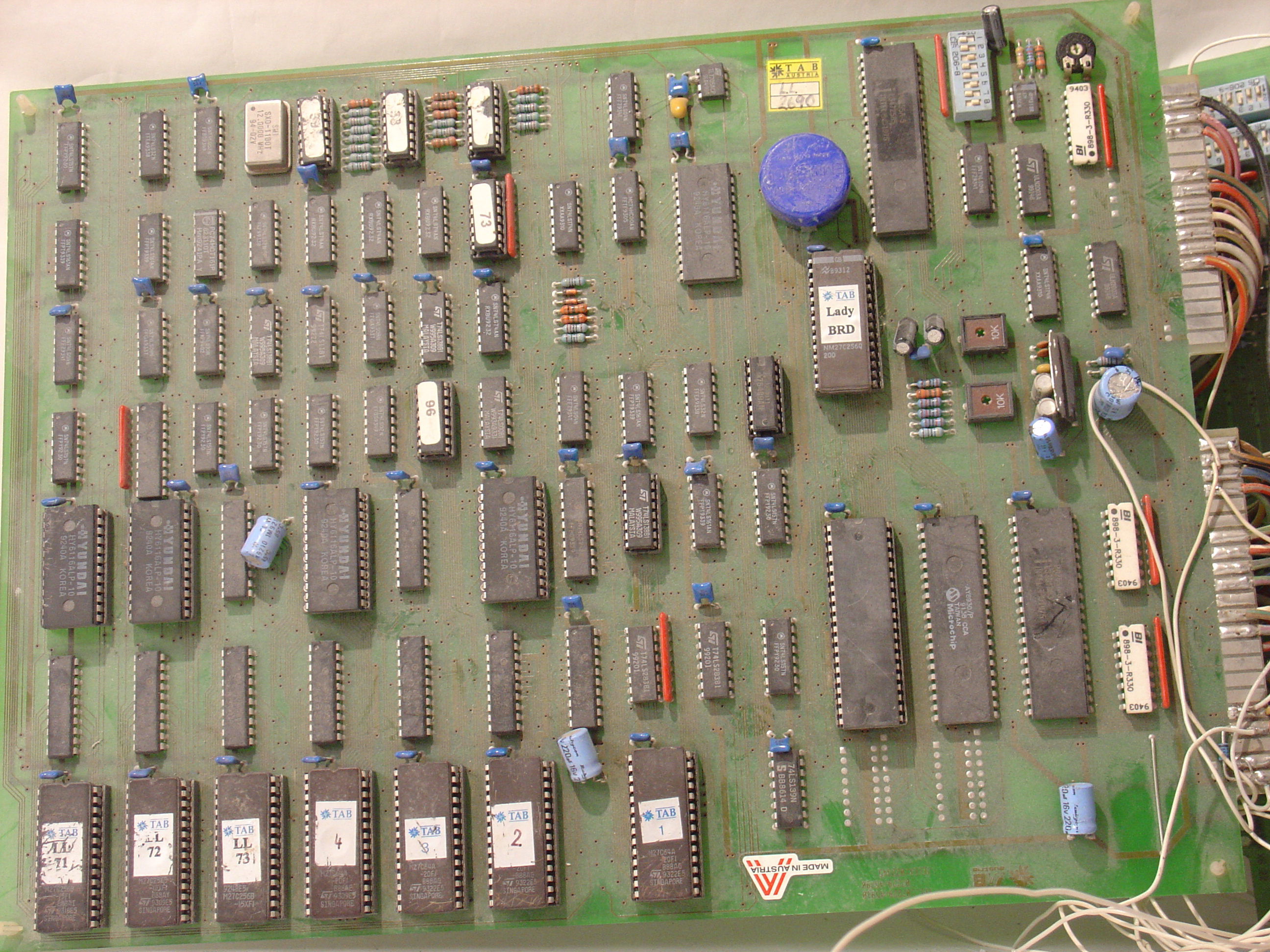

PCB component side -

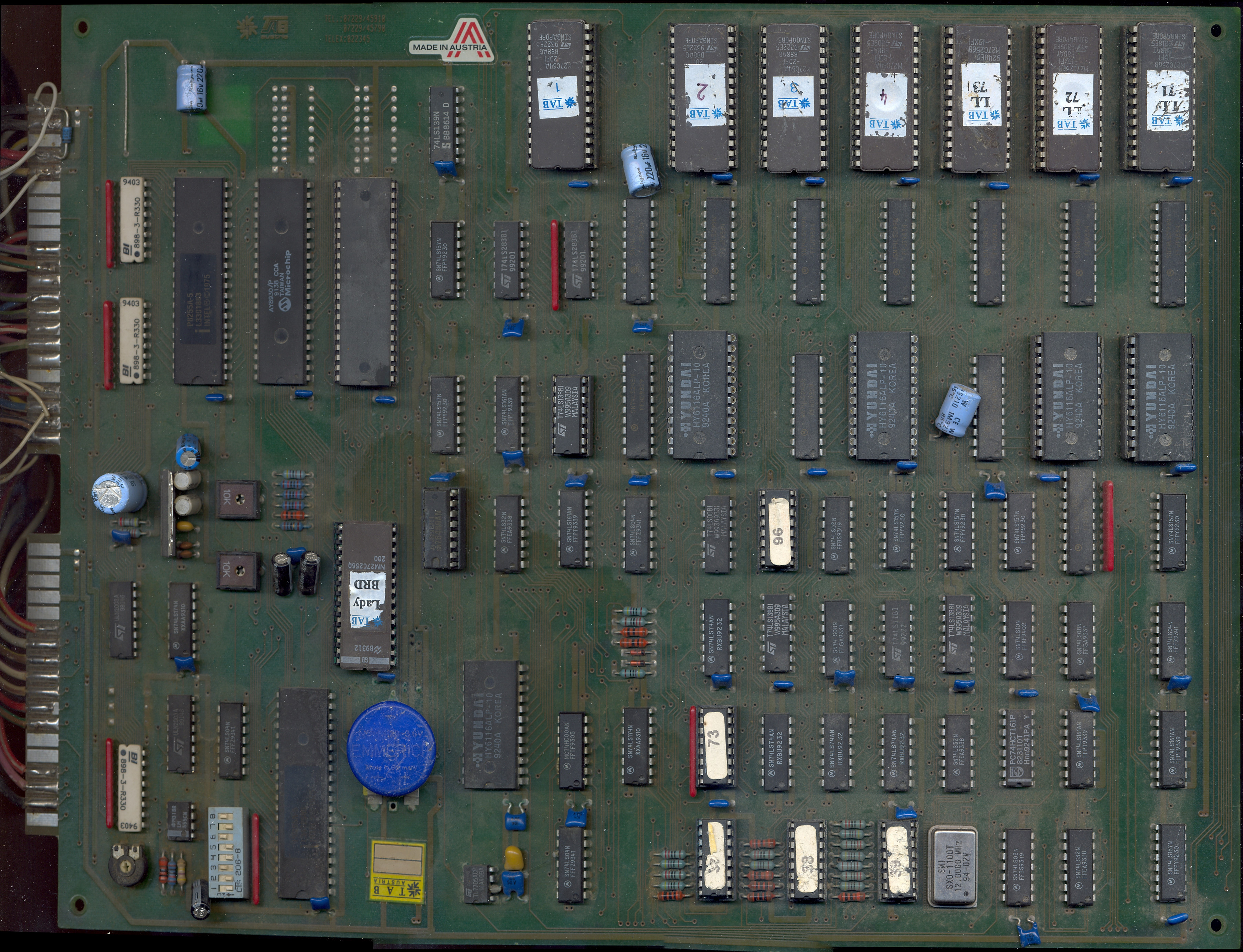

main PCB component side -

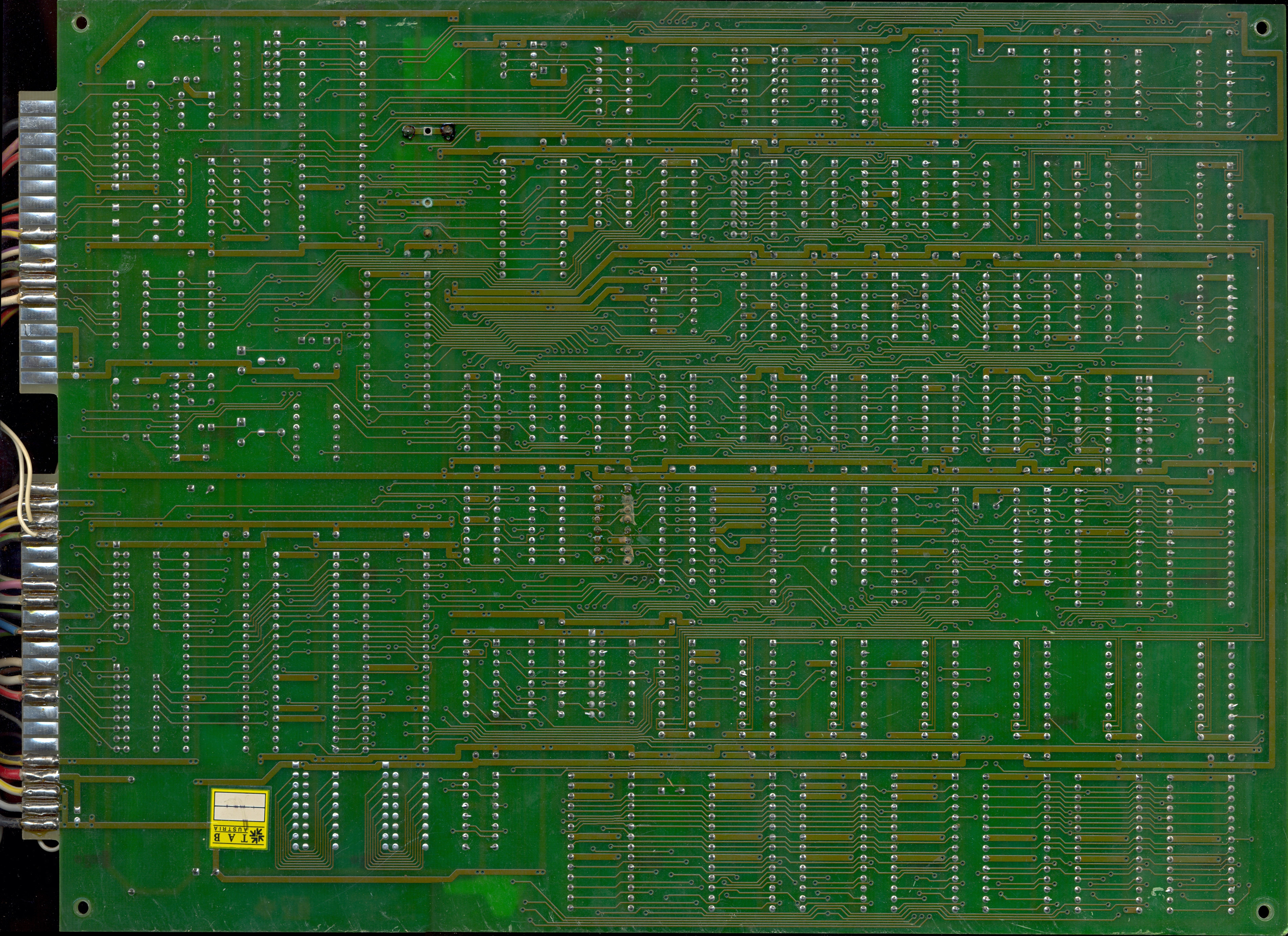

main PCB solder side -

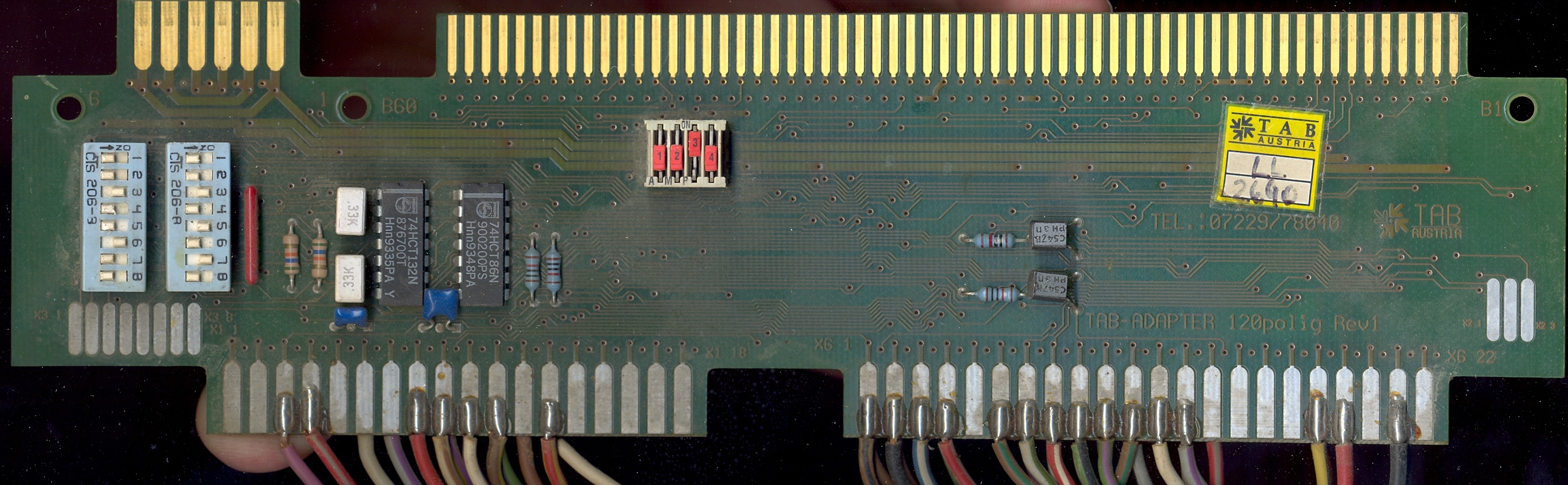

connector PCB component side -

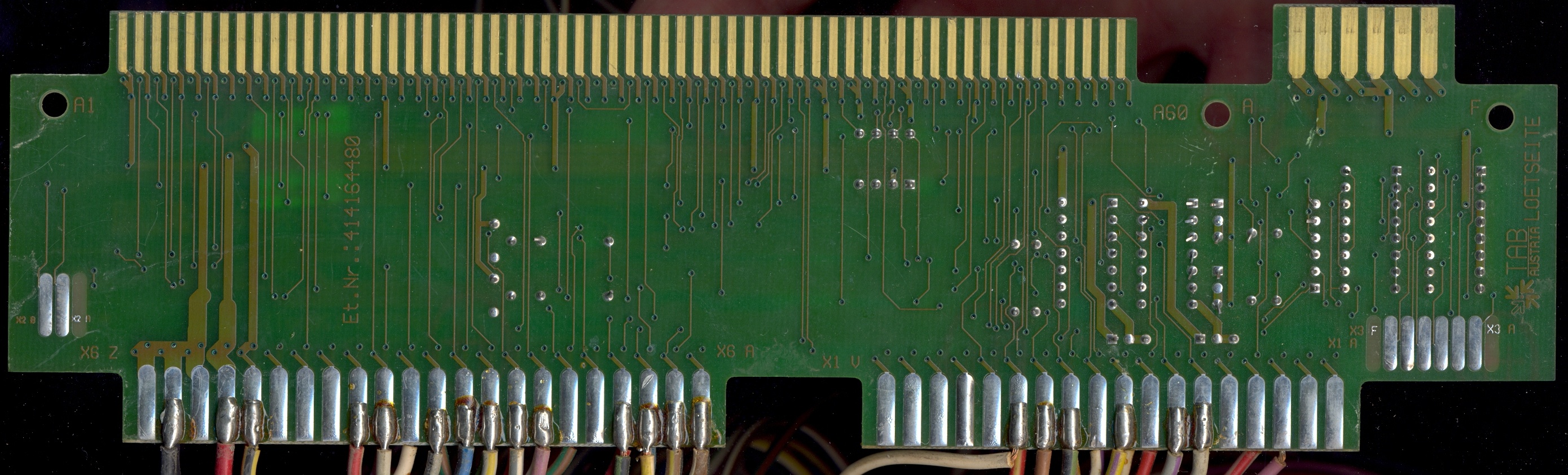

connector PCB solder side
