Latest revision as of 15:22, 27 September 2024
| dumper | f205v |
| date | 04/04/2006 |
| emulator | MAME 0.80 |
| dev | David Haywood |
| name | wiggie on Arcade Database |
| description | Wiggie Waggie |
| year | 1994.06.22 |
| manufacturer | Promat |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P10 | 16D | 16/32-bit Microprocessor - main | |
| 1x | Z8400A | 7A | 8-bit Microprocessor - sound | |
| 1x | M6295 | 4B | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM324N | - | 2A | Quad Operational Amplifier - sound |
| 1x | oscillator | 16.000MHz | 5B |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | MBM27C512 | 5A | dumped |
| 2x | AM27C512 | 19E,21E | dumped |
| 4x | M27C1001 | 16J,18J,19J,21J | dumped |
| 1x | D27C020 | 1C | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | D2125 | 6K,4N,5N |
| 13x | GM76C28K-10 | 4A,10C,11C,G2,G3,H18 H19,H20,H21,2K,3K,4K,5K |
| 4x | LC3664BL-10 | 6E,8E,16E,18E |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TPC1020AFN-084C | 13J | read protected |
| 6x | PAL16L8 | 3E,10E,13H,16H,7I,1L | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks (SW1.16A,SW2.14A)
Notes
PCB is marked: "PROMAT CO.,LTD." on component side
PCB is labelled: "27 $ WIGGIE WAGGIE 22JU4/FK" on component side
update 20220113: better description.
Files
-

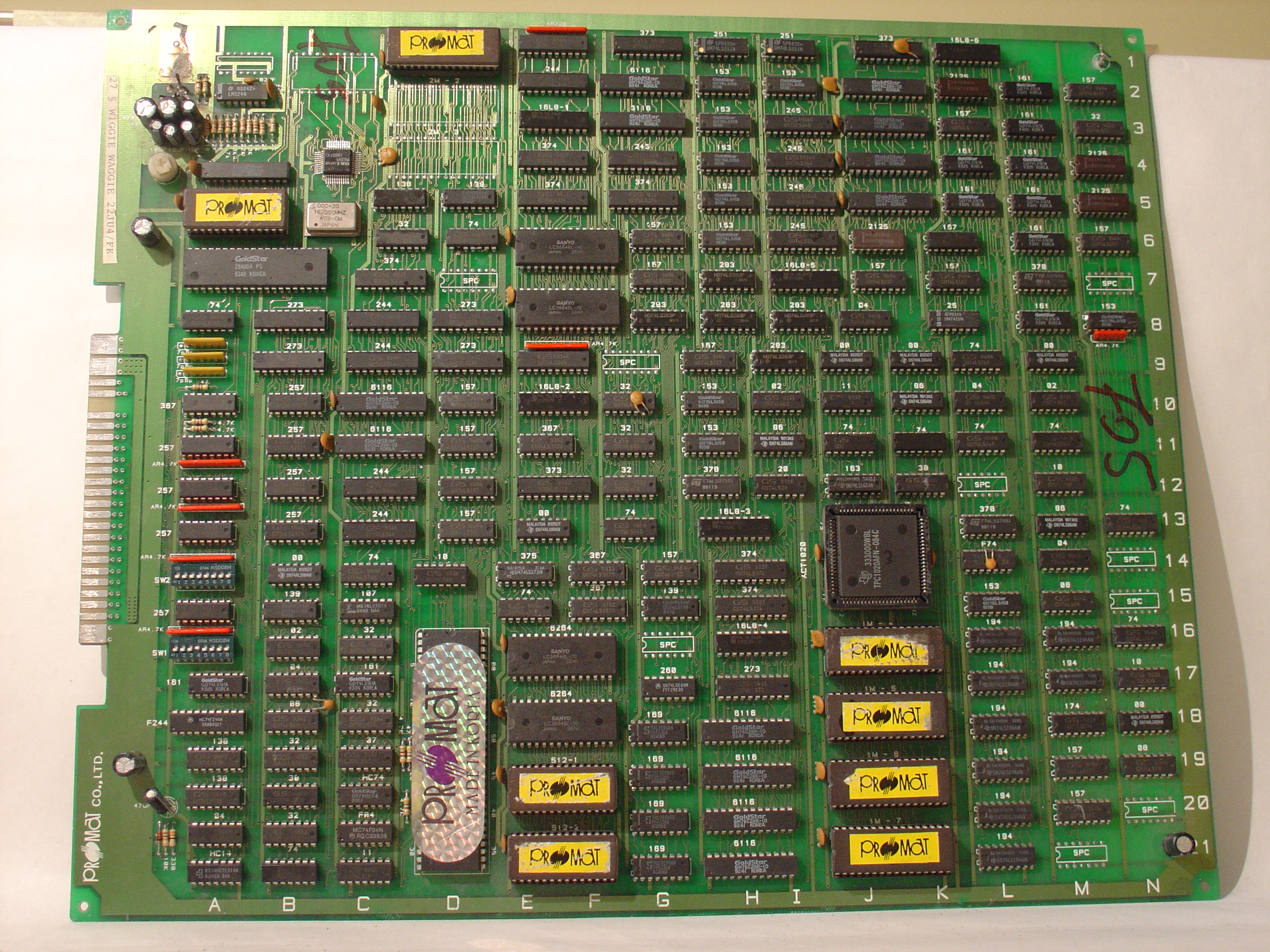

PCB component side -

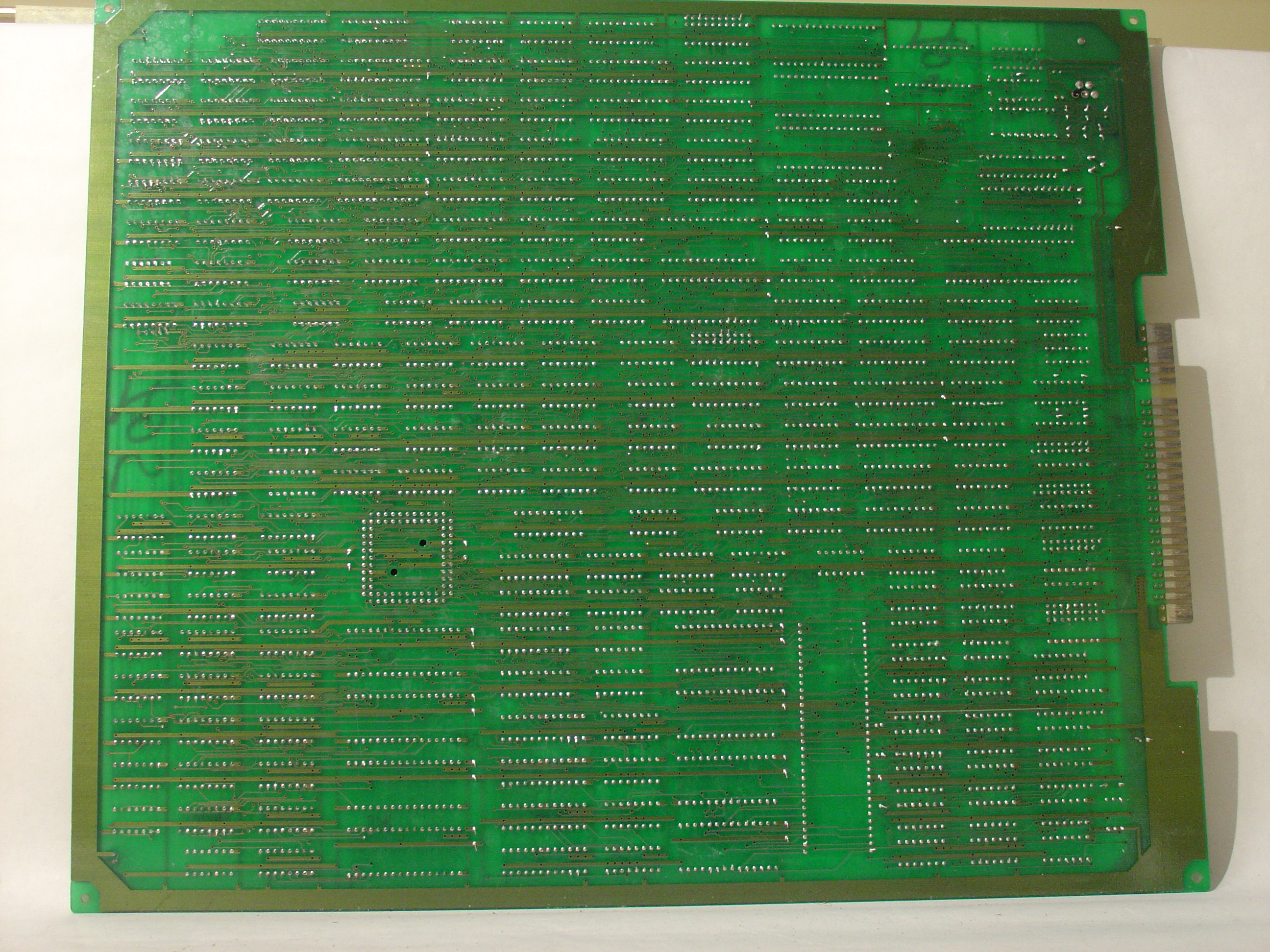

PCB solder side
