| dumper | Guru |
| date | 10/04/2009 |
| emulator | MAME 0.114u1 |
| dev | Guru |
| name | cspike on Arcade Database |
| description | Gun Spike |
| year | 2000.05.11 |
| manufacturer | Psikyo - Capcom |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27322 | EPR-23210.ic22 | dumped |
| 12x | M27W064 | mpr-23198.ic1 - mpr-23209.ic12s | dumped |
| 1x | X76F100 | ic37 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0012C
Protection IC: SEGA 315-5881 (317-5060-COM)
Key: 0x000e2010
Files
-

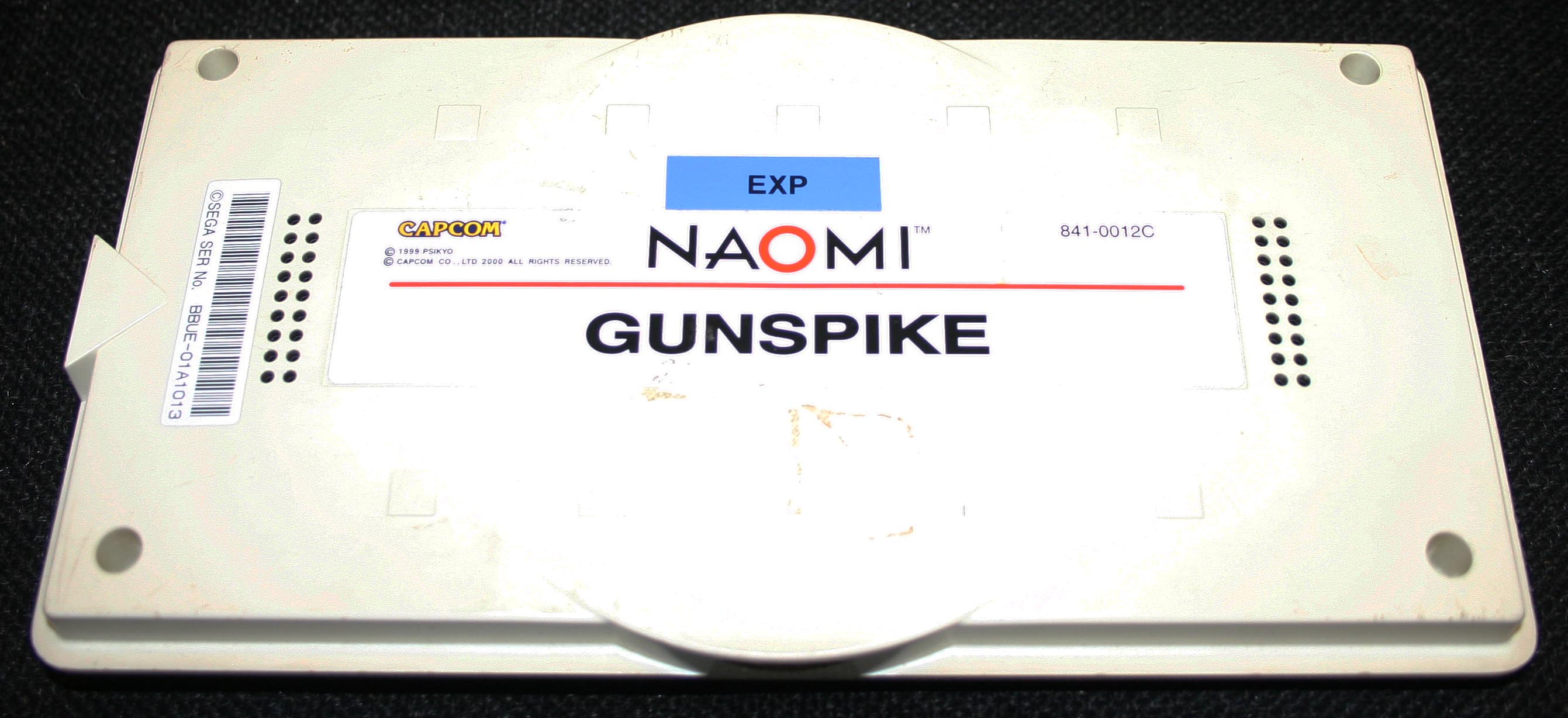

Cart 1 -

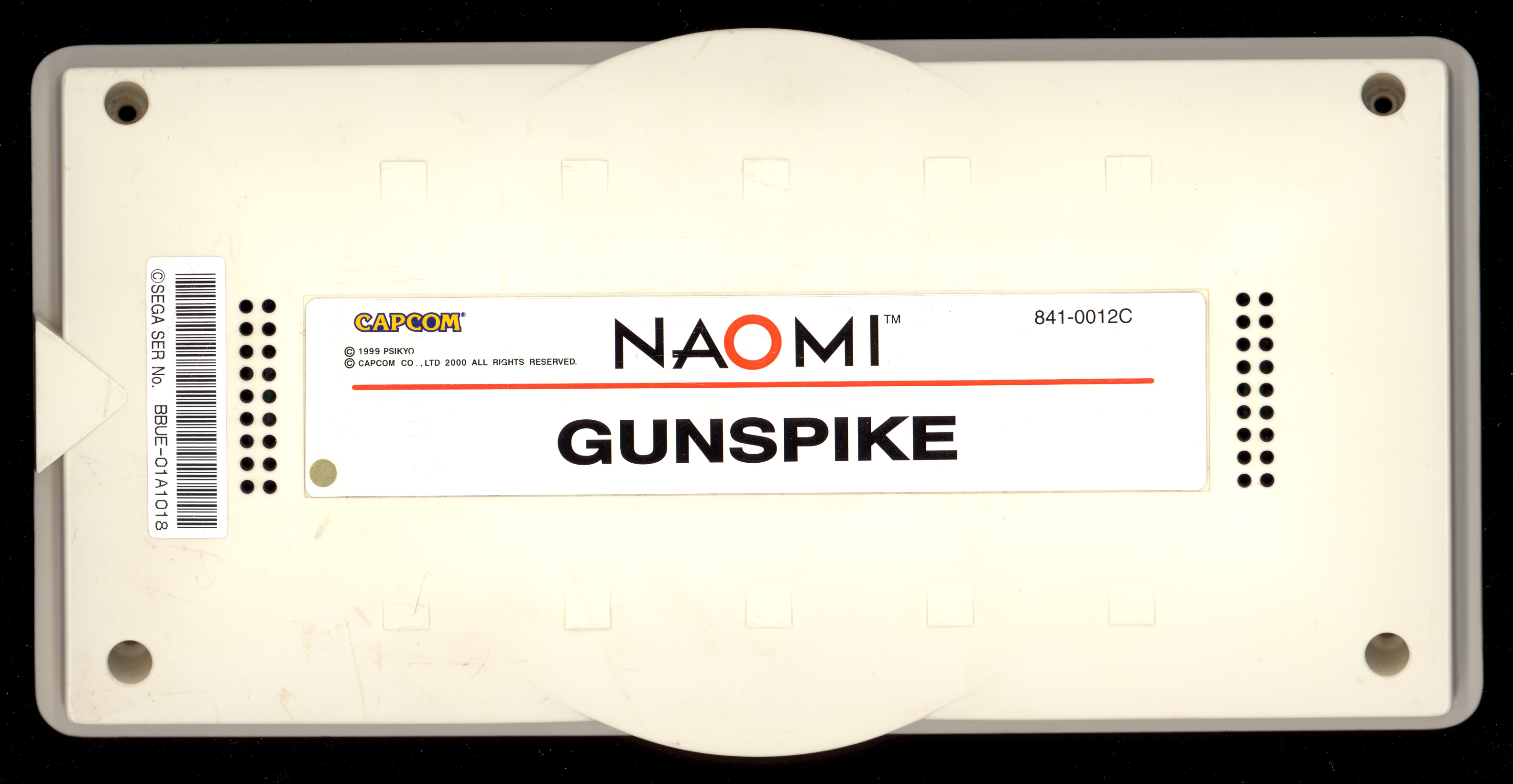

Cart 2 -

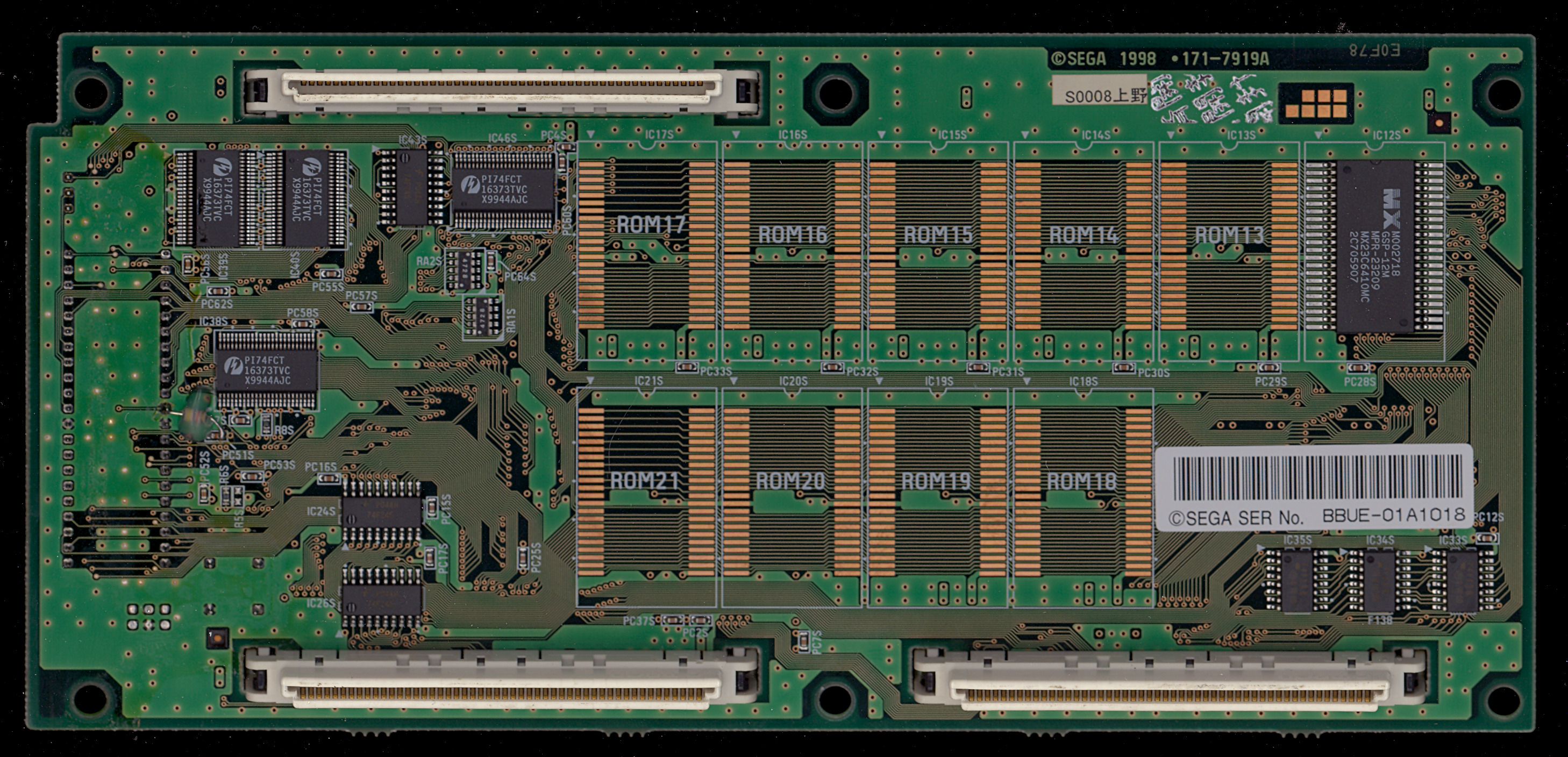

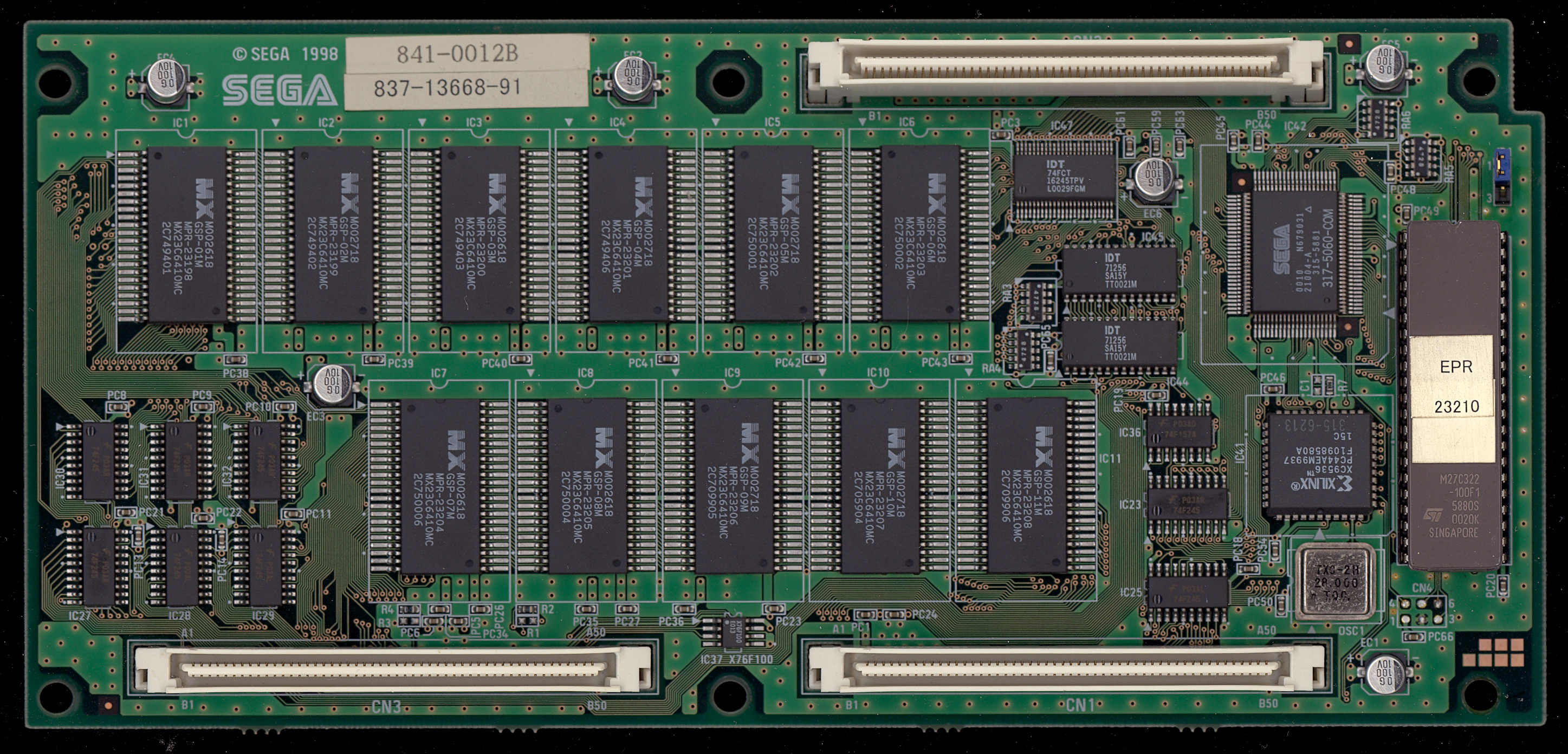

PCB component side -
