Latest revision as of 15:20, 20 October 2024
| dumper | Guru |
| date | 27/11/2008 |
| emulator | MAME 0.131 |
| dev | Amgelo Salese |
| name | wwfroyal on Arcade Database |
| description | WWF Royal Rumble |
| year | 2000.08.29 - 20:20:00 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | EPR-22261.ic22 | dumped |
| 8x | MaskROM 128Mb TSOP48 | MPR-22262.ic1 - MPR-22269.ic8 | dumped |
| 1x | X76F100 | ic46 | to be confirmed if present |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71V256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
| 1x | EPM7032 315-6319A | ic27 | read protected |
Others
Notes
It's a NAOMI 2 cart.
Cart type: 171-8132B
Cart N°: 840-0040C
Protection IC: SEGA 315-5881 (317-0285-COM)
Key: 0x281627c3
Files
-

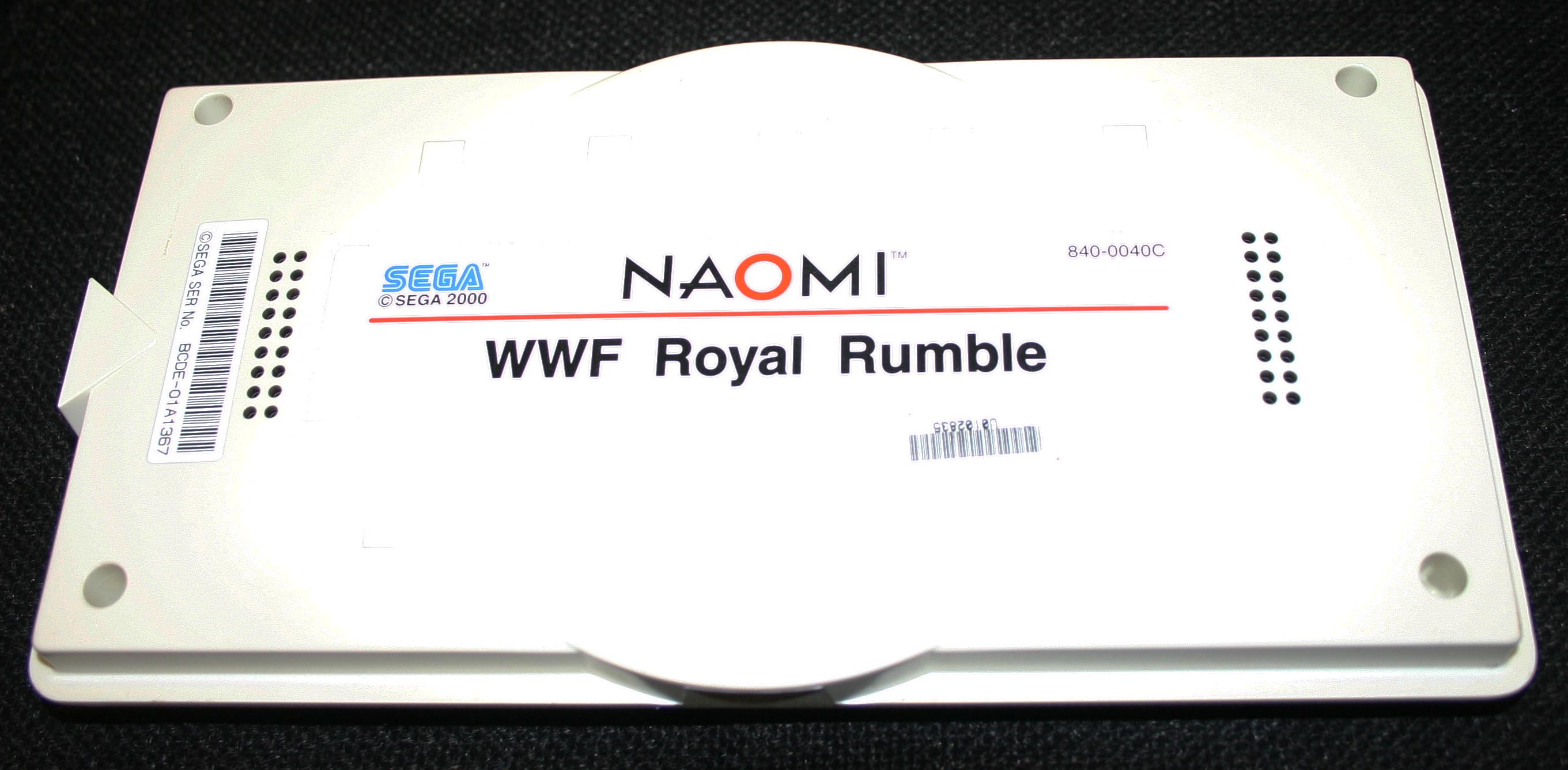

Cart
