Latest revision as of 21:27, 29 January 2025
| dumper | f205v, Corrado Tomaselli |
| date | 22/03/2005 |
| emulator | MAME 0.35b13 |
| dev | Darren Olafson |
| name | truxton on Arcade Database |
| description | Truxton (Europe, US) / Tatsujin (Japan) |
| year | 1988 |
| manufacturer | Toaplan / Taito Corporation |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | SCN68000CAN64 | 12J | 16/32-bit Microprocessor - main | |
| 1x | custom chip | 4A | GFX ? | |
| 1x | custom chip | 16E | GFX ? | |
| 1x | Toaplan custom GLX-02 | 1D | Video sprite handling/counter | |
| 1x | Z0840004PSC Z80 CPU | 4F | 8-bit Microprocessor - sound | |
| 1x | YM3812 | 1J | FM Operator Type-L II (OPL II) - sound | |
| 1x | YM3014 | 3L | D/A Converter (DAC) - sound | |
| 1x | LM358 | - | 4L | Dual Operational Amplifier - sound |
| 1x | MB3730 | - | 1L | Audio Amplifier - sound |
| 1x | oscillator | 10.000MHz | X1.5L | |
| 1x | oscillator | 28.000MHz | X2.19J (missing) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 10x | 27010 | 1-8,10,11 | dumped |
| 1x | 27128 | 9 | dumped |
| 2x | N82S123 | 12,13 | not dumped yet |
RAMs
| QTY | Type | position |
|---|---|---|
| 5x | CXK5816PN-12L | 1A,1C,4C,20E,22E |
| 3x | HY6264LP-15 | 1F,10J,10K |
| 4x | S256KLP-12 | 14F,16F,17F,19F |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | NEC D65081R | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)(RVI.4L)
2x 8 DIP switches banks (SW1.20H,SW2.22H)
Notes
PCB is marked: "TP-013B" and "MADE IN JAPN" on component side (it's not an error, an A is missing).
Files
-

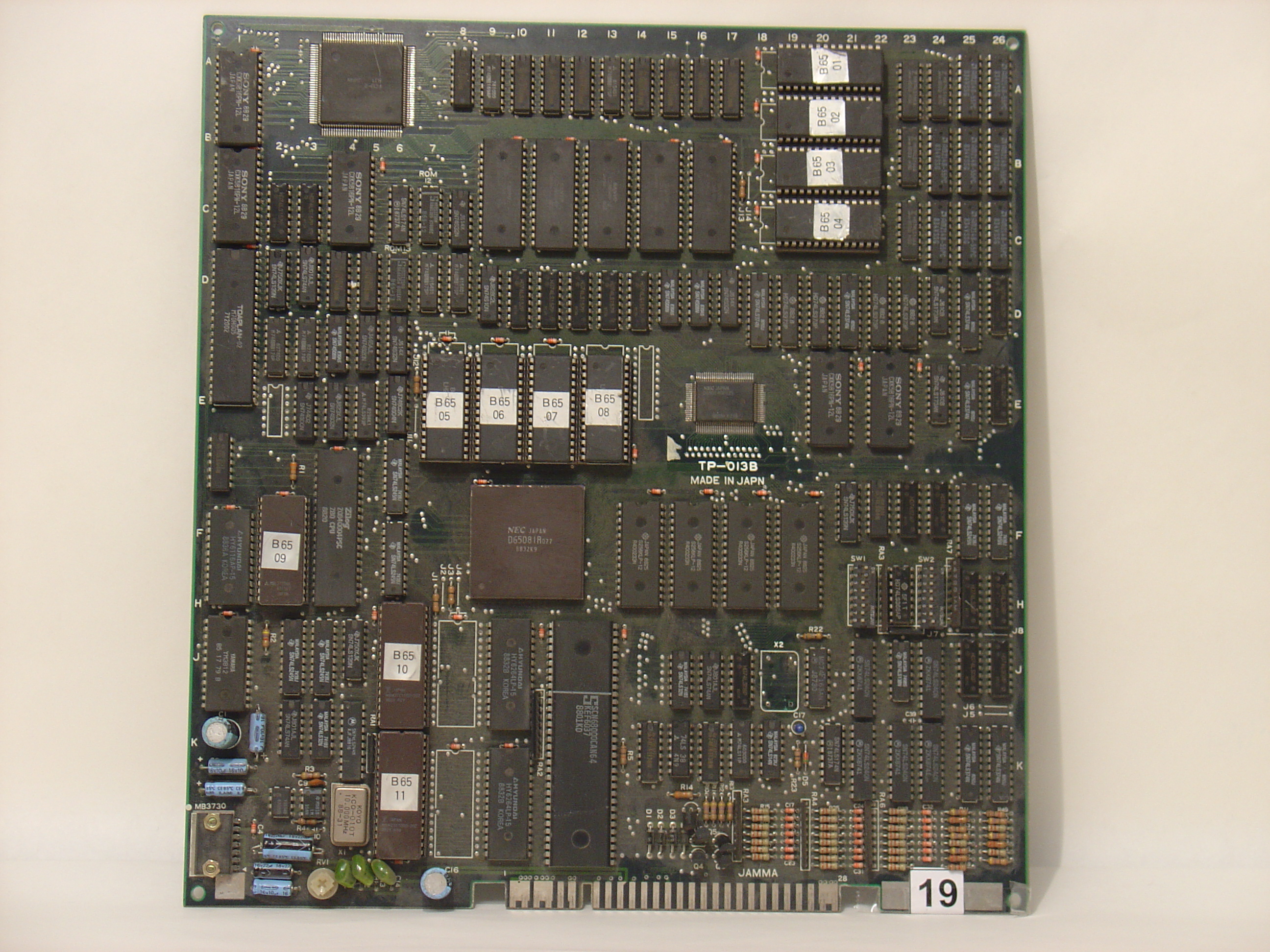

PCB component side -

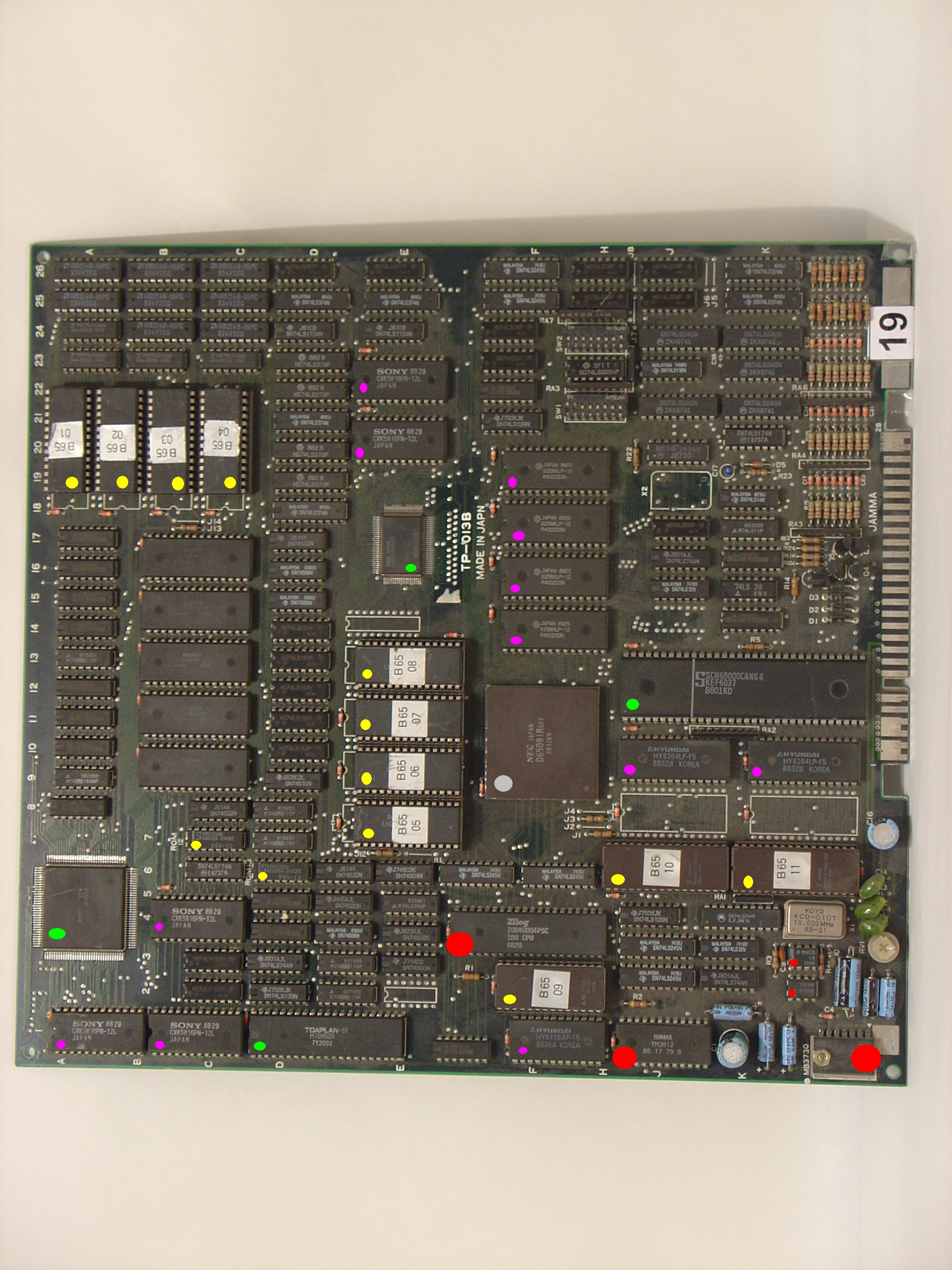

PCB component side notes -

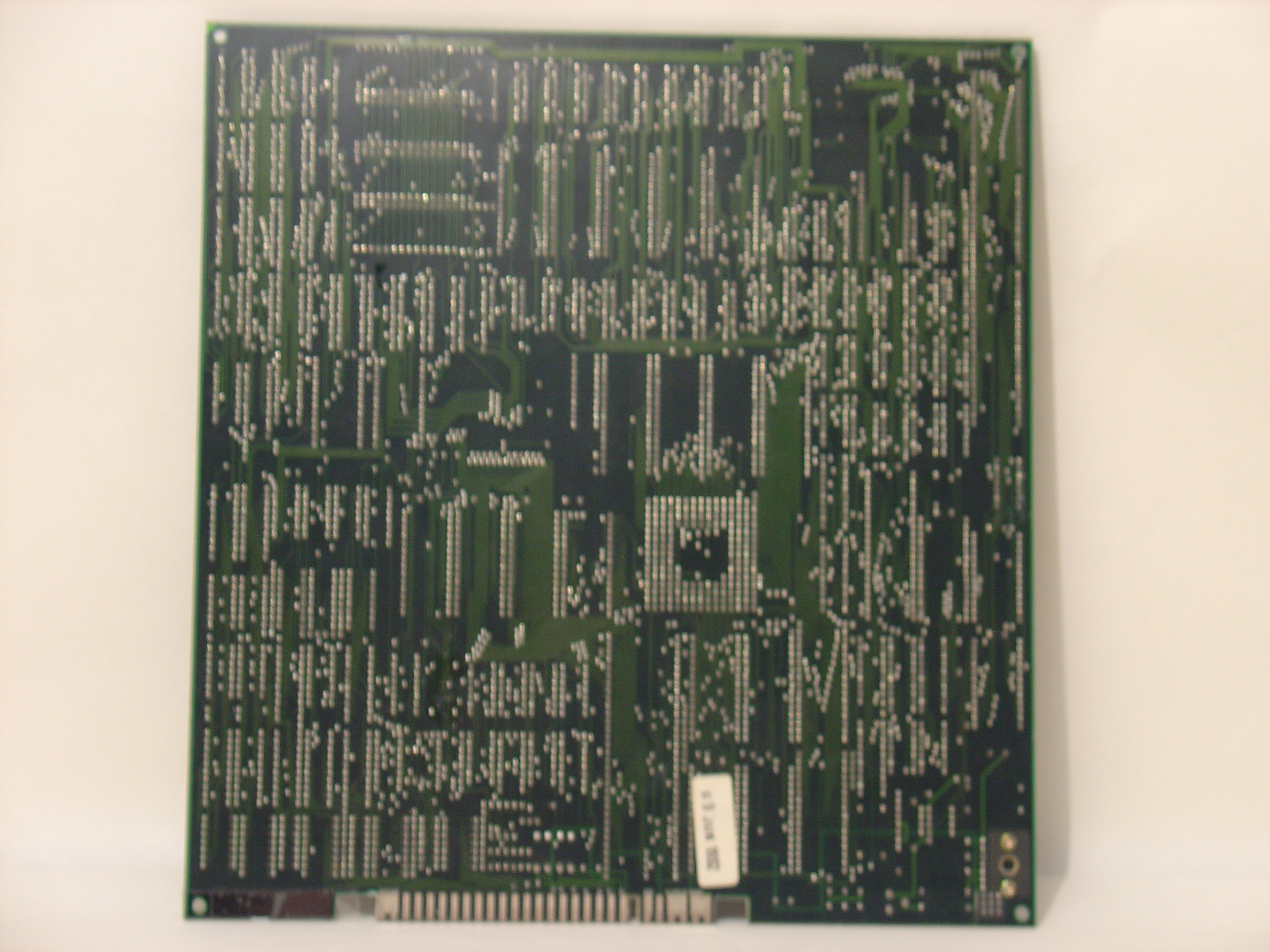

PCB solder side
