Revision as of 21:03, 21 July 2016
| dumper | f205v |
| date | 21/07/2016 |
| emulator | |
| dev |
| name | 1429 |
| description | Intergirl |
| year | 1995-02-22 |
| manufacturer | Barko |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | GM68A45S | uj11 | CRT Controller (CRTC) | |
| 1x | Z8400ADSD-Z80ACPU | ug8 | 8-bit Microprocessor - main | |
| 1x | GL324 | u14 | Quad Operational Amplifier - sound | |
| 1x | YM2203C | uj5 | FM Operator Type-N (OPM) - sound | |
| 1x | YM3014B | u13 | D/A Converter (DAC) - sound | |
| 1x | oscillator | 22.1184MHz | xt1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TMS27C512 | 1,2 | dumped |
| 3x | TMS27C020 | 3,4,5 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | GM76C88AL-15 | ug1 |
| 6x | KM424C64P-10 | uf13,uf13a,uf14,uf15,uf16,uf17 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PAL16L8ACN | ug6 | read protected |
| 1x | CY7C381-0JC | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)(SR2)
2x 8 DIP switches banks(SW1,SW2)
Notes
Files
-

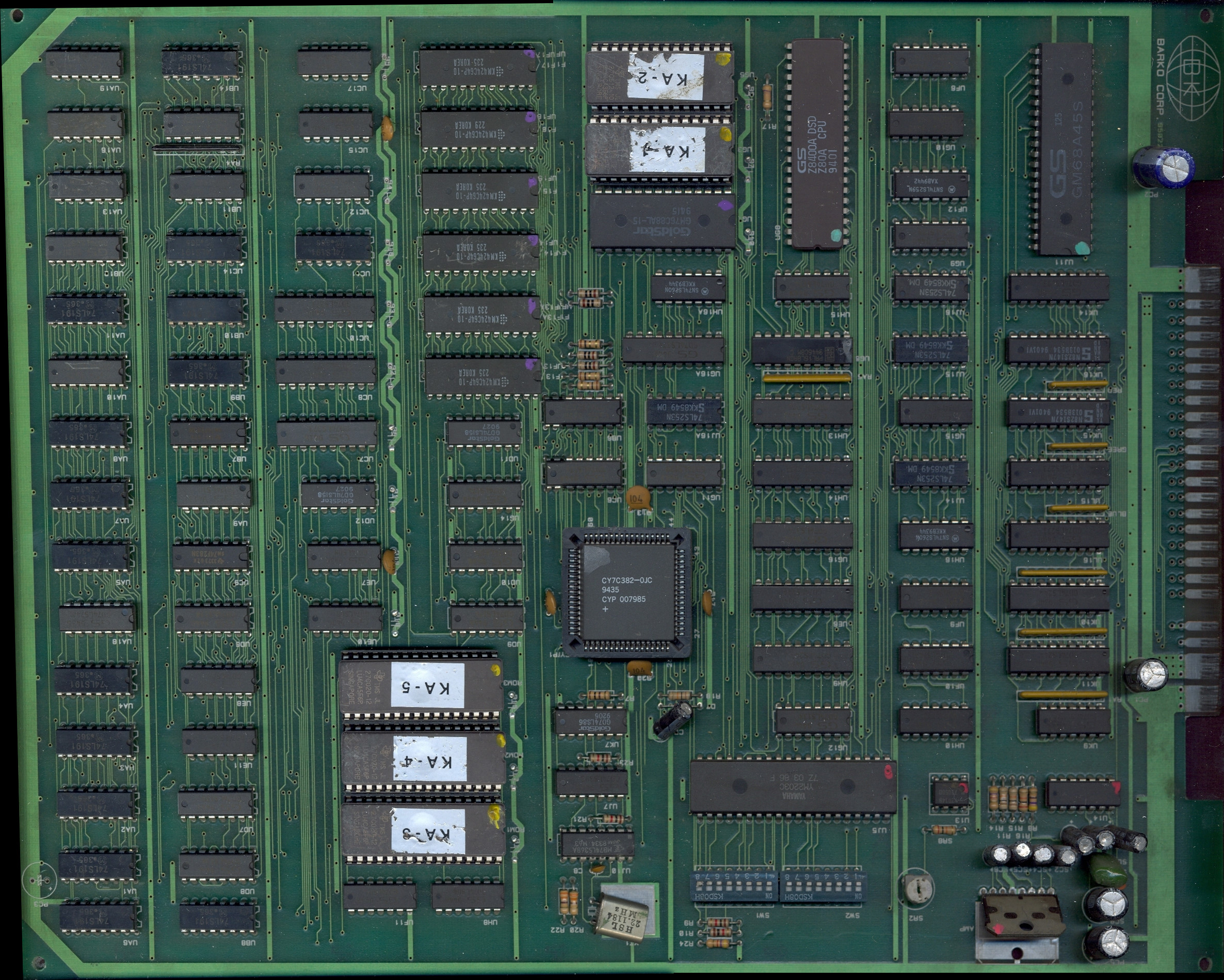

PCB component side -

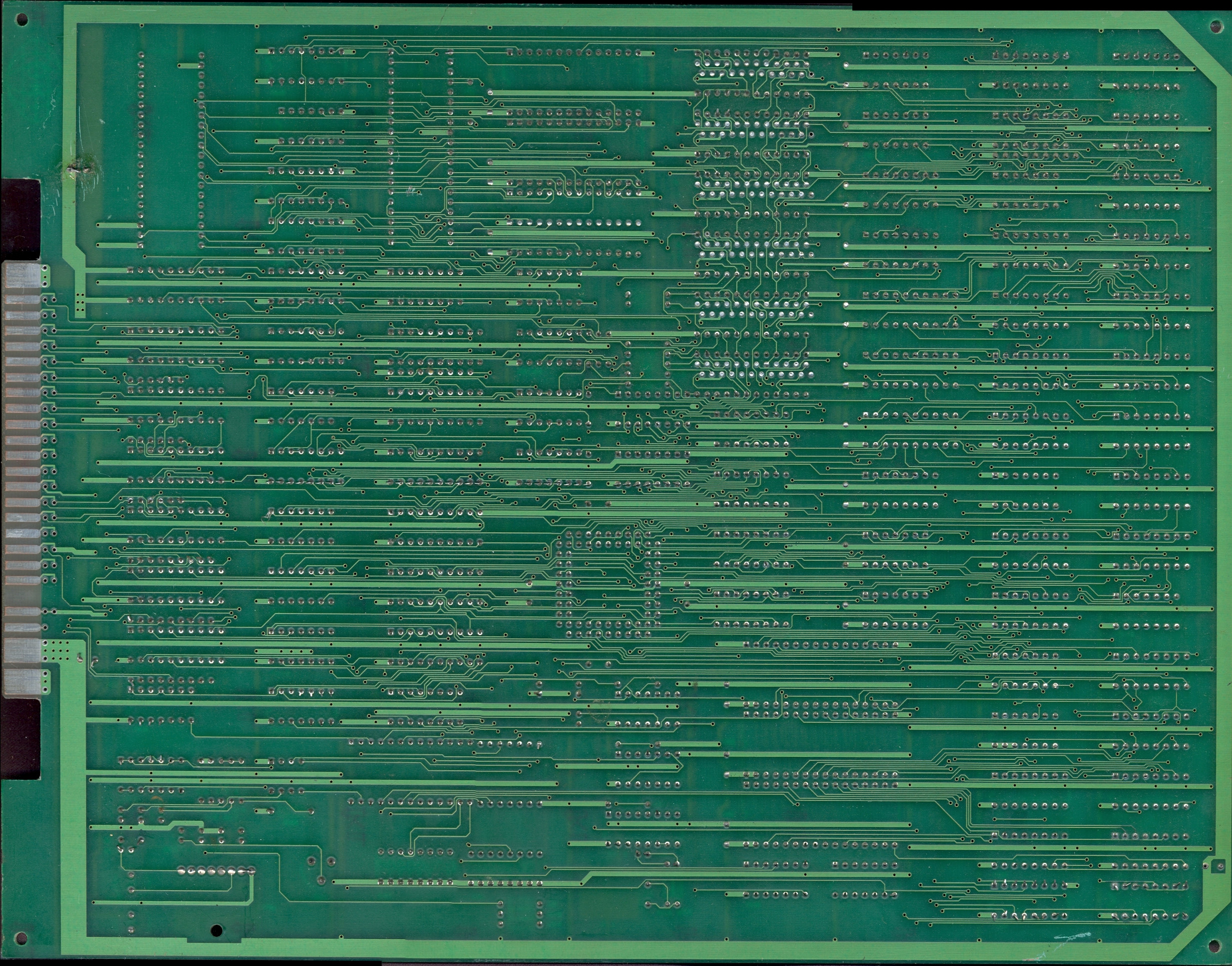

PCB solder side -
ROMs
1429
