| dumper | rtw |
| date | 01/04/2013 |
| emulator | MAME 0.148u3 |
| dev | ShouTime |
| name | crakndj2 on Arcade Database |
| description | Crackin' DJ Part 2 (Japan) |
| year | 2001.06.14 |
| manufacturer | Hitmaker - Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27322 | EPR-23674.ic22 | dumped |
| 20x | DA28F640J5 | ic1s - ic20s | dumped |
| 1x | X76F100 | ic37 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | CY7C199-12VC | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | EPM7064 315-6206 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7885A
Cart N°: 840-0068C
Protection IC: SEGA 315-5881 (317-0311-COM)
Key: 0x28428247
PCB have label 840-0068B-01 837-14124, requires regular 837-13551 and 837-13938 rotary JVS boards, and turntable simulation
Files
-

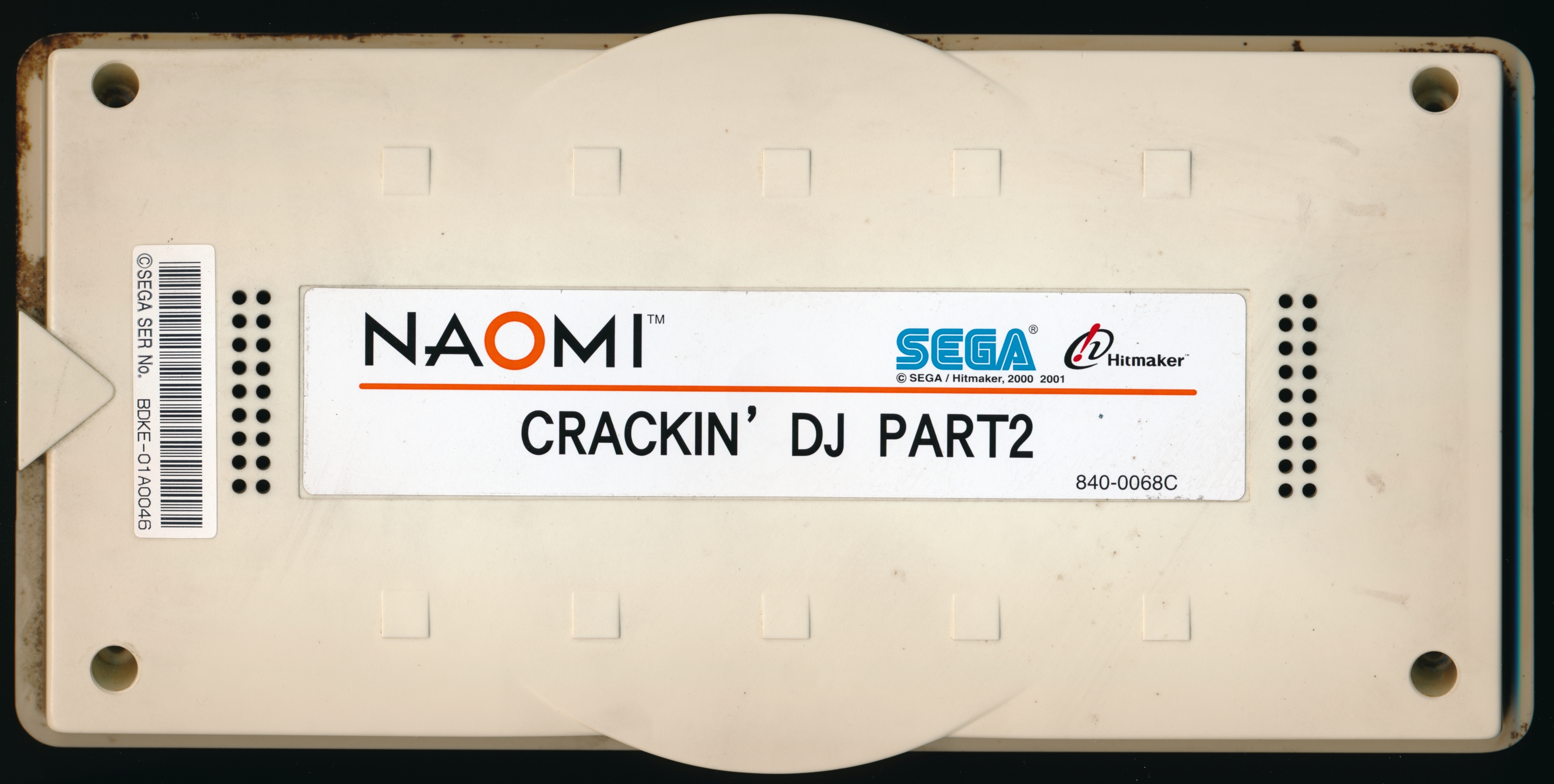

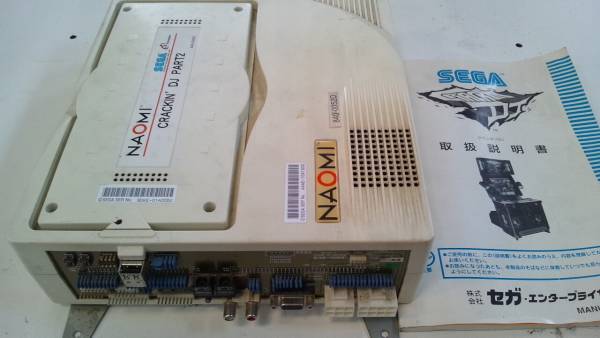

Cart 1 -

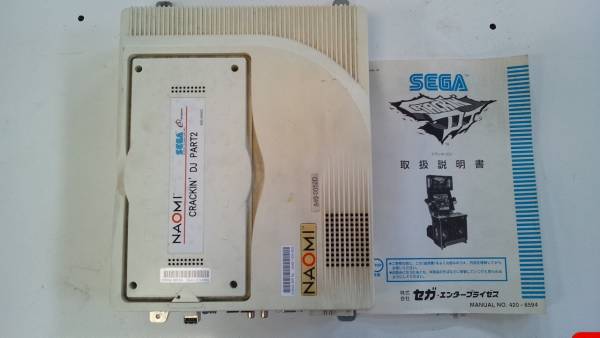

Cart 2 -

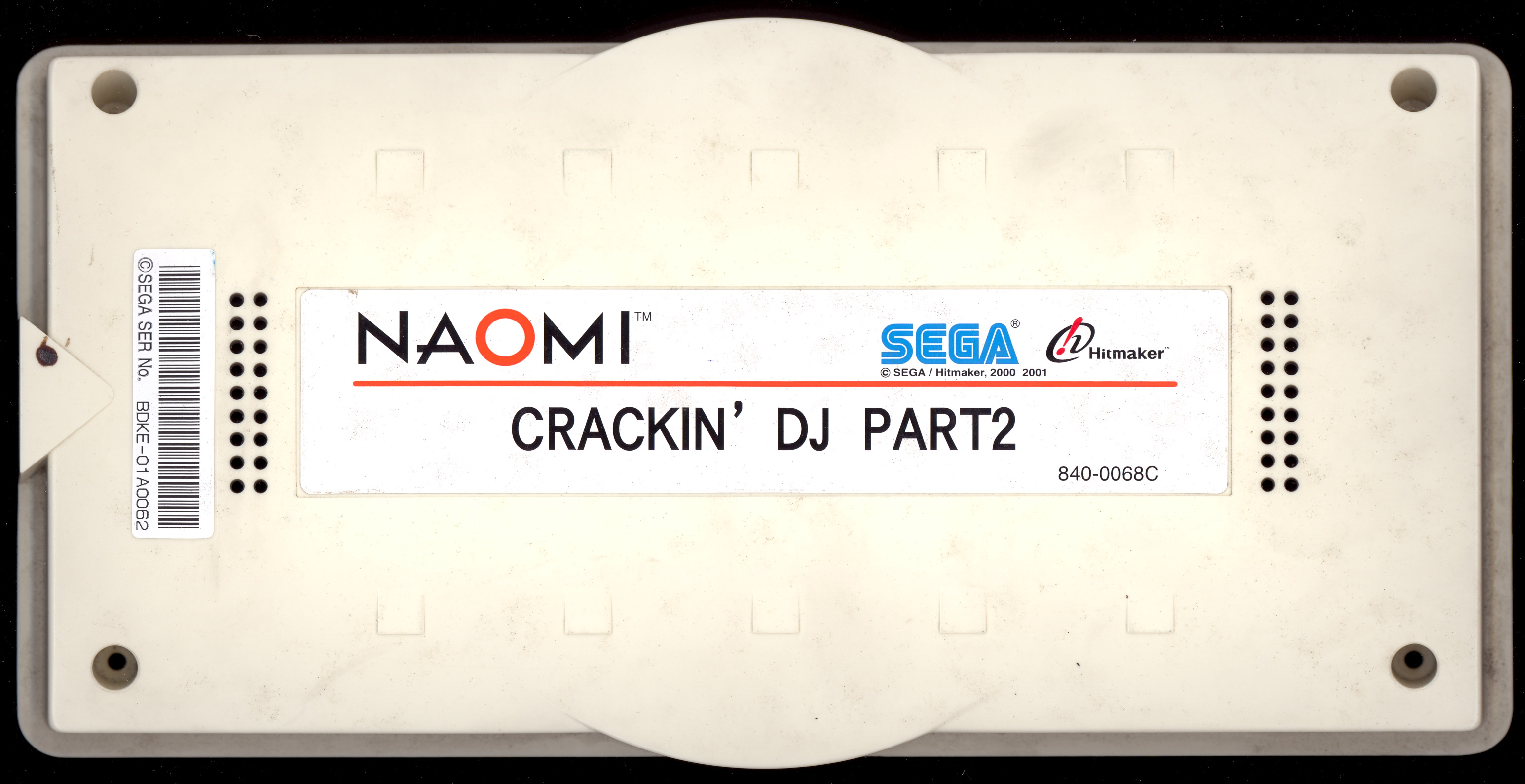

Cart 3 -
Cart 4 -
PCB component side 1 -
PCB component side 2 -

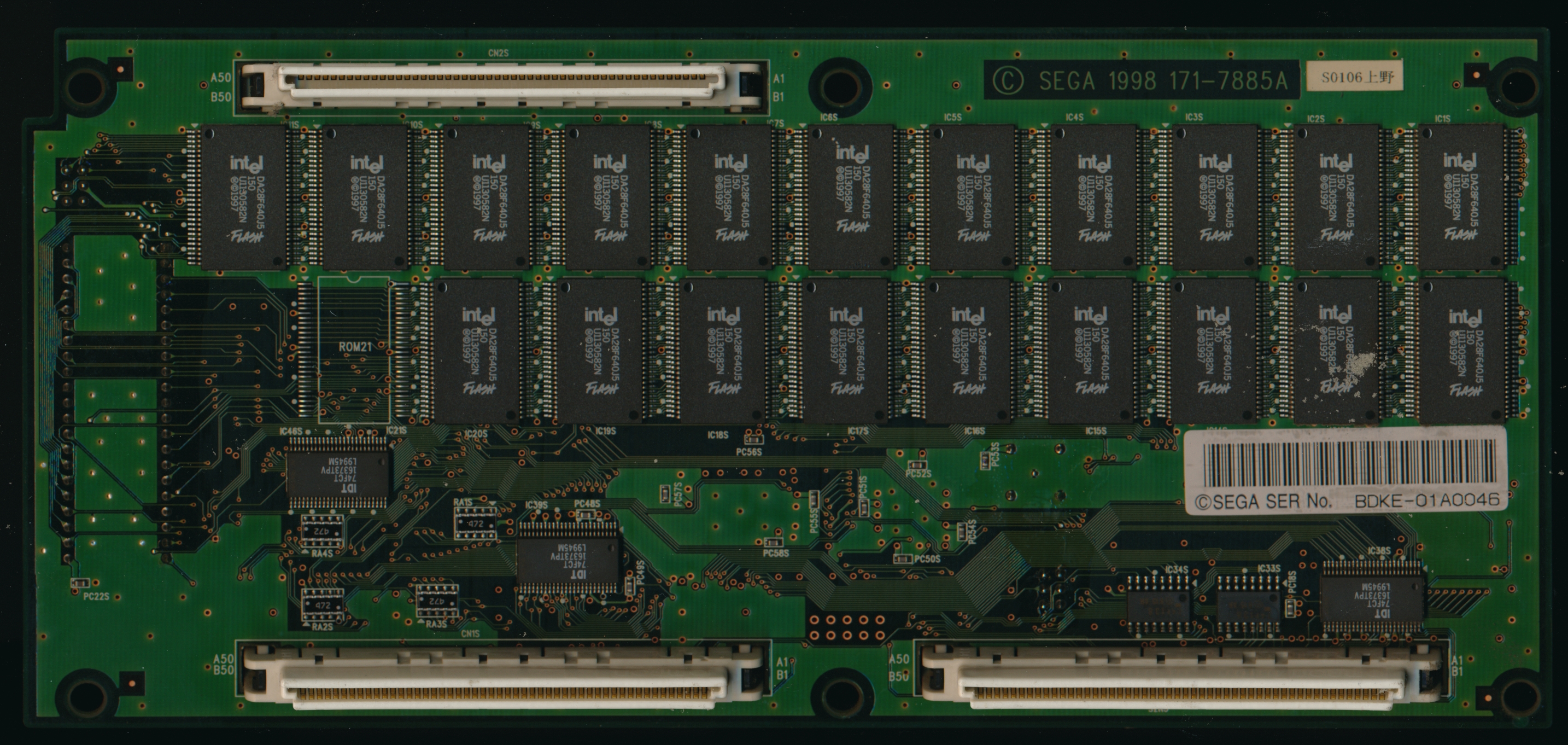

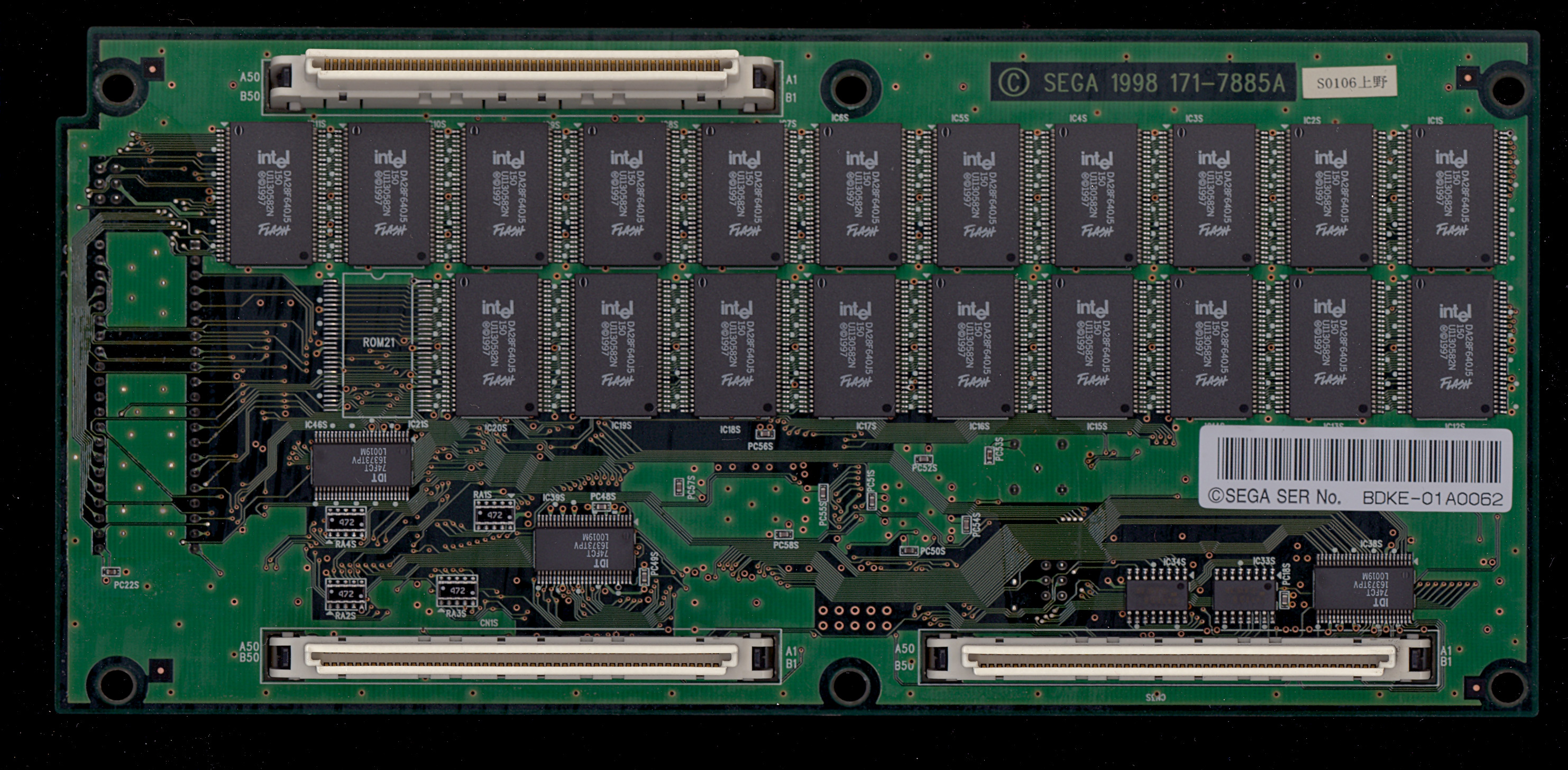

PCB solder side 1 -
PCB solder side 2 -
ROM board test 1 -

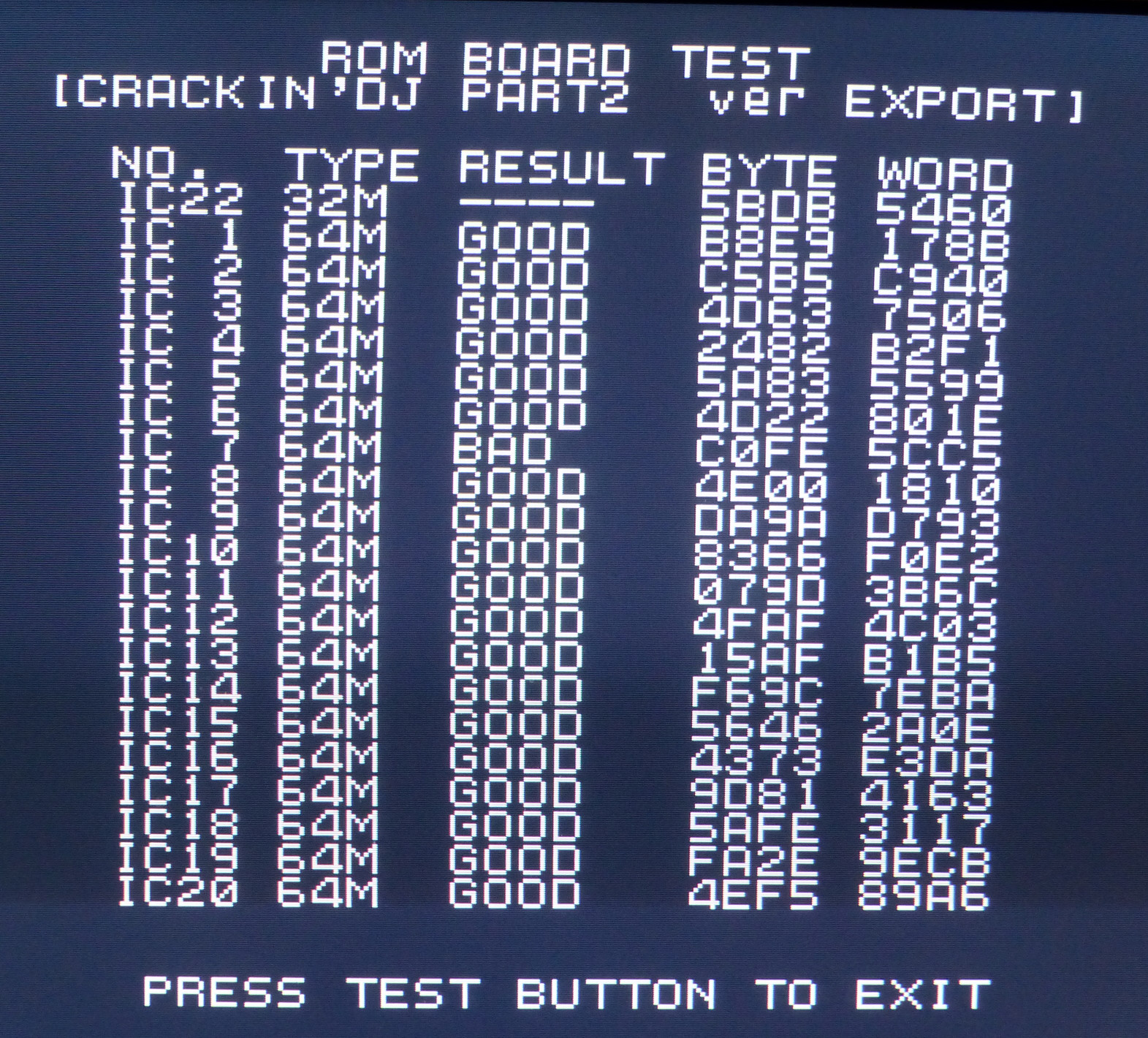

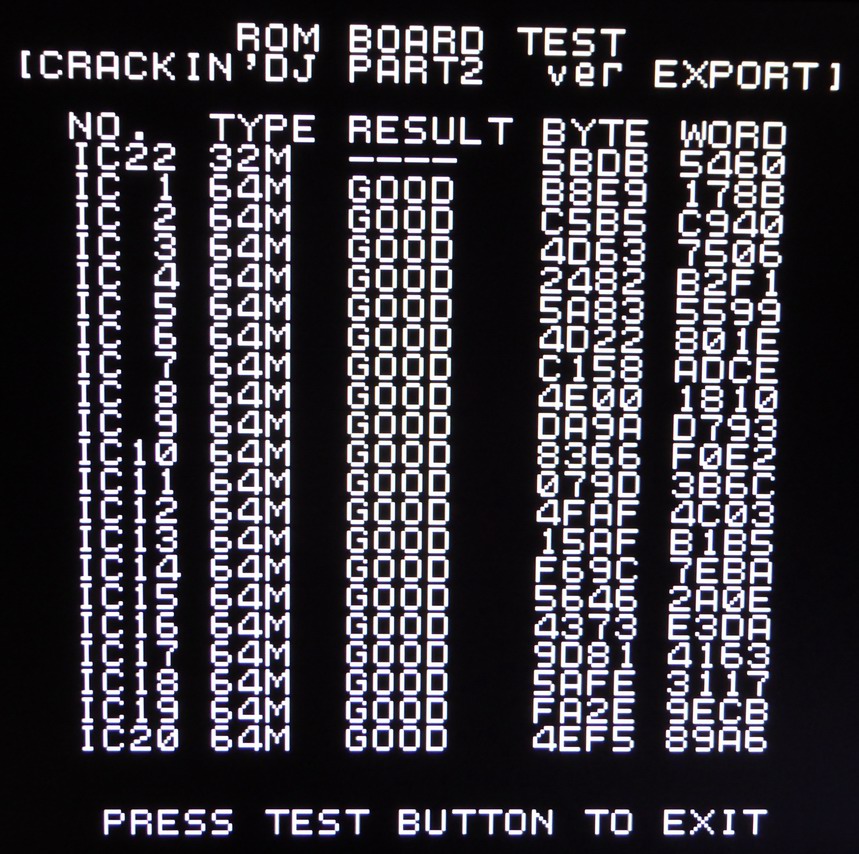

ROM board test 2 -
Readme 1 -
Readme 2
