| dumper | Guru |
| date | 28/01/2003 |
| emulator | MAME 0.114u1 |
| dev | Guru |
| name | pstone on Arcade Database |
| description | Power Stone |
| year | 1999.01.19 |
| manufacturer | Capcom |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C160 | EPR-21597.ic22 | dumped |
| 8x | MX23C6410MC | MPR-21589.ic1 - MPR-21596.ic8 | dumped |
| 1x | X76F100 | ic37 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0001C
Protection IC: SEGA 315-5881 (317-5046-COM)
Key: 0x000e69c1
Files
-

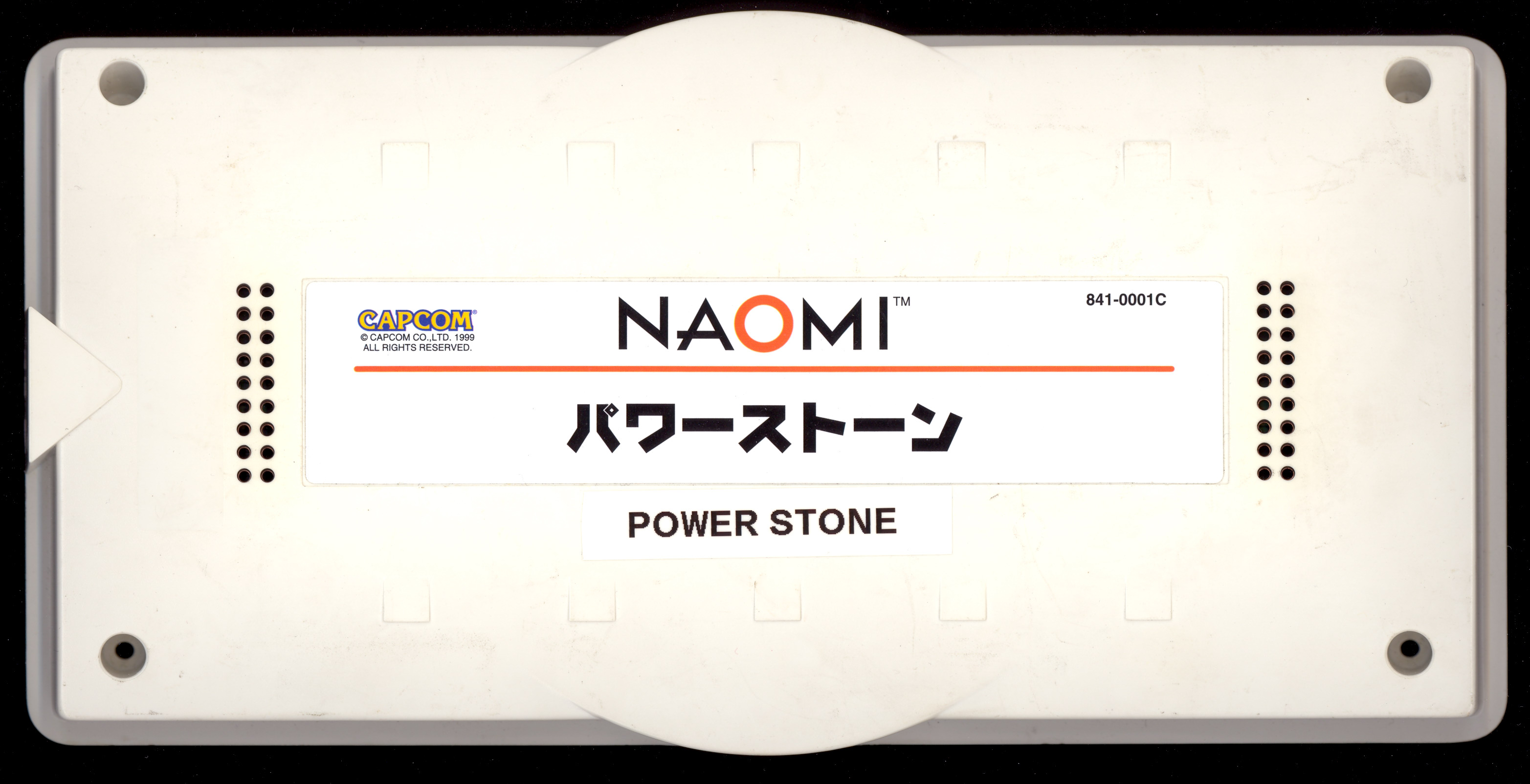

Cart 1 -

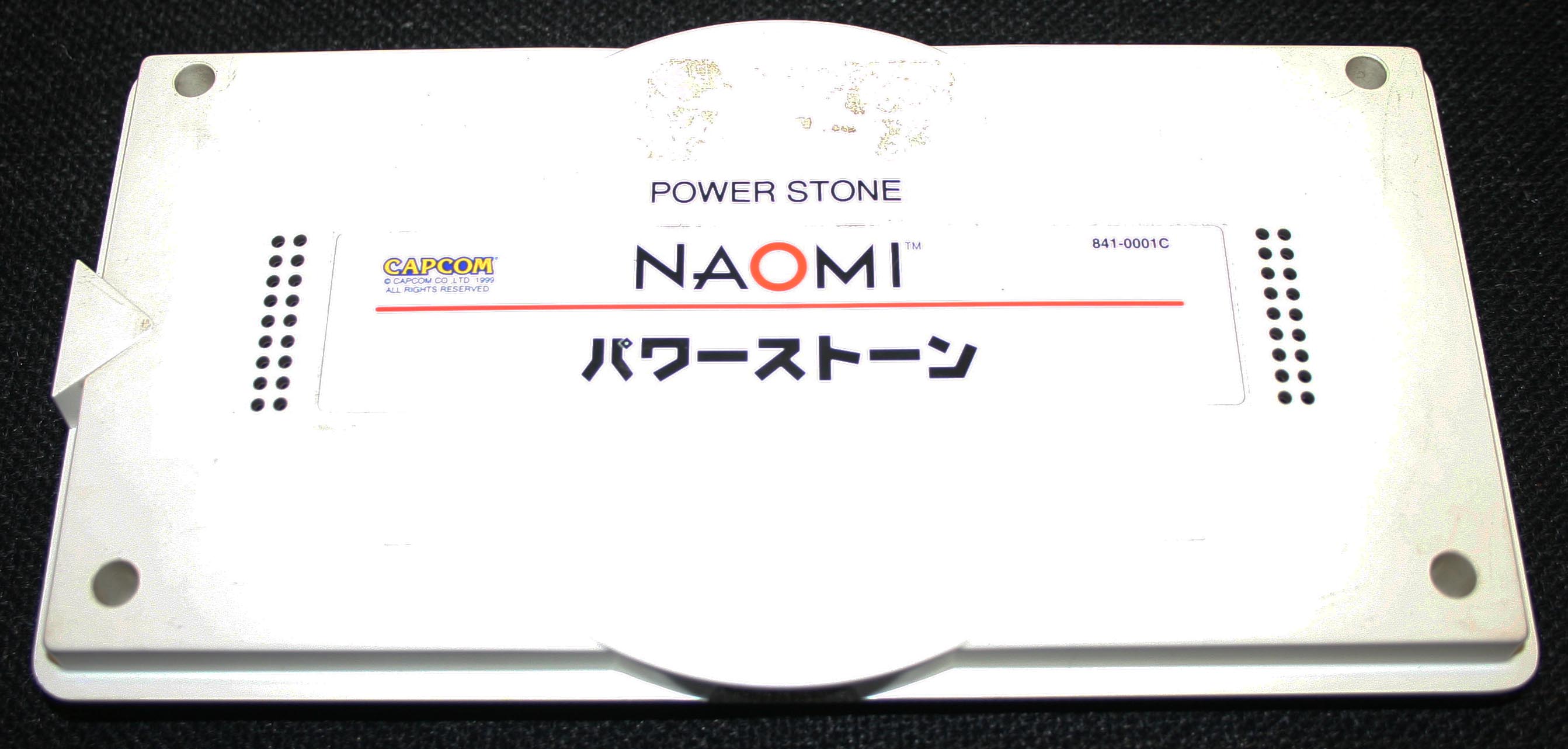

Cart 2 -

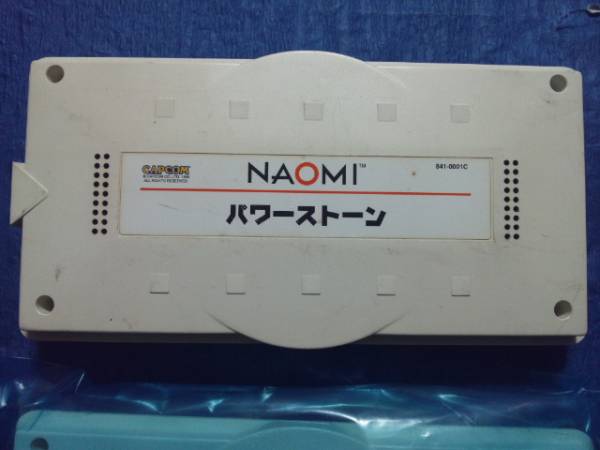

Cart 3 -

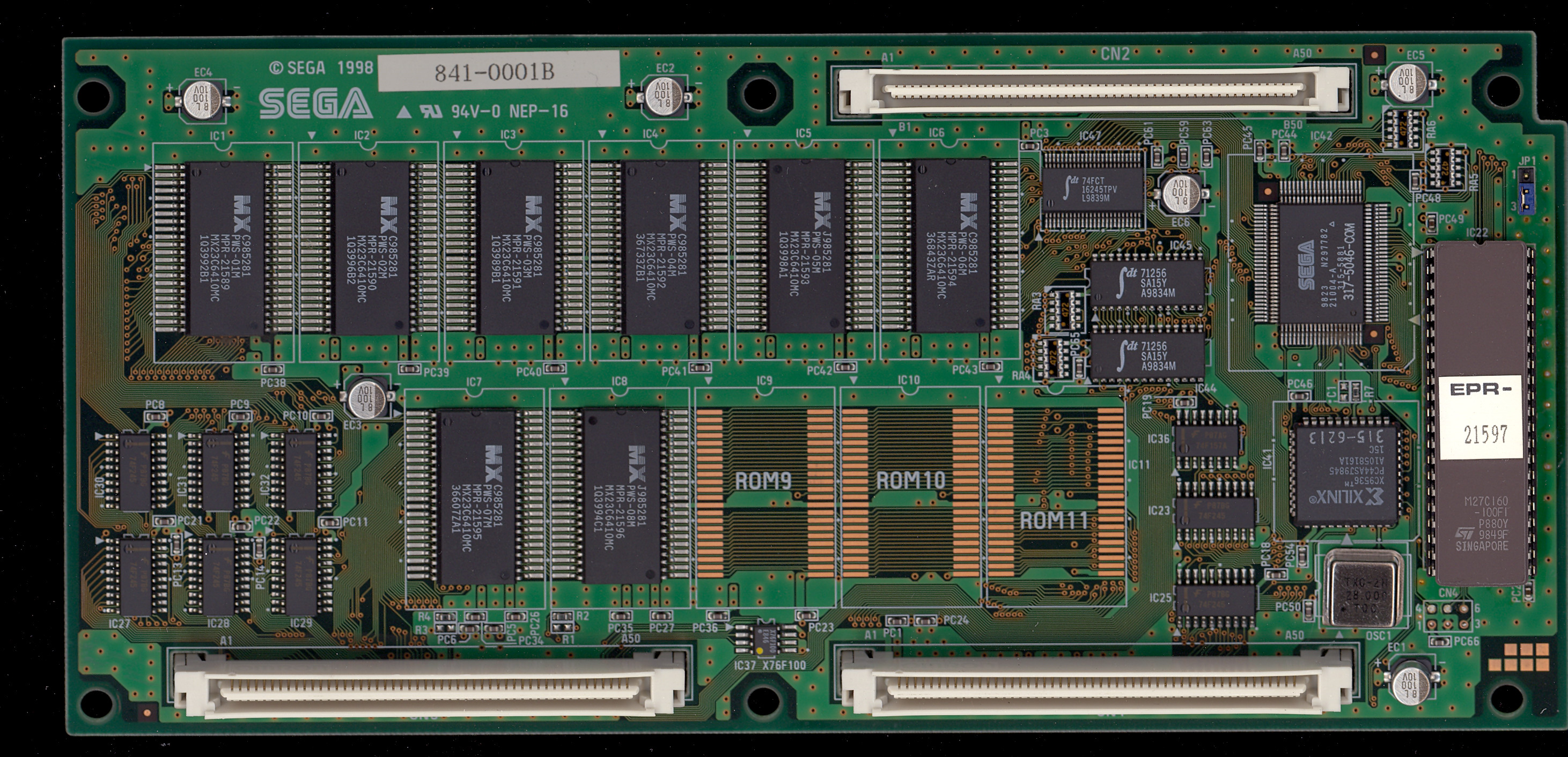

PCB component side 1 -

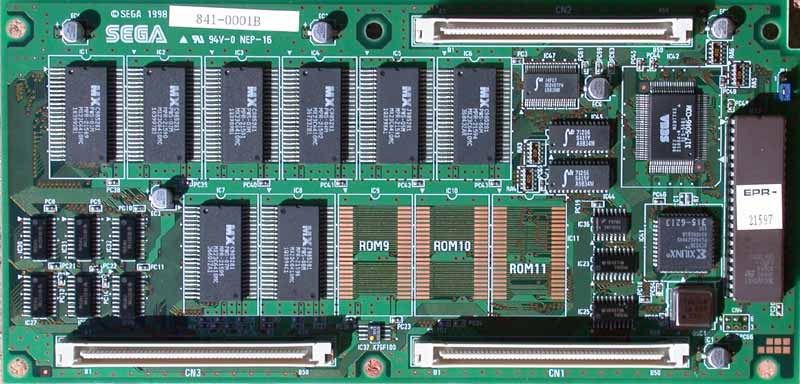

PCB component side 2 -

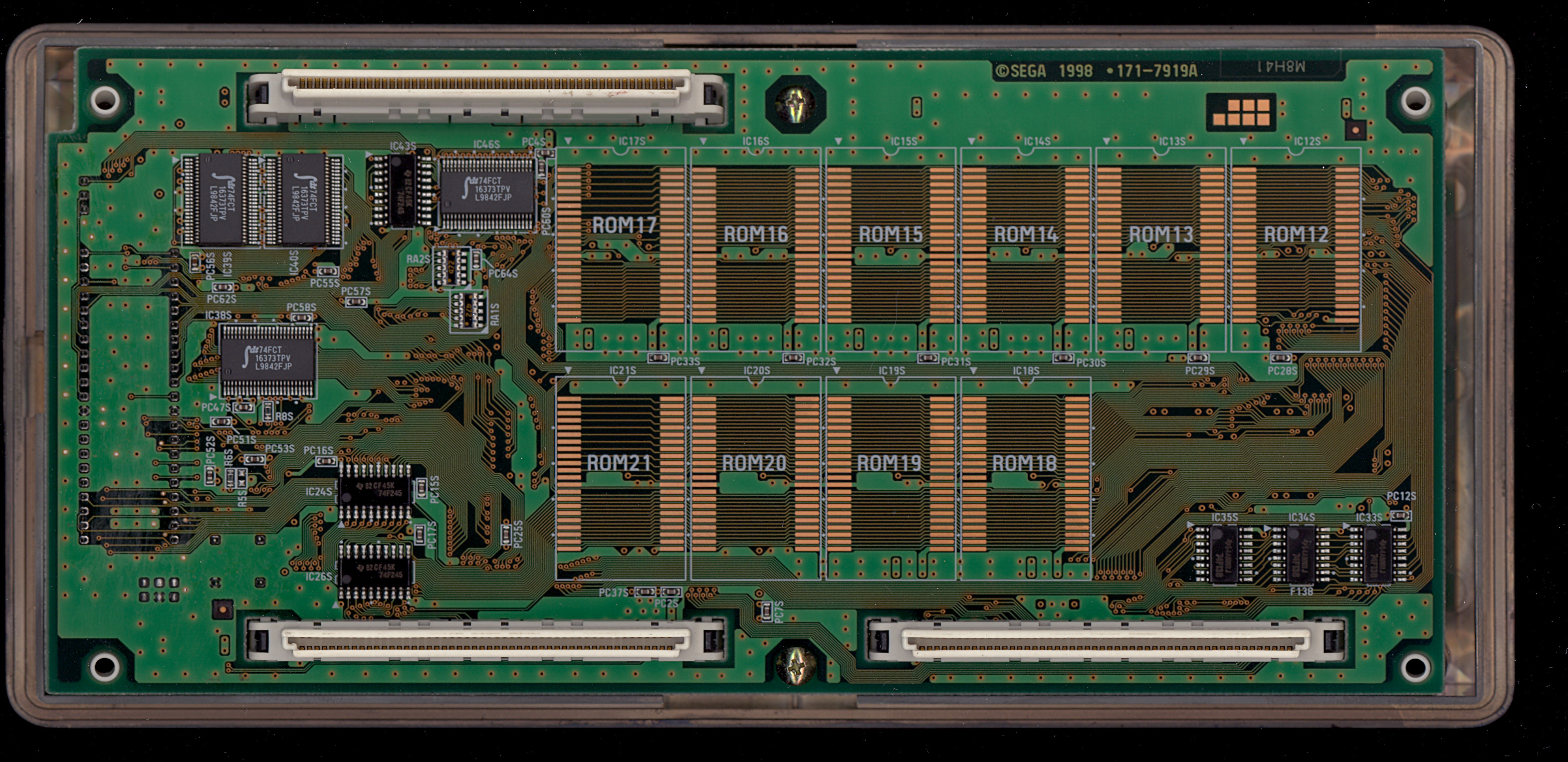

PCB solder side 1 -

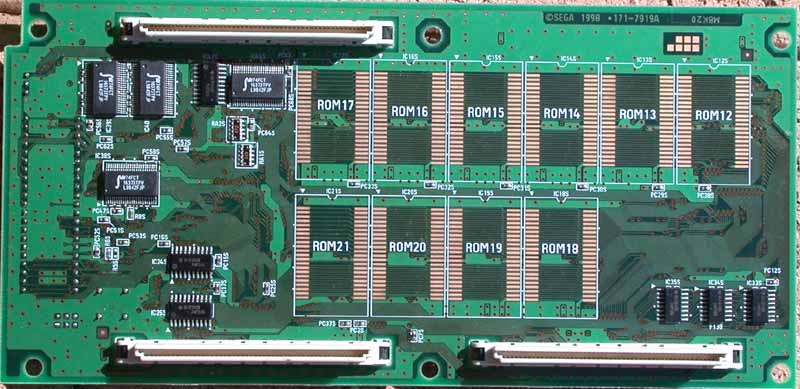

PCB solder side 2 -
readme
