Crash (bootleg of Head On)
From Citylan
| dumper | f205v |
| dump date | 19/10/2010 |
| emulator | MAME 0.143u8 |
| dev | f205v |
| name | hocrash on ProgettoEMMA hocrash on Arcade Database |
| description | Crash (bootleg of Head On) |
| year | 1979 |
| manufacturer | Fraber |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MK3880N | 1A | 8-bit Microprocessor - main | |
| 1x | LM348 | 5D | Quad Bipolar Operational Amplifier - sound | |
| 2x | UA741TC | 6D,6F | Operational Amplifier - sound | |
| 1x | MM5837N | 4F | Digital Noise Source - sound | |
| 1x | oscillator | 15468 | 0a |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 7x | TMS2708JL | 1-7 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | 4027 | 2J,2K,2L,2M,2N,2P,2R,2S |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x 4x2 switches DIP (7C)
Notes
This PCB is a bootleg of Sidam's Head On bootleg (YES, it's bootleg!) manufactured in Torino (Italy) by Fraber.
Update 20160320: I got a second PCB for this game. Completed description, with better pictures.
Files
-

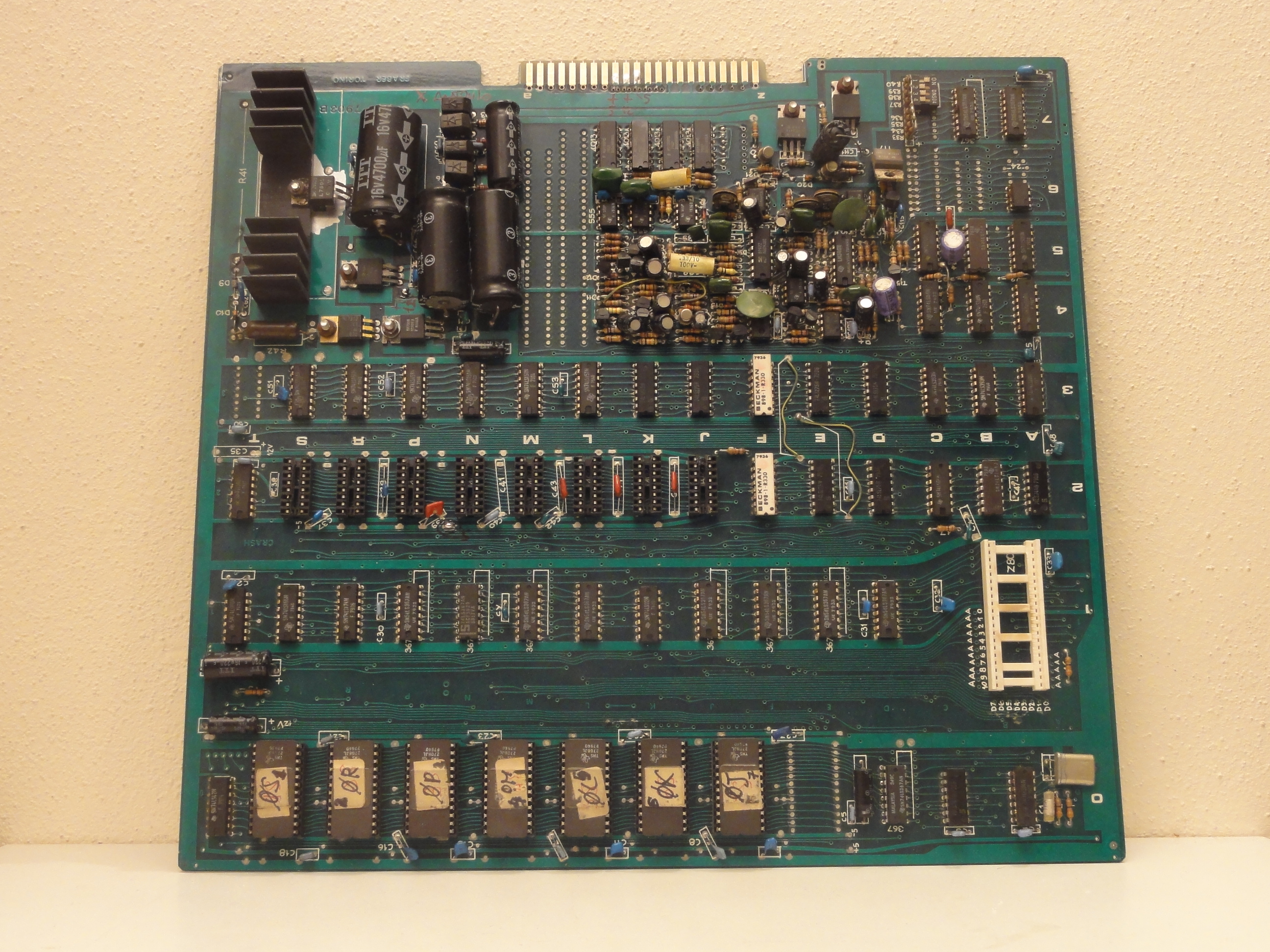

PCB component side -

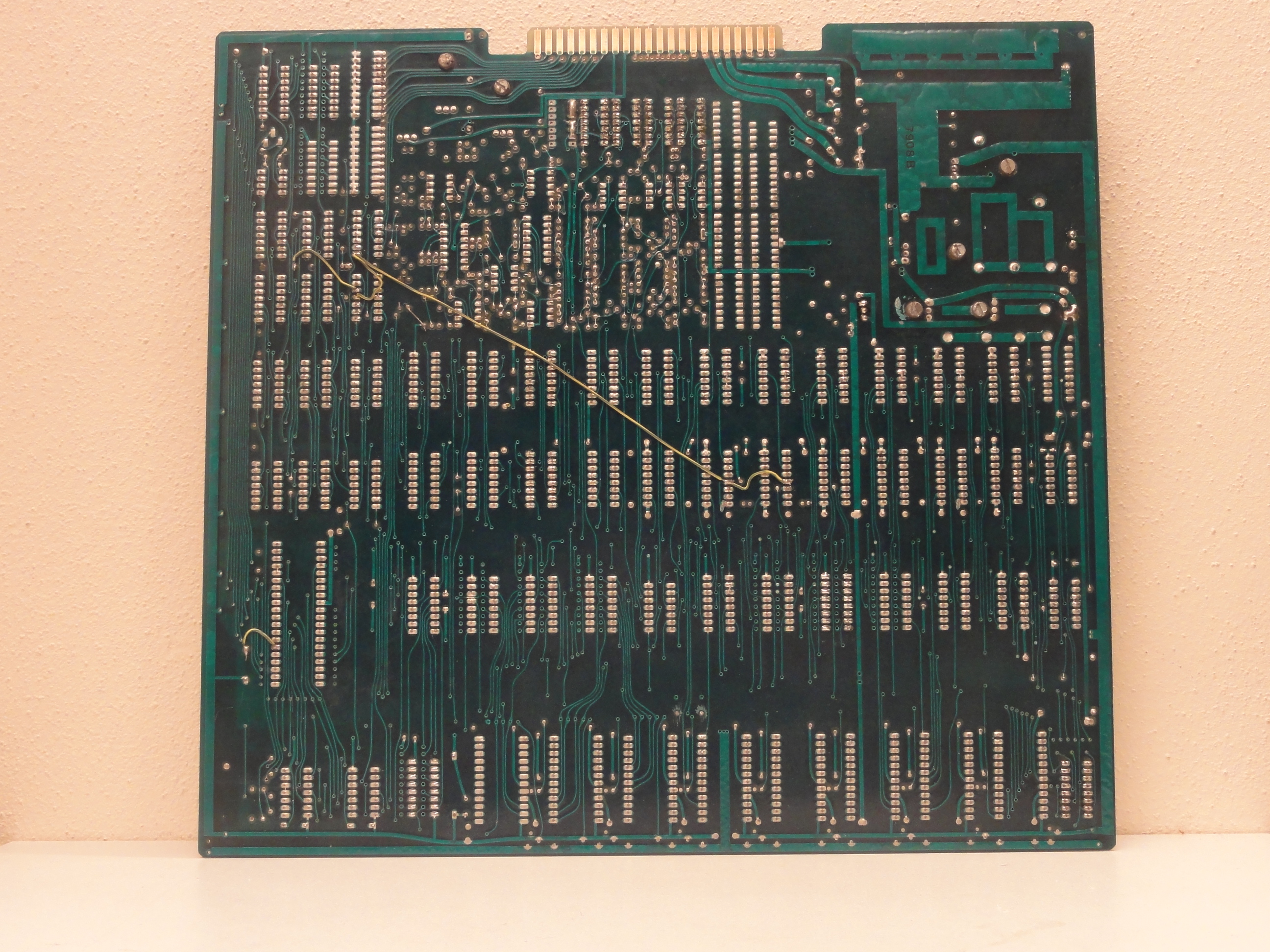

PCB solder side -

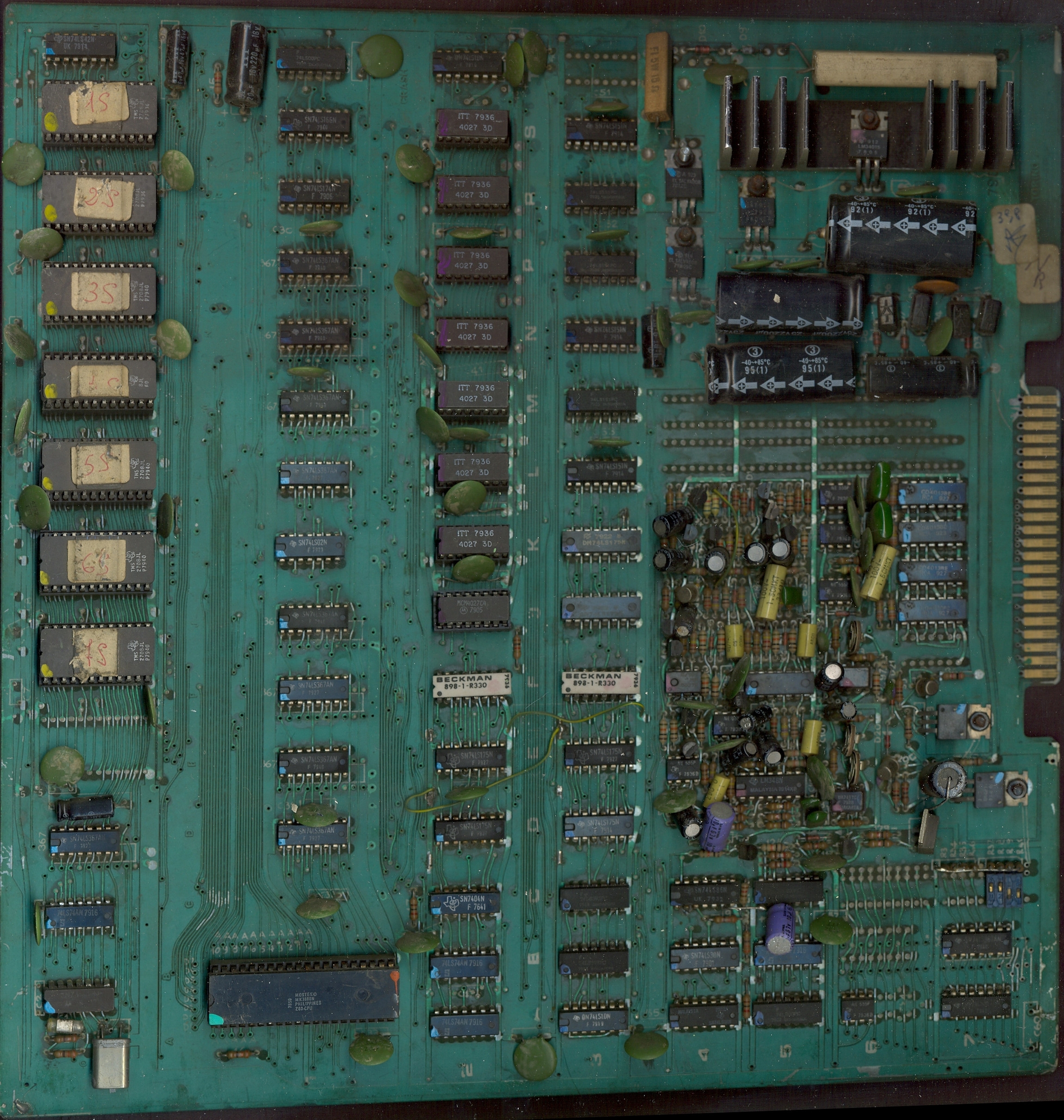

PCB 2 component side -

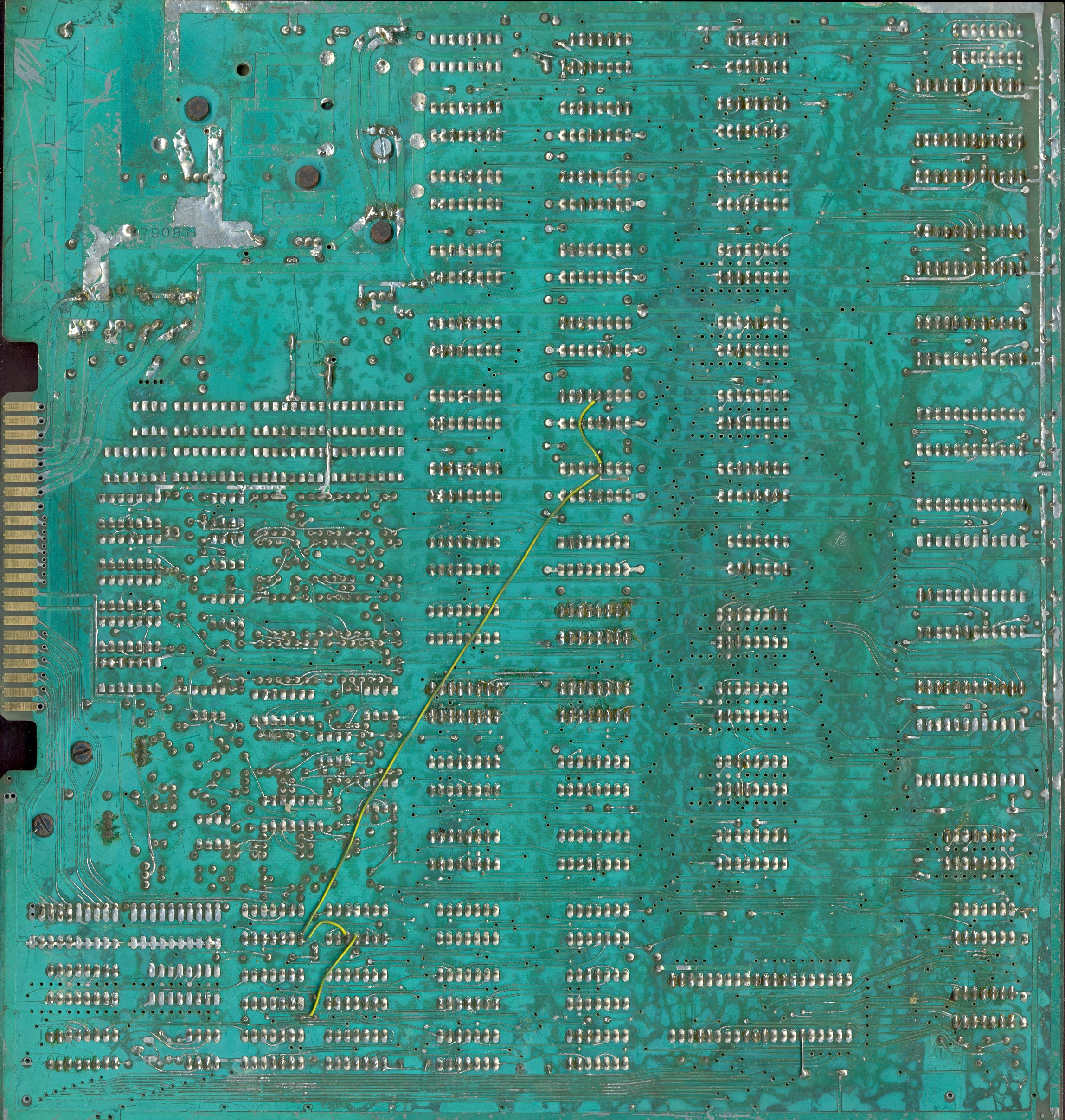

PCB 2 solder side
