The Typing of the Dead (Rev A)

EMU Infos

dumper	Guru
date	10/04/2009
emulator	MAME 0.130u4
dev	Alex

PCB Infos

name	totd on ProgettoEMMA totd on Arcade Database
description	The Typing of the Dead (Rev A)
year	2000.01
manufacturer	Sega

Technical references

CPUs

QTY	Type	clock	position	function
1x	oscillator	28.000	osc1

ROMs

QTY	Type	position	status
1x	M27C322	EPR-23021A.ic22	dumped
20x	M27W064	23001.ic1 - 23020.ic20s	dumped
1x	X76F100	ic37	dumped

RAMs

QTY	Type	position
2x	IDT71256	ic44,ic45

PLDs

QTY	Type	position	status
1x	315-6213	ic41	read protected

Notes

It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0026C
Protection IC: not present
Key: no key

Files

•

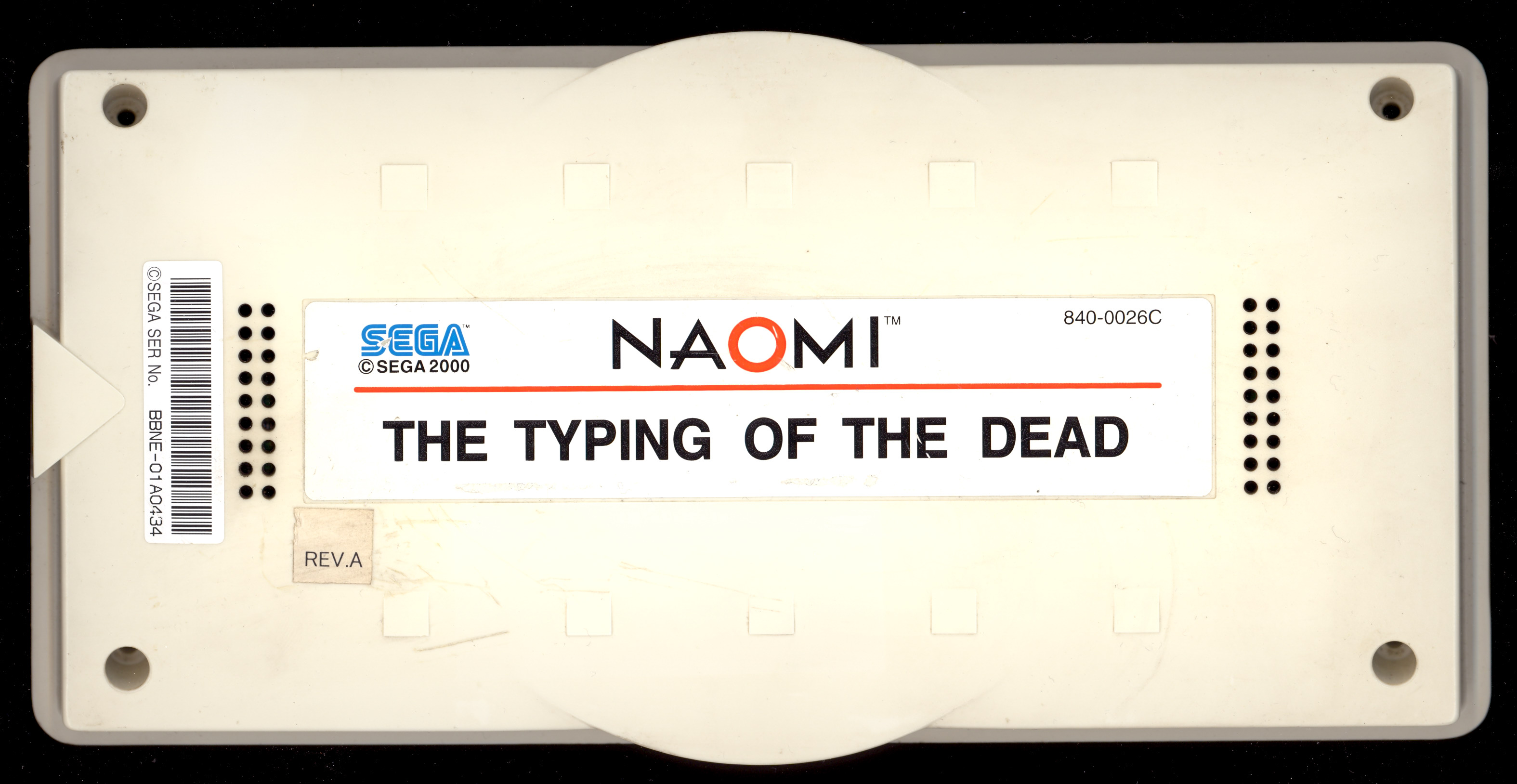

  Cart
•

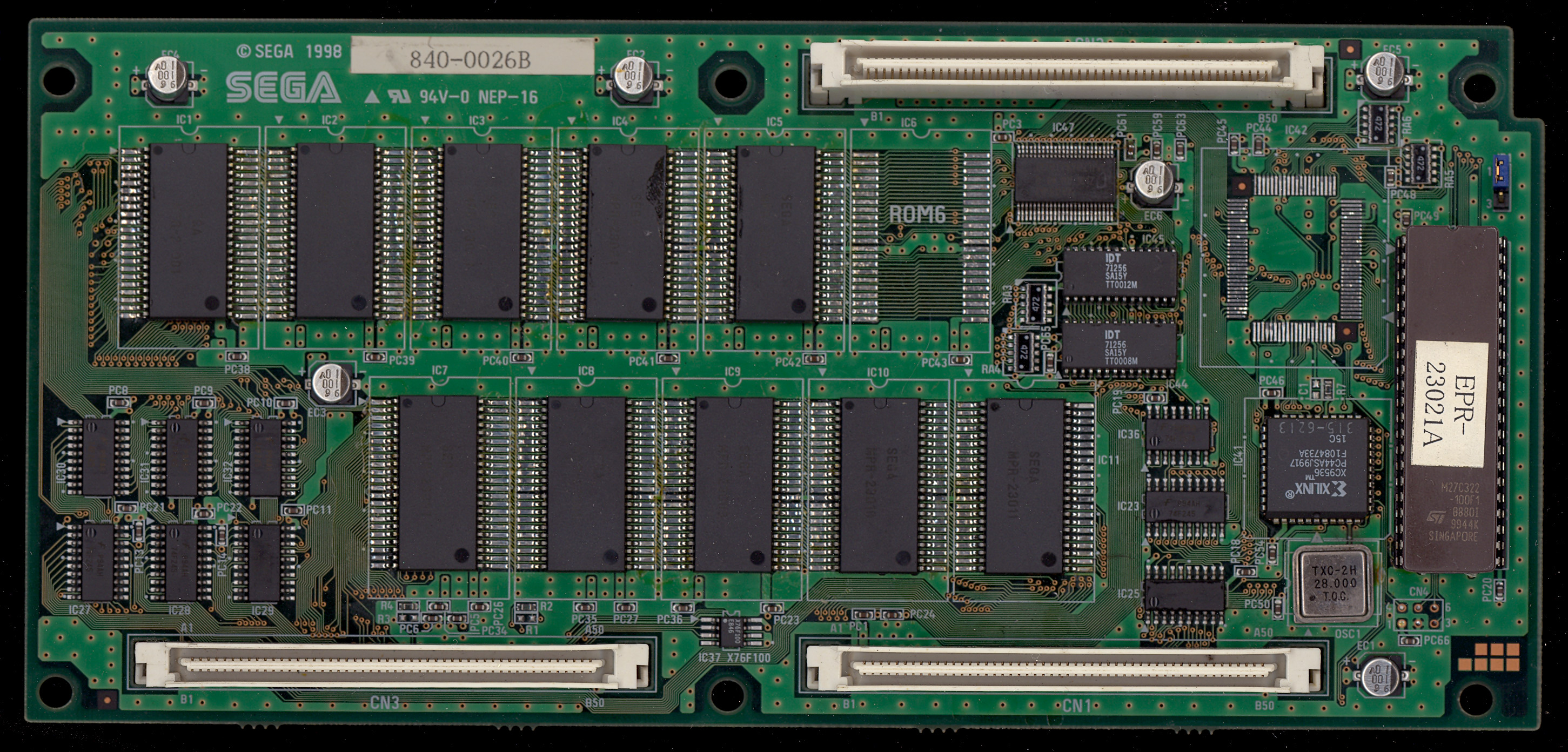

  PCB component side
•

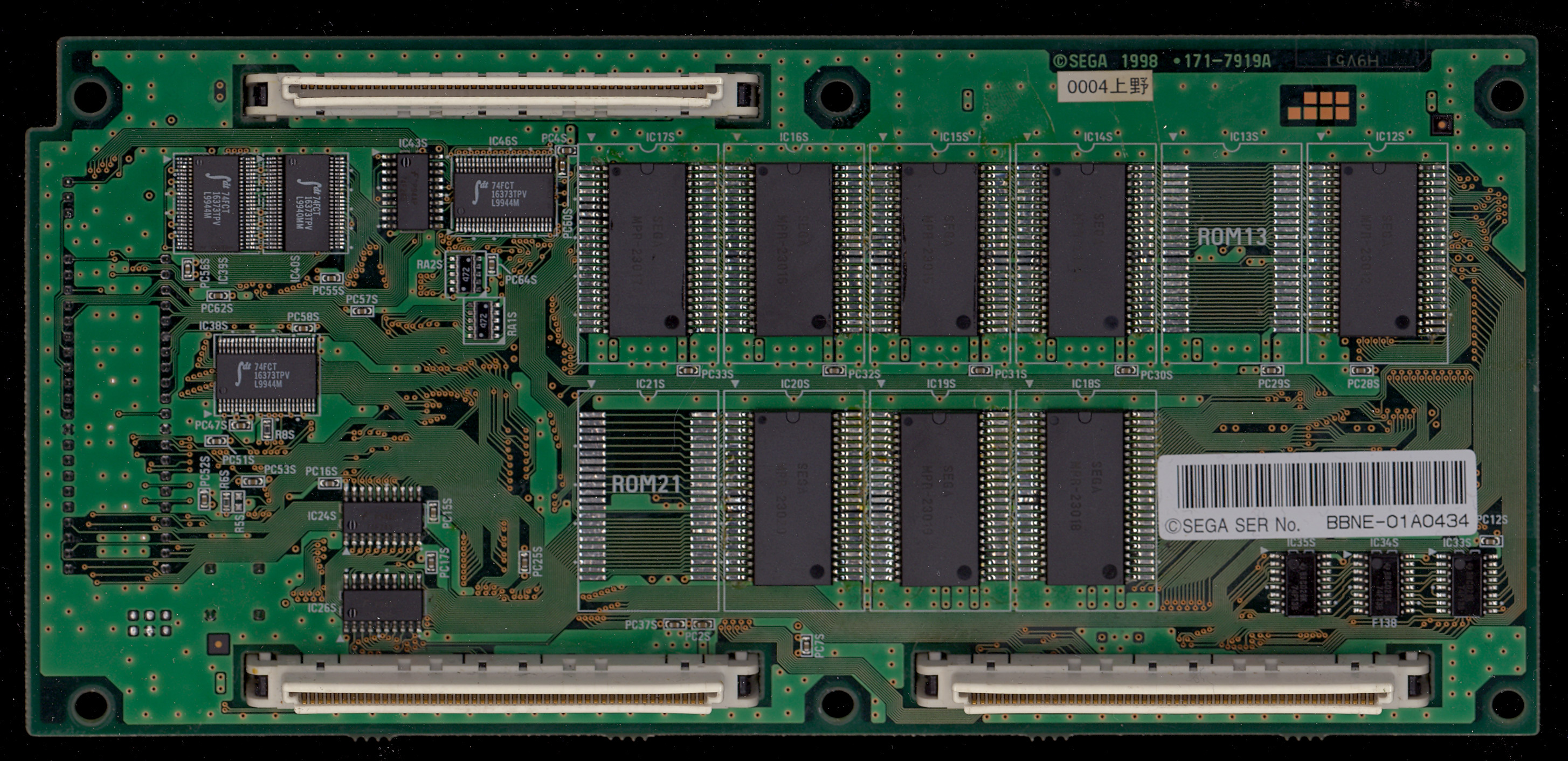

  PCB solder side
