Mushiking The King Of Beetles 2004 Second (Japan)
From Citylan
| dumper | |
| date | |
| emulator | |
| dev |
| name | 1463 |
| description | Mushiking The King Of Beetle 2K4 2nd (Japan) |
| year | 2004 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | EPR-?.ic22 | not dumped |
| ?x | MaskROM 128Mb TSOP48 | MPR-?.ic1 - MPR-?.ic? | not dumped |
| 1x | X76F100 | ic46 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71V256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
| 1x | EPM7032 315-6319A | ic27 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8132B
Cart N°: 840-0152C
Protection IC: SEGA 315-5881 (317-????-???)
Key: 0x?
Files
-

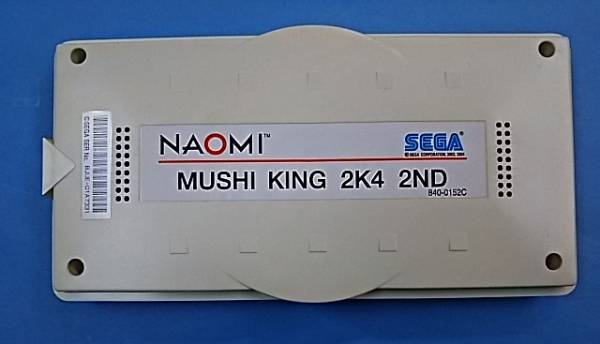

Cart -

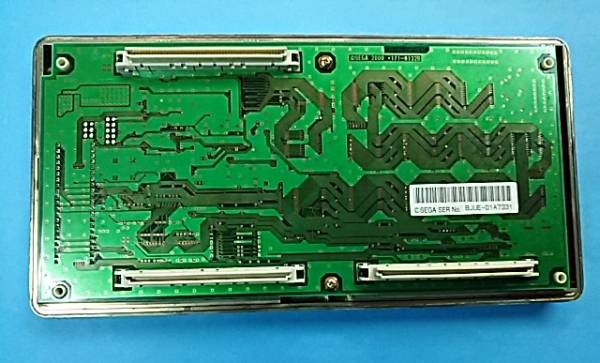

PCB solder side
1463
