Touch de Uno! 2 (Japan)

EMU Infos

dumper	f205v
date	09/10/2011
emulator	MAME 0.144u6
dev	f205v, The Dumping Union

PCB Infos

name	tduno2 on ProgettoEMMA tduno2 on Arcade Database
description	Touch de Uno! 2 (Japan)
year	2000.02.25
manufacturer	Sega

Technical references

CPUs

QTY	Type	clock	position	function
1x	oscillator	50.000MHz	osc1

ROMs

QTY	Type	position	status
1x	27160	epr23071.ic11	dumped
6x	236410	mpr23063.ic17s-mpr23064.ic18-mpr23065.ic19s-mpr23066.ic20-mpr23067.ic21s-mpr23068.ic22	dumped
1x	25LC040	ic13s	dumped

RAMs

QTY	Type	position
1x	IDT71V256	ic15

PLDs

QTY	Type	position	status
1x	A54SX32 317-0276-JPN	ic1	read protected

Notes

It's a NAOMI cart.
Cart type: 171-7978B
Cart N°: 840-0022C
Key: 0x2f6f0f8d

Files

•

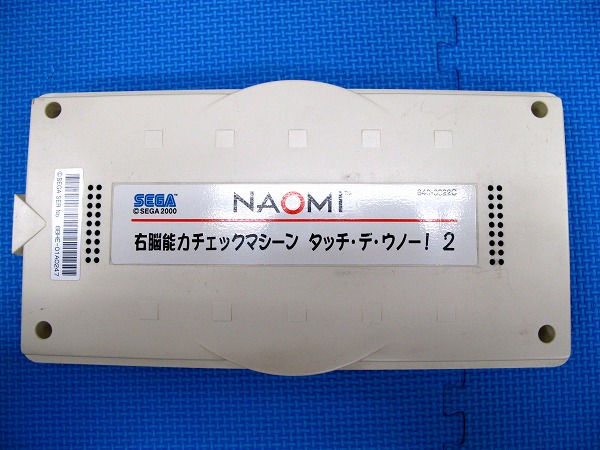

  cart 1
•

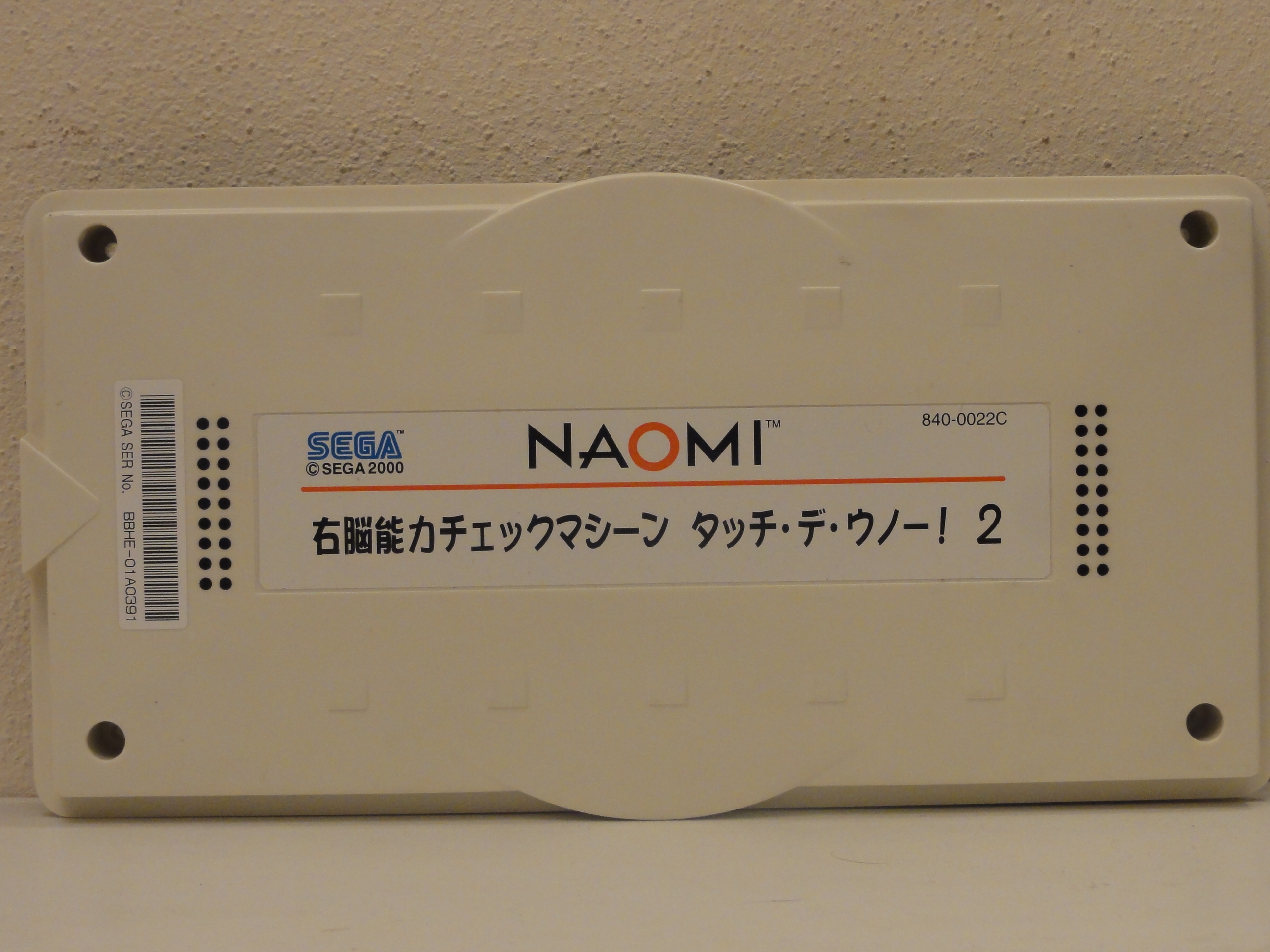

  cart 2
•

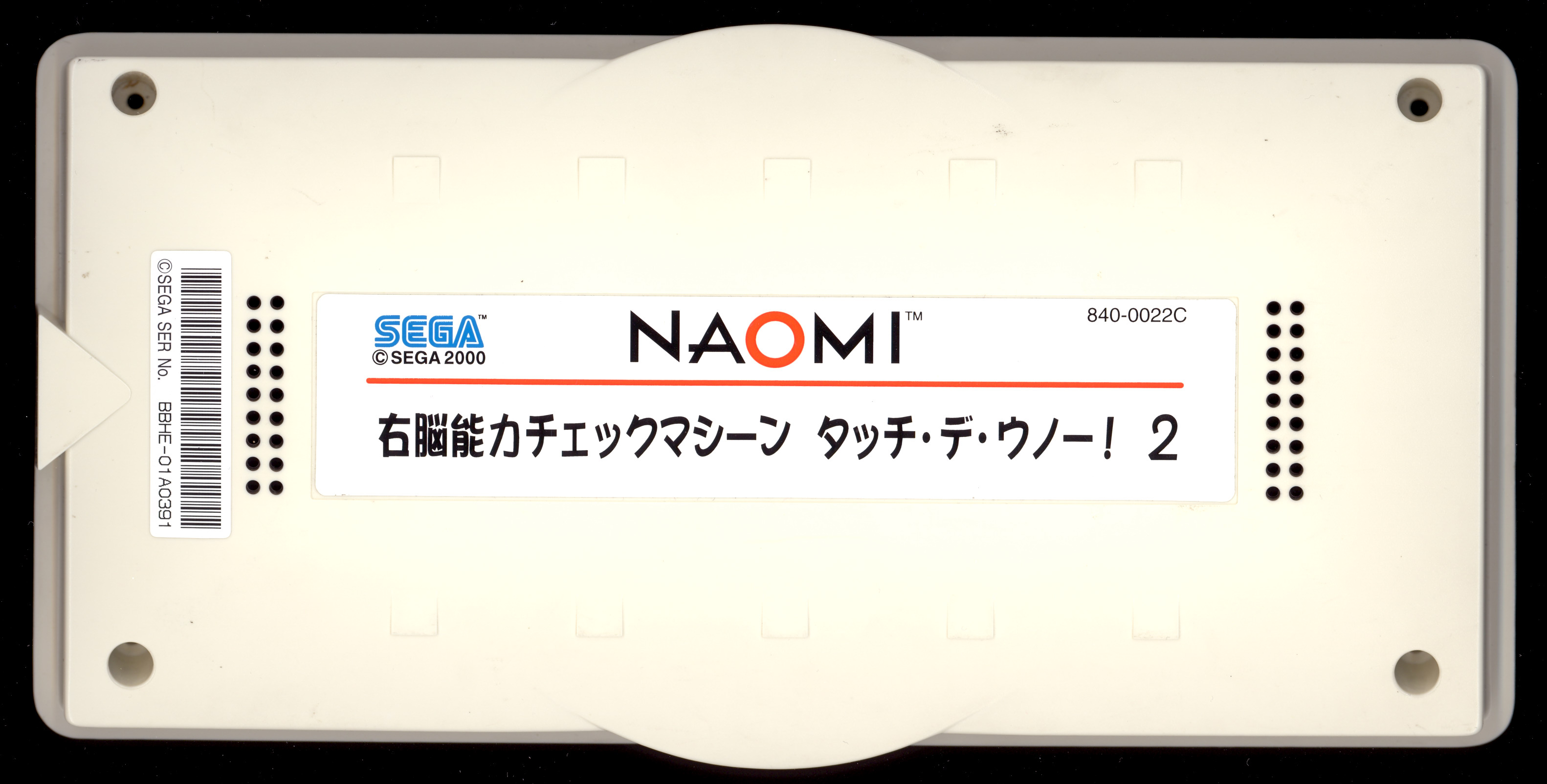

  cart 3
•

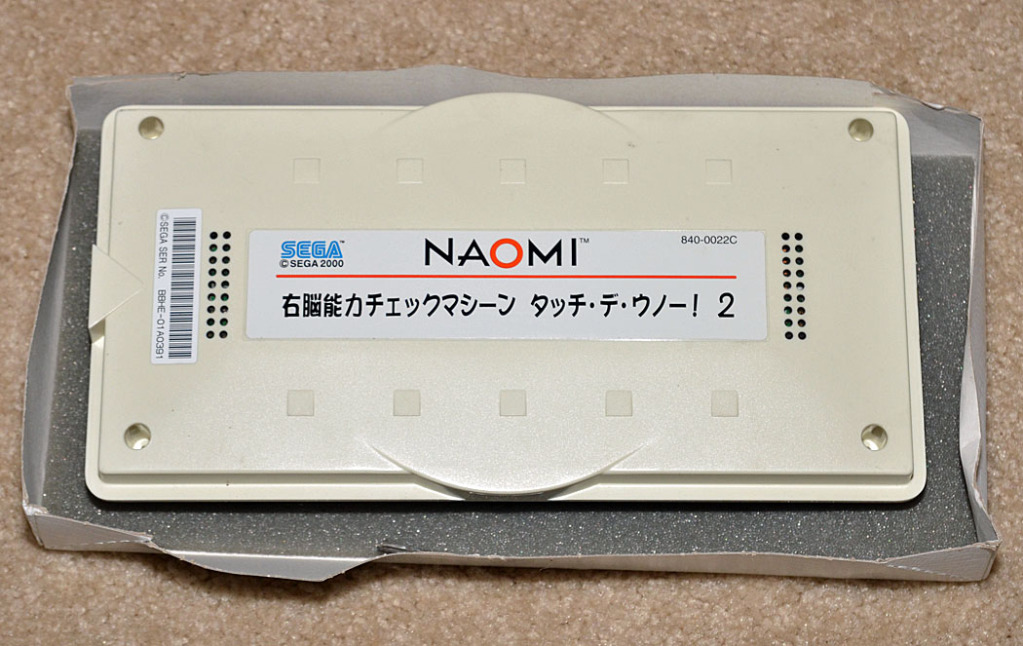

  cart 4
•

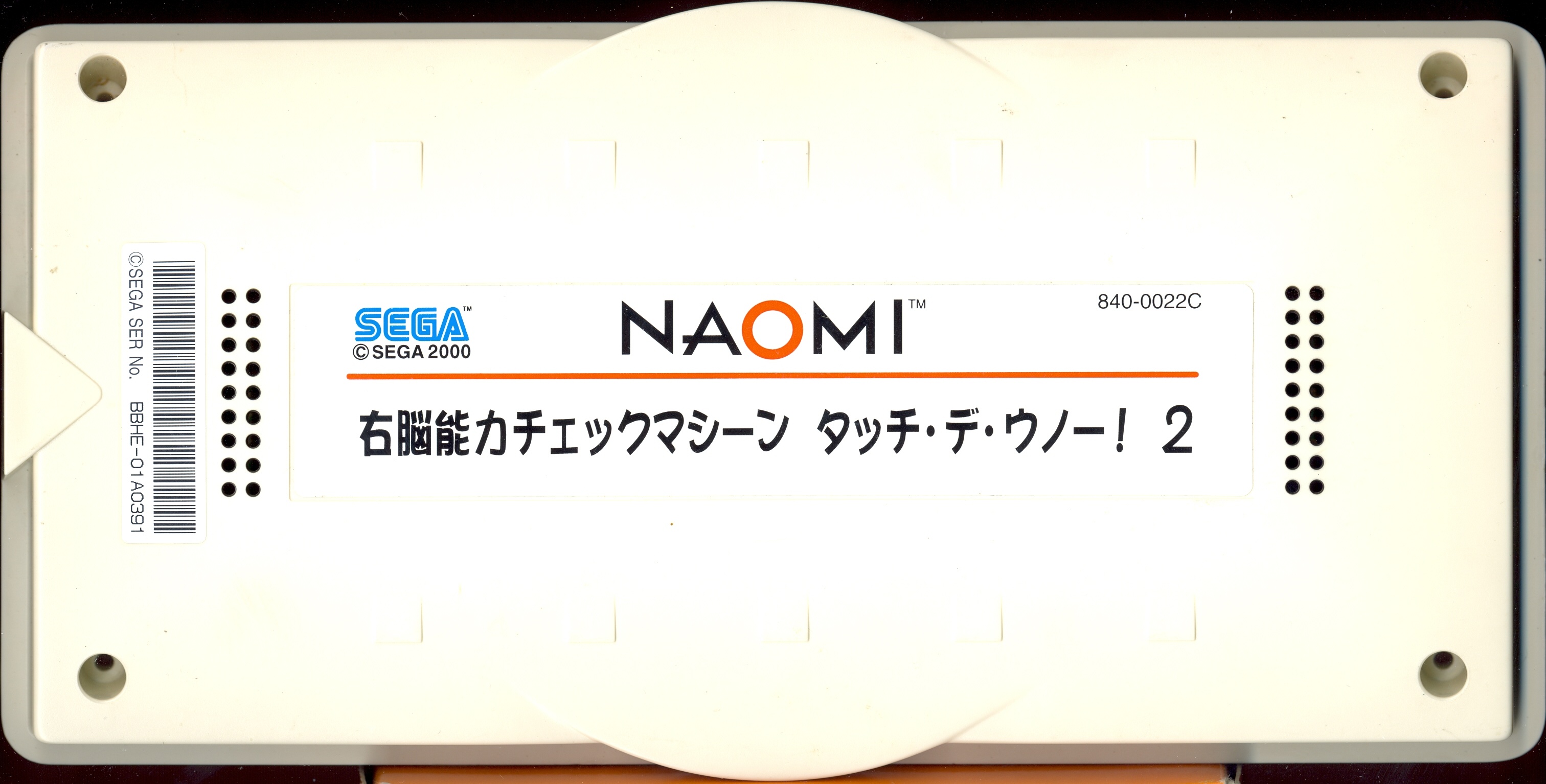

  cart 5
•

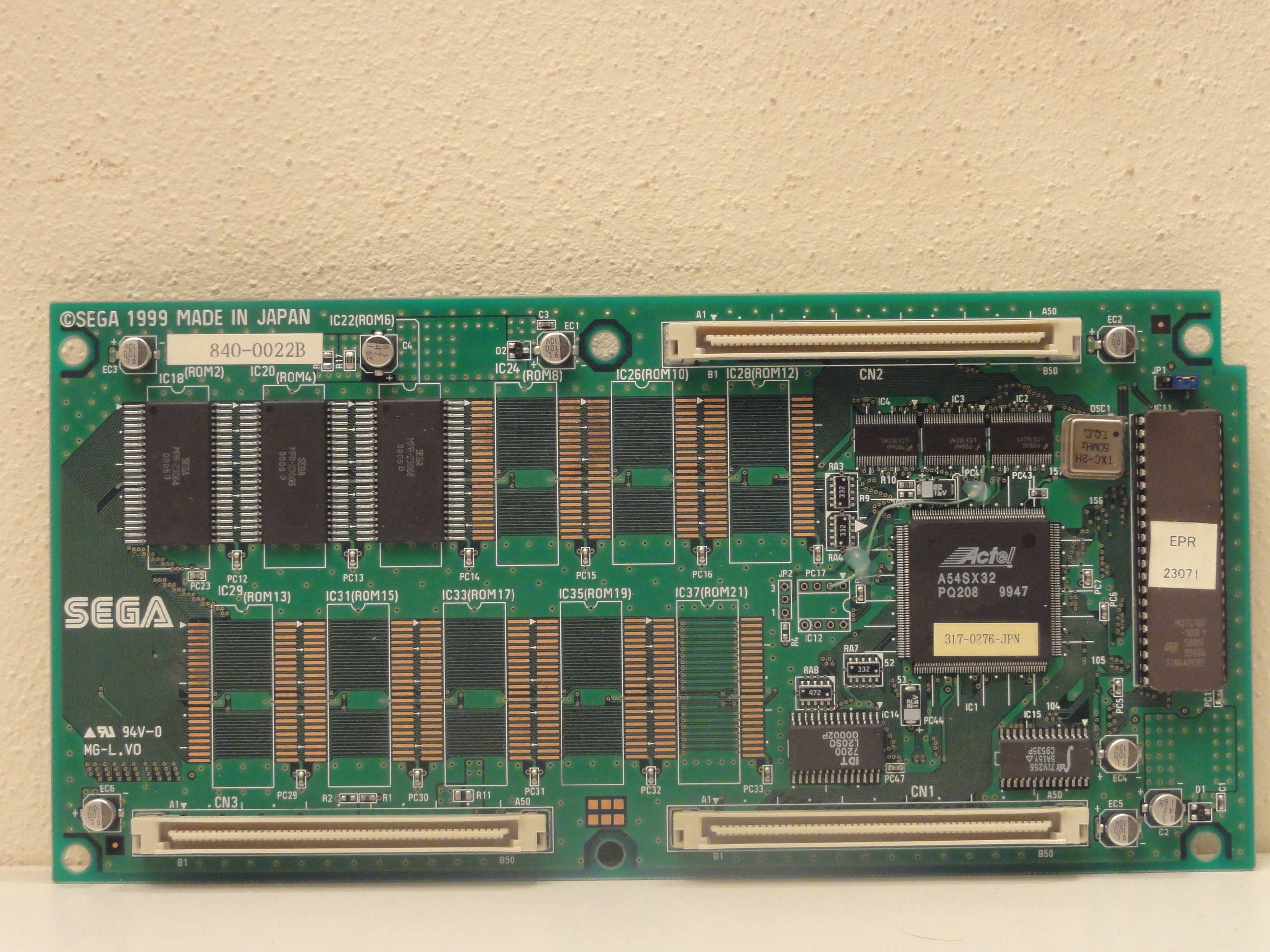

  PCB component side
•

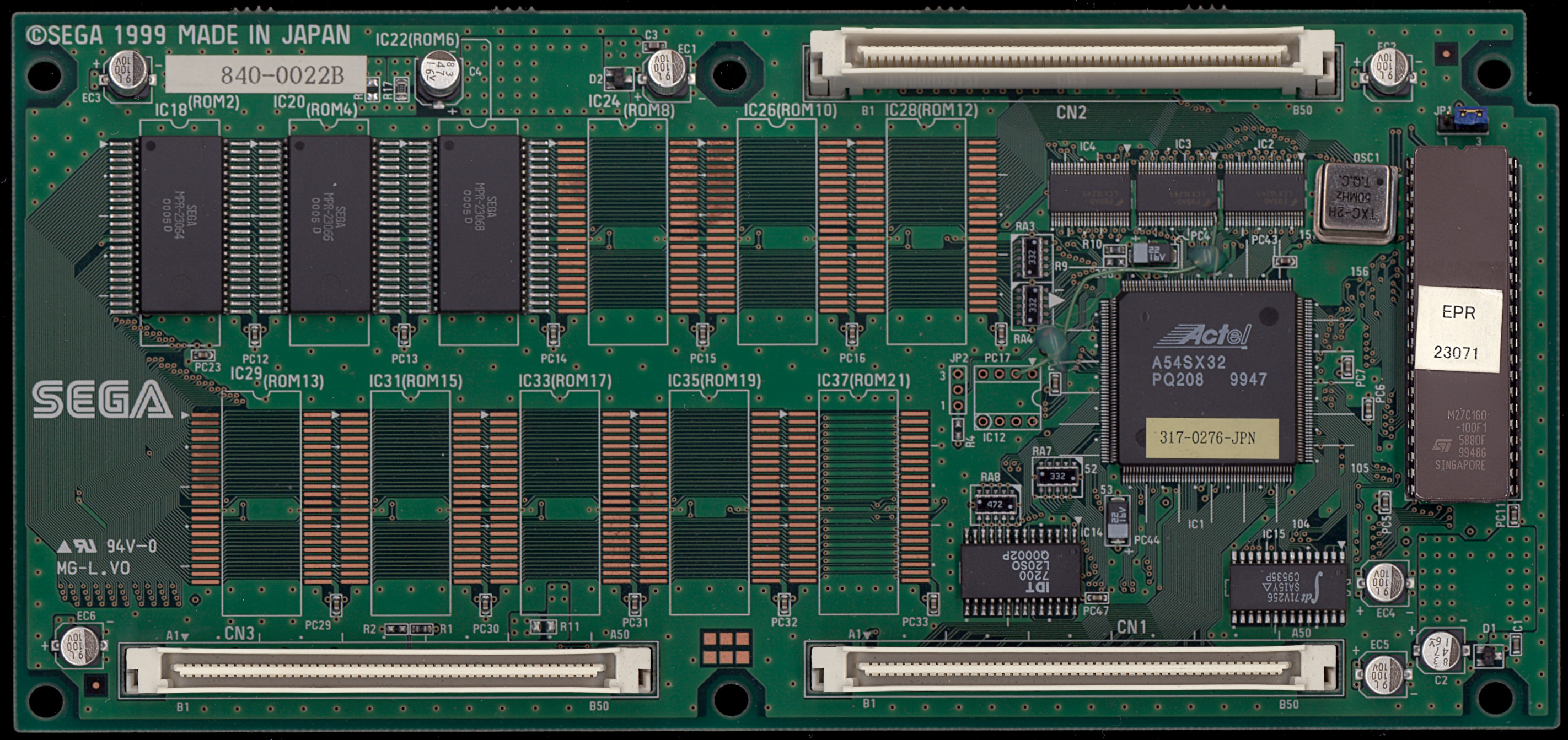

  PCB component side 2
•

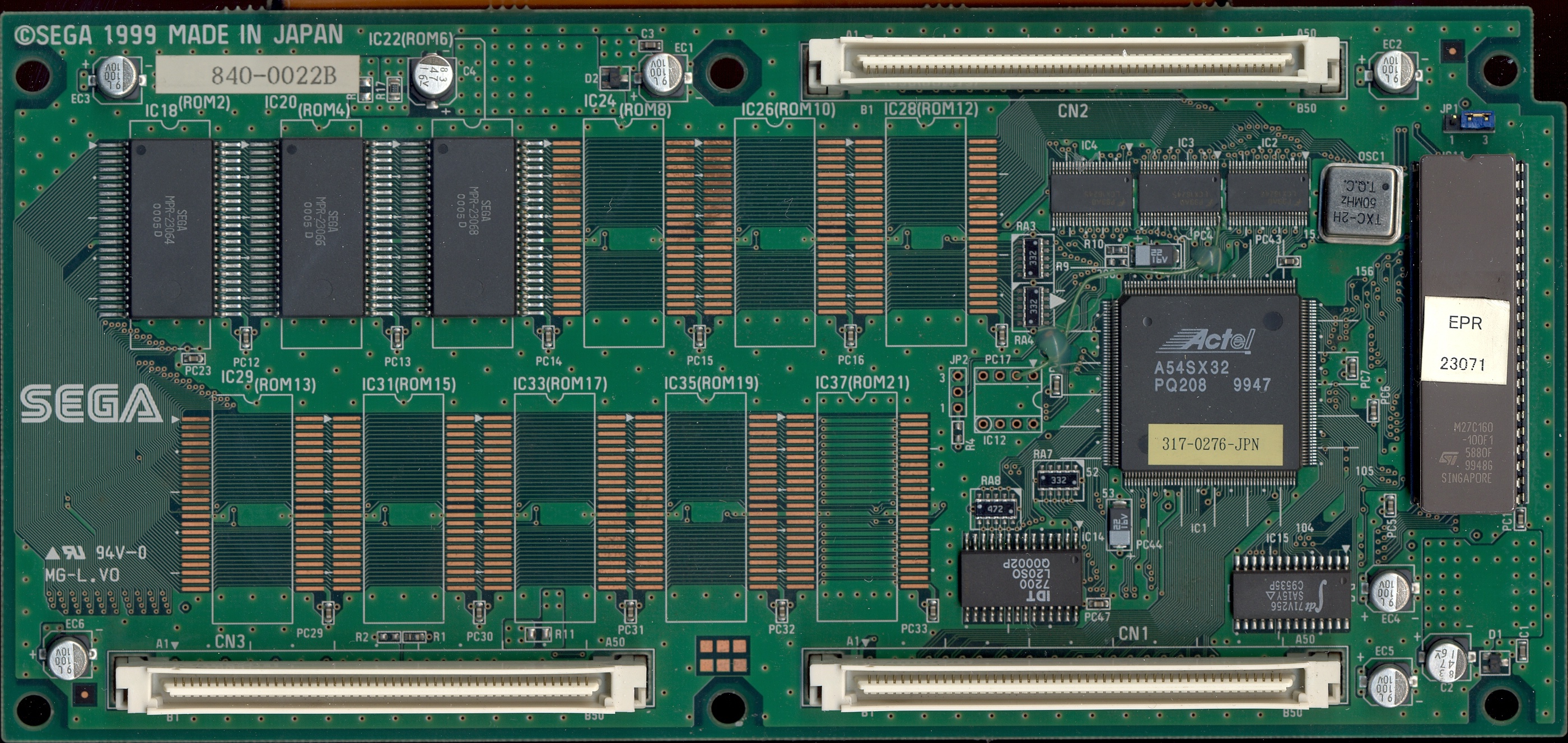

  PCB component side 3
•

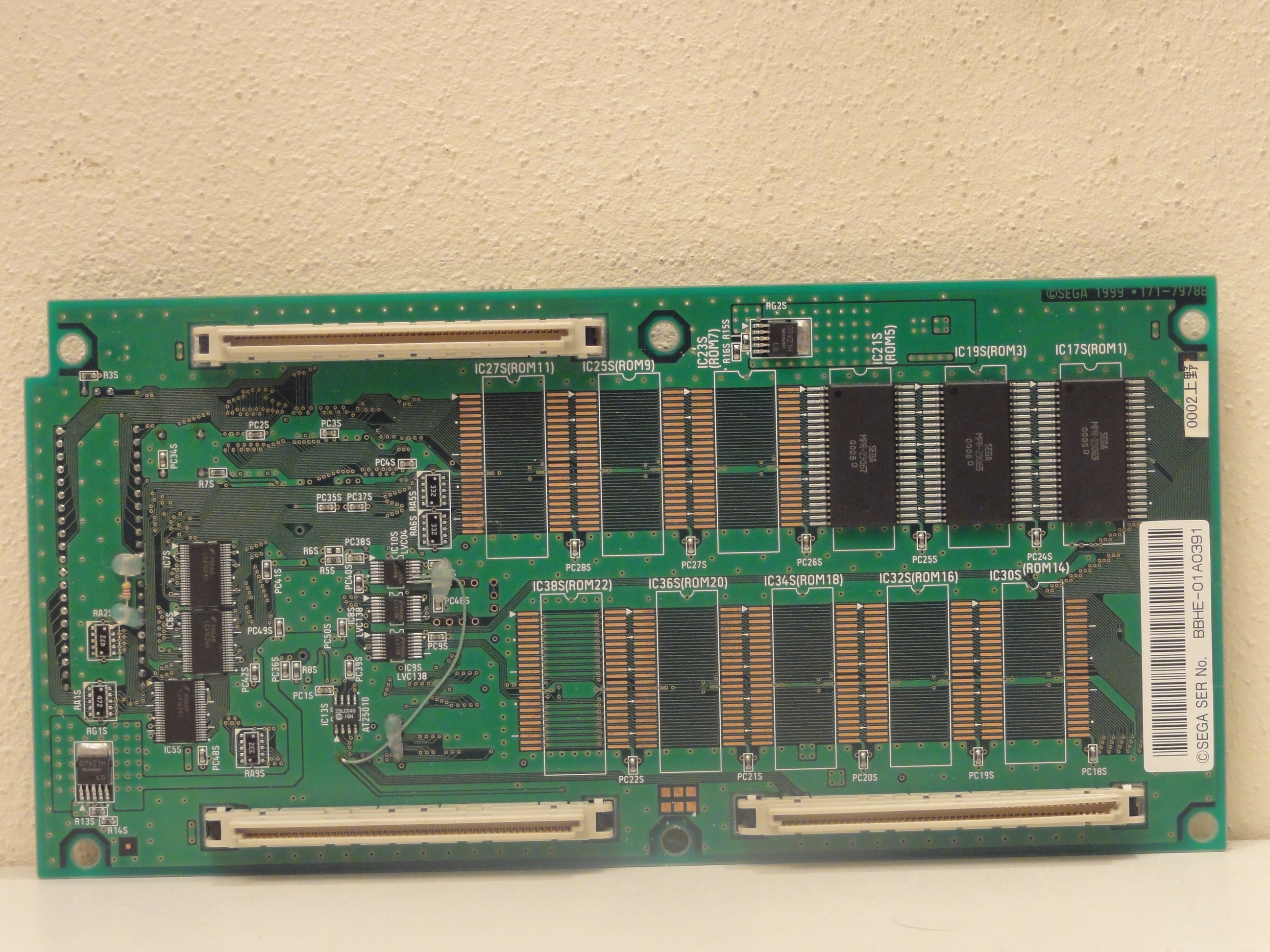

  PCB solder side
•

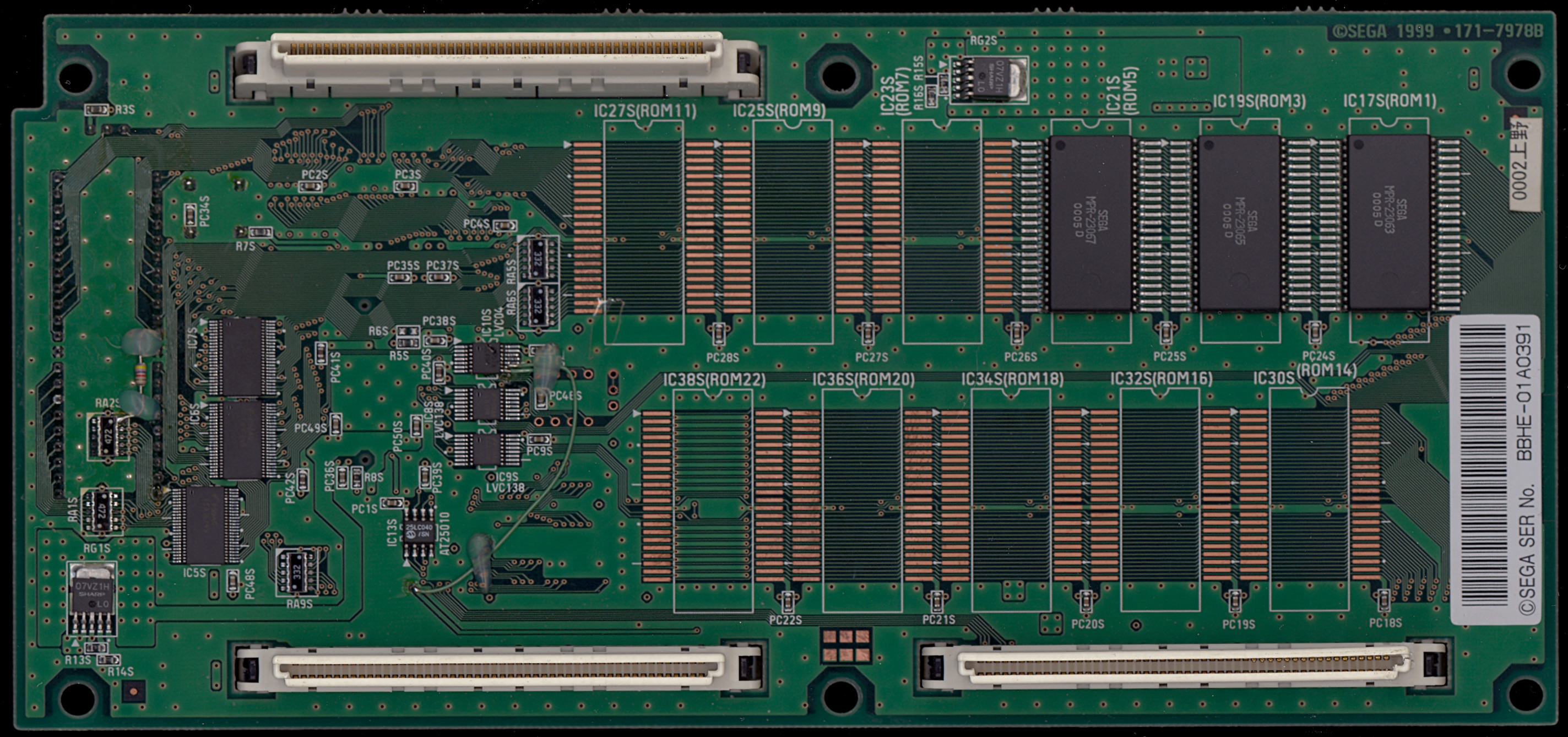

  PCB solder side 2
•

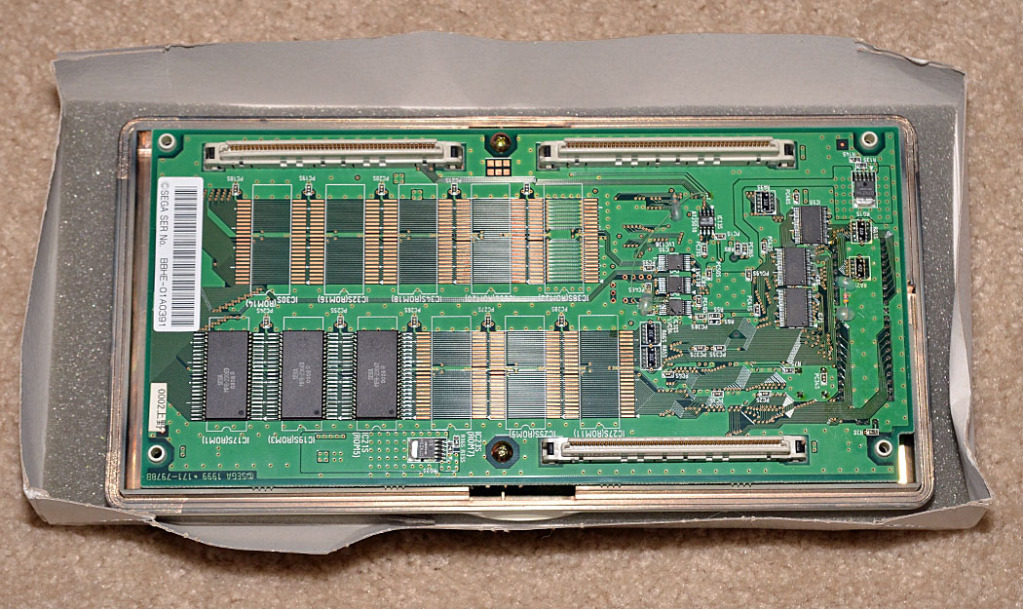

  PCB solder side 3
•

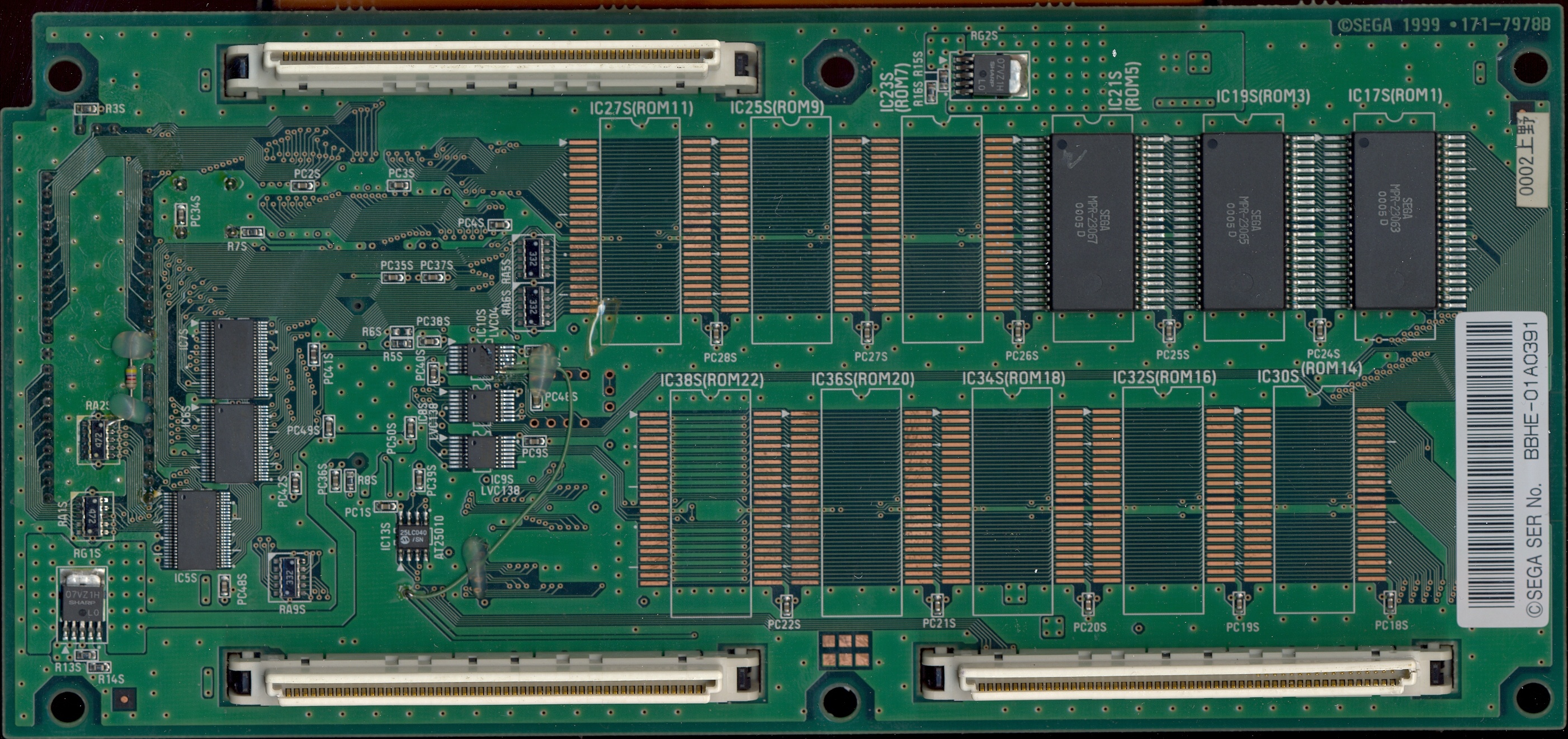

  PCB solder side 4
•

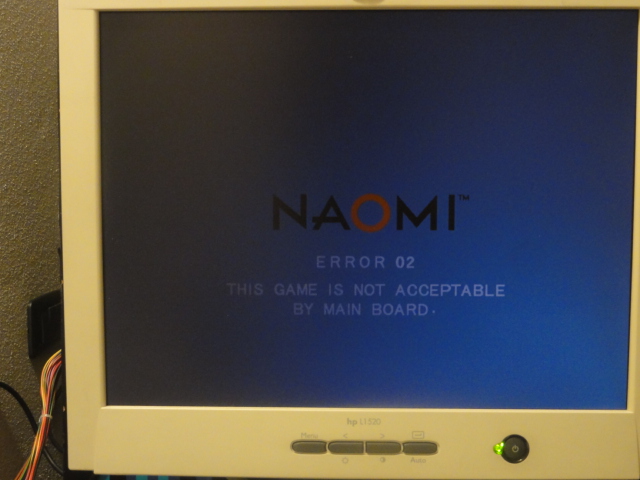

  bootup
•

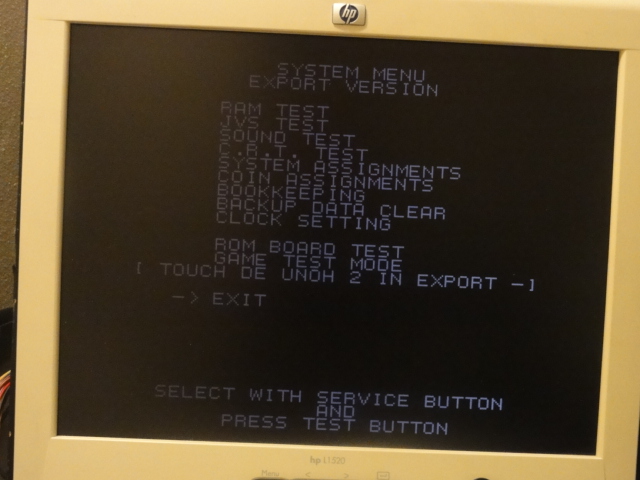

  system menu
•

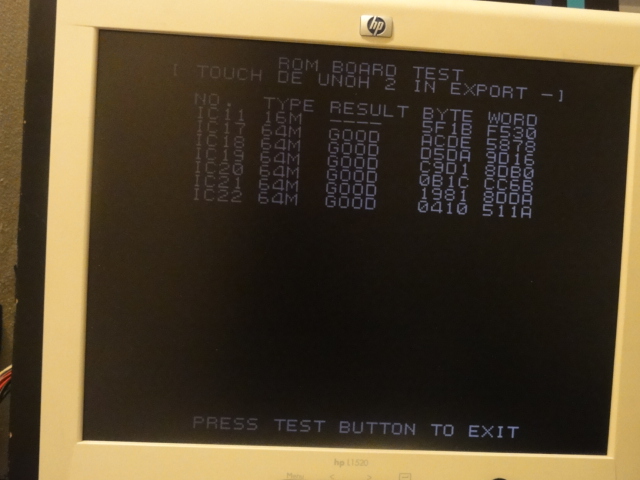

  ROM board test
•

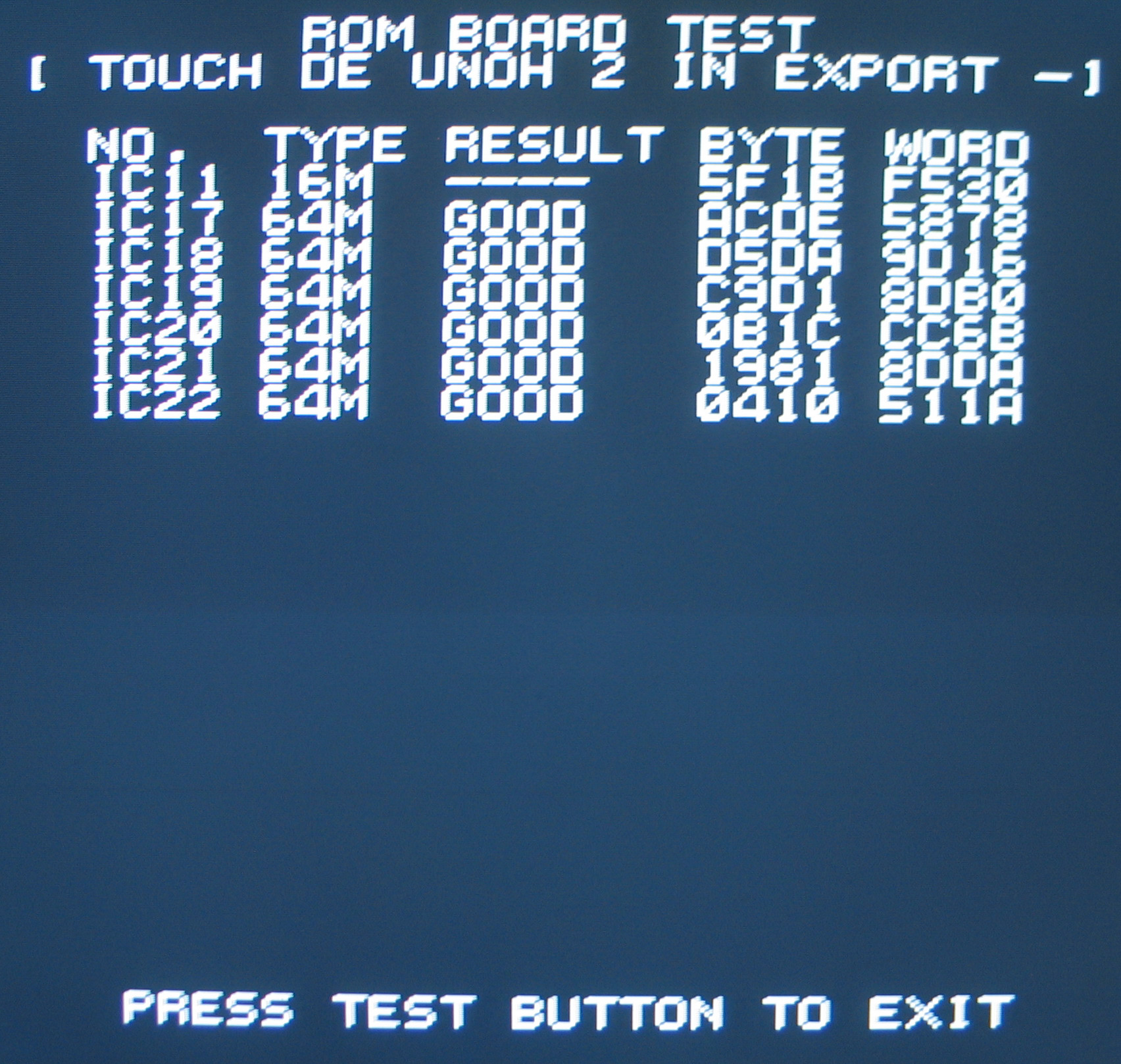

  ROM board test 2
•

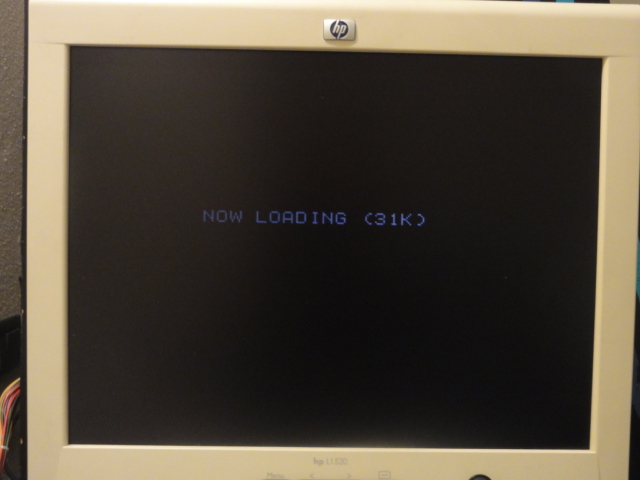

  game test mode 1
•

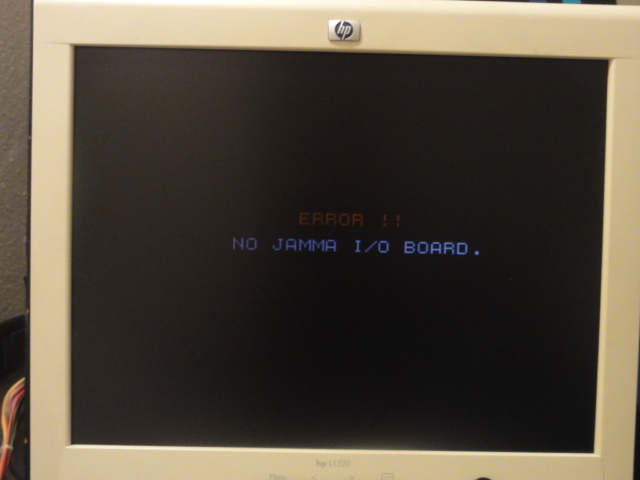

  game test mode 2
•
  readme
