EMU Infos
dumper f205v
date 24/03/2006
emulator MAME 0.104u8
dev David Haywood
PCB Infos
name slapfighb3 on ProgettoEMMA
slapfighb3 on Arcade Database
description Slap Fight (bootleg set 3)
year 1986
manufacturer

Technical references

CPUs

QTY Type clock position function
1x MK3880N-Z80CPU main PCB u66 8-bit Microprocessor - main
2x AY-3-8910 main PCB u80,u81 Programmable Sound Generator - sound - missing
1x Z8400APS-Z80CPU ROMs PCB u91 8-bit Microprocessor - main
1x oscillator unmarked ROMs PCB X-T

ROMs

QTY Type position status
1x D2764 main PCB 11 dumped
4x uPD27256 main PCB 12,13,14,15 dumped
1x DM74S288N main PCB u16 not dumped yet
5x DM74S287N main PCB u3,u4,u90,u91,u92 not dumped yet
1x TMS27256 ROMs PCB 01 dumped
3x TMS2764 ROMs PCB 02,03,08 dumped
4x uPD27256 ROMs PCB 04,05,06,07 dumped
2x uPD27128 ROMs PCB 09,10 dumped
2x DM74S287N ROMs PCB u17,u80 not dumped yet

RAMs

QTY Type position
4x TC5565PL-15 main PCB u20,u21,u22,u23
2x TMM2015BP-90 main PCB u42,u43
1x TMM2016 main PCB u76 - missing
6x TC5517AP-2 ROMs PCB u23,u44,u45,u50,u51,u86

PLDs

QTY Type position status
0x

Others

1x 22x2 edge connector
2x 50 pins flat cable connector from main board to ROMs board (CN1,CN2)
1x trimmer (volume)(main PCB VR1)
2x 8 DIP switches banks (main PCB)

Notes

PCB is labeled: "SLAP FIGHTER.01"

Files

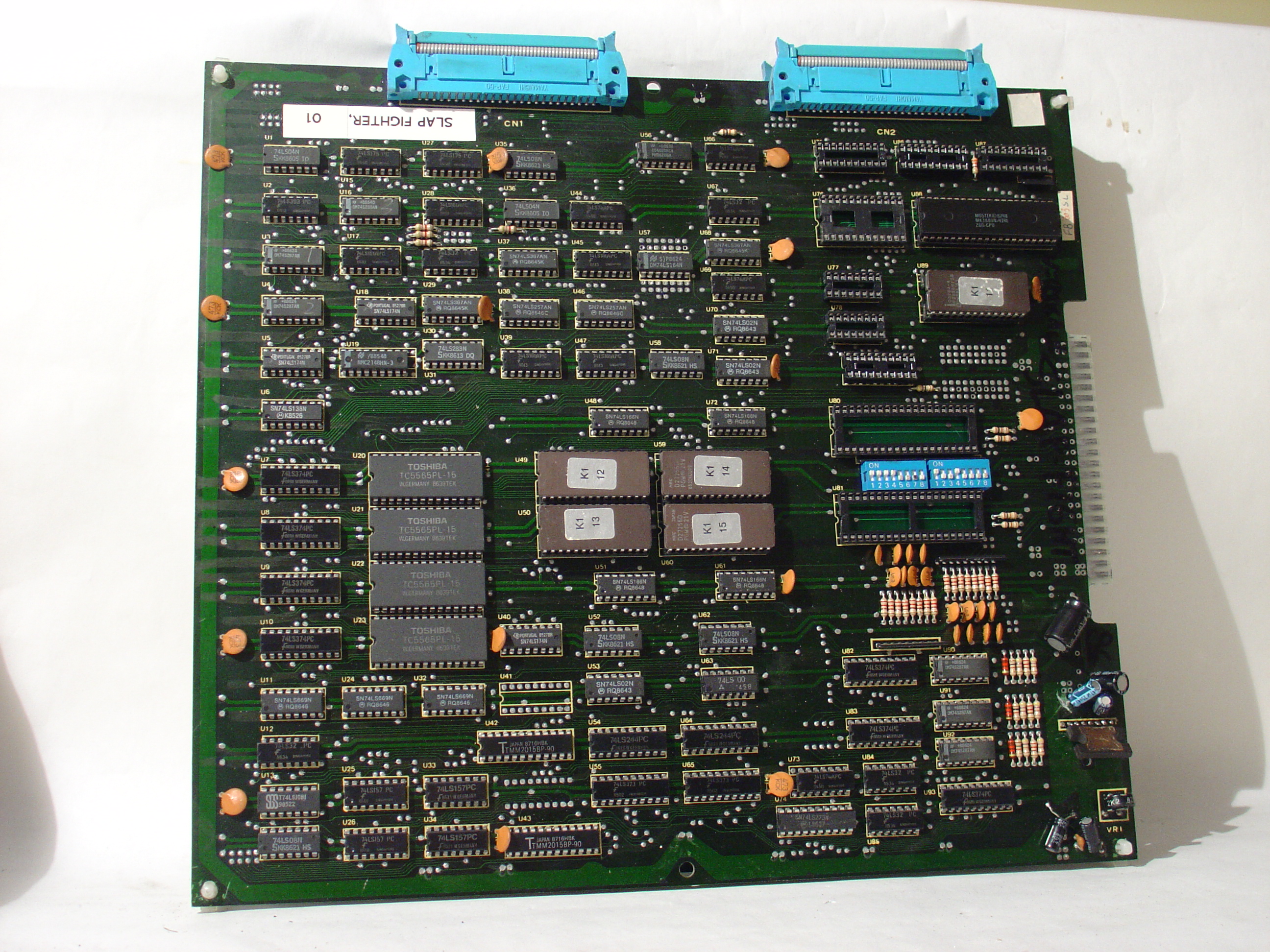

  • main PCB component side
    main PCB component side

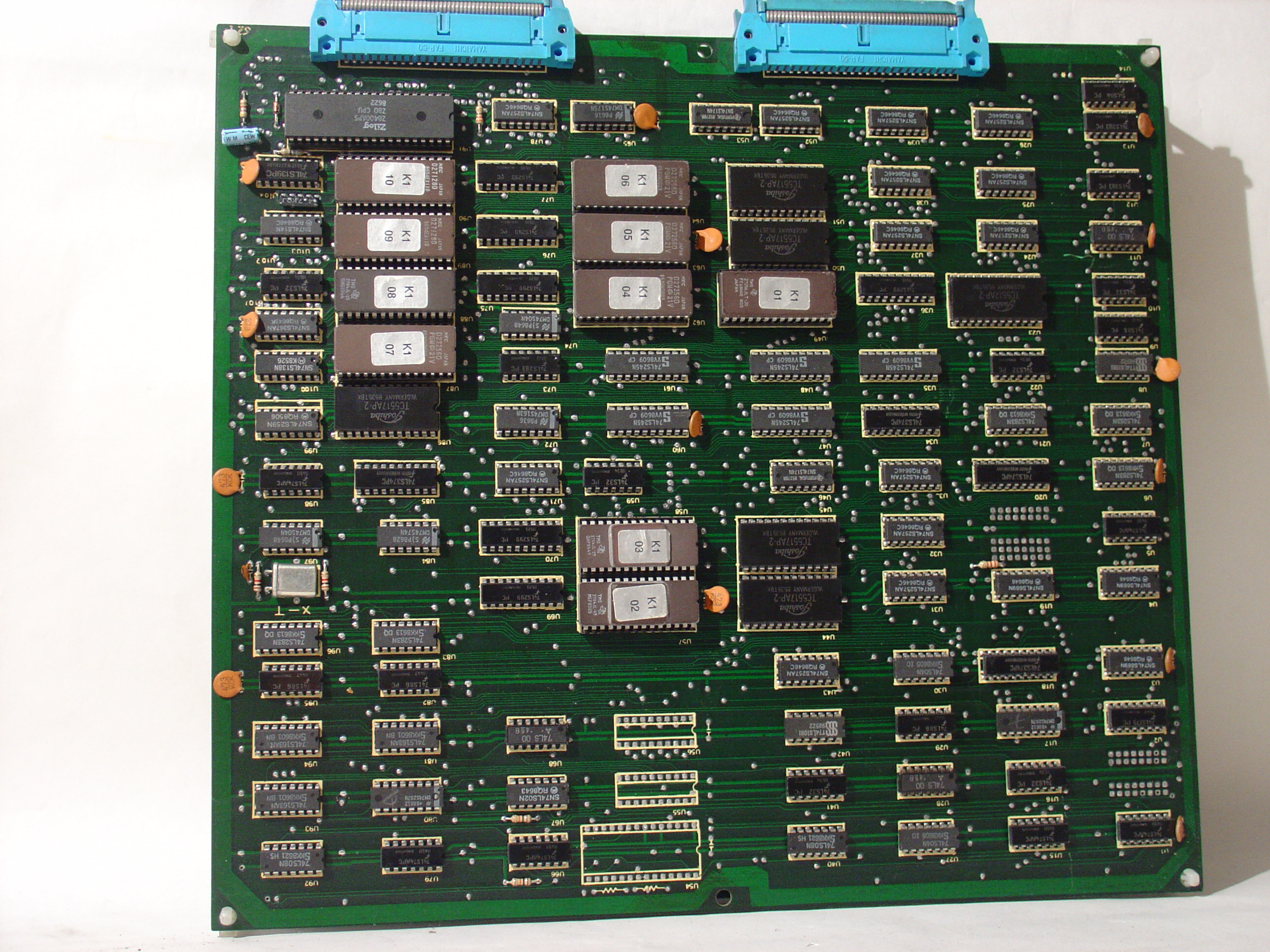

  • ROMs PCB component side
    ROMs PCB component side
