EMU Infos
| dumper |
f205v
|
| date |
23/06/2018
|
| emulator |
|
| dev |
|
PCB Infos
| name |
1607
|
| description |
Model PG-7
|
| year |
197x
|
| manufacturer |
Polycon
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 0x |
|
|
|
no CPU, processing power is in the carts, not in the consolle
|
| 1x |
oscillator |
4.433618 |
c16 |
|
ROMs
| QTY
|
Type
|
position
|
status
|
| 0x |
|
|
|
RAMs
PLDs
| QTY
|
Type
|
position
|
status
|
| 0x |
|
|
|
Others
1x 22x2 edge connector female
1x trimmer (c24)
3x 2 DIP switches banks A/B (s2,s3,s4)
1x 2 DIP switch ON/OFF(s1)
1x 4 positions selector COLOR (d15)
1x 10 keys keyboard
1x pushbutton RESET
1x RF TV modulator (channel 3)
1x beeper loudspeaker
2x analog joysticks with 1 fire button each
2x 2 plugs each connectors PISTOL
Notes
PCB is marked: "MEGA 52081-3" on both sides
Known games:
CT603 Roadrace
CT606 Wipeout
CT610 Supersport
CT765 Motorcycle
Files
1607

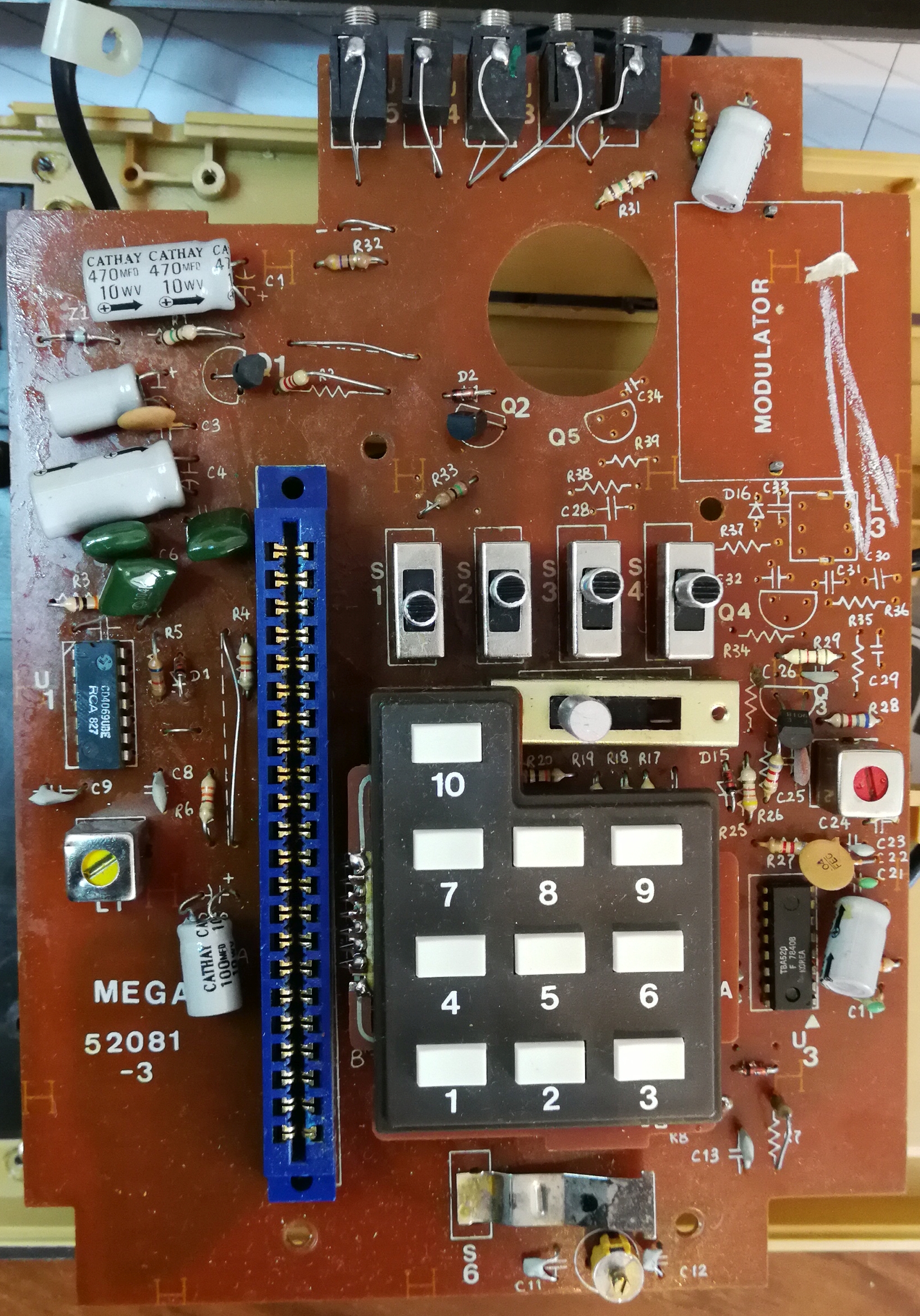

PCB component side

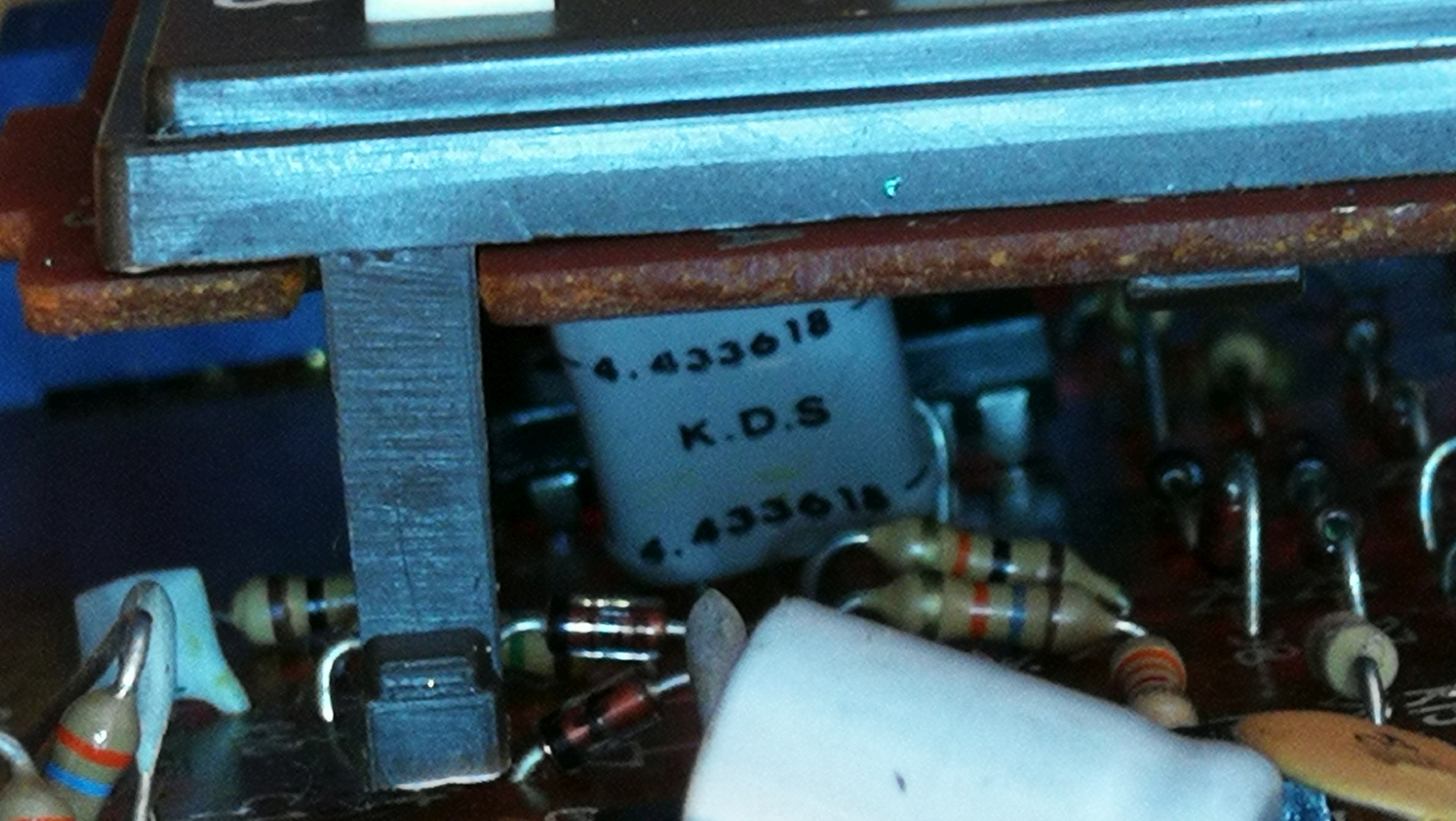

PCB component side detail 1

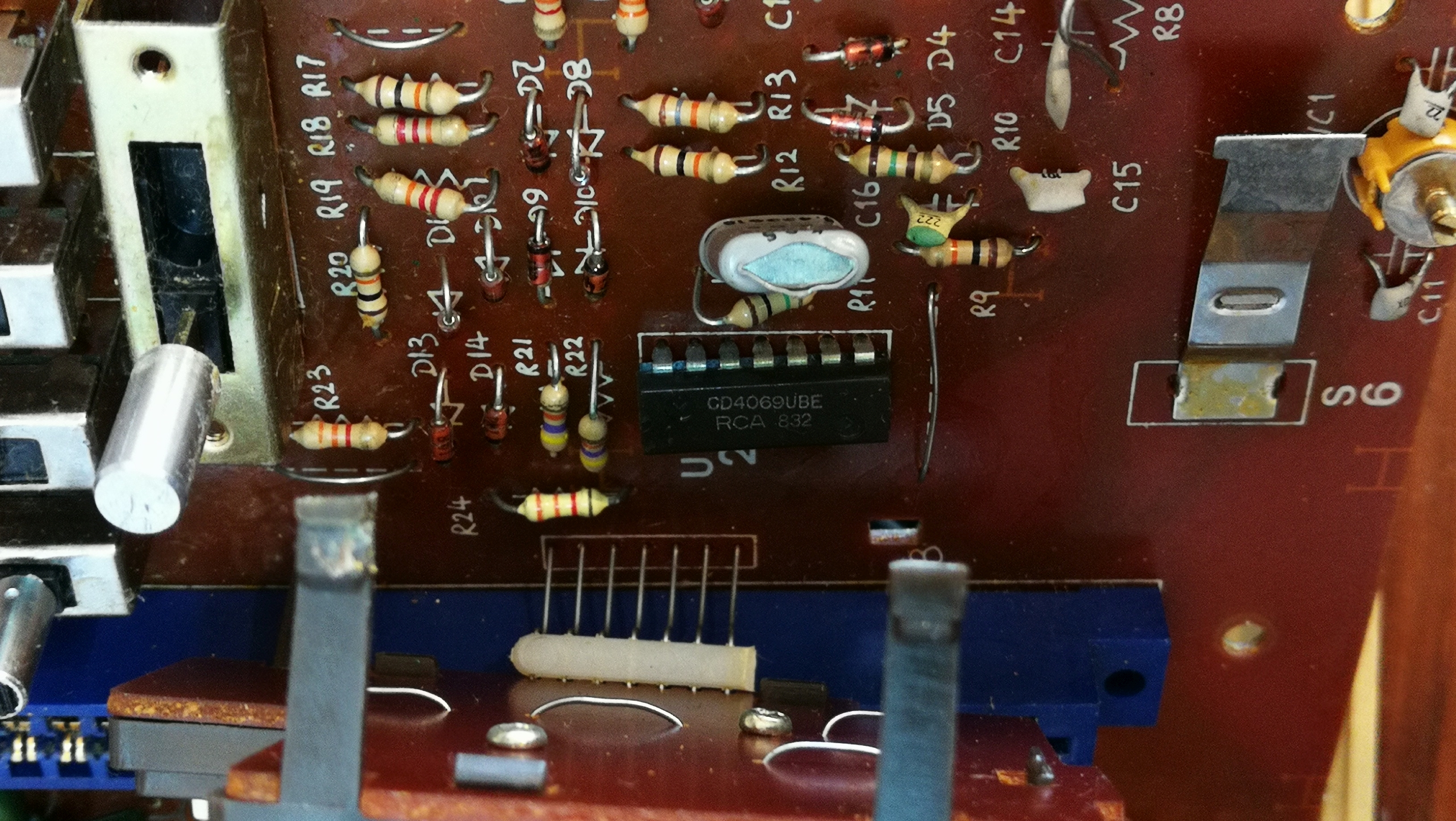

PCB component side detail 2

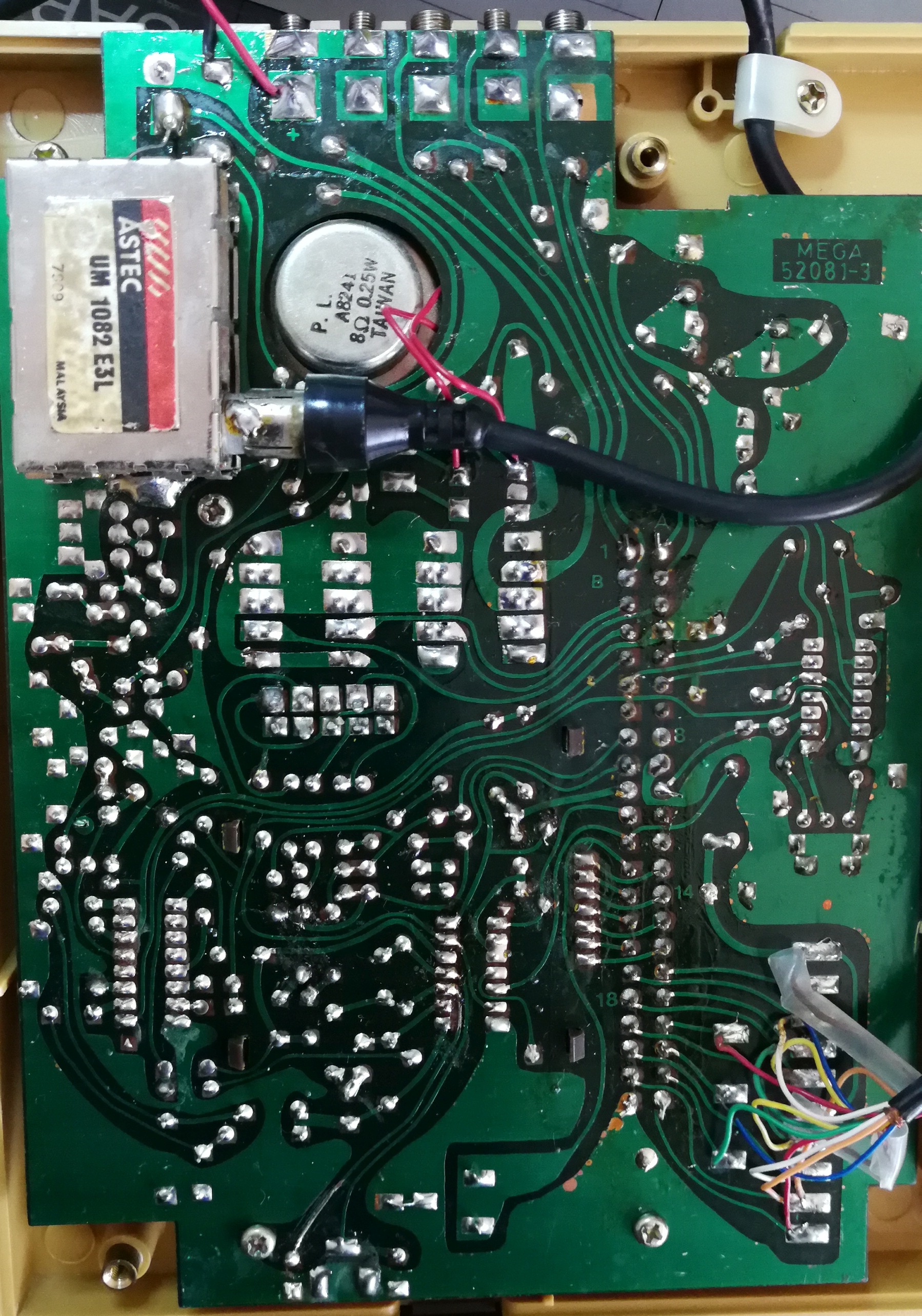

PCB solder side
box front + back
box sides
box top

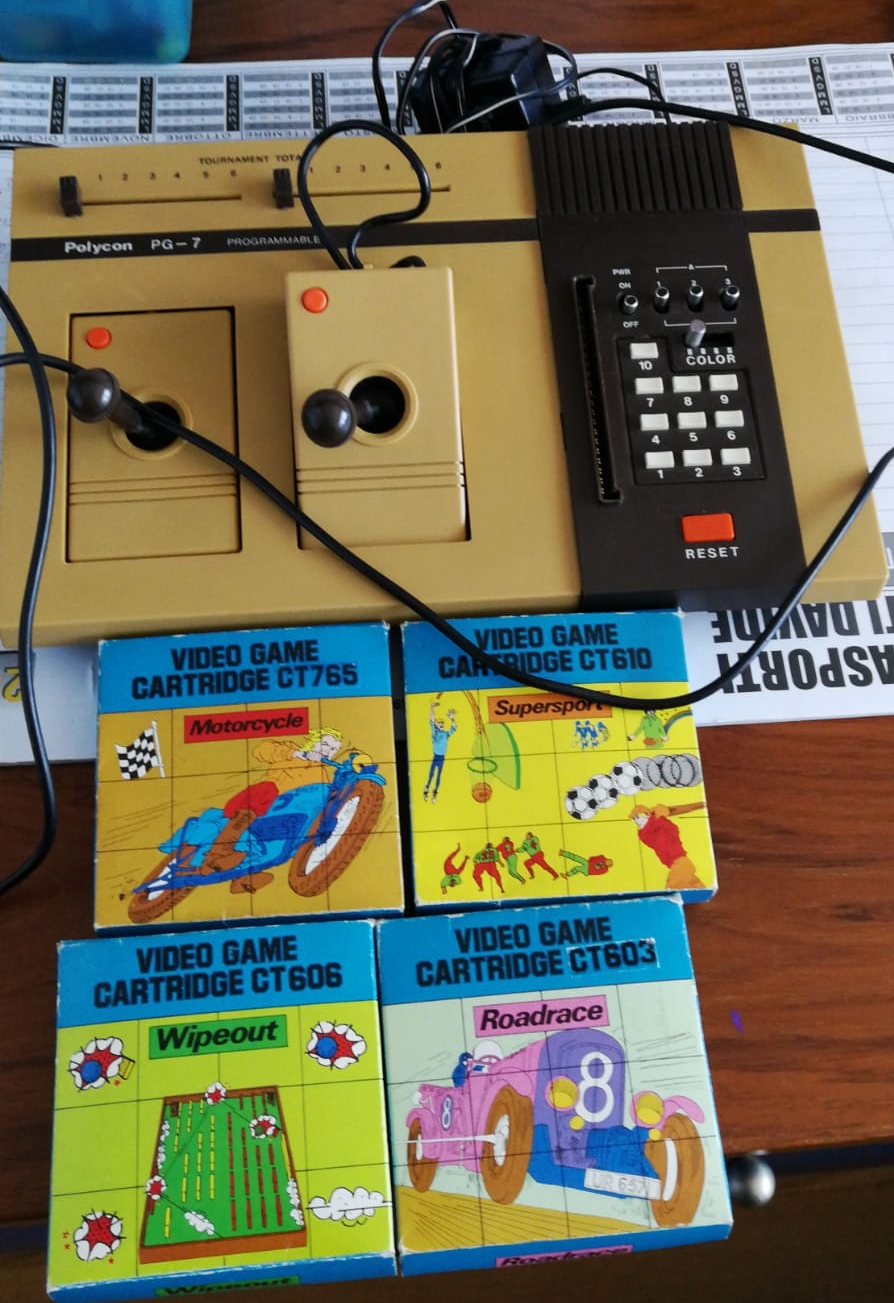

case front

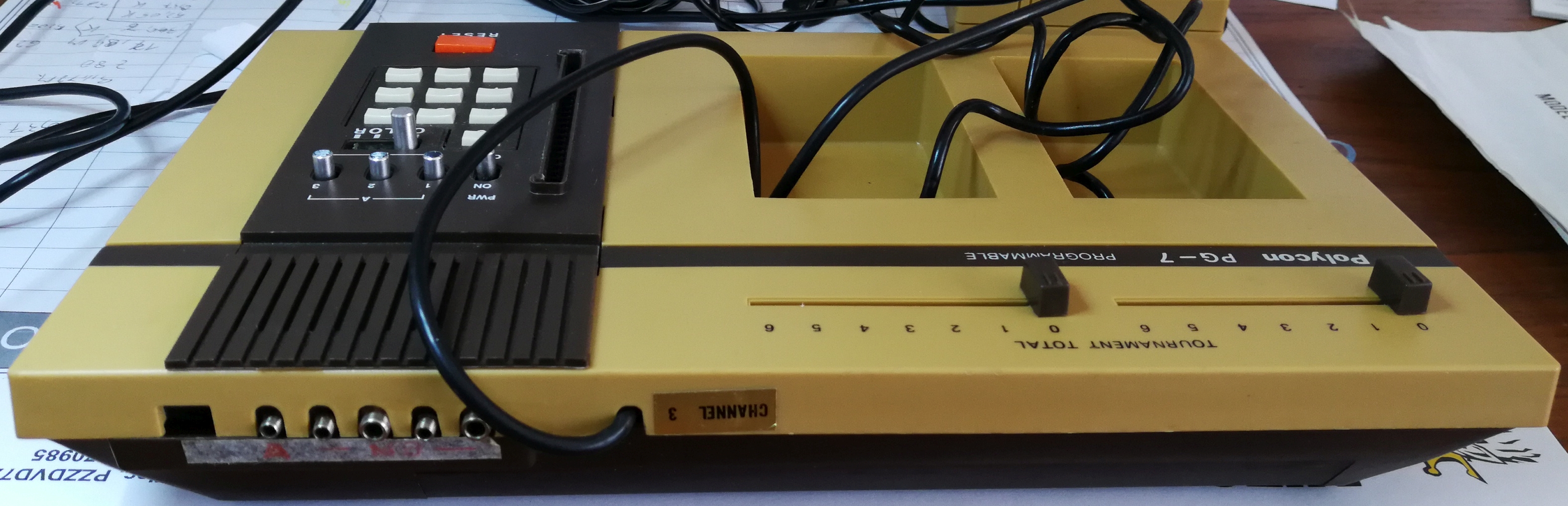

case back

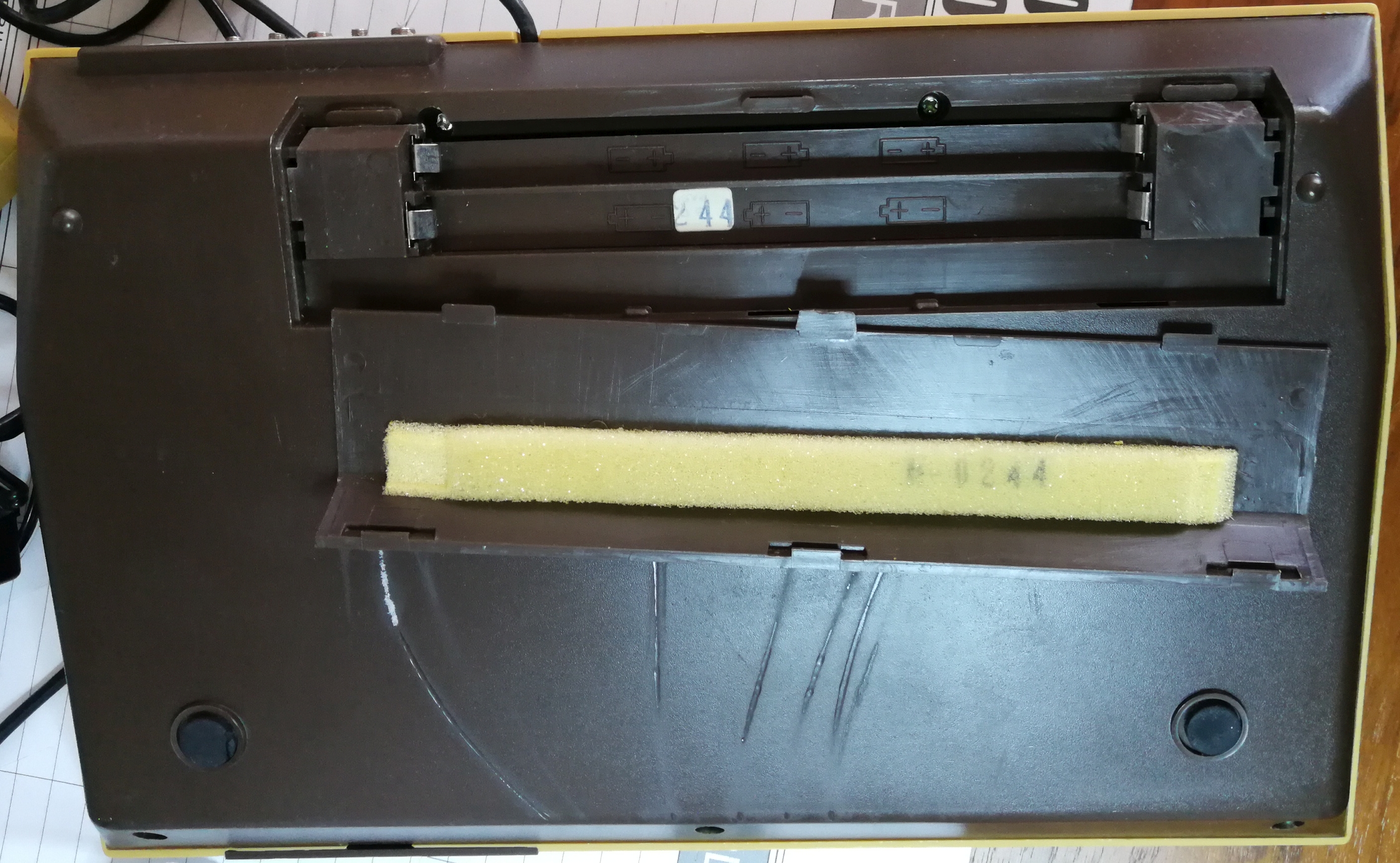

case bottom

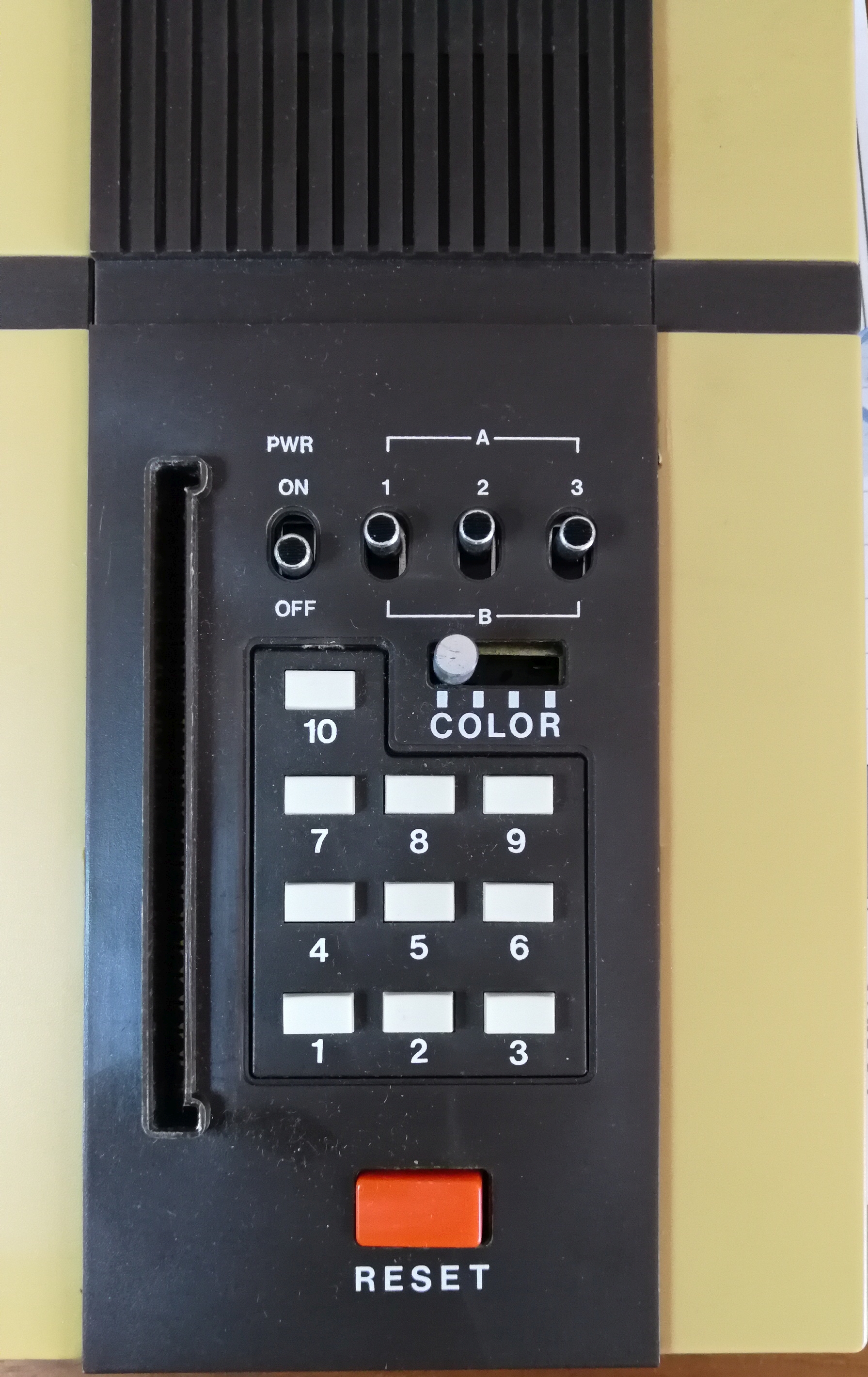

control panel

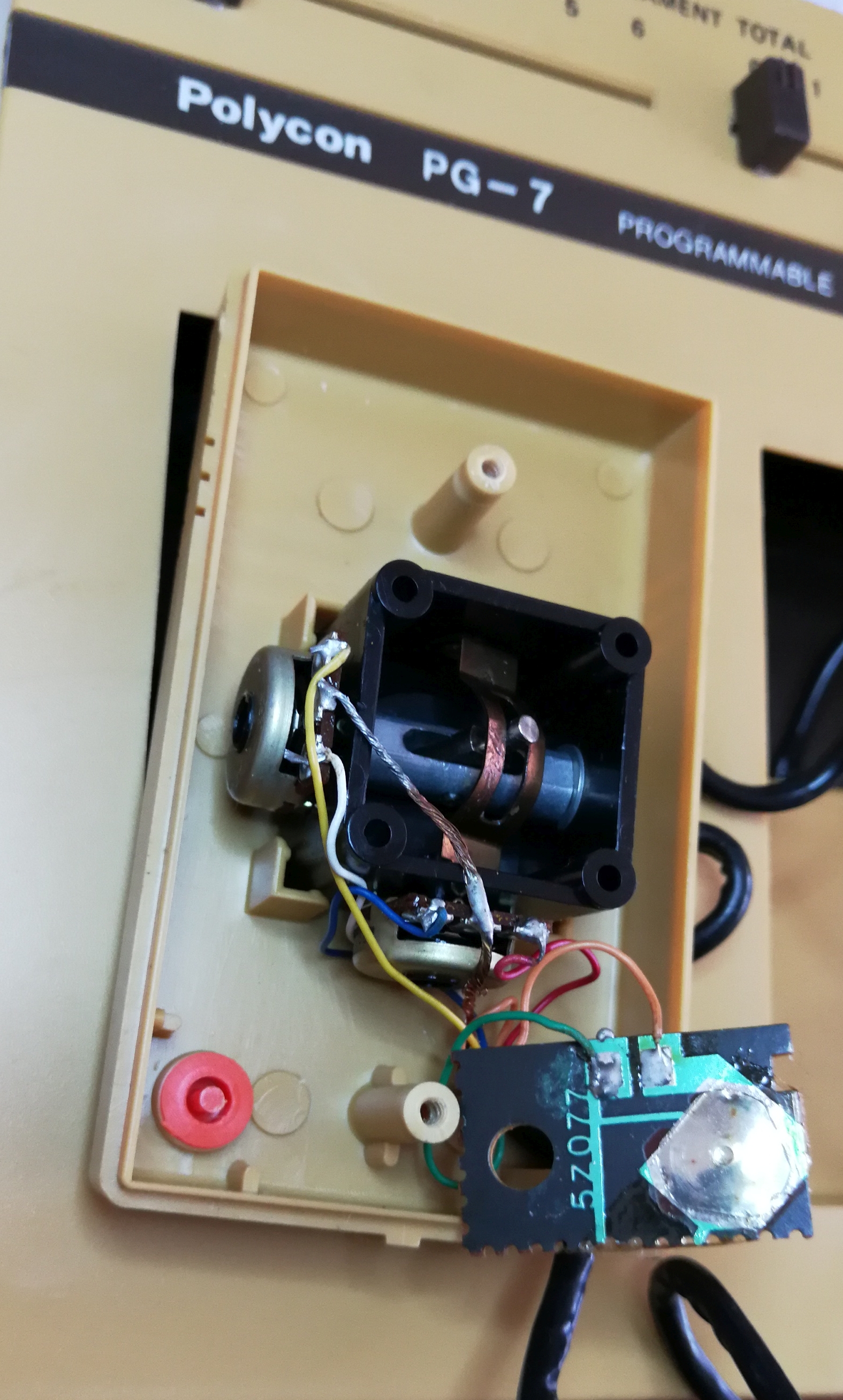

joystick
manual
