Storming Party / Riku Kai Kuu Saizensen (set 2)

EMU Infos

dumper	f205v
date	24/01/2021
emulator
dev

PCB Infos

name	1725
description	Storming Party / Riku Kai Kuu Saizensen (alt)
year	1986
manufacturer

Technical references

CPUs

QTY	Type	clock	position	function
1x	Z8400B PS Z80B CPU		main PCB ic5.1f	8-bit Microprocessor - main
1x	Z8400B PS Z80B CPU		main PCB ic45.5h	8-bit Microprocessor - main
1x	AY-3-8910		main PCB ic38.4j	Programmable Sound Generator - sound
1x	YM2203C		main PCB ic39.4k	FM Operator Type-N (OPM) - sound
1x	MC3401	-	main PCB ic46.6l	Quad Operational Amplifier - sound
1x	MC4558	-	main PCB ic47.7m	Dual Operational Amplifier - sound
1x	Y3014		main PCB ic48.7n	D/A Converter (DAC) - sound
1x	C1182H	-	main PCB ic59.7k	Audio Amplifier - sound
1x	oscillator	24.0000MHz	ROMs PCB ic59.8i

ROMs

QTY	Type	position	status
4x	GI27256	main PCB 1-4	dumped
8x	GI27256	ROMs PCB 5-B	dumped
4x	N82S137N	main PCB ic9.1j ic22.2l ic23.2m ic24.2n	not dumped yet

RAMs

QTY	Type	position
1x	HM6264P-15	main PCB ic1.1a
1x	HY6116-15	main PCB ic43.5f
3x	6116ASP-12	ROMs PCB ic19.6b ic23.10b ic48.8d
5x	HY6116-15	ROMs PCB ic67.2f ic68.3f ic82.2g ic82.3g ic107.11h

PLDs

QTY	Type	position	status
1x	PAL16L8CJ	main PCb ic14.2c	read protected

Others

1x 28x2 edge connector (main PCB)
2x 50 pins flat cable connector from main PCB (R,S) to ROMs PCB (R,S)
1x trimmer (volume) (main PCB VR1.7k)
2x 8 DIP switches banks (main PCB ic40.5a ic49.6a)

Notes

PCB is marked: "SA-1001" on component side

Files

•

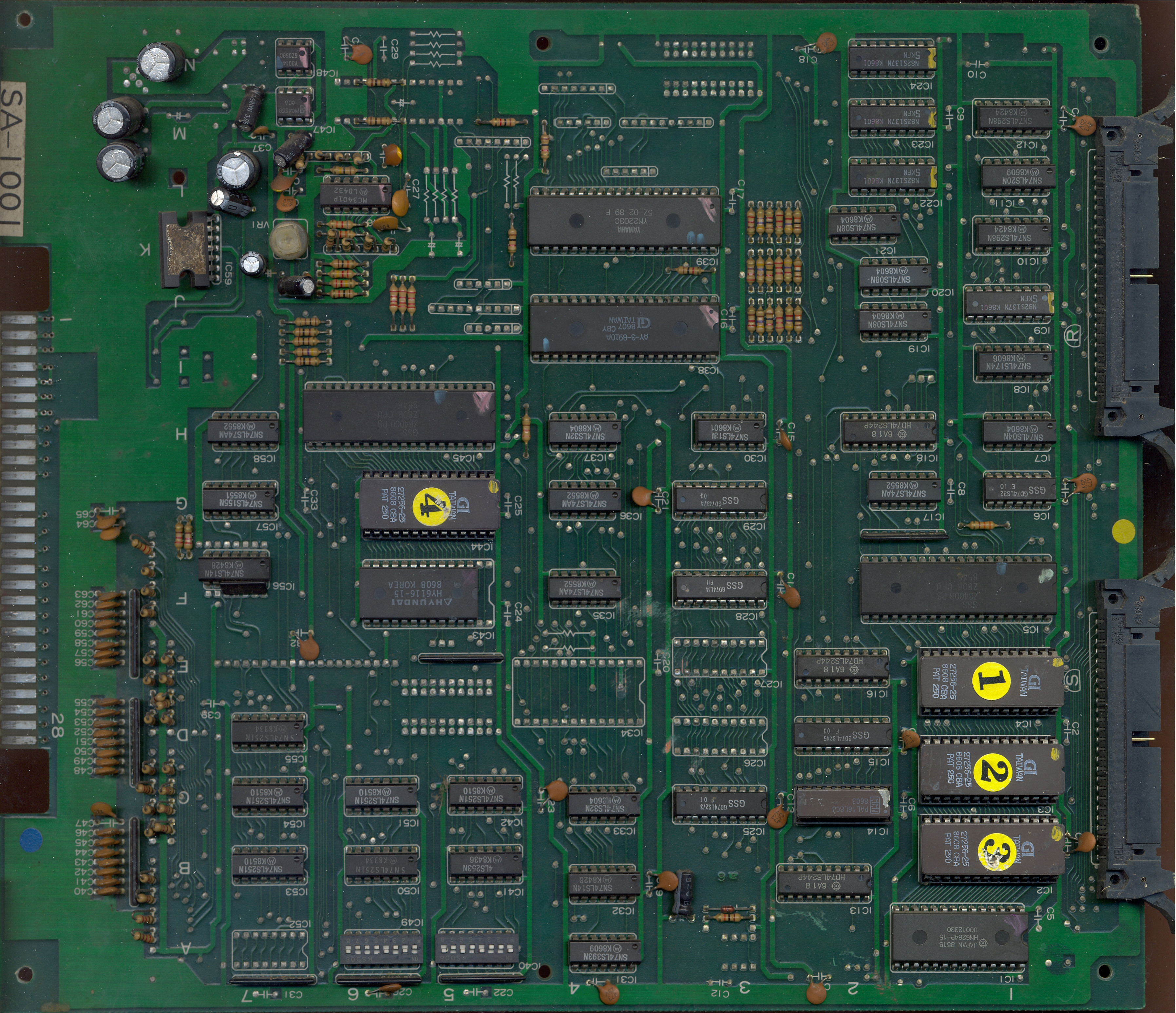

  main PCB component side
•

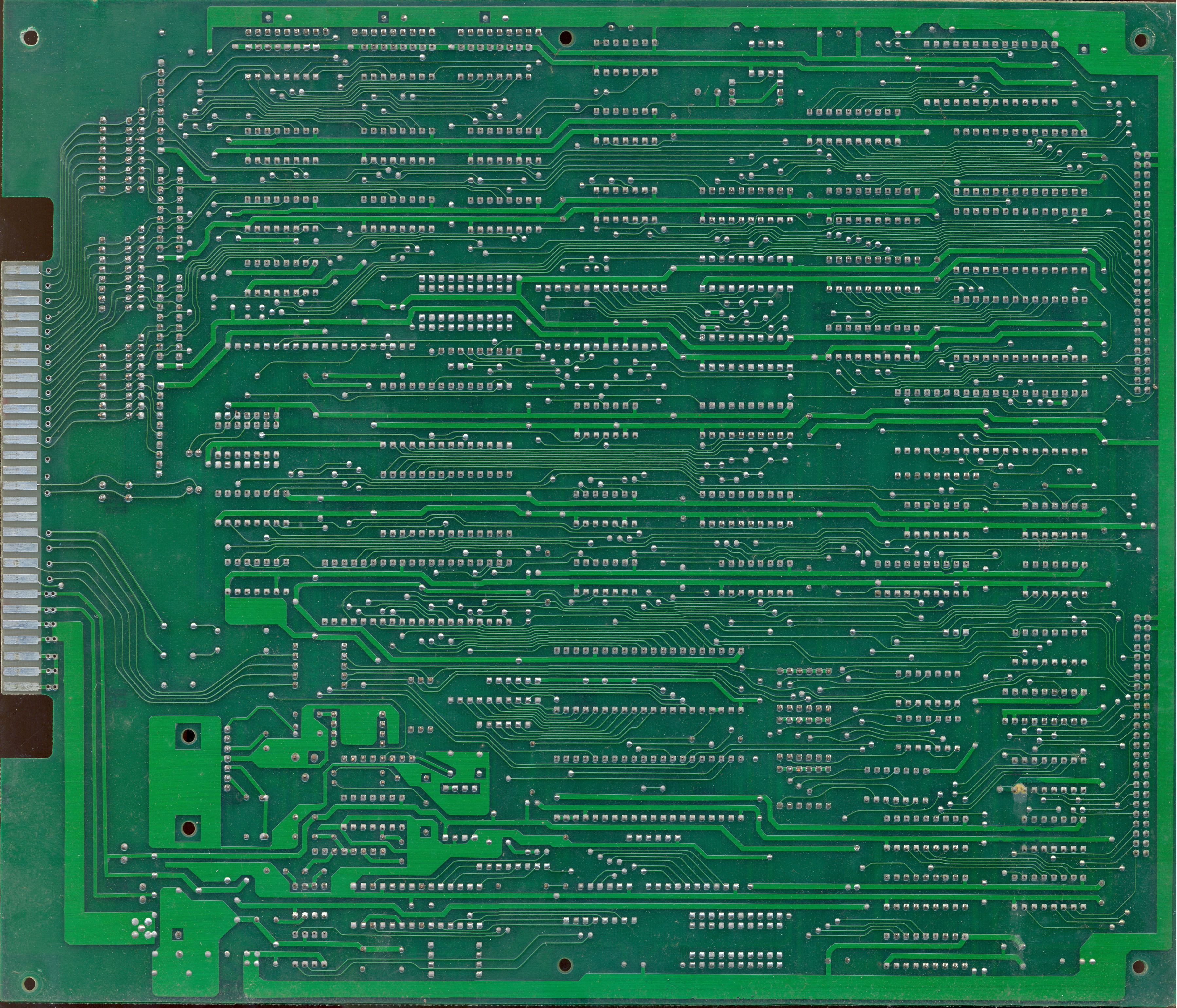

  main PCB solder side
•
  ROMS PCB component side
•

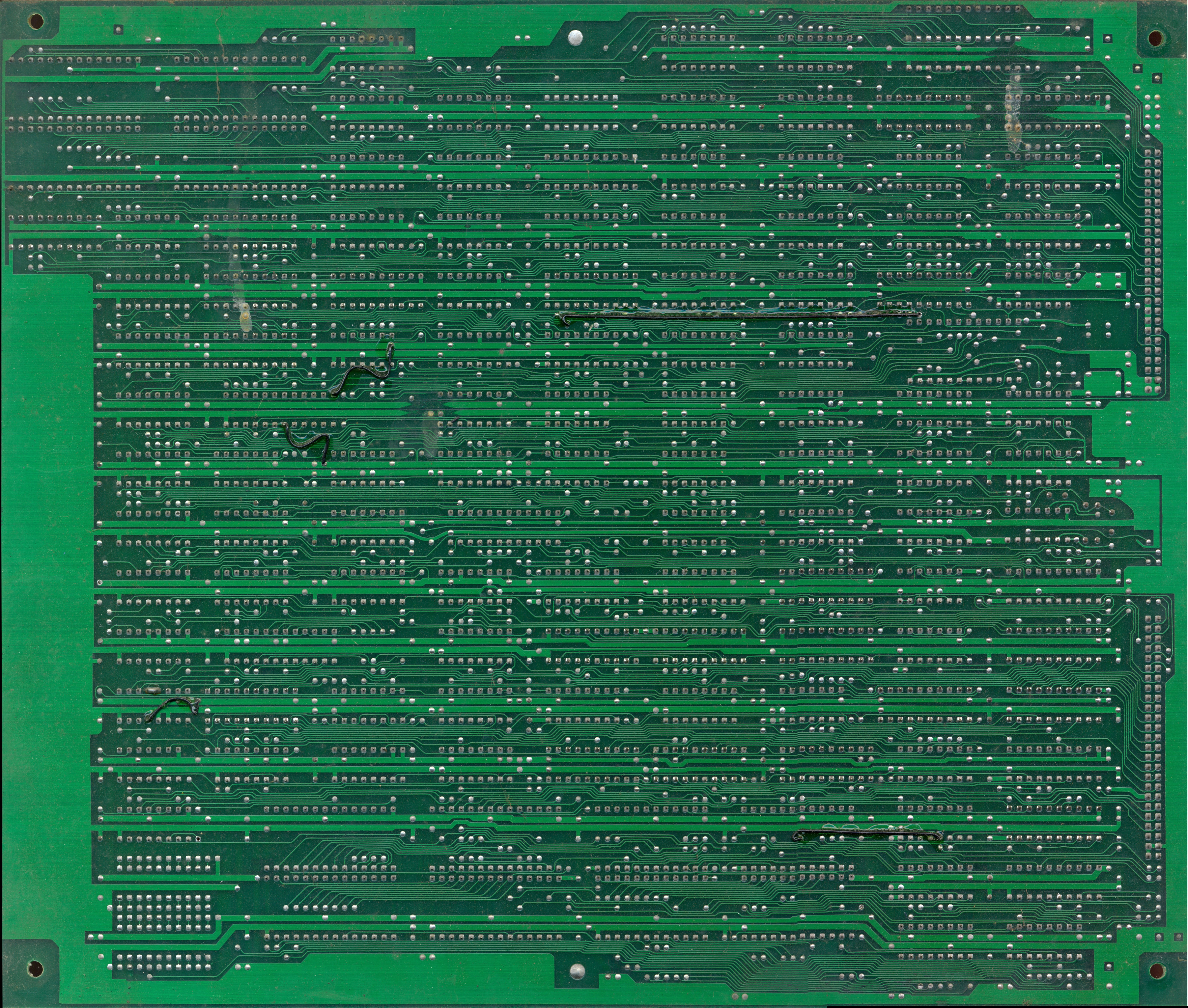

  ROMs PCB solder side
