EMU Infos
| dumper |
Yoshi
|
| dump date |
31/01/2009
|
| emulator |
MAME 0.130
|
| dev |
Angelo Salese, Pierpaolo Prazzoli, Yoshi
|
PCB Infos
| name |
pzletime
|
| description |
Puzzle Time (Prototype)
|
| year |
199x
|
| manufacturer |
Elettronica Video-Games
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 1x |
MC68000 |
10MHz or 12 MHz |
|
16/32-bit Microprocessor - main
|
| 1x |
OKI M6295 |
|
|
sound
|
| 1x |
oscillator |
24MHz |
|
|
ROMs
| QTY
|
Type
|
position
|
status
|
| 12x |
ST27C4001 |
|
dumped
|
RAMs
| QTY
|
Type
|
position
|
| 1x |
NVRAM CAT93046P |
|
PLDs
| QTY
|
Type
|
position
|
status
|
| 3x |
ACTEL A1020A |
|
read protected
|
Others
1x JAMMA edge connector
1x 6 legs connector (payout)
1x pushbutton (TEST)
1x trimmer (volume)
1x red LED (oscillator test)
Notes
Working
This is a prototype JAMMA PCB made in Italy at very beginning of the '90s.
This one is the only know board for this game.

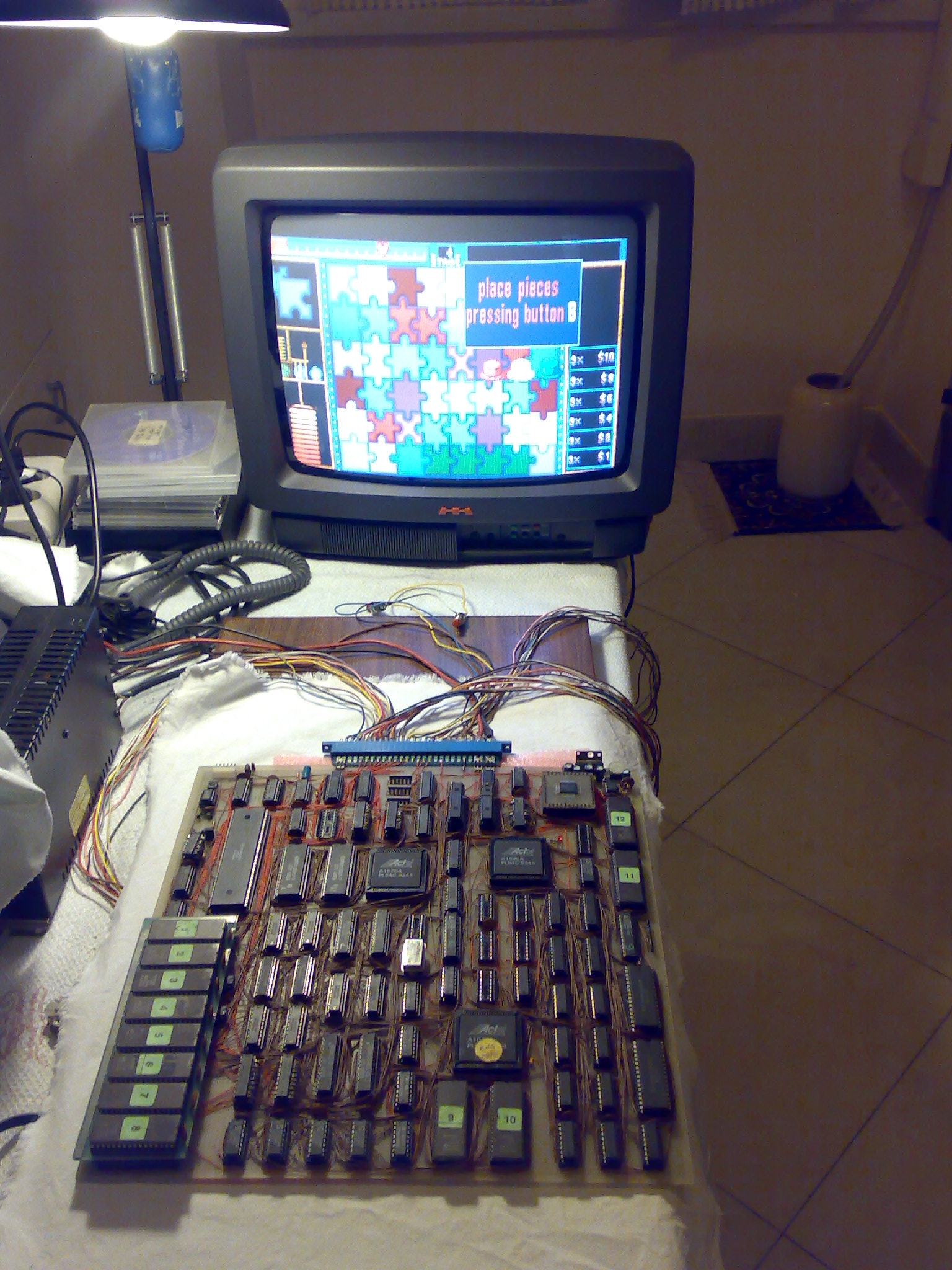

It has been restored by Yoshi, and it has also been into a real arcade for some time, to test people reaction to it.
Files
-

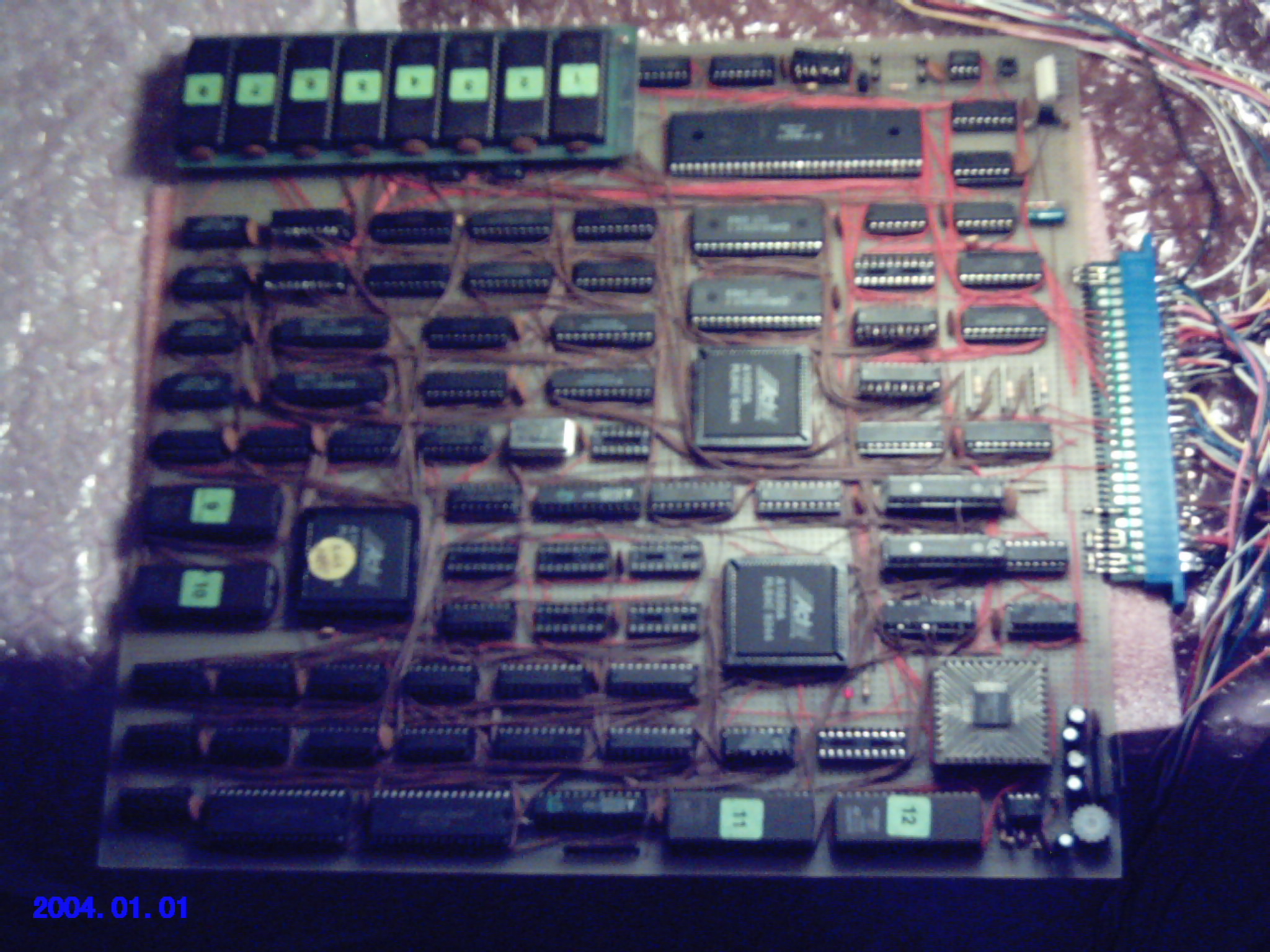

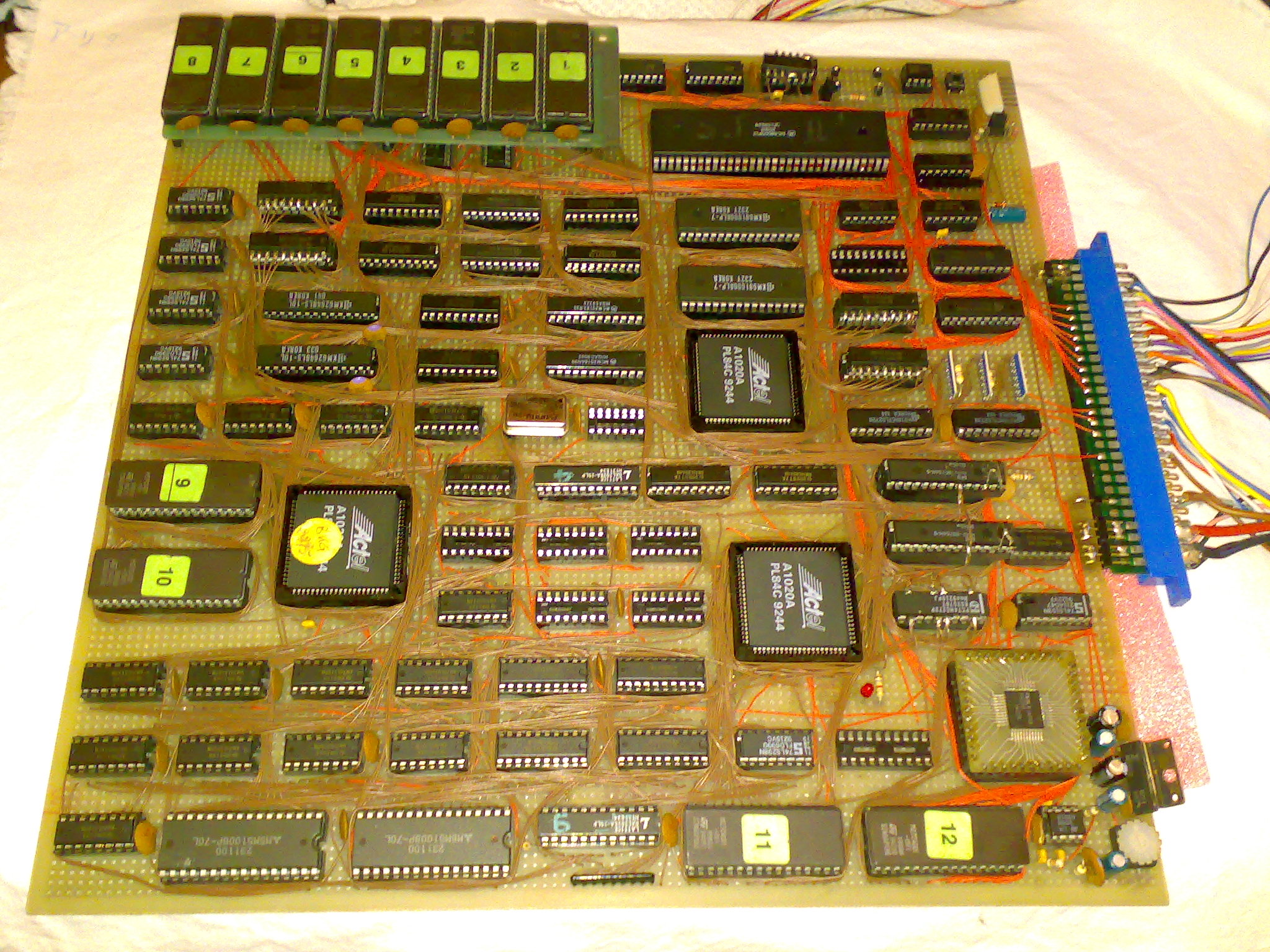

PCB component side 1
-

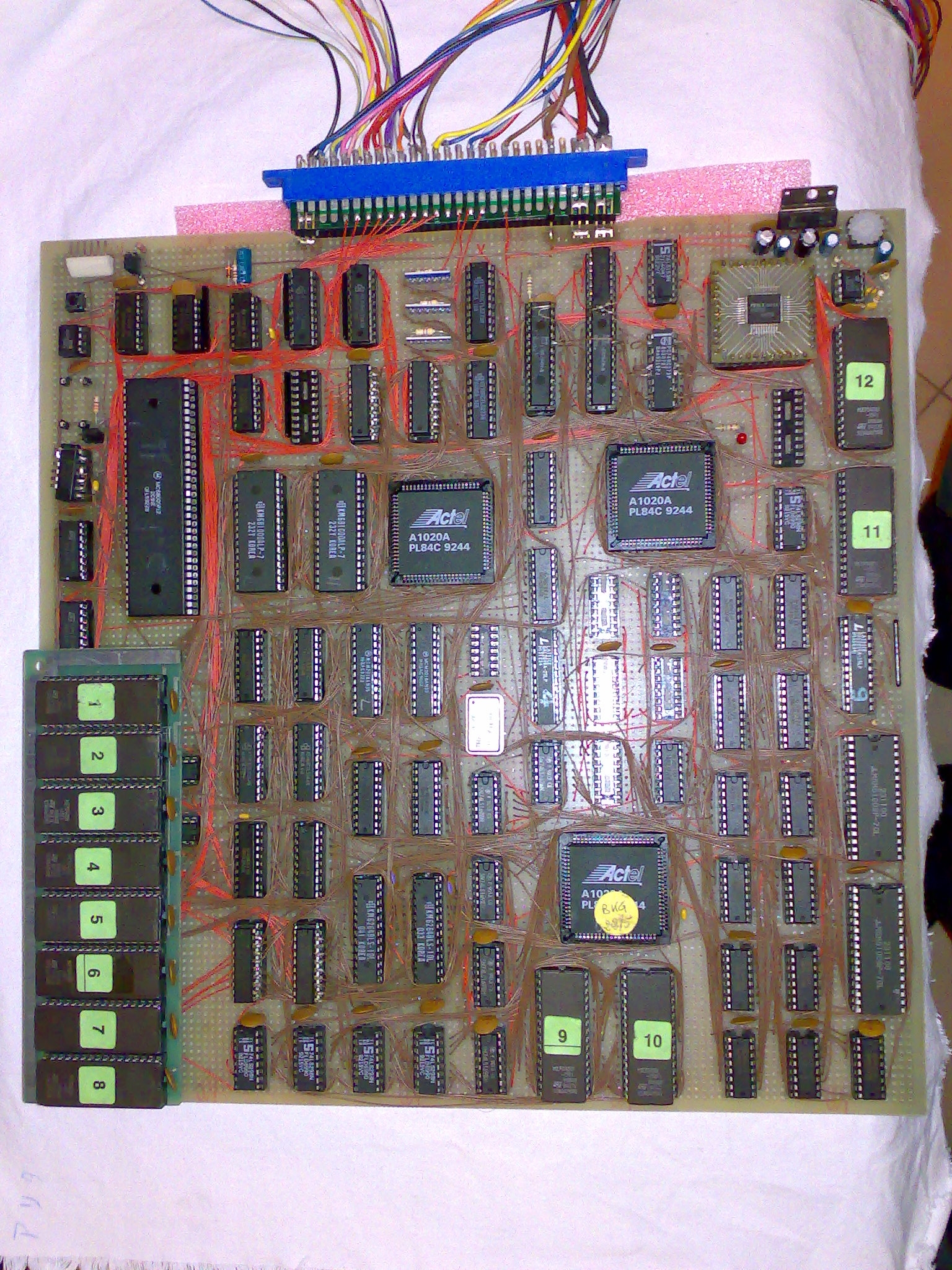

PCB component side 2
-
PCB component side 3
-

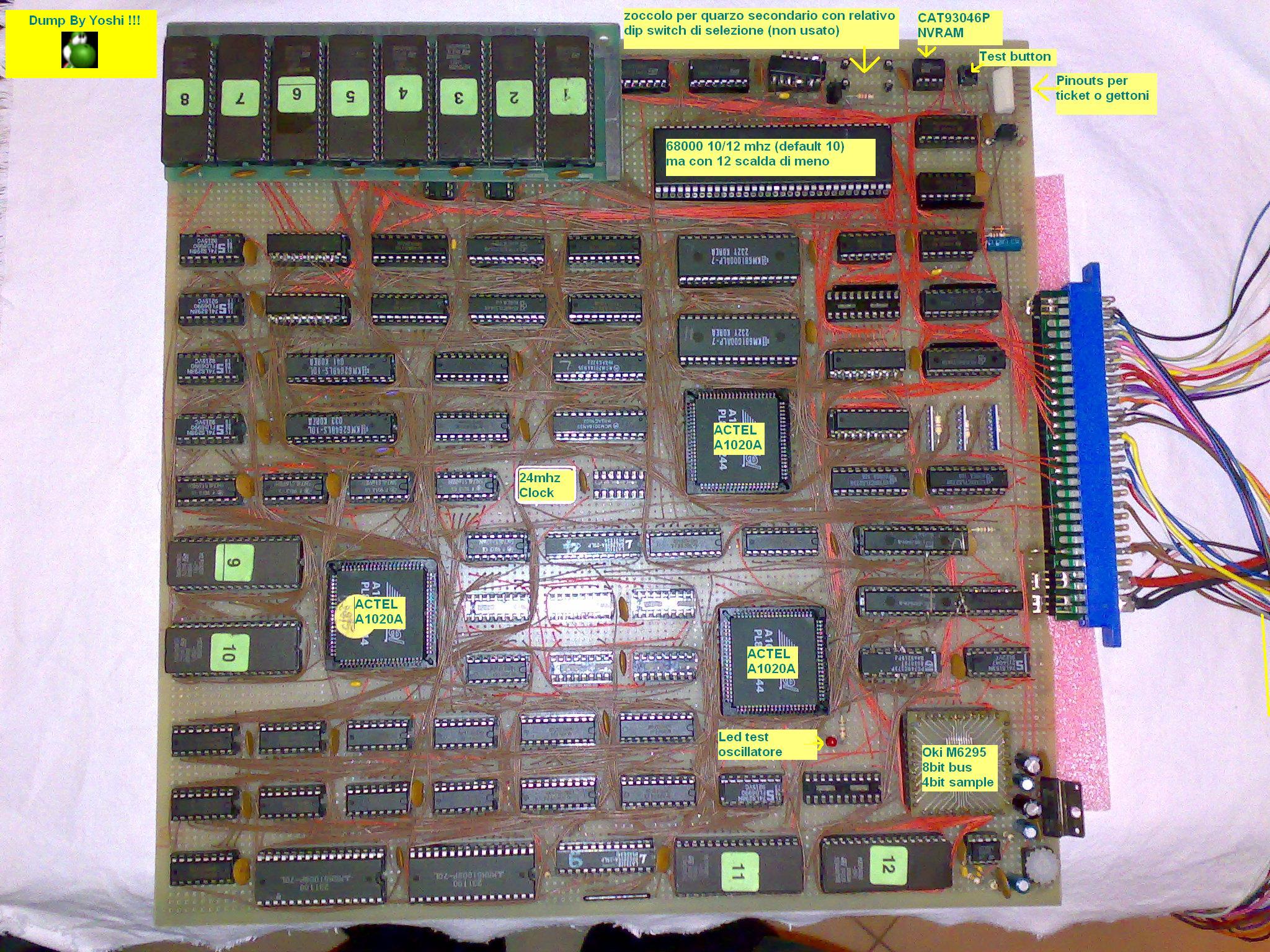

PCB component side info
-

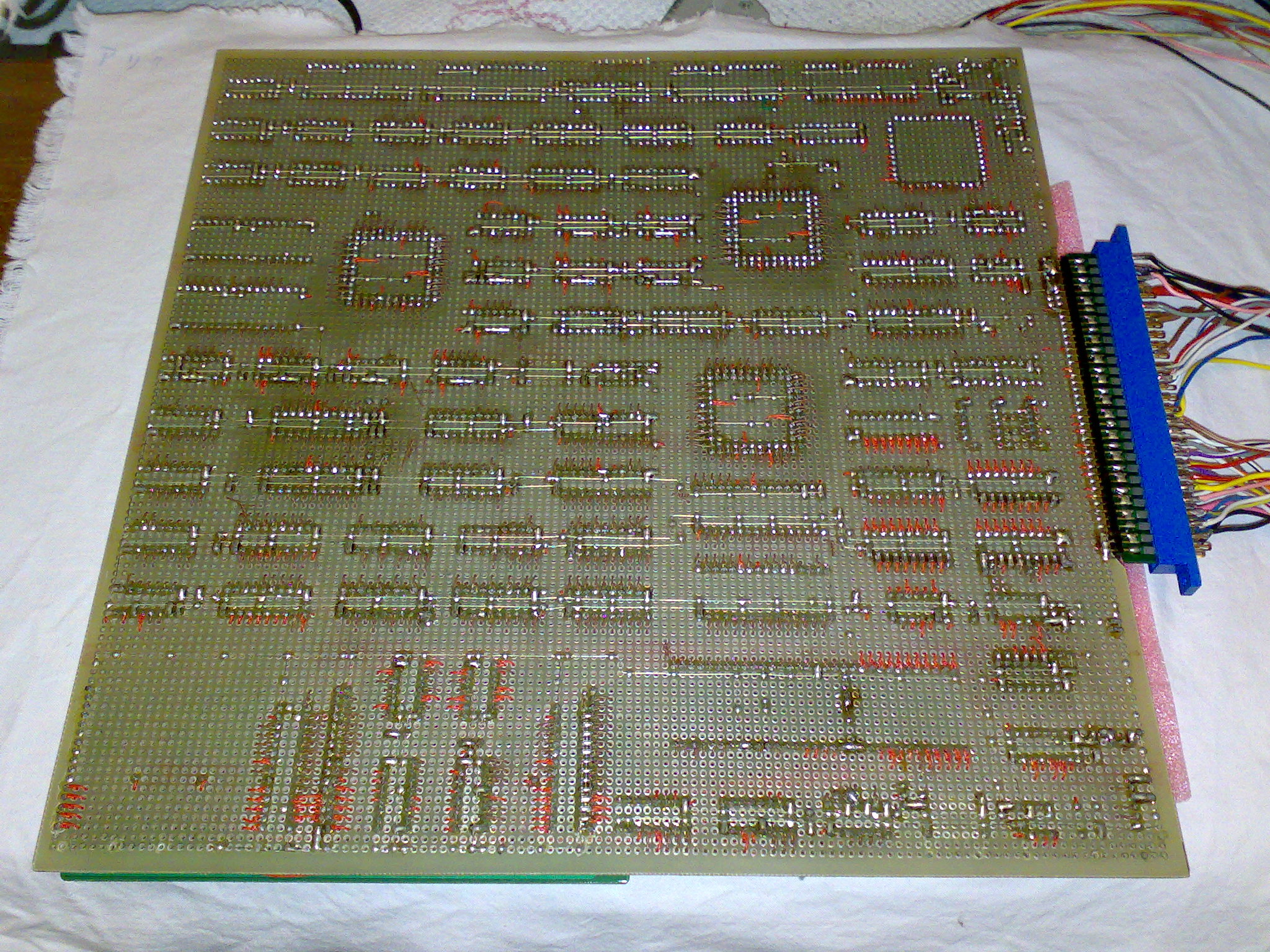

PCB solder side
-
Title
-

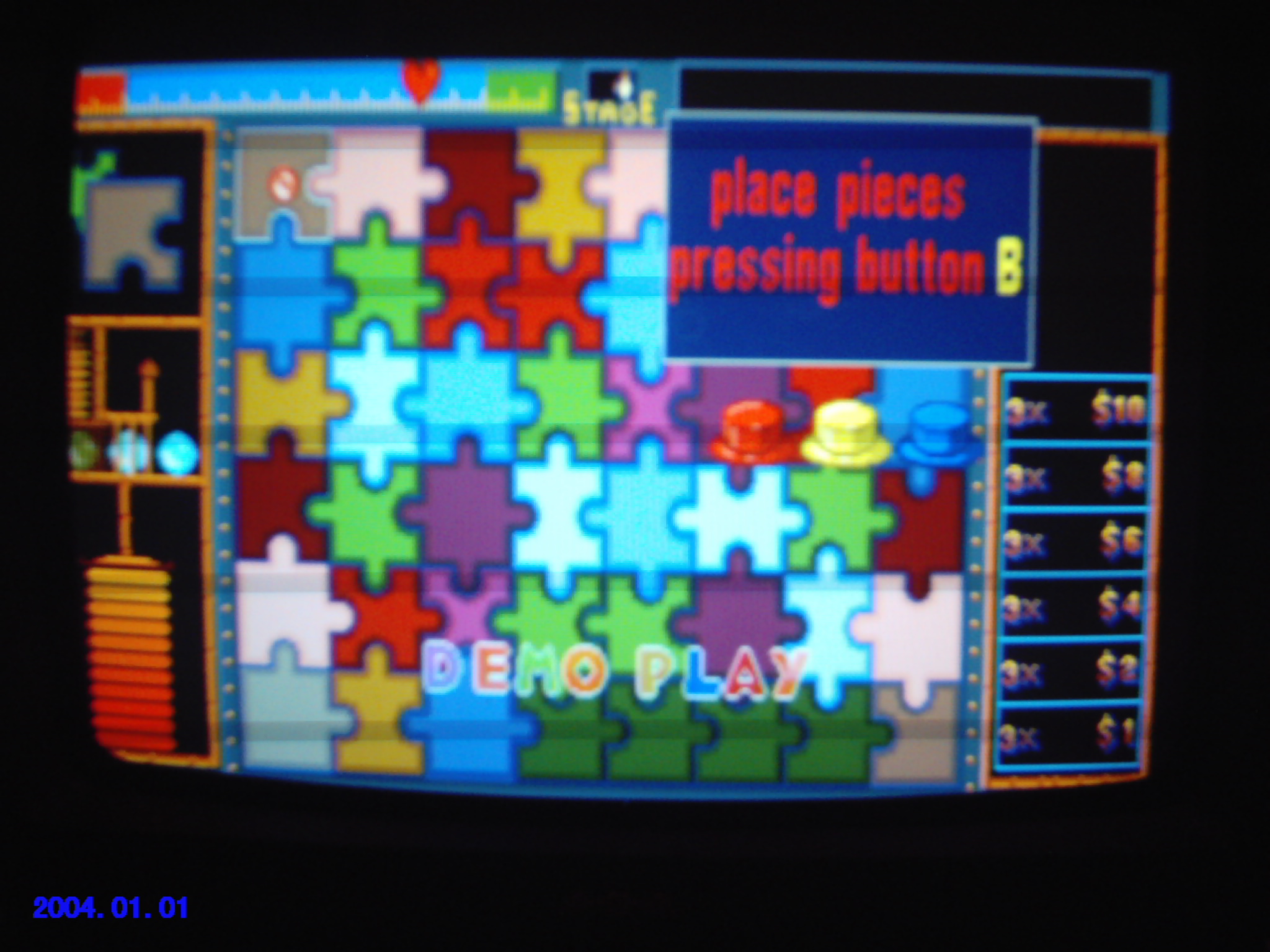

Attract mode
-

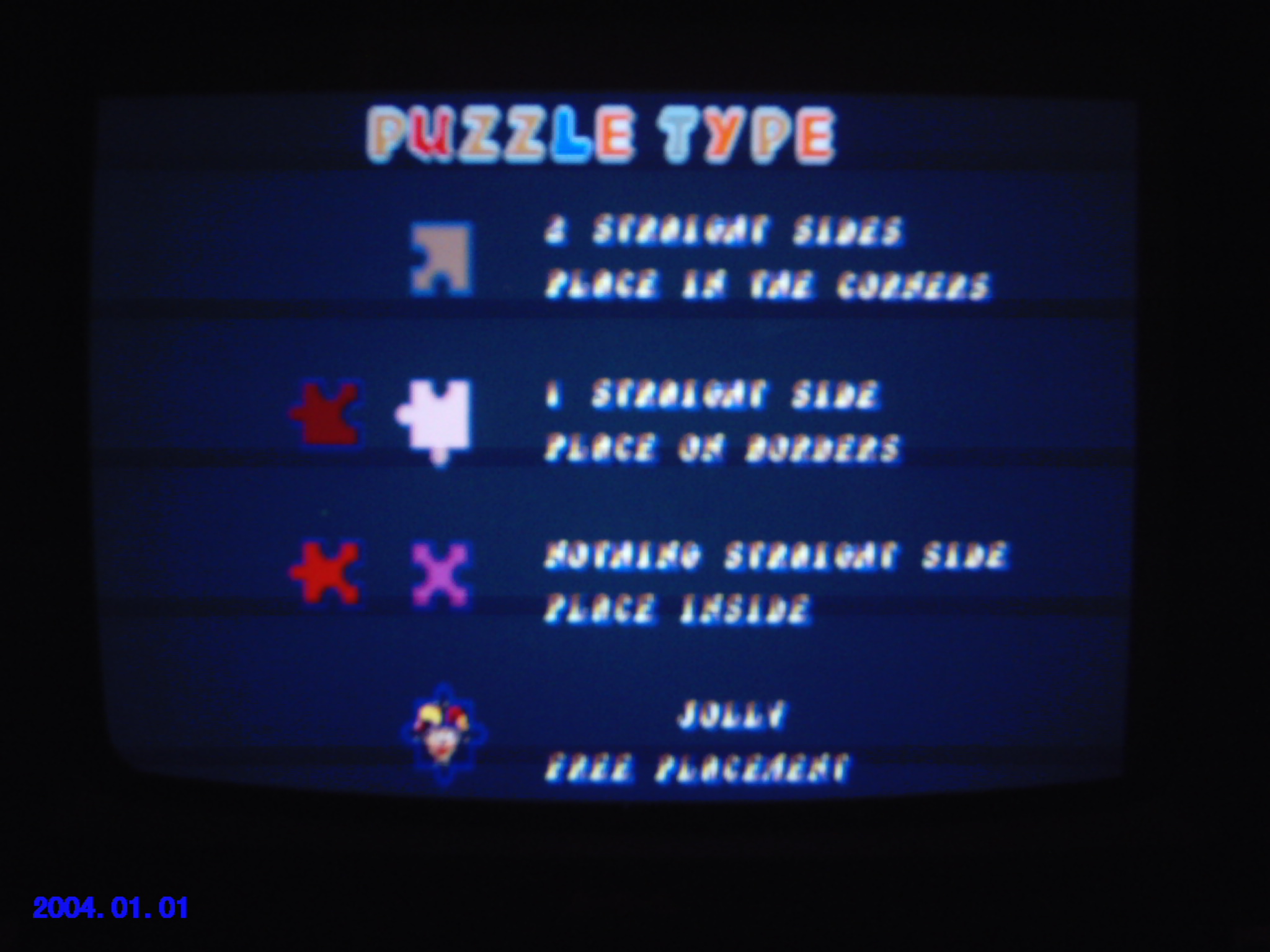

Instructions
-

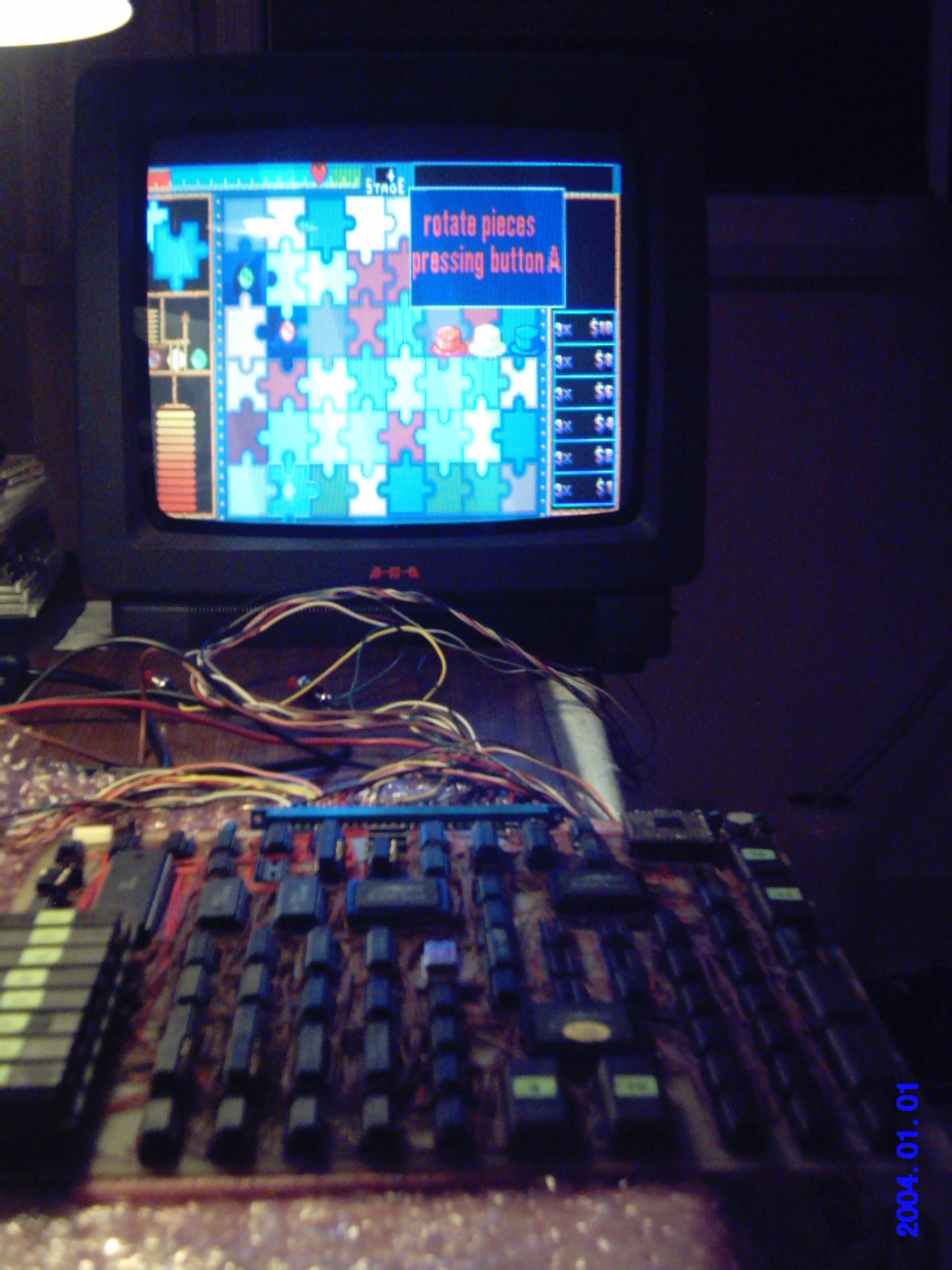

PCB and attract mode
-
PCB and instructions 1
-
PCB and instructions 2
-

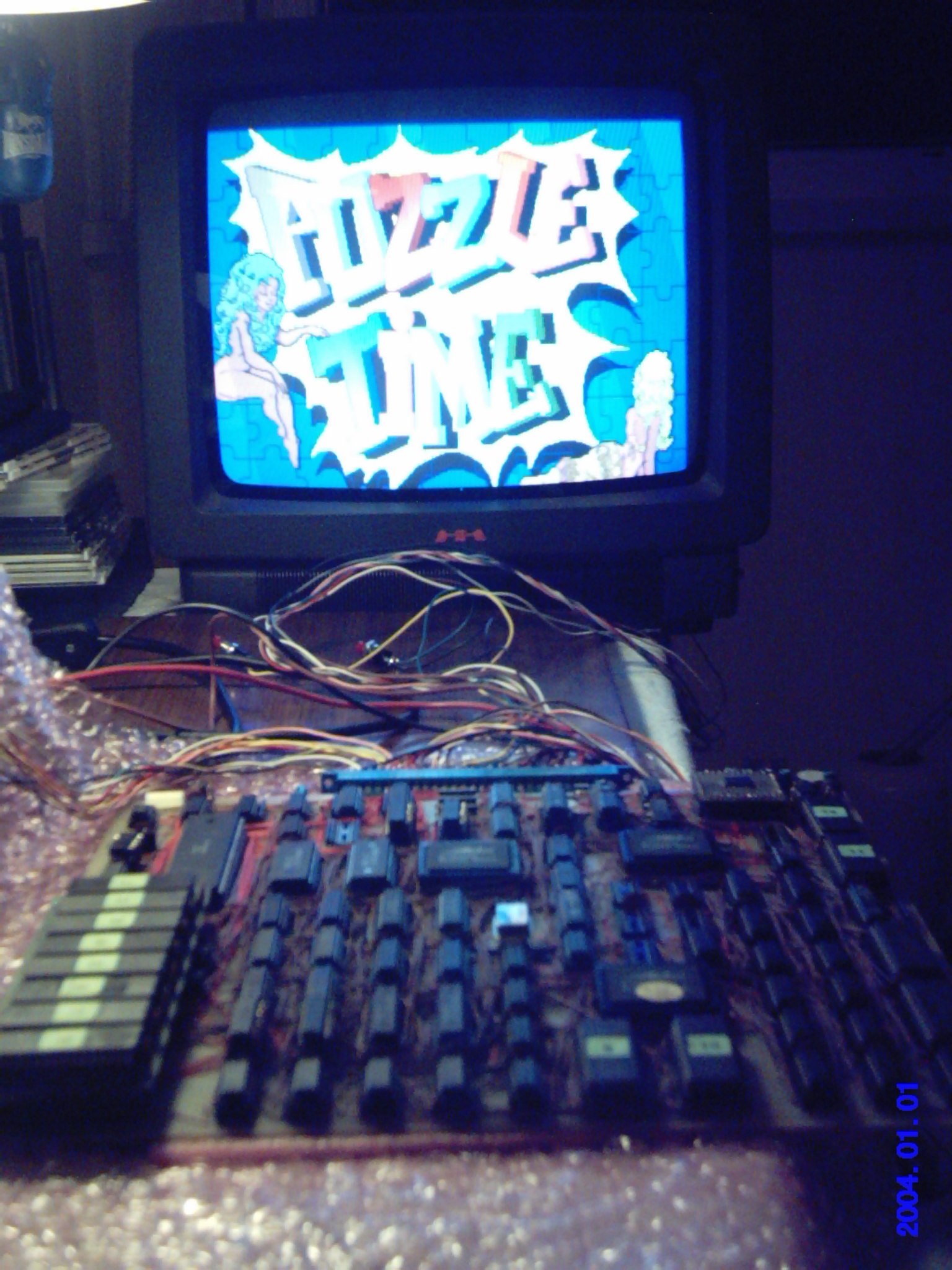

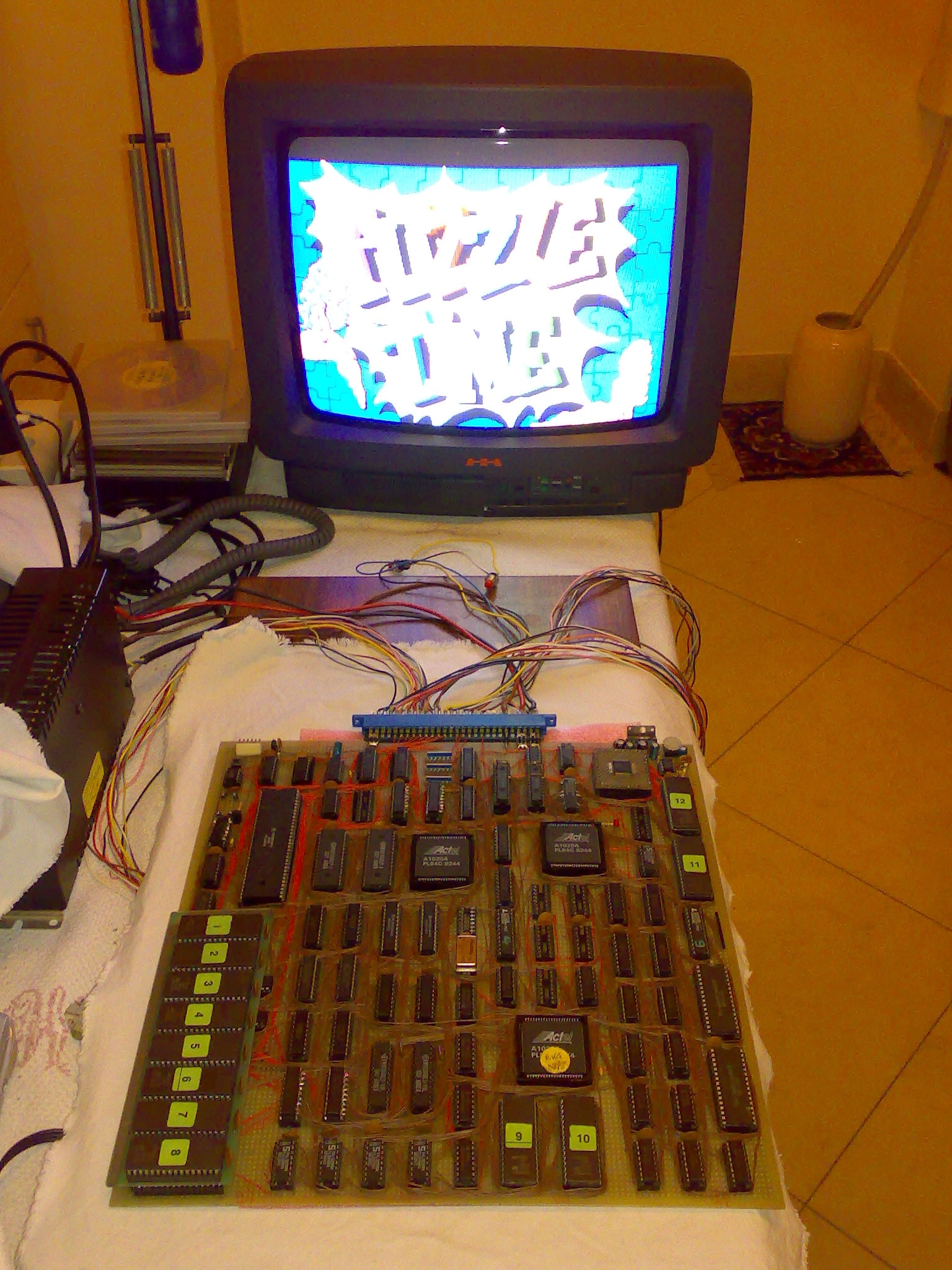

PCB and title 1
-
