Hec's Spinkick
From Citylan
| dumper | Corrado Tomaselli |
| date | 21/03/2005 |
| emulator | MAME 0.106u6 |
| dev | David Haywood |
| name | spinkick on Arcade Database |
| description | Hec's Spinkick |
| year | 1988 |
| manufacturer | Haesung / Seoji |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 2x | Z8400PS-Z80ACPU | c129.5a c139.5n | 8-bit Microprocessor - main + sound | |
| 1x | YM2203C | c114.3a | FM Operator Type-N (OPM) - sound | |
| 1x | YM3014 | c103.2a | D/A Converter (DAC) - sound | |
| 1x | Yamaha V9938 | c117.3e | VDP inside big epoxy block | |
| 1x | UM82C55A-PC | - | c123.3n | Programmable Peripheral Interface |
| 1x | GL324 | - | c102.2b | Quad Operational Amplifier - sound |
| 1x | uPC1182H | - | c101.1a | Audio Amplifier - sound |
| 1x | oscillator | 21.47727MHz | 5e |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 7x | TMS27C256 | c130.5b c145.7a c146.7c c147.7d c149.7h c150.7j c1510.7l |
dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | HY6116AP-15 | c131.5d |
| 1x | DM6264-15 | c152.7m |
| 1x | HY6264LP-15 | c153.7n |
| 4x | TMS4464-12NL | c118.3h c119.3j c124.4h c125.4j |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)(2a)
2x 8 DIP switches banks (c105.2d c107.2g)
Notes
PCB is marked: "CBK1029" on component side
update 20221014: better description
Files
-

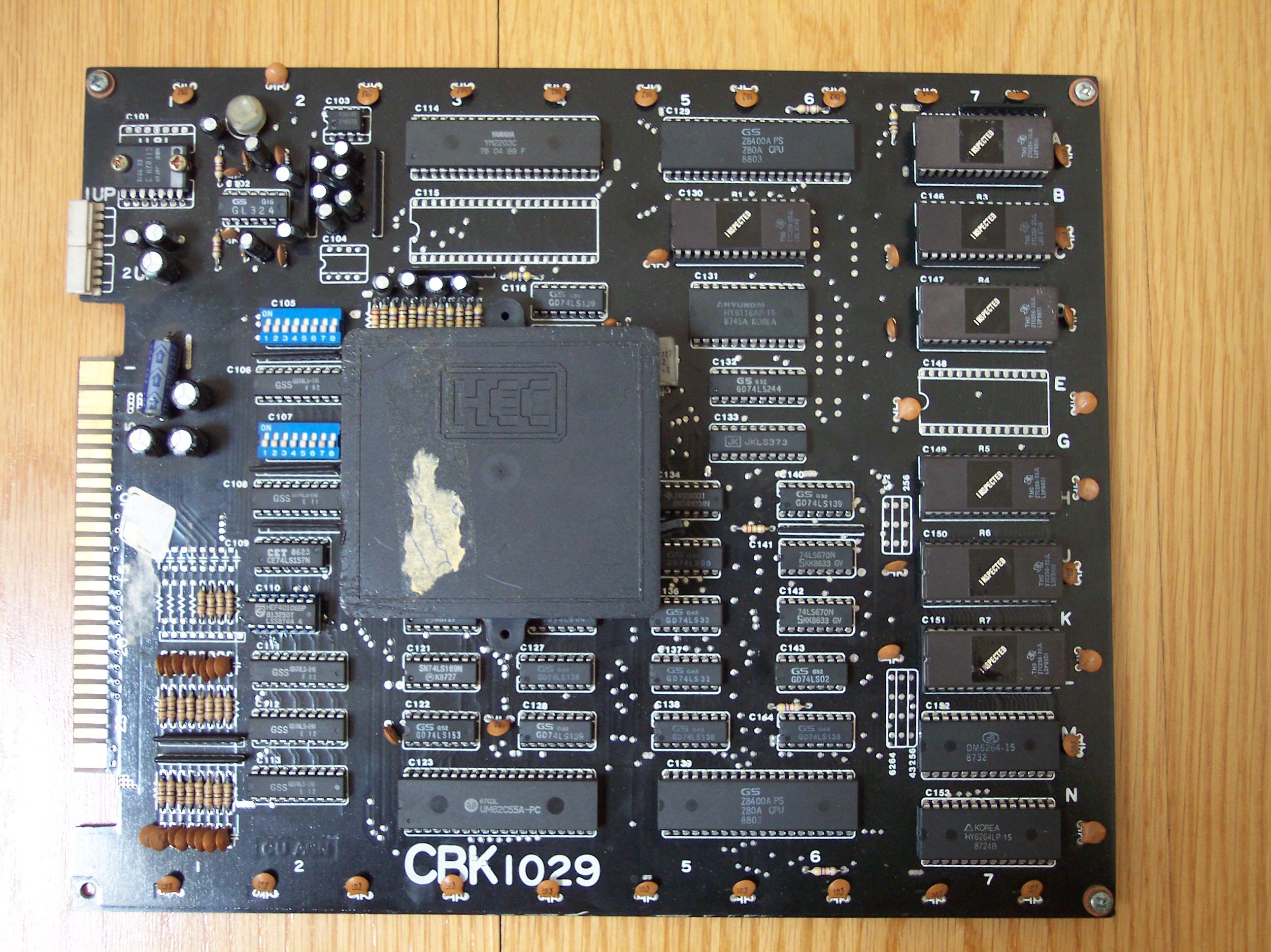

PCB component side 1 -

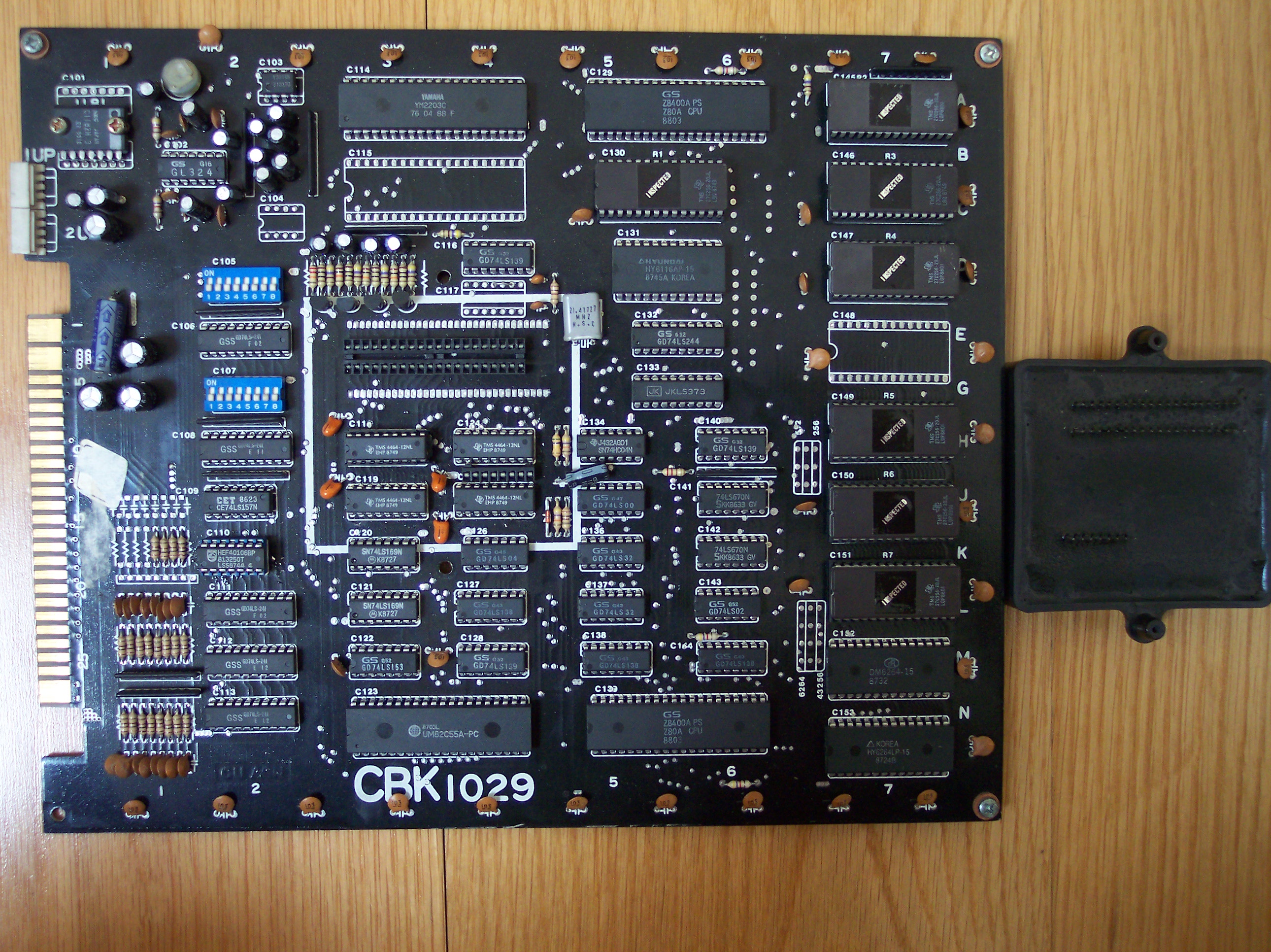

PCB component side 2 -
