Quiz Aa! Megami-sama ~Tatakau Tsubasa to Tomoni~ (Japan)

From Citylan
Revision as of 14:36, 27 September 2024 by WikiSysop (talk | contribs)
(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)
Jump to navigationJump to search
EMU Infos
dumper Guru
dump date 23/04/2009
emulator MAME 0.131
dev Guru
PCB Infos
name qmegamis on Arcade Database
description Quiz Aa! Megami-sama ~Tatakau Tsubasa to Tomoni~ (Japan)
year 2000.06.08
manufacturer Sega

Technical references

CPUs

QTY Type clock position function
1x oscillator 50MHz osc1

ROMs

QTY Type position status
1x M27C322 epr-23227.ic11 dumped
16x MX23L641 mpr-23211ic17s,18,19s,20,21s,22,23s,24,25s,26,27s,28,29,30s,31,mpr-2322632s dumped
1x 25LC040 ic13s not dumped

RAMs

QTY Type position
1x IDT71V256 ic15

PLDs

QTY Type position status
1x A54SX32 317-0280-JPN ic1 read protected

Others

Notes

It's a NAOMI cart.
Cart type: 171-7978B
Cart N°: 840-0030C
Key: 0xcd9b4896

Files

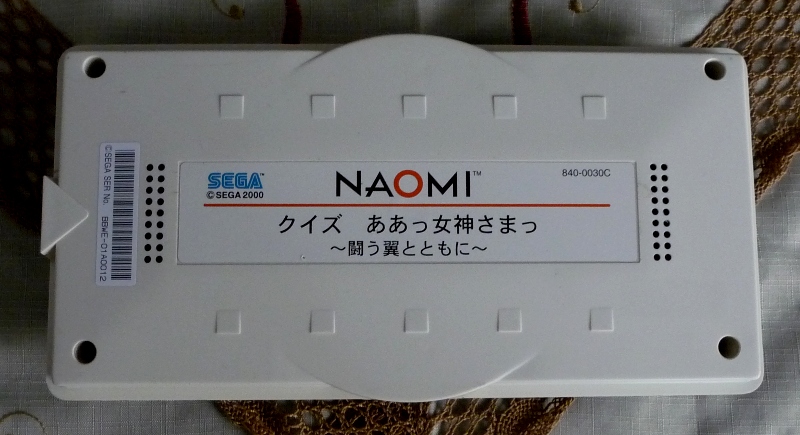

  • Cart
    Cart

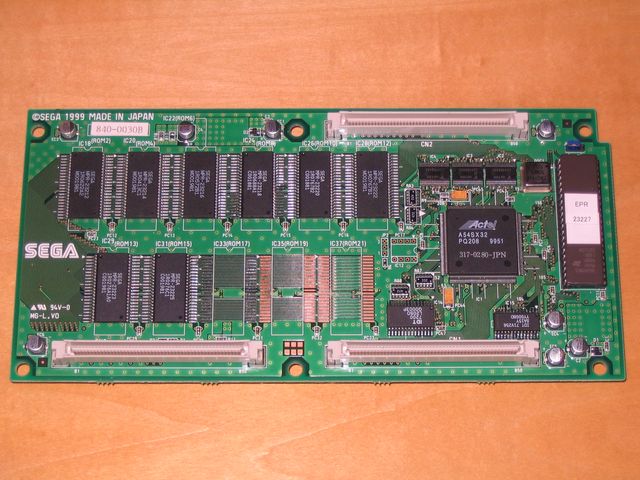

  • PCB component side 1
    PCB component side 1

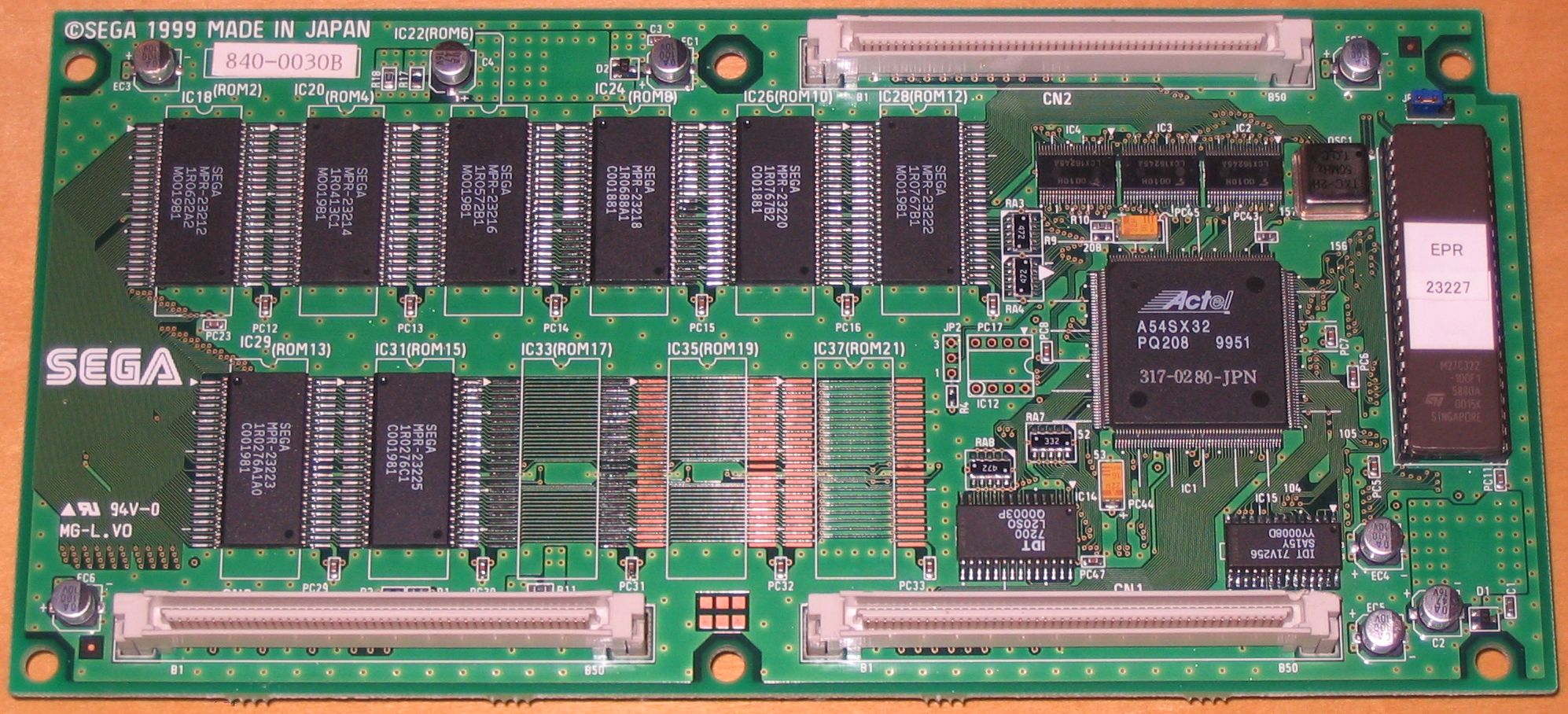

  • PCB component side 2
    PCB component side 2
