Star Horse Progress (sound & backup, Rev A)
From Citylan
| dumper | Rtw |
| date | 20/01/2017 |
| emulator | MAME 0.182 |
| dev | MetalliC |
| name | shorseps on Arcade Database |
| description | Star Horse Progress (sound & backup, Rev A) |
| year | 2003.12.02 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | EPR-24097A.ic22 | dumped |
| 6x | MaskROM 128Mb TSOP48 | MPR-24098.ic1 - MPR-24103.ic6 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71V256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
| 1x | EPM7032 315-6319A | ic27 | read protected |
Others
Notes
It's a NAOMI SATELLITE cart.
Cart type: 171-8132B
Cart N°: 840-0121C
Protection IC: not present
Key: no key
requires 837-13785 ARCNET&IO BD
Files
-
PCB component side -

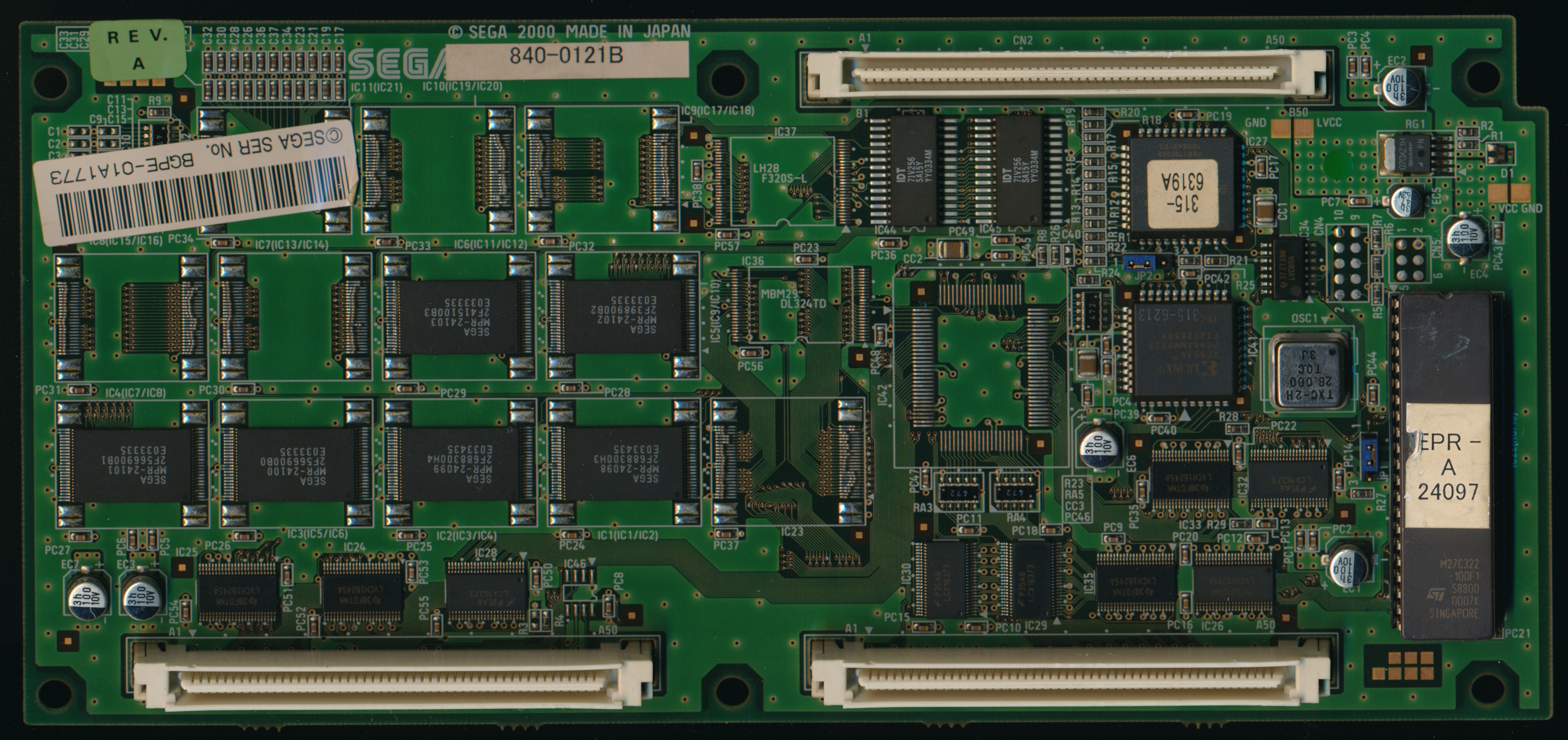

PCB component side 2 -

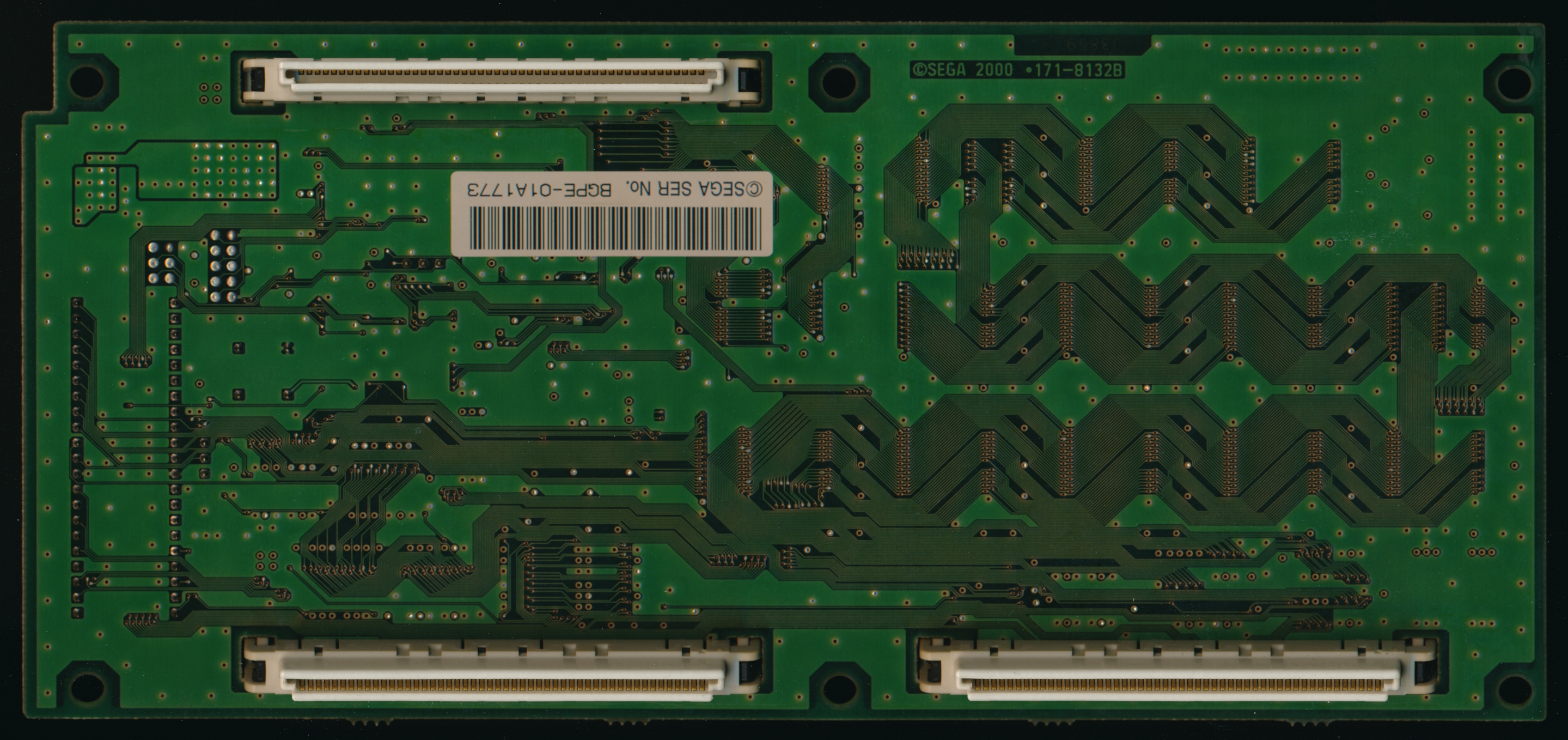

PCB solder side -
ARCNET&IO PCB component side -

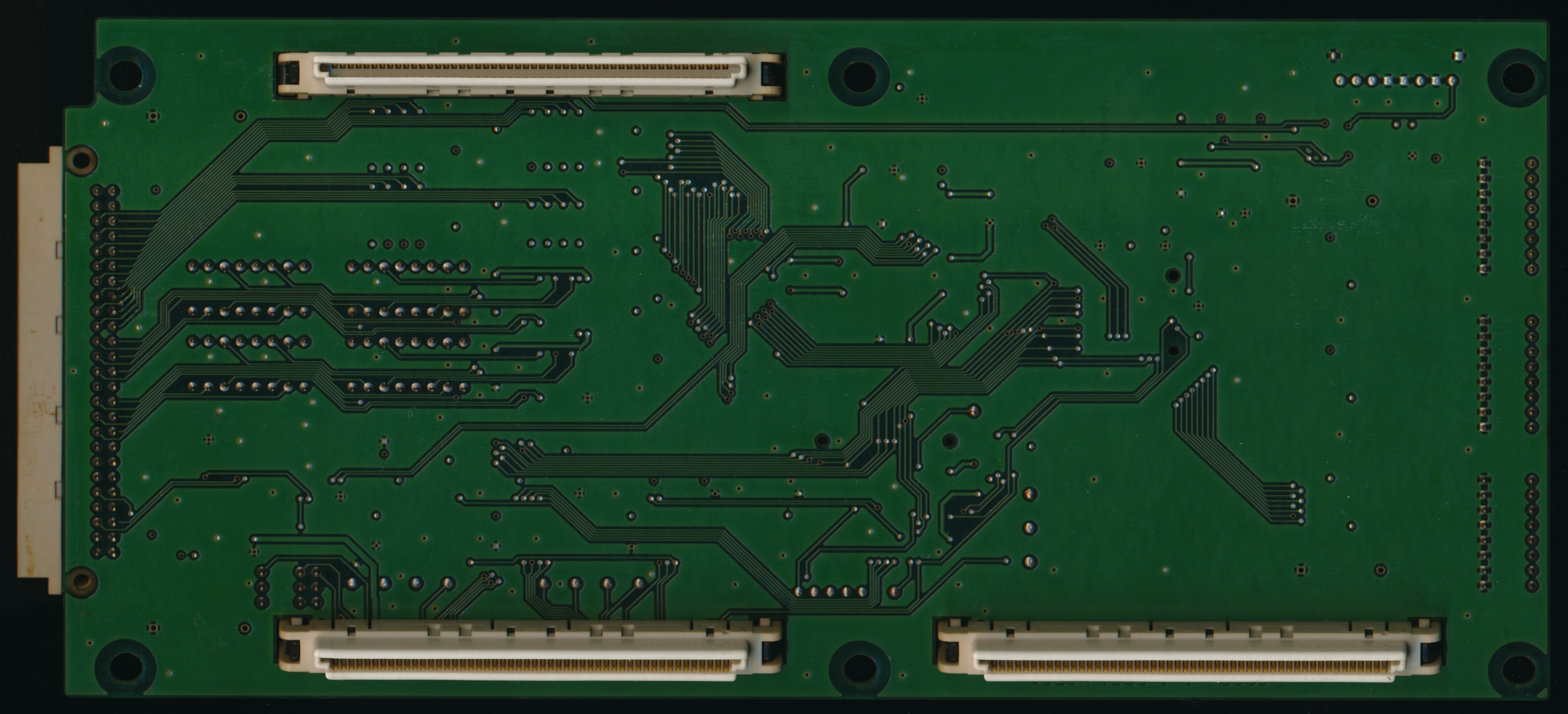

ARCNET&IO PCB solder side -
