Mushiking The King Of Beetles 2004 Second (Japan)

EMU Infos

dumper	f205v, Rtw
date	13/04/2017
emulator	MAME 0.186
dev	MetalliC

PCB Infos

name	mushi2k4 on Arcade Database
description	Mushiking The King Of Beetles 2004 Second (Japan)
year	2004.11.15
manufacturer	Sega

Technical references

CPUs

QTY	Type	clock	position	function
1x	oscillator	28.000	osc1

ROMs

QTY	Type	position	status
1x	M27C322	EPR-24241.ic22	dumped
5x	MaskROM 128Mb TSOP48	MPR-24242.ic1 - MPR-24246.ic5	dumped

RAMs

QTY	Type	position
2x	IDT71V256	ic44,ic45

PLDs

QTY	Type	position	status
1x	315-6213	ic41	read protected
1x	EPM7032 315-6319A	ic27	read protected

Notes

It's a NAOMI 2 cart.
Cart type: 171-8132B
Cart N°: 840-0152C
Protection IC: SEGA 315-5881 not present
Key: no key
requires 610-0669 barcode reader

---

update 20170413: dumped main EPROM, better pics

---

update 20170522: full dump

Files

•

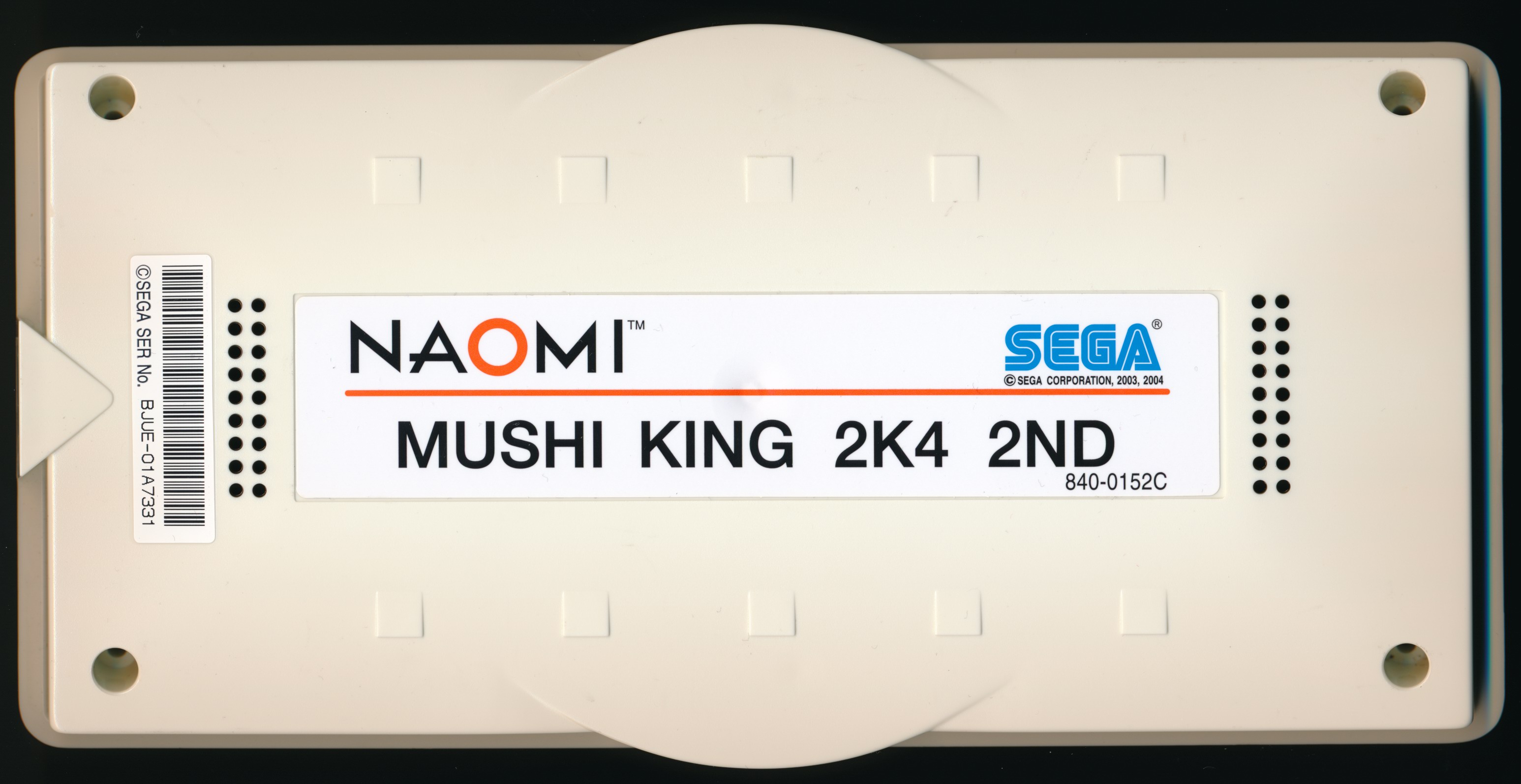

  Cart 1
•

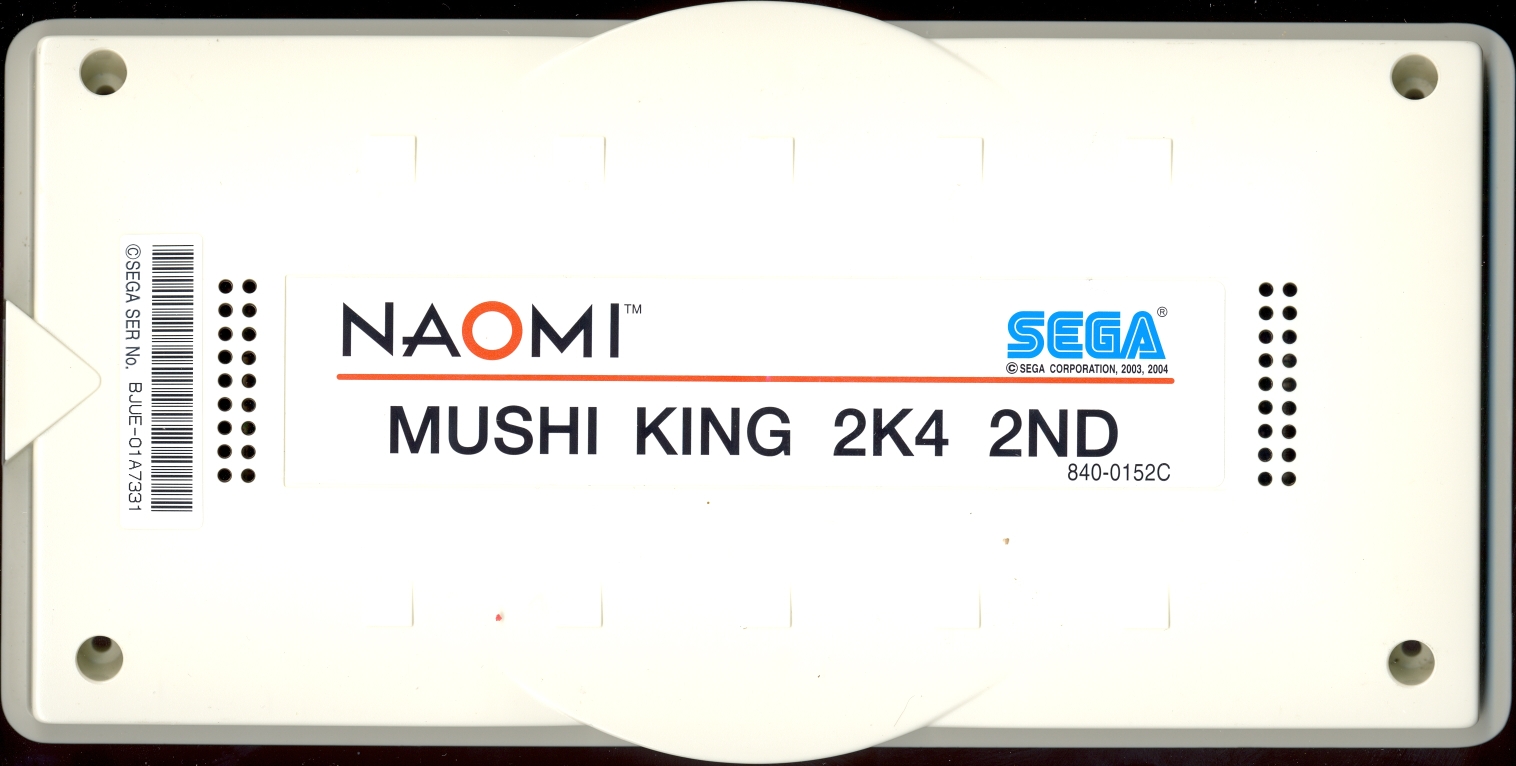

  Cart 2
•
  Cart 3
•

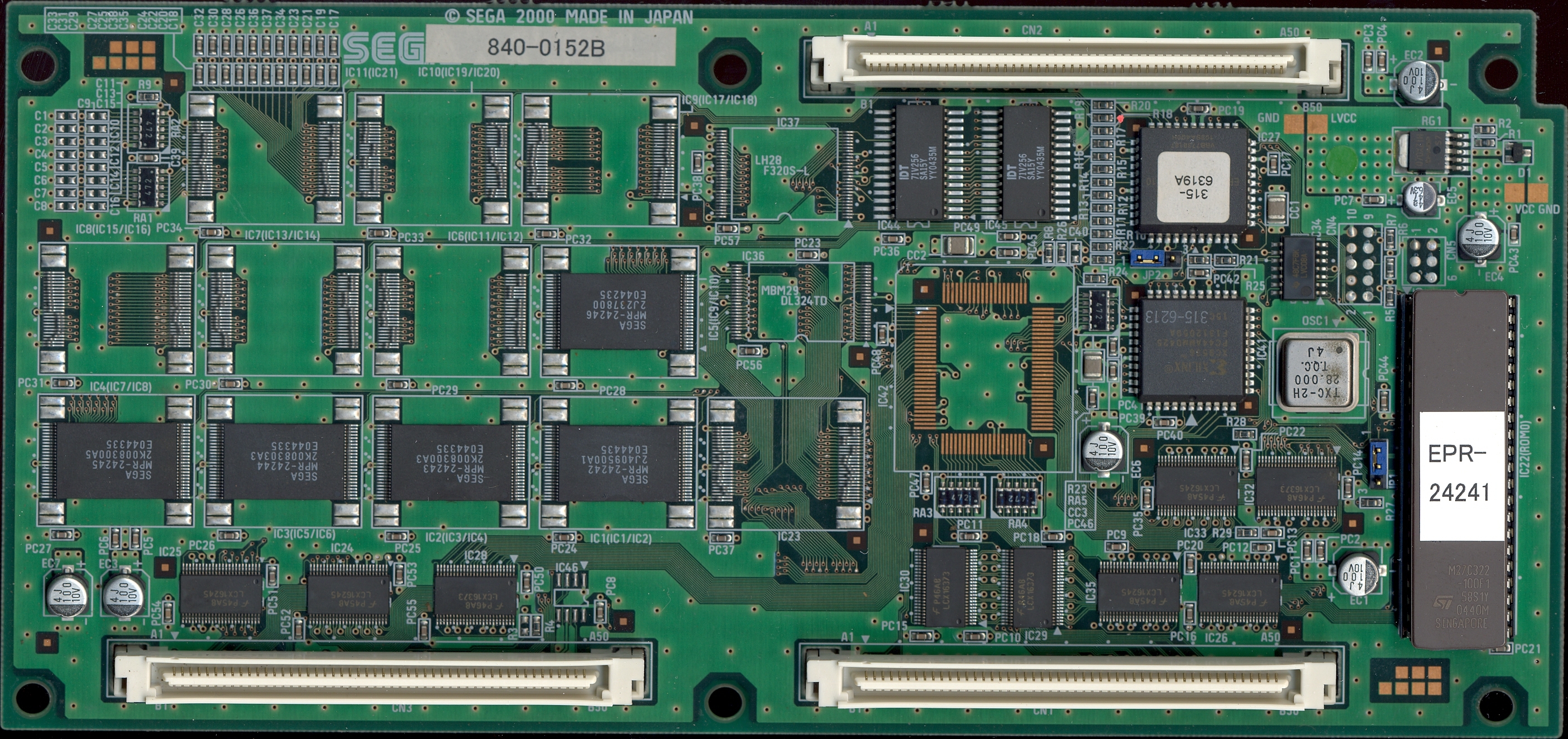

  PCB component side 1
•

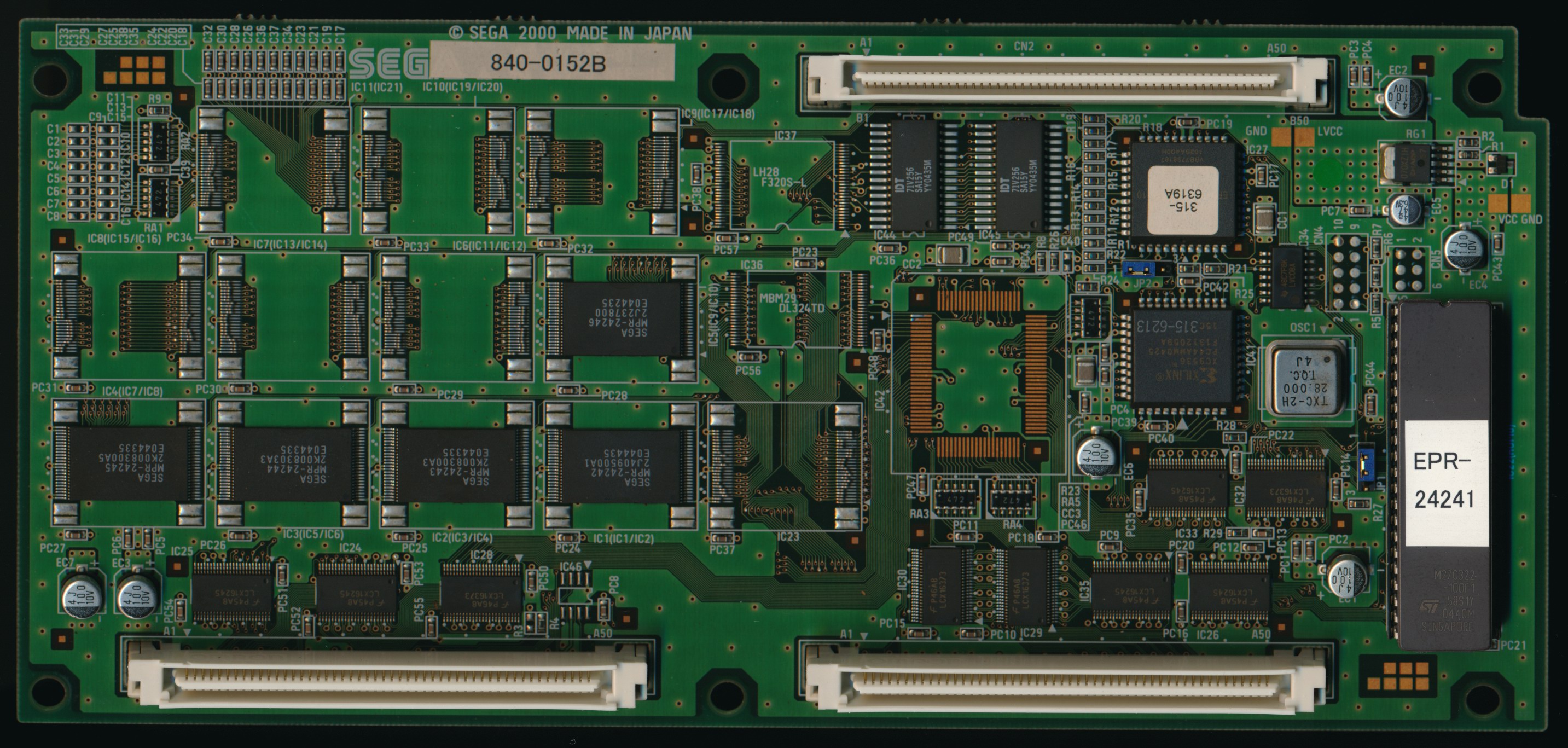

  PCB component side 2
•
  PCB solder side 1
•

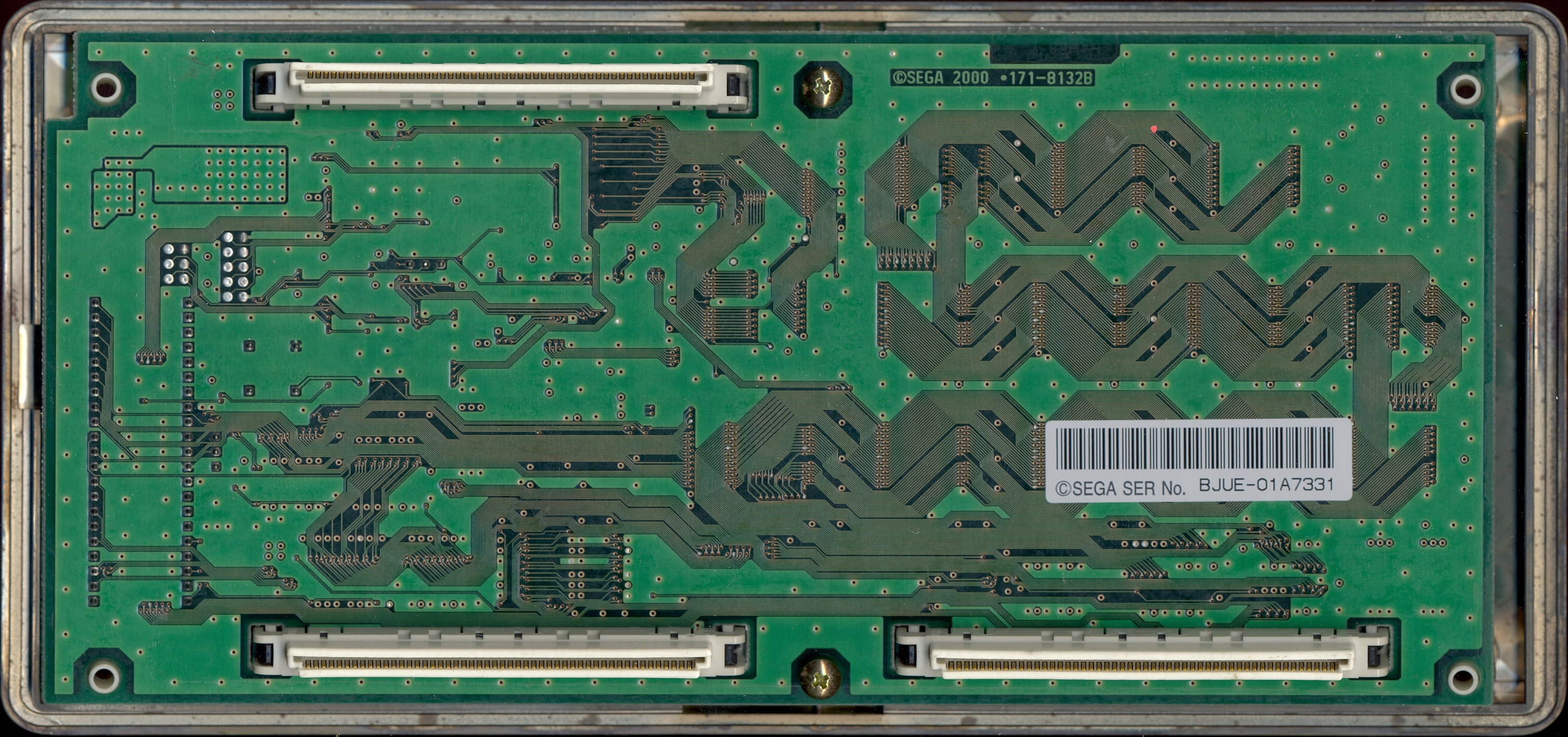

  PCB solder side 2
•

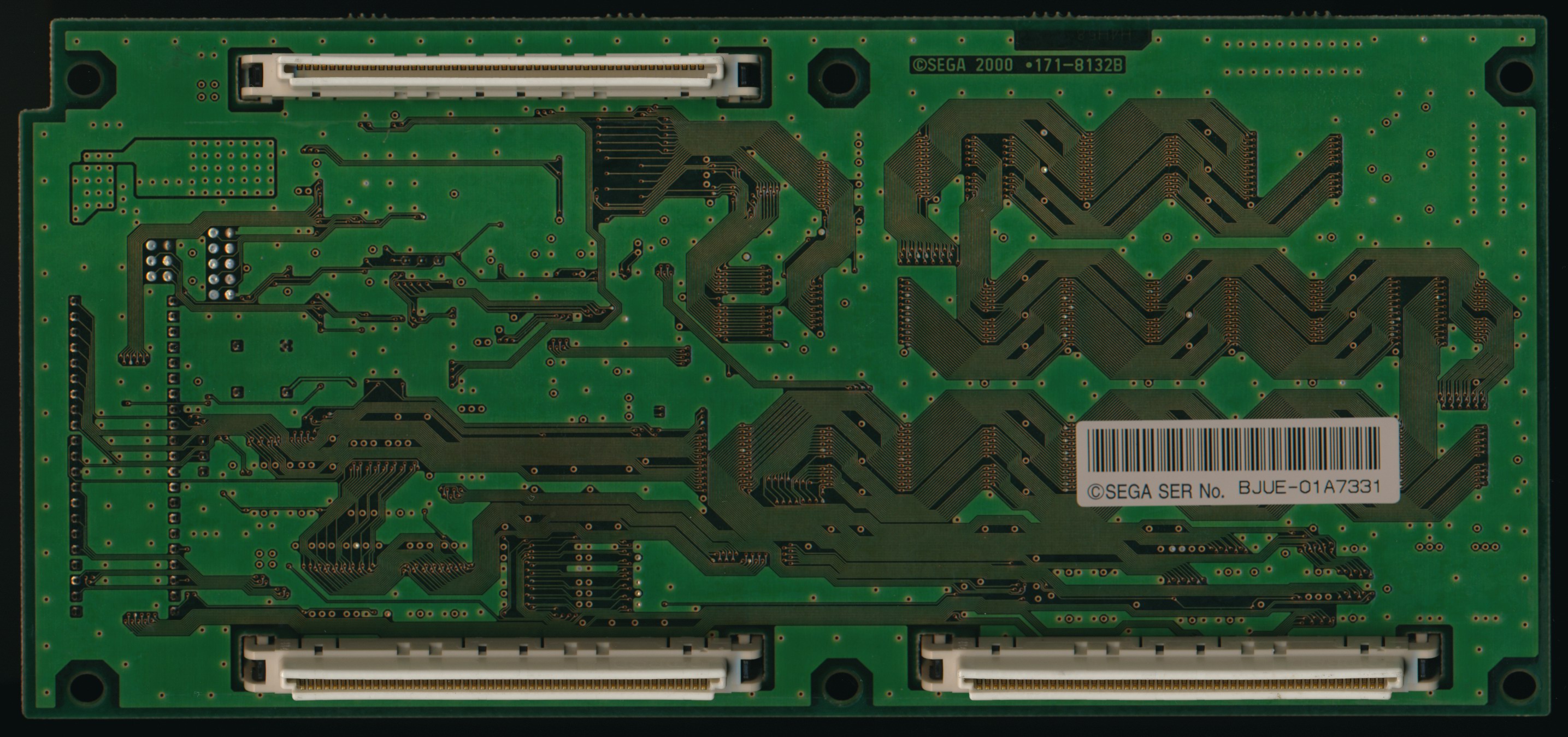

  PCB solder side 3
•

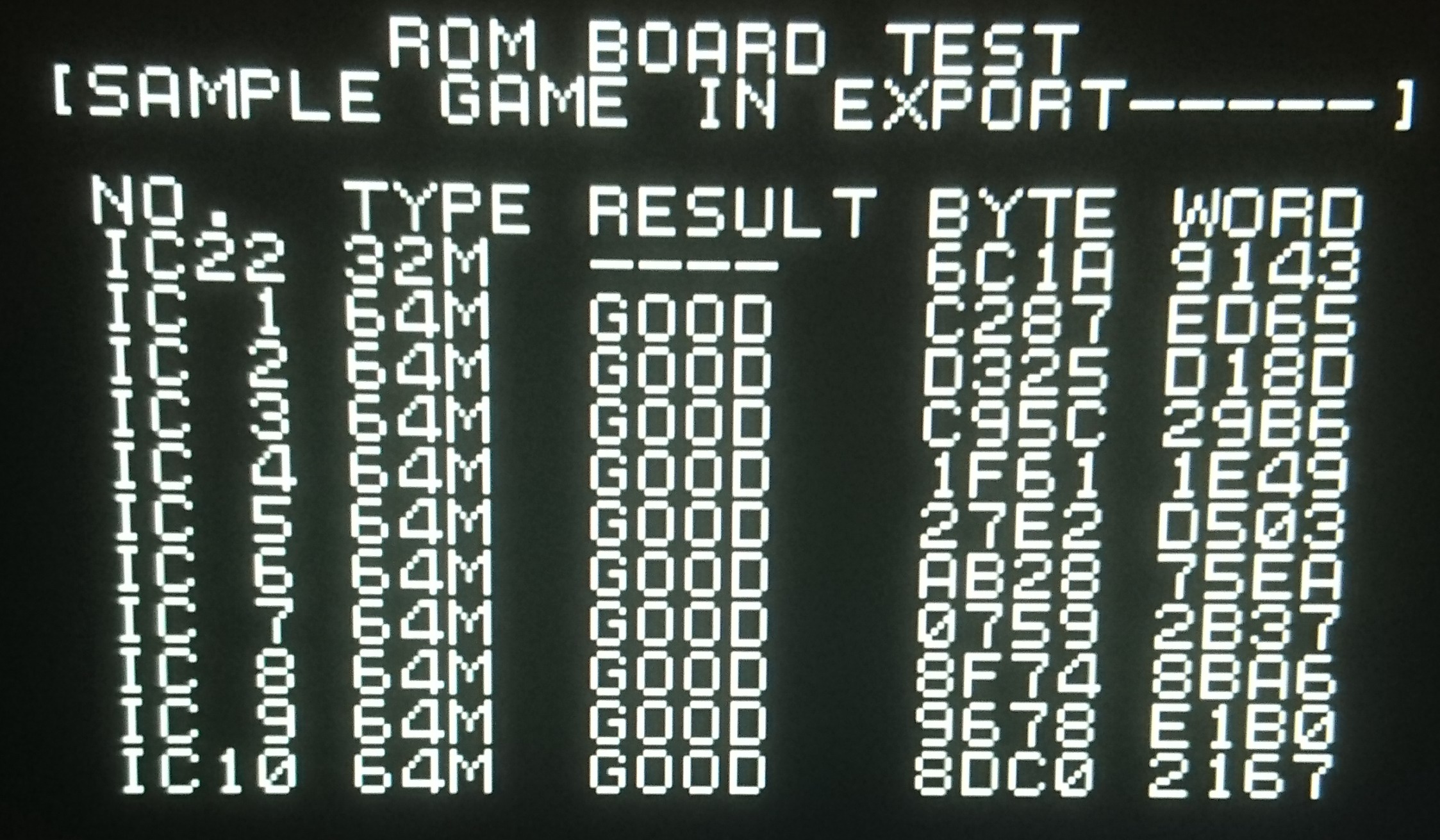

  ROM board test
•
