Astro Wars (set 1)
From Citylan
Jump to navigationJump to search
| dumper | IZ8DWF |
| date | 08/11/2025 |
| emulator | MAME 0.127 |
| dev | MASH |
| name | astrowar on Arcade Database |
| description | Astro Wars (set 1) |
| year | 1980 |
| manufacturer | Zaccaria / Zelco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 11x | 2708 | 10h,10i,11h,11i,11l,13h,13l,1d,3d,8h,8i | dumped |
| 1x | 2708 | 13i | not dumped, bit-rot |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
2x 8 DIP switches banks (2n,3n)
Notes
update 20251113: added PCB pics
Files
-

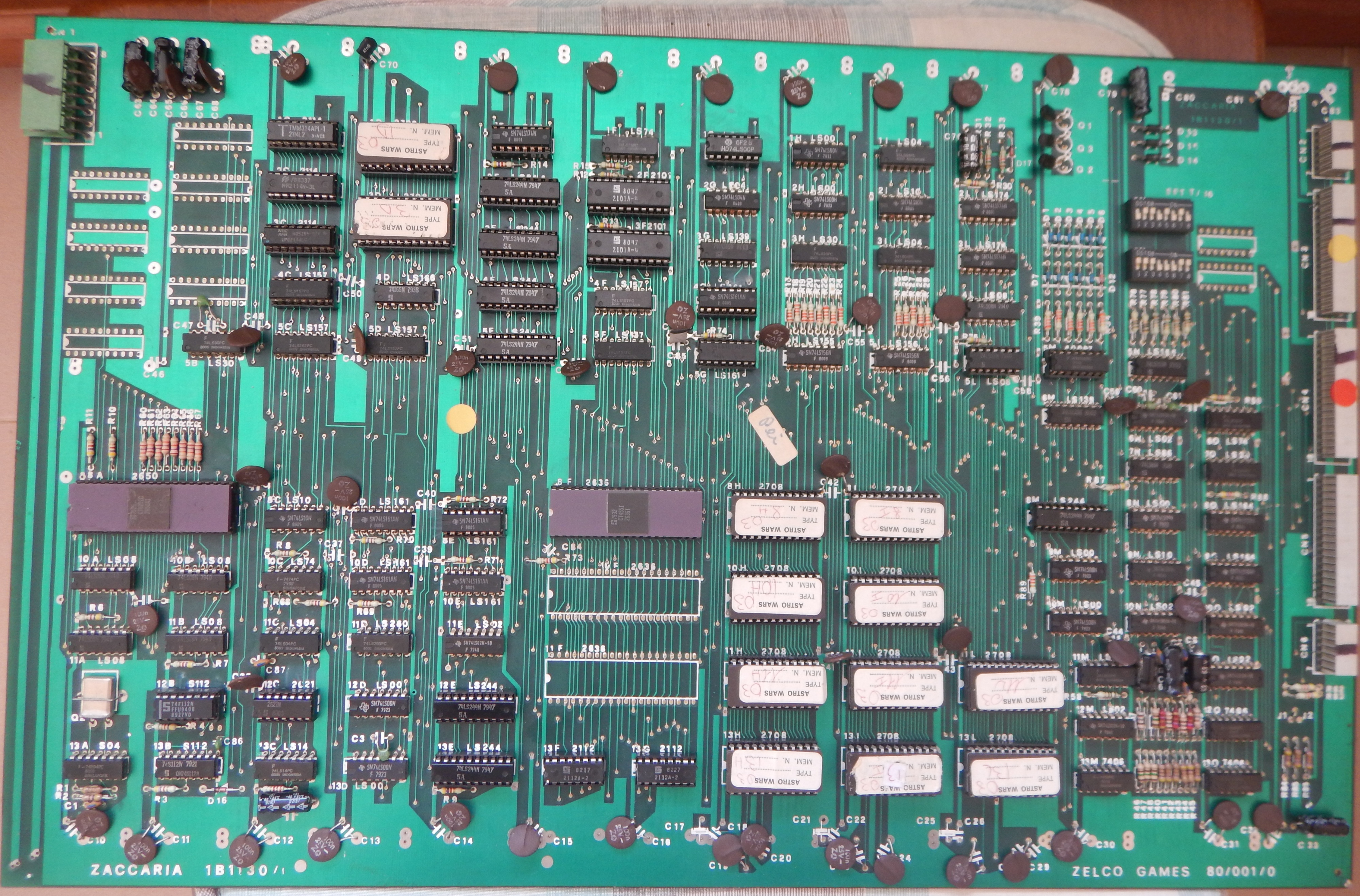

PCB component side -
PCB component side notes
1801
