Astro Wars (set 2)
From Citylan
Jump to navigationJump to search
| dumper | IZ8DWF |
| date | 28/10/2025 |
| emulator | MAME 0.283 |
| dev | Osso |
| name | astrowara on Arcade Database |
| description | Astro Wars (set 2) |
| year | 1980 |
| manufacturer | Zaccaria / Zelco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 2650 | 8a | 8-bit Microprocessor - main | |
| 1x | 2636 | 8f | Programmable Video Interface - Video | |
| 1x | oscillator | 14.318MHz | 12a |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 12x | 2708 | 1-12 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | M2101A-4 | 2f,3f |
| 2x | 2111-1 | 13f,13g |
| 3x | MM2114N | 1c,2c,3c |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
2x 8 DIP switches banks (2n,3n)
Notes
Files
-

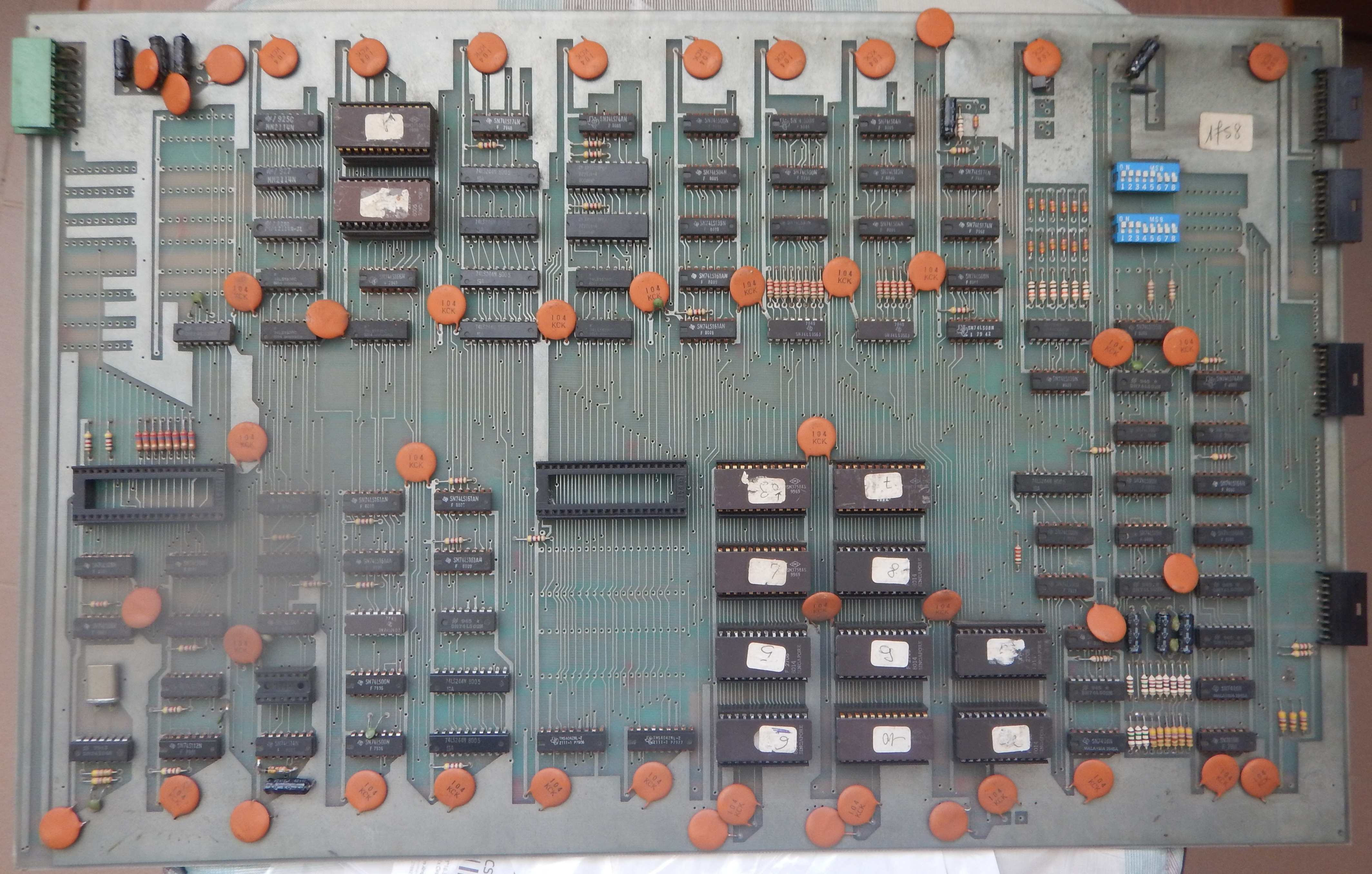

PCB component side -
PCB component side notes -

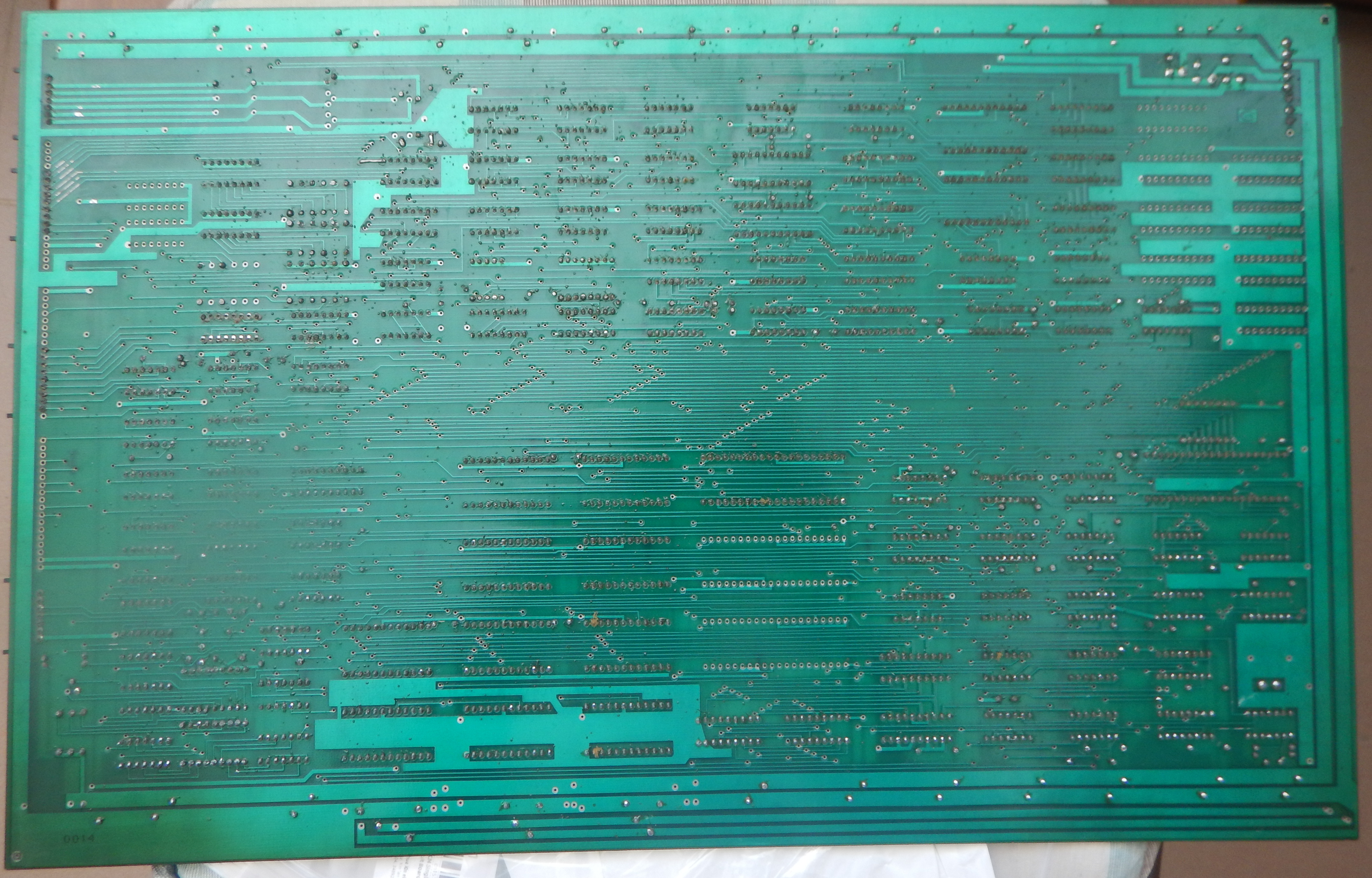

PCB solder side
