Baryon - Future Assault (set 2)
From Citylan
Jump to navigationJump to search
| dumper | Corrado Tomaselli, f205v |
| date | 09/05/2011 |
| emulator | MAME 0.142u4 |
| dev | David Haywood |
| name | baryona on Arcade Database |
| description | Baryon - Future Assault (set 2) |
| year | 1997 |
| manufacturer | SemiCom / Tirano |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68EC020FG16 | 16MHz(@5) | 32-bit Microprocessor - main | |
| 1x | P87C52EBPN | 16MHz(@18) - 16MHz(@19) | 8-bit Microcontroller - main - troyaned | |
| 1x | AD65 | 1MHz(@5) - 1MHz(@6) PIN 3 LO | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM324 | - | Quad Operational Amplifier - sound | |
| 1x | uPC1242H | - | Audio Amplifier - sound | |
| 1x | oscillator | 32.000MHz | ||
| 1x | oscillator | 27.000MHz | pixel clock |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27512 | 7 | dumped |
| 2x | 27010 | 8,10 | dumped |
| 4x | 27020 | 3,4,5,6 | dumped |
| 1x | 27040 | 1 | dumped |
| 3x | 27160 | 2,9,11 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | GM71C4263CJ60 | |
| 2x | HM3-65728BK-5 | |
| 2x | UM6164DK-15 | |
| 6x | UM61256FK-15 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | FPGA ACTEL A1020B | read protected | |
| 10x | PALCE20V8H-25PC/4 | read protected | |
| 2x | PALCE22V10H-25PC/4 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks (SW1,SW2)
Notes
PCB is labelled: "MODEL NO 9D014" on component side
update 20110512: update with pictures, movie
update 20110525: update with protdata and working driver
update 20210330: redumped, checked clocks, better description, better pics.
Files
-

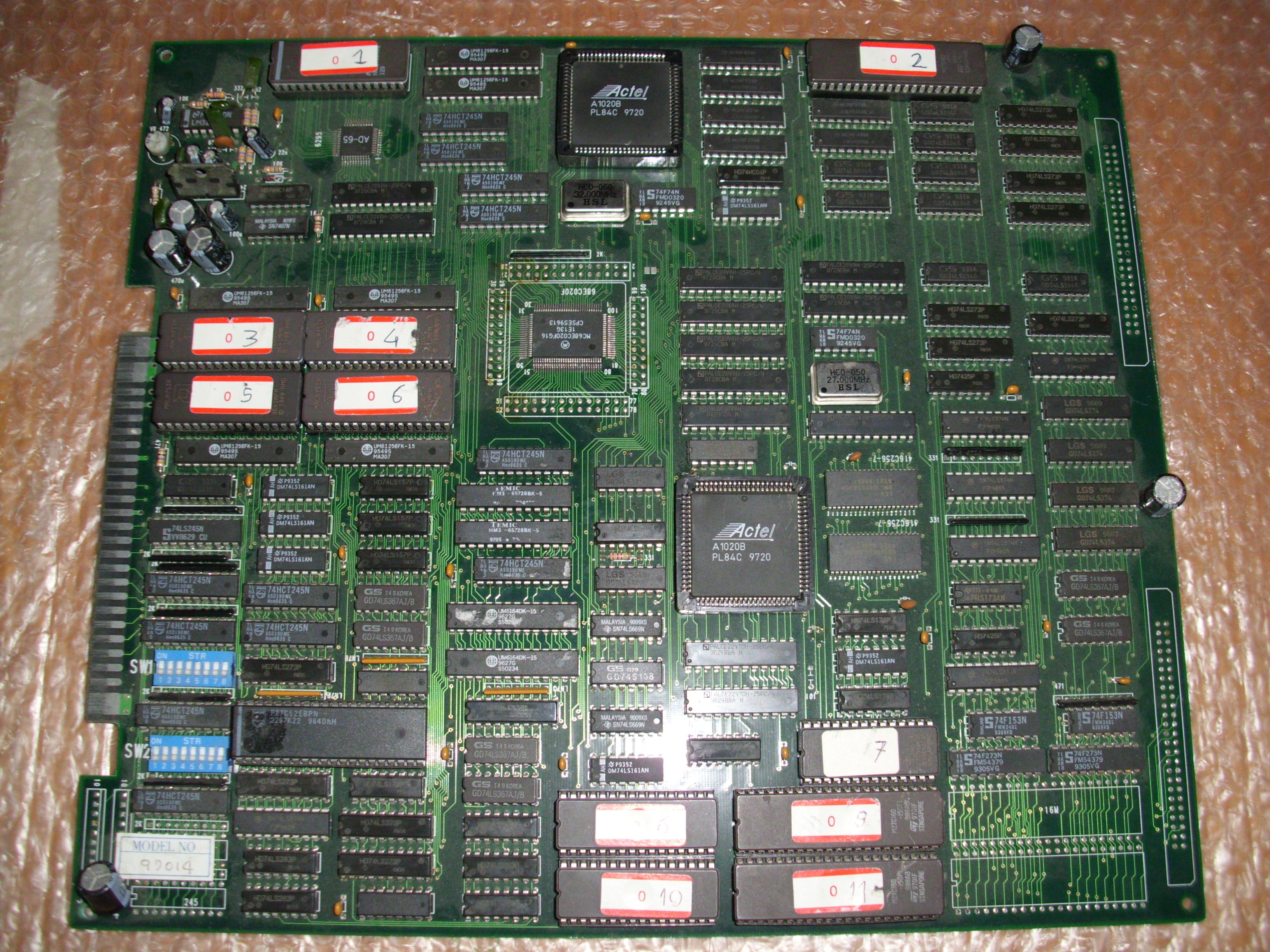

PCB component side 1 -

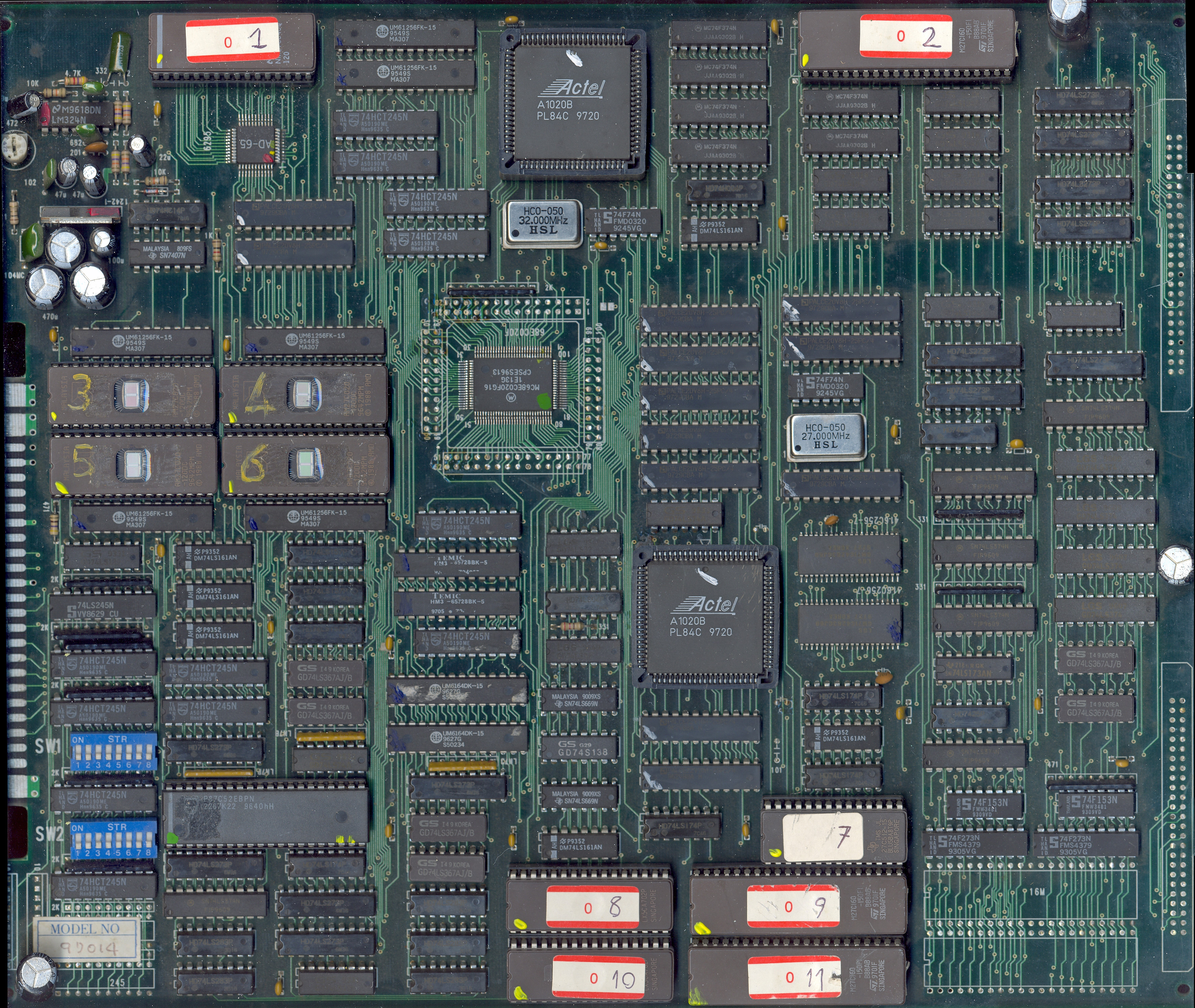

PCB component side 2 -

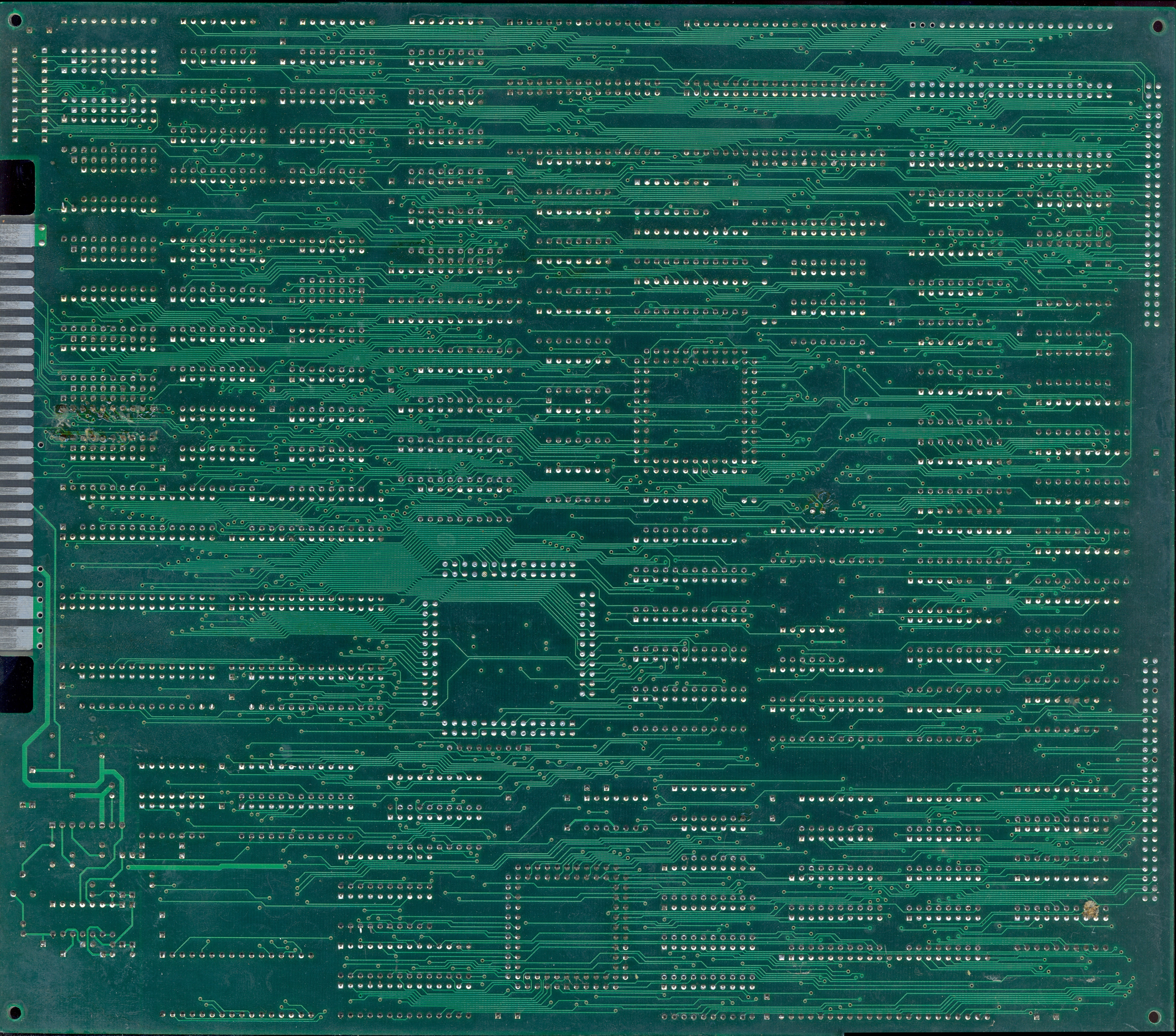

PCB solder side -

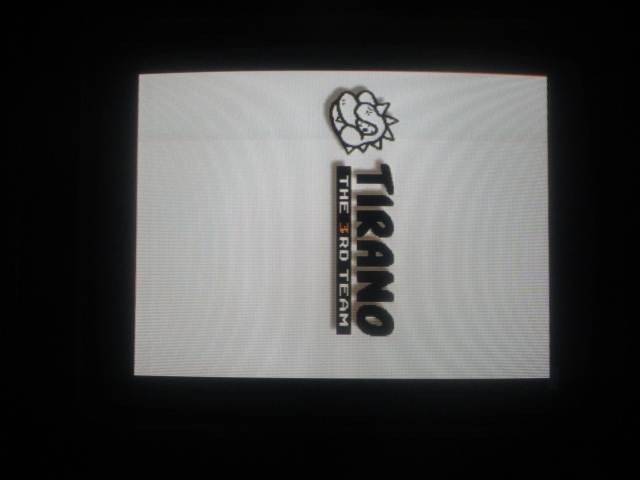

Title 1 -
Title 2 -

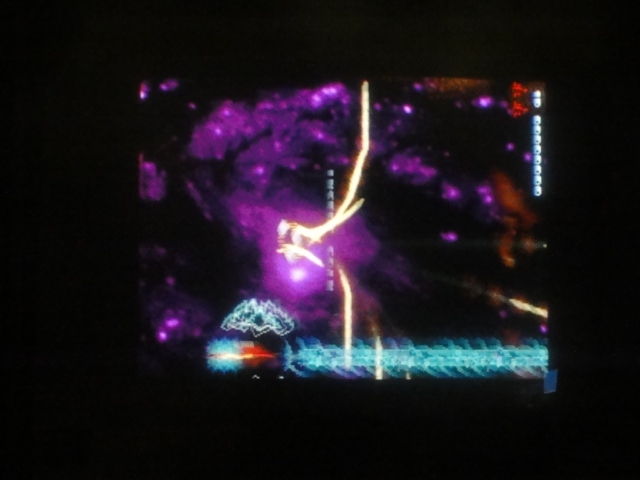

In game -
Read me -
Extracted protection data -
dreamwld.c made by David Haywood, including full support for protection data
