Buccaneers (set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 05/03/2005 |
| emulator | MAME 0.94u4 |
| dev | David Haywood |
| name | buccanrs on Arcade Database |
| description | Buccaneers (set 1) |
| year | 1989 |
| manufacturer | Duintronic |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z8400BB1-Z80BCPU-28907 | 8-bit Microprocessor - main | ||
| 1x | Z0840006PSC-Z80CPU-8722 | 8-bit Microprocessor - main or sound? | ||
| 2x | YM2203C | FM Operator Type-N (OPM) - sound | ||
| 1x | oscillator | 5.6888MHz | ||
| 1x | oscillator | 18.432MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 5x | AM27C512DC | 1,2,4,5,7 | dumped |
| 3x | AM27512 | 8,11,12 | dumped |
| 4x | AM27C010 | 3,6,9,10 | dumped |
| 4x | N82S129AN | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | PAL16L8ACN | u42,u103,u156 | read protected |
| 1x | PAL20L10ACNS | u78 | read protected |
Others
Notes
Files
-

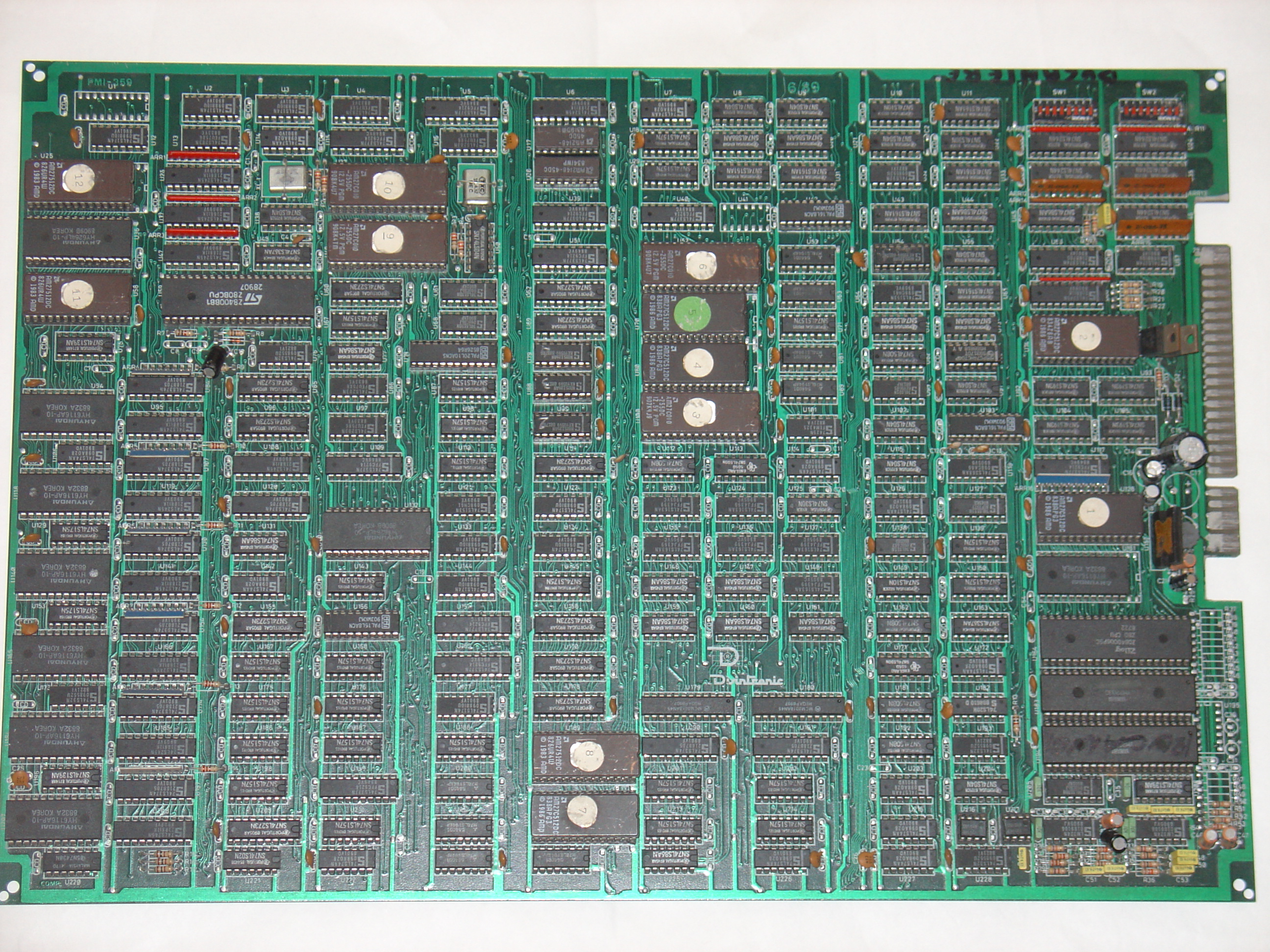

PCB component side -

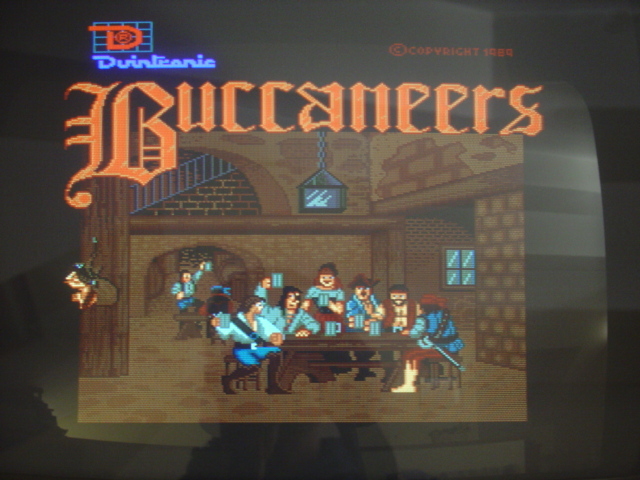

Title -

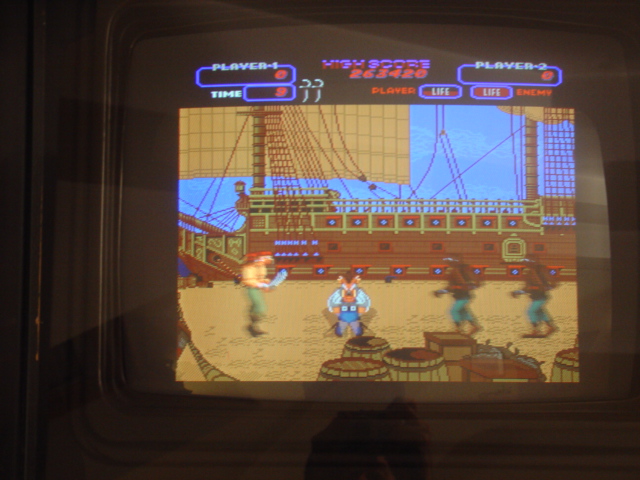

In game 1 -

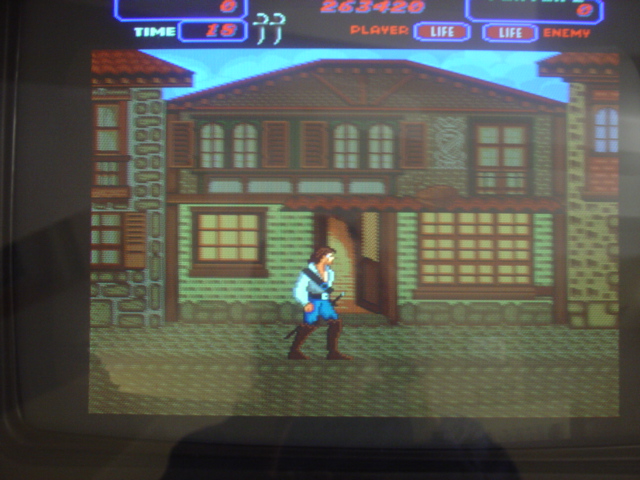

In game 2 -

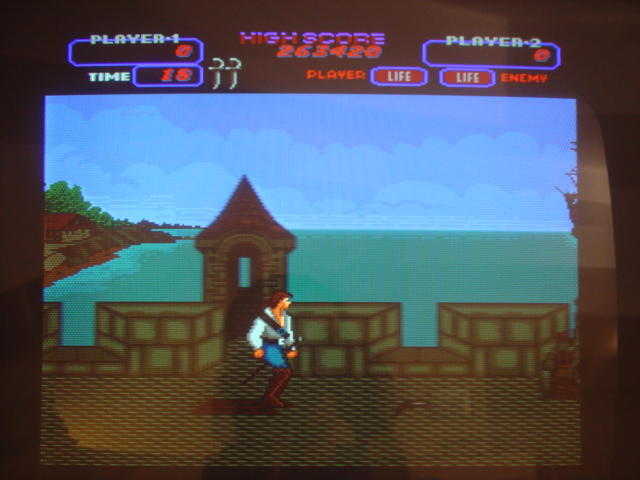

In game 3
