Coccinelle (bootleg of Lady Bug)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 16/06/2005 |
| emulator | MAME 0.97u2 |
| dev | Sonikos |
| name | ladybugb2 on Arcade Database |
| description | Coccinelle (bootleg of Lady Bug) |
| year | 1982 |
| manufacturer | Model Racing |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z8400AB1-Z80ACPU | 8-bit Microprocessor - main | ||
| 2x | SN76489N | Digital Complex Sound Generator - sound | ||
| 1x | UA324PC | Quad Operational Amplifier - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 4.000MHz | ||
| 1x | oscillator | 10.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | 2532 | 7,8,9,10 | dumped |
| 6x | 2732 | 1,2,3,4,5,6 (11,12,13,14,15,15) | dumped |
| 1x | MMI6331-1 | 1,2,3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 9x | MM2114N-3 | |
| 1x | HM6116P-4 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume)
2x 8x2 switches DIP
1x red LED
Notes
I have both a blister of EPROM and a full PCB
PCB is marked "CS299"
update 20141006: full redump
Files
-

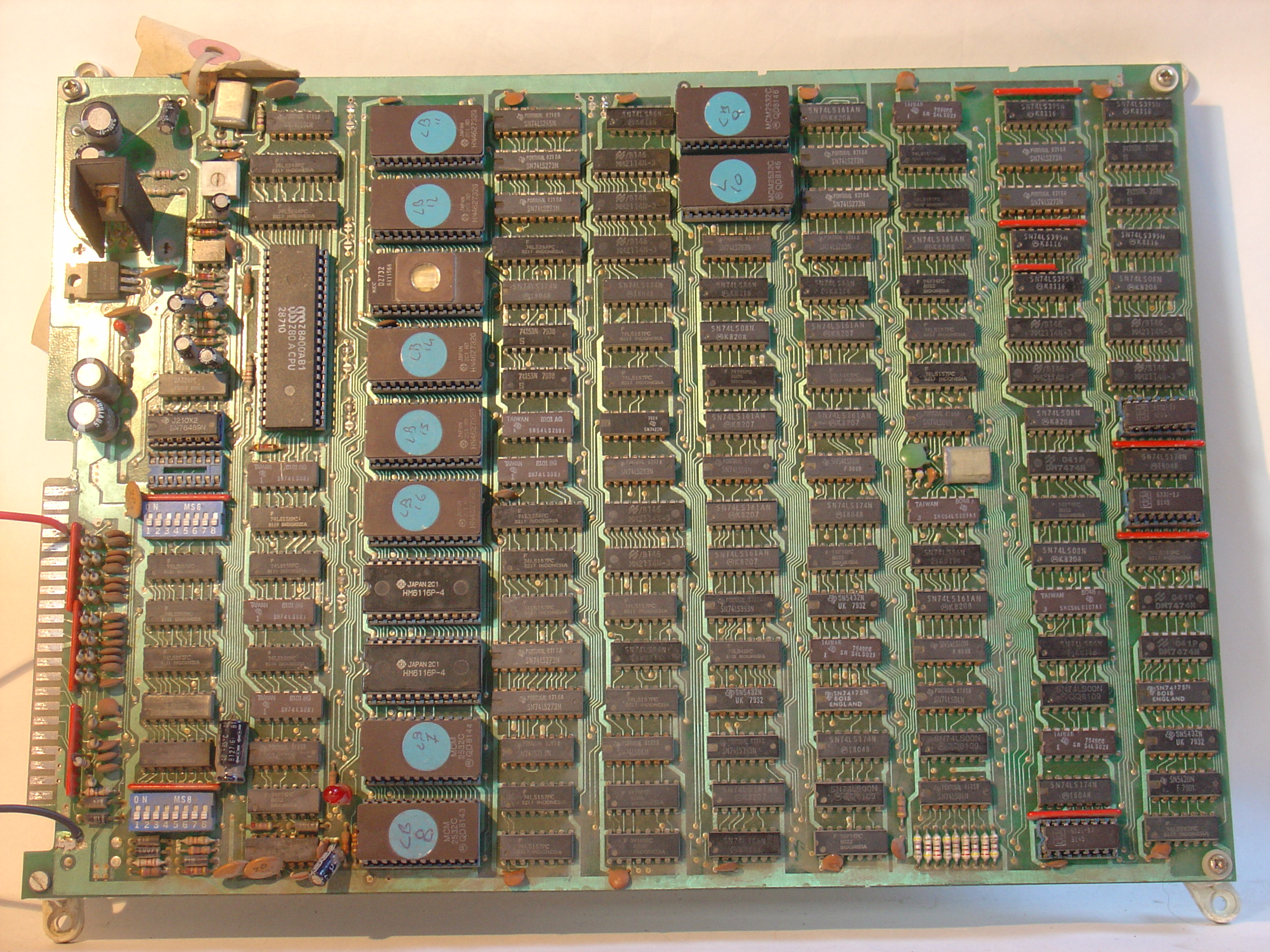

PCB component side -

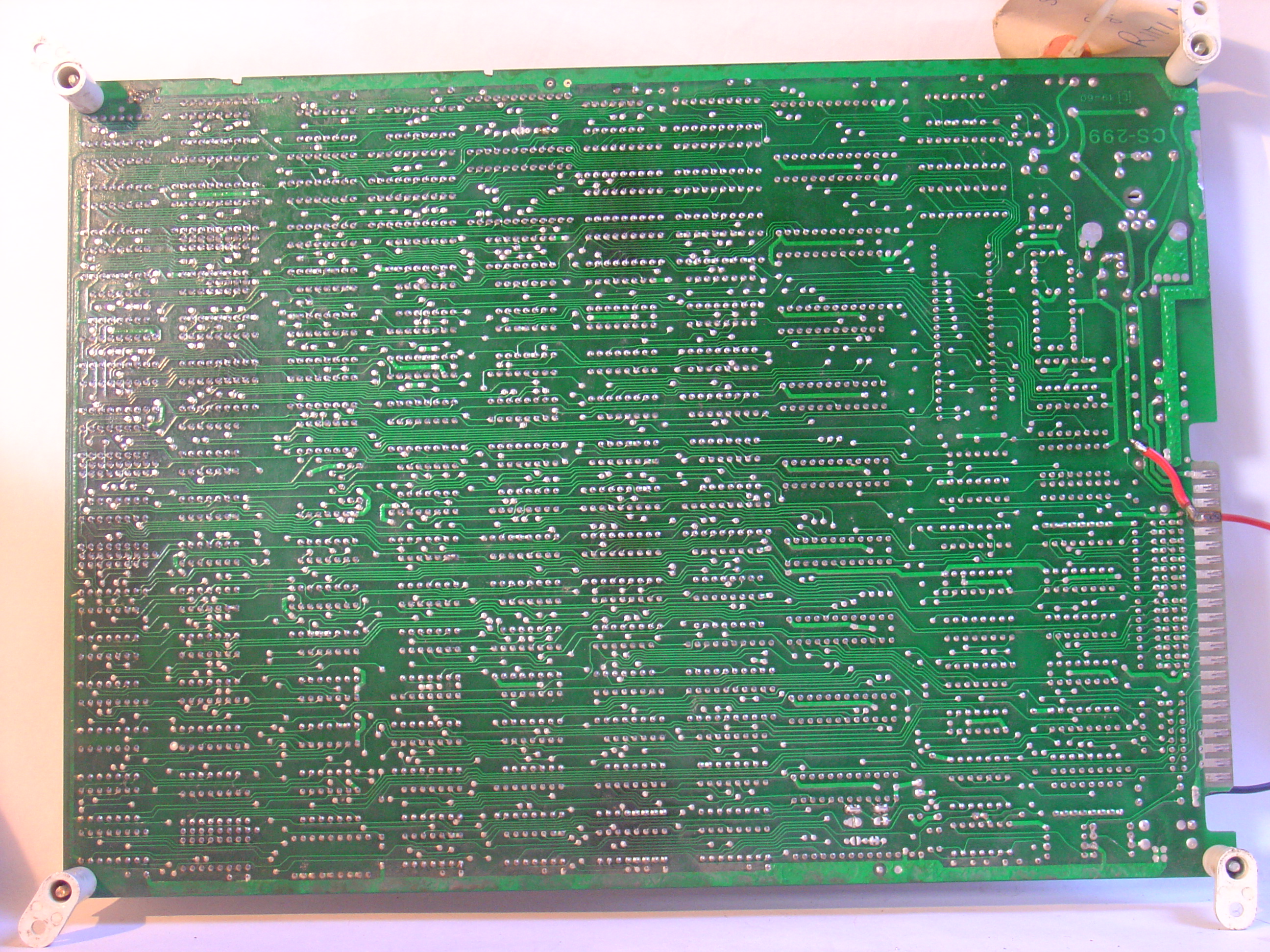

PCB solder side -
