EMU Infos
| dumper |
Tirino73
|
| date |
26/04/2007
|
| emulator |
FB Alpha v0.2.97.25
|
| dev |
Barry Harris, JacKc
|
PCB Infos
| name |
daimakaib on FB Neo
|
| description |
Daimakaimura (bootleg) - 大魔界村
|
| year |
1993
|
| manufacturer |
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 1x |
68000 |
|
|
16/32-bit Microprocessor - main
|
| 1x |
Z80 |
|
|
8-bit Microprocessor - sound
|
| 1x |
YM2151 |
|
|
FM Operator Type-M (OPM) - sound
|
| 1x |
YM3012 |
|
|
D/A Converter (DAC) - sound
|
| 1x |
oscillator |
24.000MHz |
|
|
| 1x |
oscillator |
30.000MHz |
|
|
ROMs
RAMs
PLDs
| QTY
|
Type
|
position
|
status
|
| 1x |
A1020B |
|
read protected
|
Others
Notes
This romset comes from a bootleg pcb. Differences are:
Year in copyright string changed (1988 to 1993).
Files
-

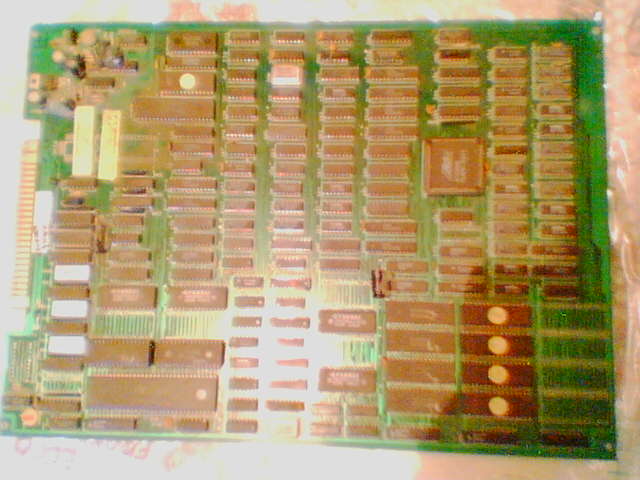

PCB component side
-
Readme
556
PCB component side
