Double Dragon (bootleg)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Corrado Tomaselli |
| date | 12/02/2005 |
| emulator | MAME 0.127u2 |
| dev | Sonikos |
| name | ddragonbl2 on Arcade Database |
| description | Double Dragon (bootleg) |
| year | 1987 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Hitachi HD637B01Y0P | |||
| 1x | HD63C09EP | 8-bit Microprocessor - main | ||
| 1x | MC68B09P | u 6 | 8-bit Microprocessor - main |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | M27PC256NL | 3-8 | dumped |
| 14x | M27512ZB | 1,2,9-20 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 28x2 JAMMA edge connector
Notes
15-30
Files
-

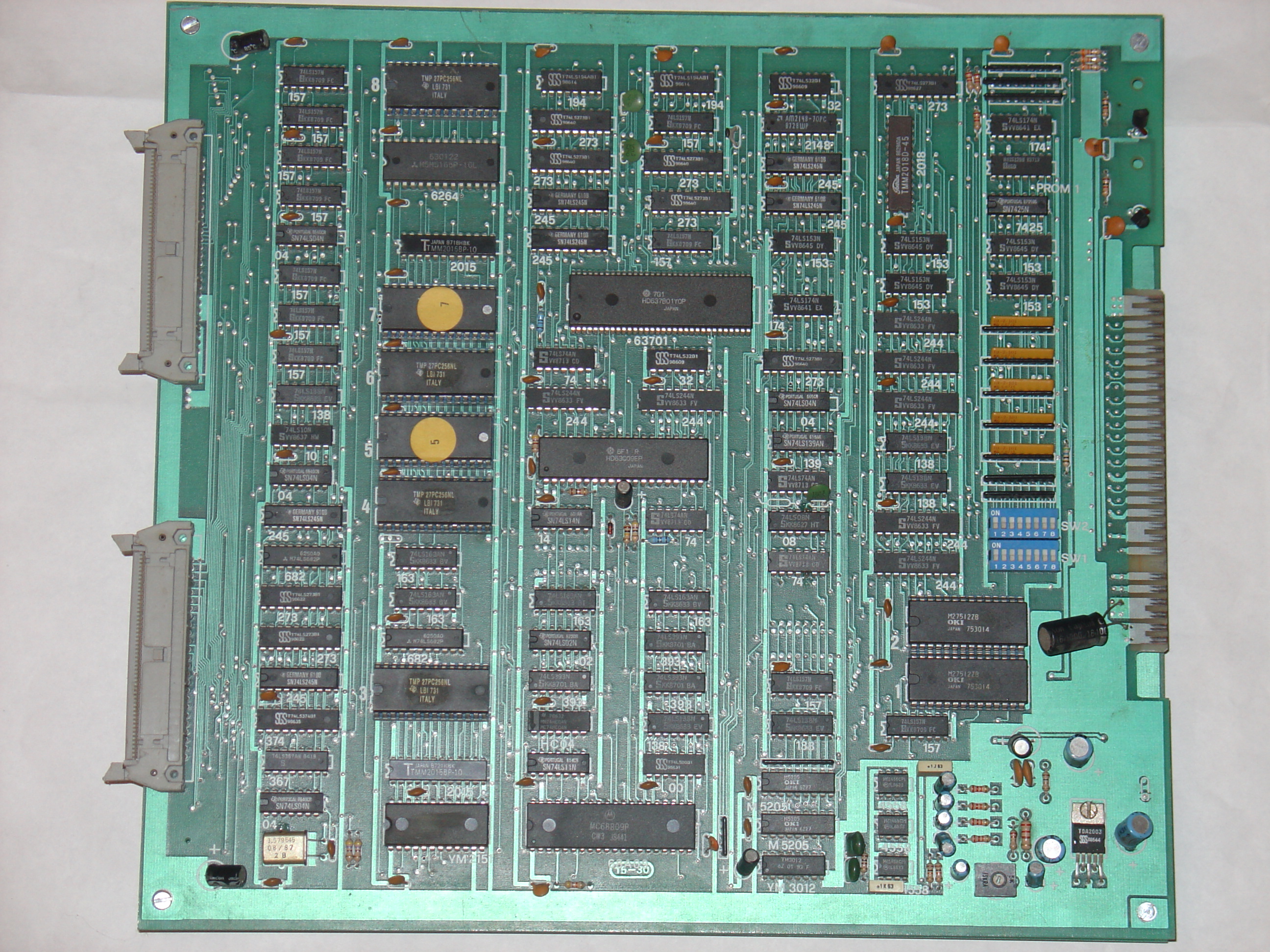

PCB component side
10
