Gals Panic 4 (Asia)

EMU Infos

dumper	f205v, Sean Sutton, Smitdogg, Brian Troha, rtw
date	25/02/2026
emulator
dev

PCB Infos

name	1803
description	Gals Panic 4 (Asia)
year	1996
manufacturer	Kaneko

Technical references

CPUs

QTY	Type	clock	position	function
0x

ROMs

QTY	Type	position	status
1x	TMS27C040	u8	dumped
1x	MX27C4000	u10	dumped
6x	uPD23C16000	GP4-300-00.u4,GP4-301-00.u7 GP4-200-00.u16,GP4-201-00.u18 GP4-101-00.u20,GP4-100-00.u24	not dumped

RAMs

QTY	Type	position
2x	uPD431000AGW-70LL	u12,u15

PLDs

QTY	Type	position	status
2x	ATF16V8B	u9,u11	dumped

Others

2x 100 pins flat cable connector from main PCB to cart

Notes

PCB is marked: "SUPER-KANEKO-NOVA-SYSTEM", "NEP-16" and "ROM-BOARD" on component side
PCB is labelled: "GP04A00086 KANEKO(R)" on component side

---

label format is:
------------------
| KANEKO(R)      | -> manufacturer
| GP4A1/U10      | -> game name - region - ROM place
------------------

Files

•

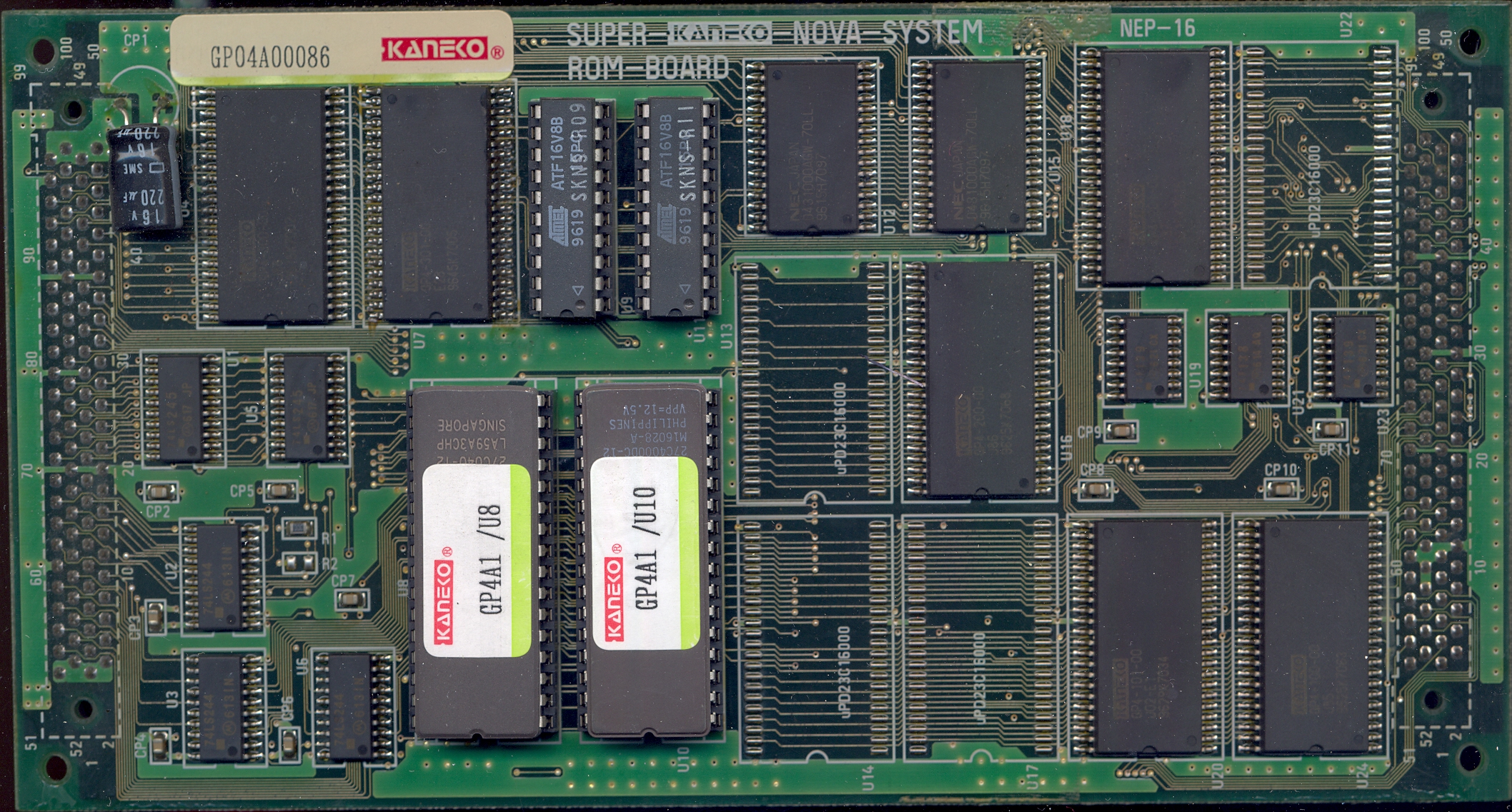

  PCB component side
•

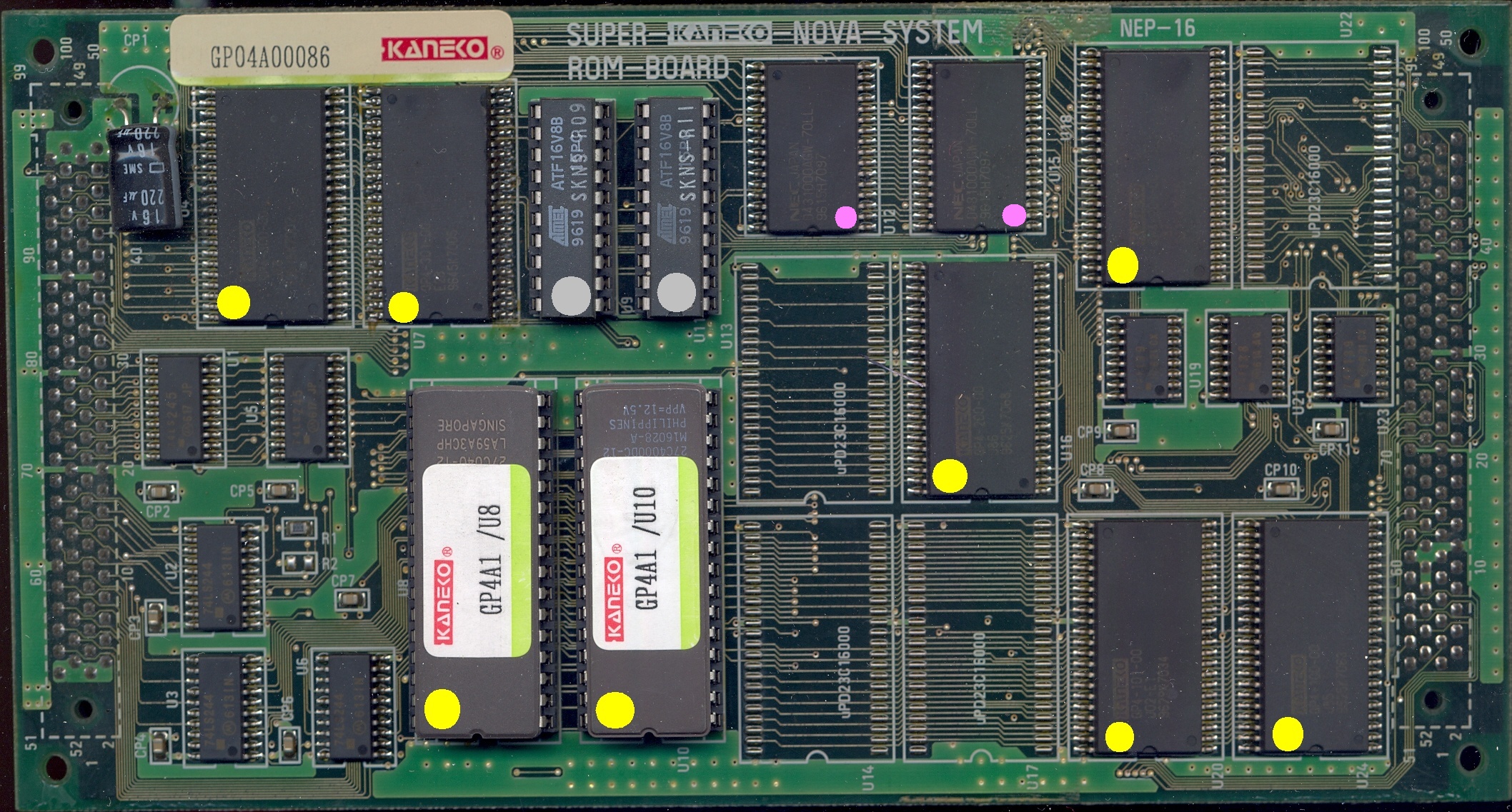

  PCB component side notes
•

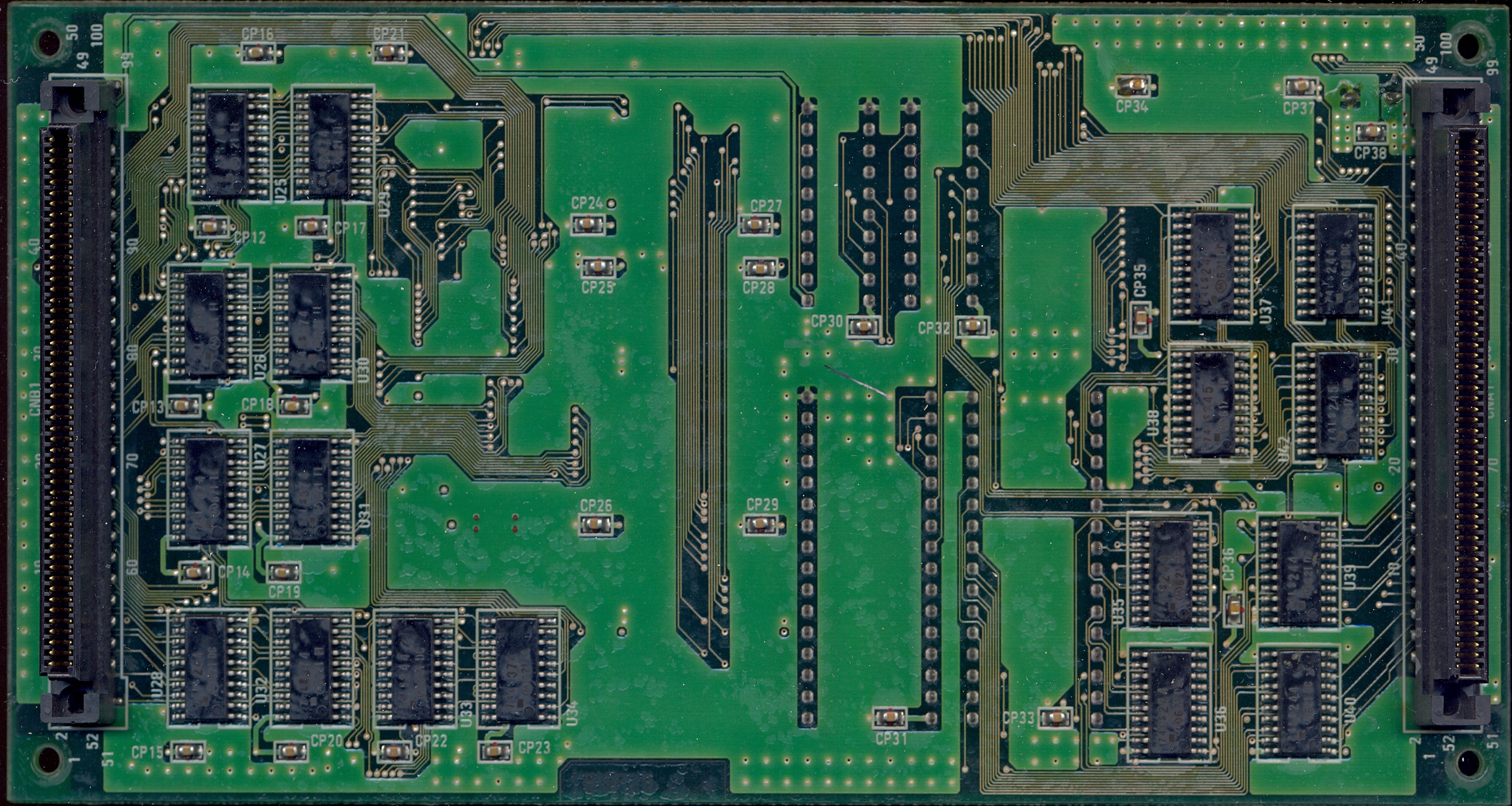

  PCB solder side
•

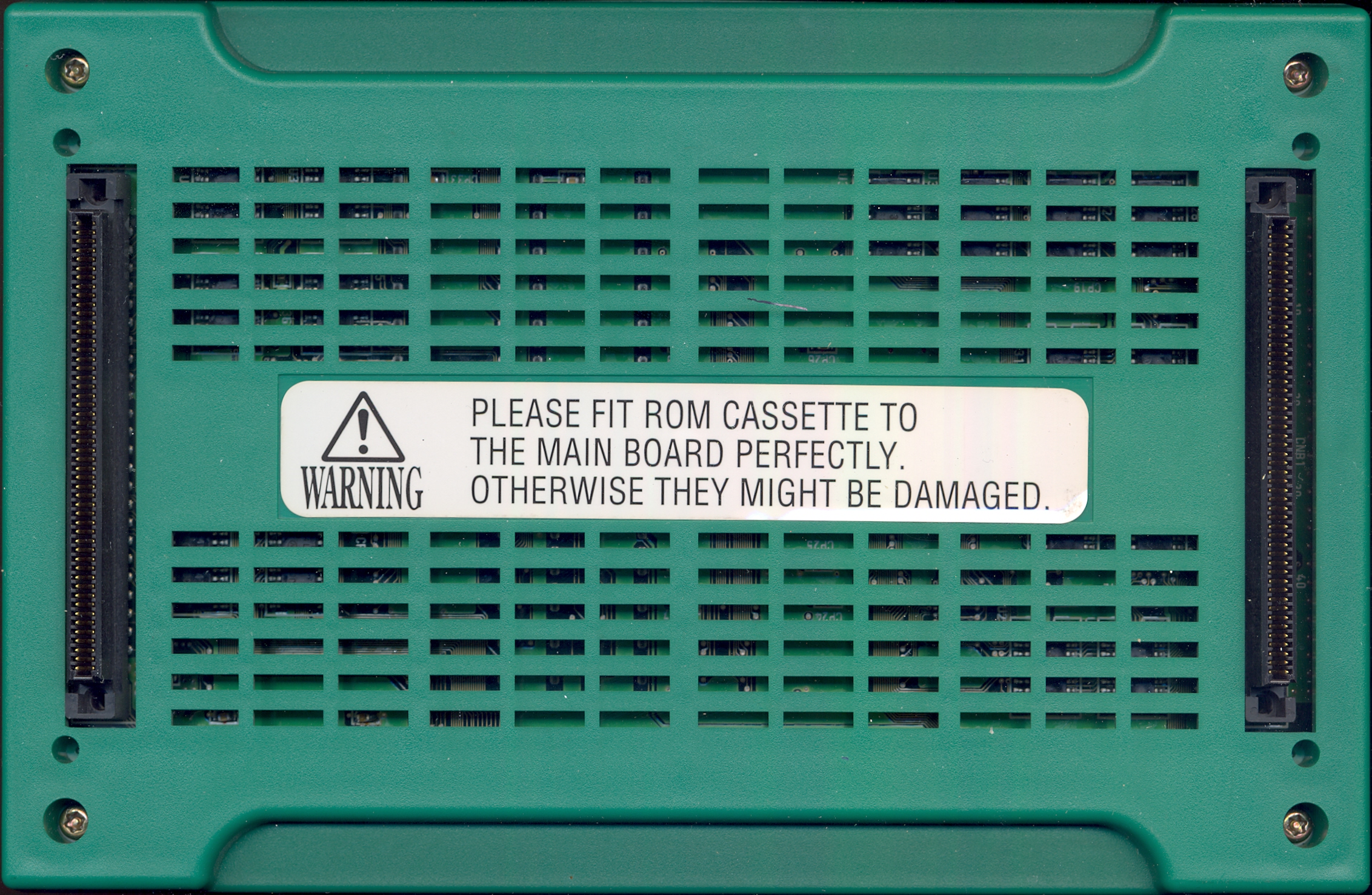

  Cart bottom
•

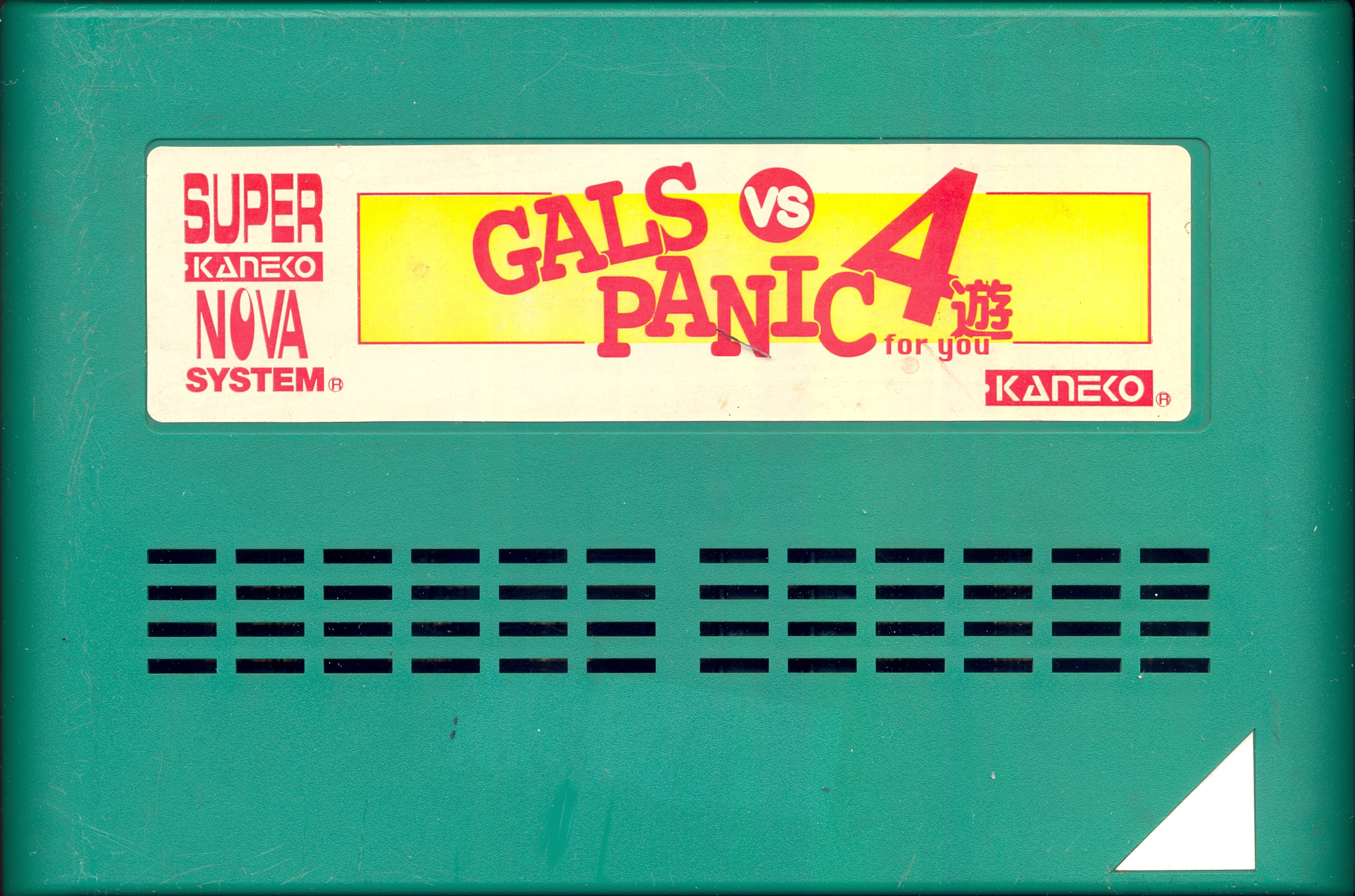

  Cart top
•
  ROMs

1803
