Goindol (SunA, World)

EMU Infos

dumper	f205v
date	09/02/2019
emulator	MAME 0.62
dev	Stephane Humbert

PCB Infos

name	goindol on Arcade Database
description	Goindol (SunA, World)
year	1987.08
manufacturer	SunA

Technical references

CPUs

QTY	Type	clock	position	function
1x	Z8400BPS-Z80Bcpu	MHz	1a	8-bit Microprocessor - main
1x	Z8400BPS-Z80Bcpu	MHz	12c	8-bit Microprocessor - sound
1x	YM2203C	MHz	12a	FM Operator Type-N (OPM) - sound
1x	YM3014B	MHz	15b	D/A Converter (DAC) - sound
1x	LM324N		15c	Quad Operational Amplifier - sound
1x	uPC1182H		15d	Audio Amplifier - sound
1x	oscillator	12.000MHz	1z

ROMs

QTY	Type	position	status
10x	NMC27C256Q	1-10	dumped
1x	N82S129N	1-3	dumped

RAMs

QTY	Type	position
4x	HY6116P-12	2h,10h,11s,13f
4x	KM6816AL-15	4f,4g,4j,4k

PLDs

QTY	Type	position	status
0x

Others

1x epoxy brick
1x 28x2 JAMMA edge connector
1x trimmer (volume)(15b)
2x 8 DIP switches banks (DIP1,DIP2)(14z,15z)

Notes

PCB is marked: "SunA", "SUN A ELECTRONICS IND)" on component side

label format is:
------
| R4 | -> rom number
------

Files

•

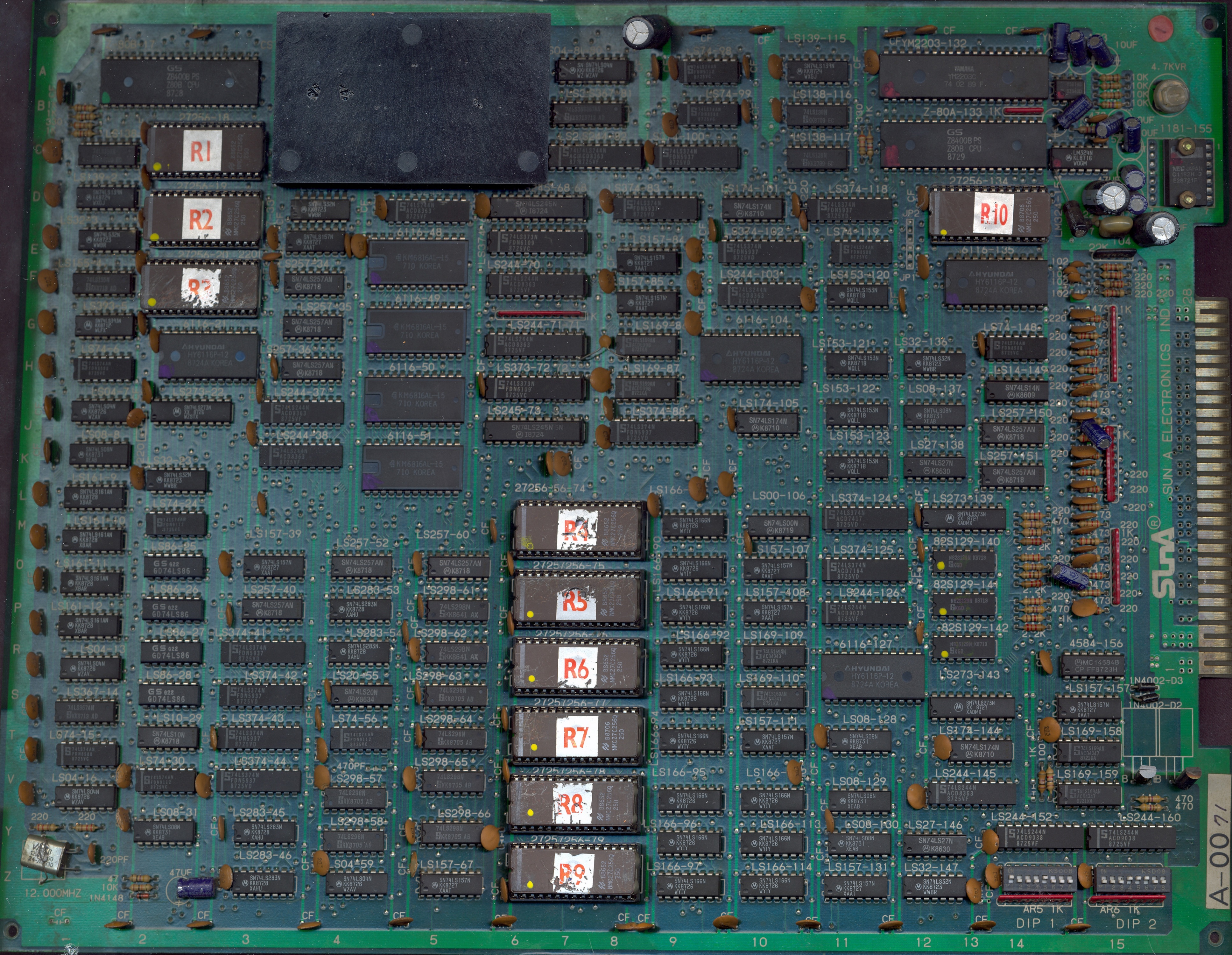

  PCB component side
•

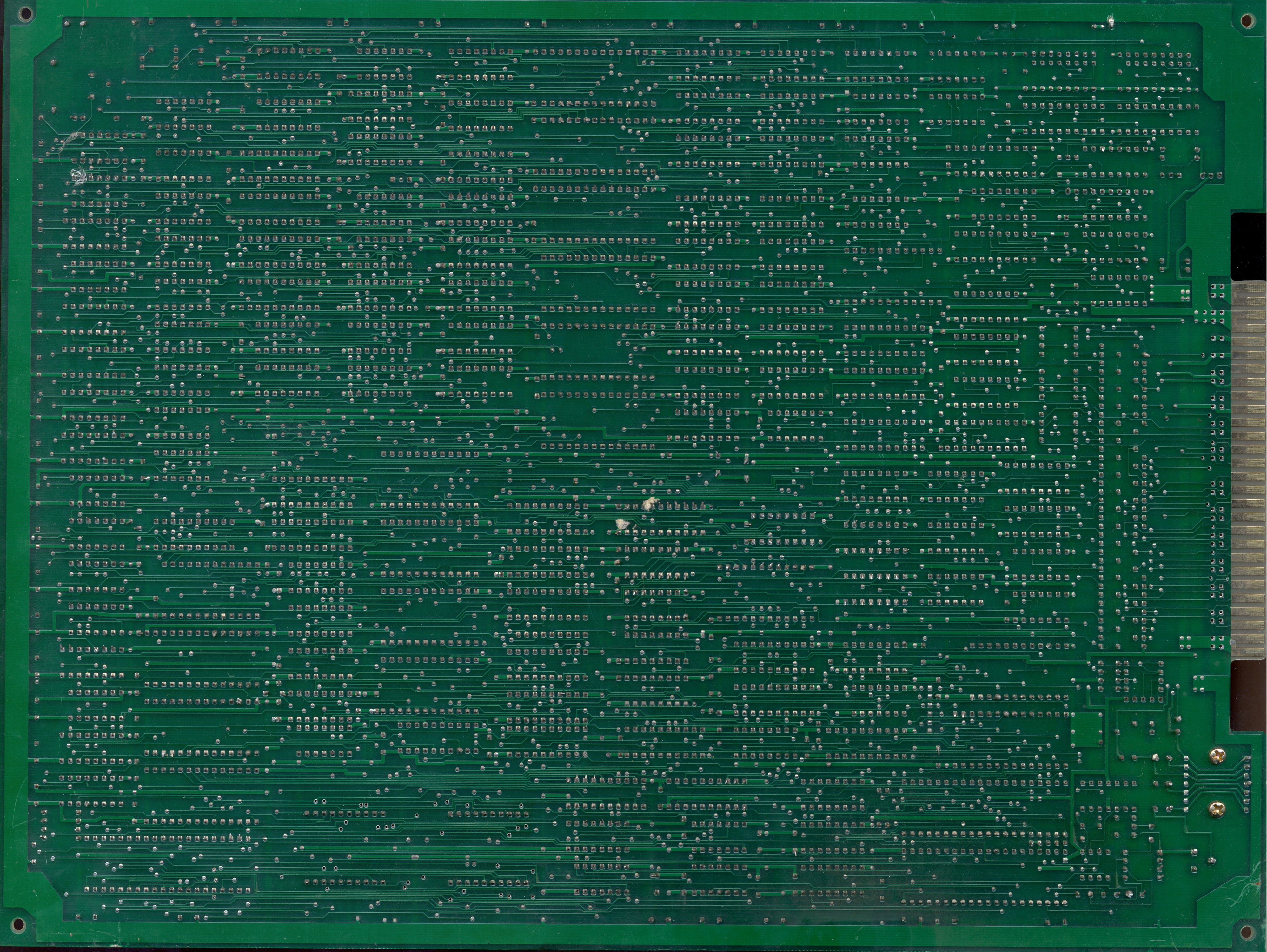

  PCB solder side
•

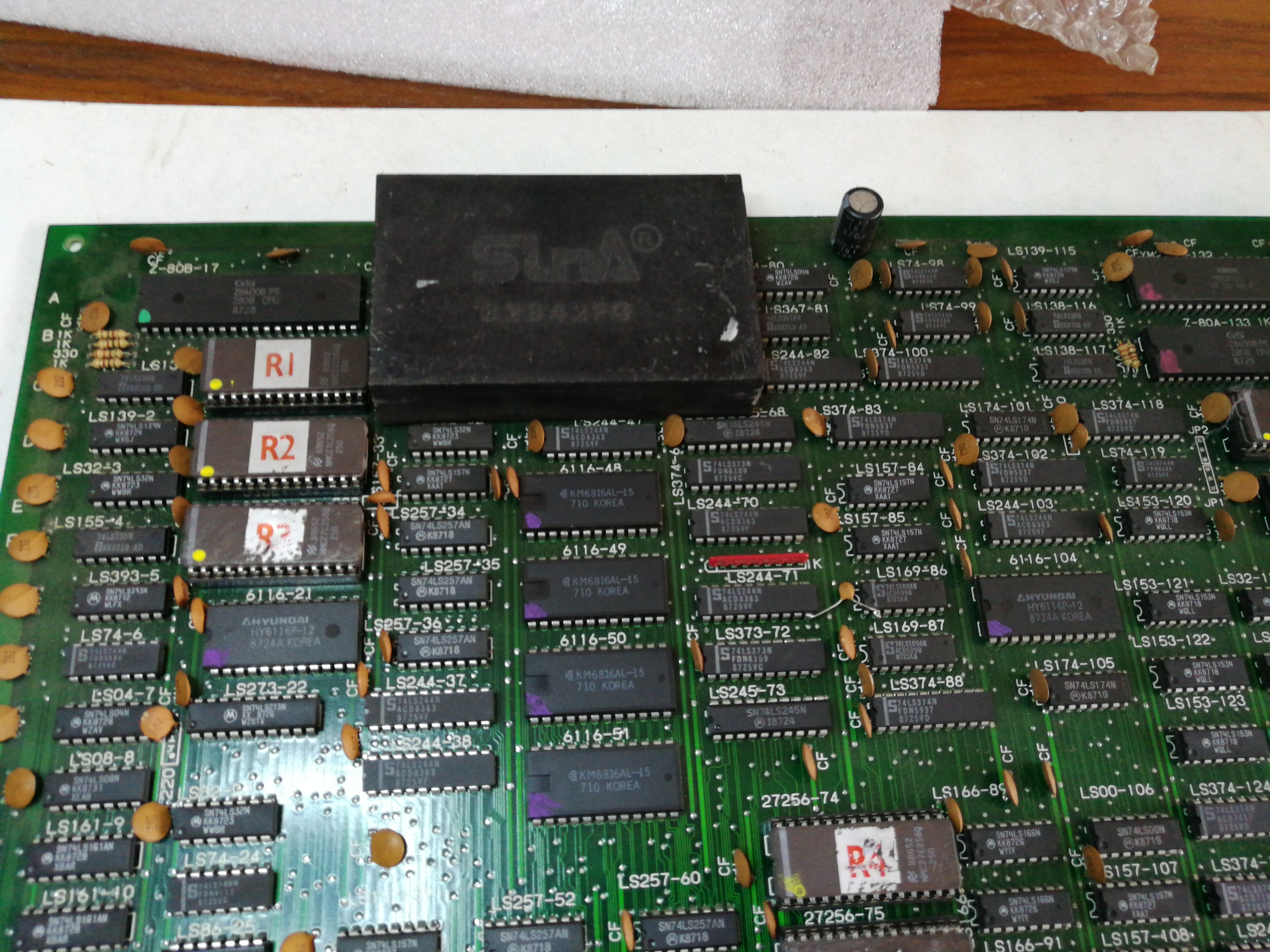

  Epoxy brick
•

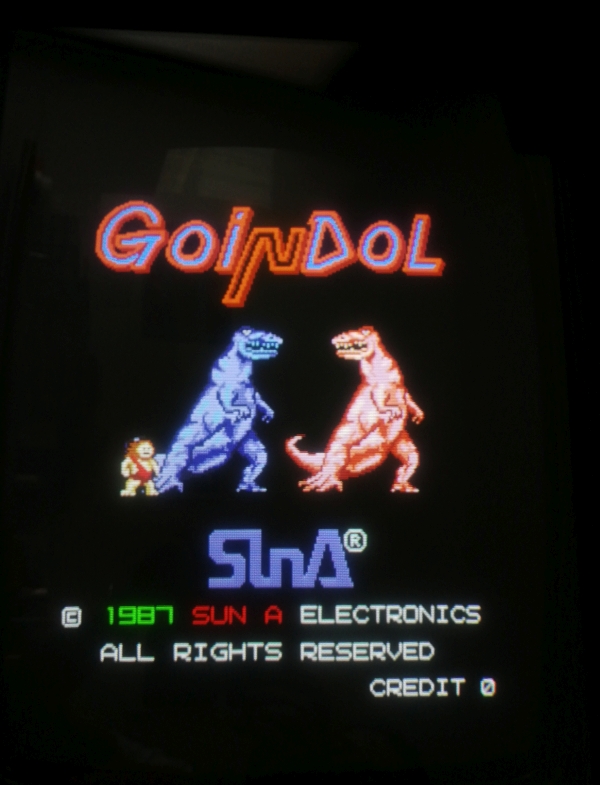

  Title
•

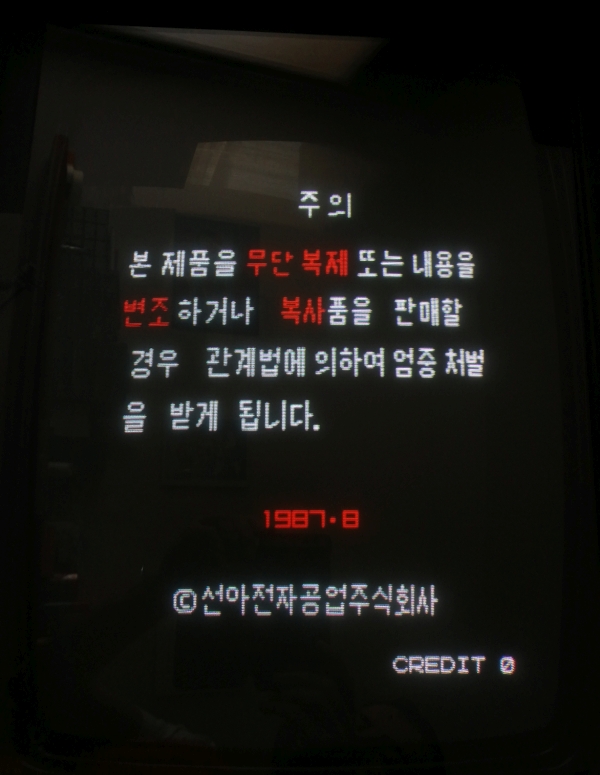

  Disclaimer
•

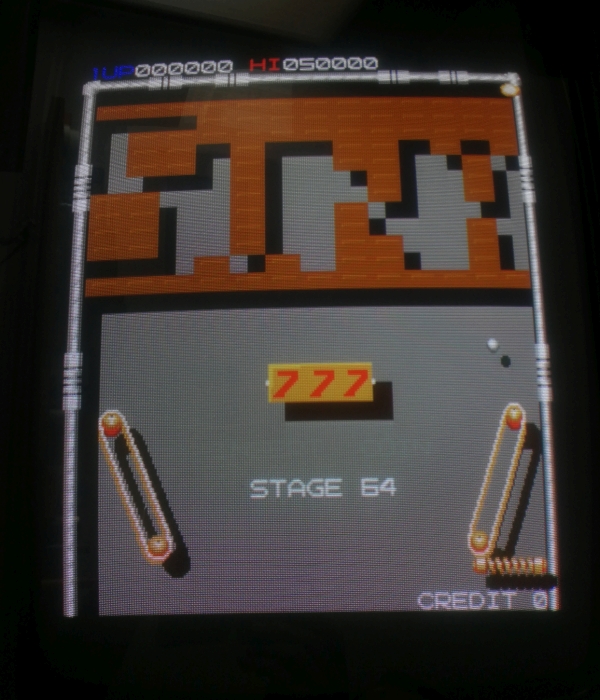

  Attract mode
