EMU Infos
| dumper |
f205v, Corrado Tomaselli
|
| date |
07/01/2010
|
| emulator |
MAME 0.26
|
| dev |
Ray Giarratana
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 1x |
R6502P |
|
c2 |
8-bit Microprocessor - main
|
| 1x |
POKEY |
|
p8 |
sound
|
| 1x |
oscillator |
|
y1 |
|
ROMs
| QTY
|
Type
|
position
|
status
|
| 6x |
MCM2708C |
d1,e1,f1,kl1,mn1,np1 |
dumped
|
| 4x |
MCM2708C |
h1,jk1,r1,r3 |
not possible to dump, always get a 0x00 read
|
| 1x |
6331-1 |
l6 |
dumped
|
RAMs
| QTY
|
Type
|
position
|
| 8x |
MM5290J-3 |
f4,h4,j4,k4,l4,m4,n4,p4
|
PLDs
Others
1x 22x2 edge connector (j20)
1x 12x2 edge connector (j19)
1x pushbutton (reset)
2x 8x2 switches DIP
Notes
Working
this is an original Atari board. It is already listed as a note into the source. Content of the EPROMs is identical to "Missile Command (set 1)" already in MAME, it's simply splitted in half.
Files
875

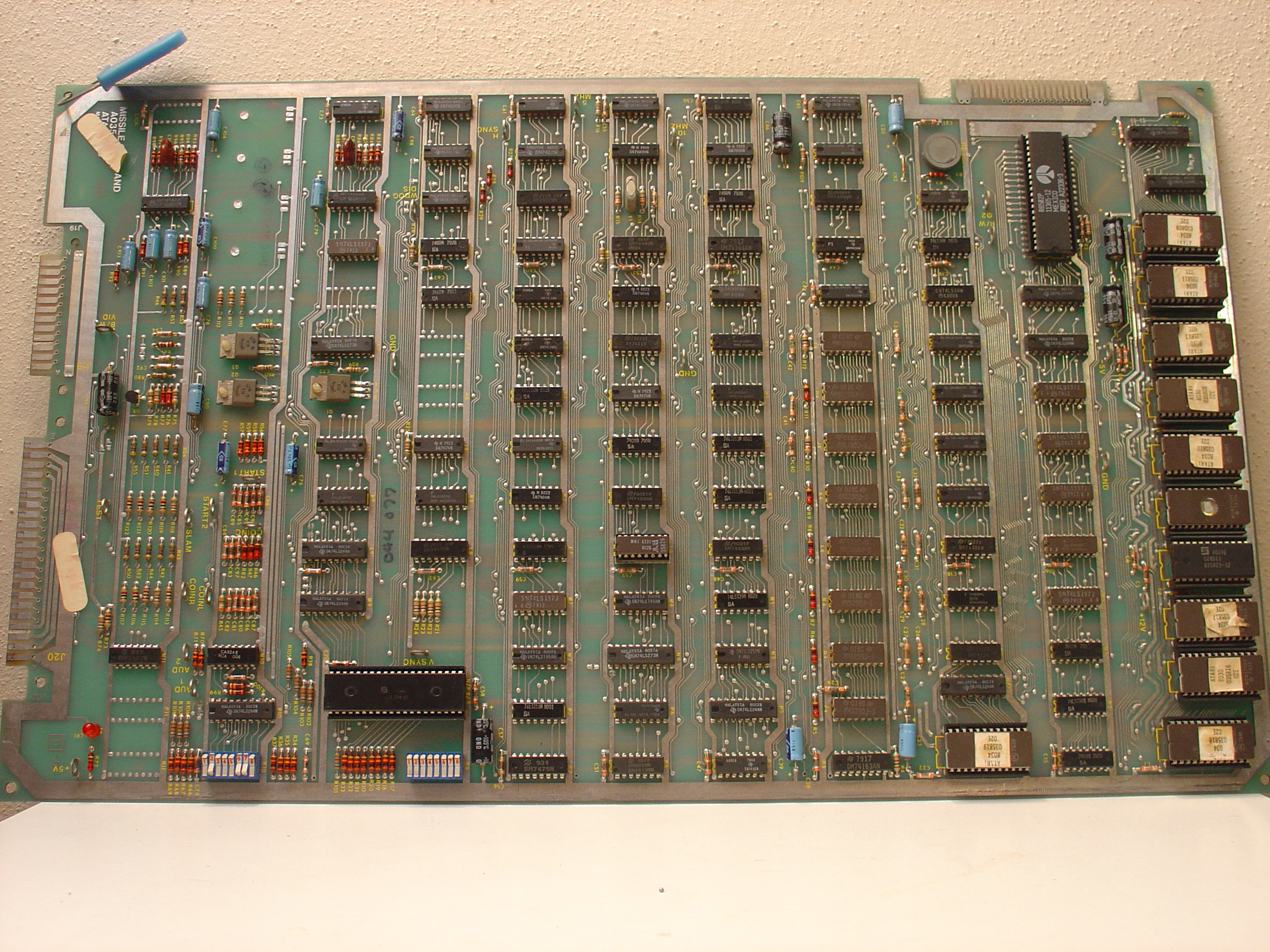

PCB component side

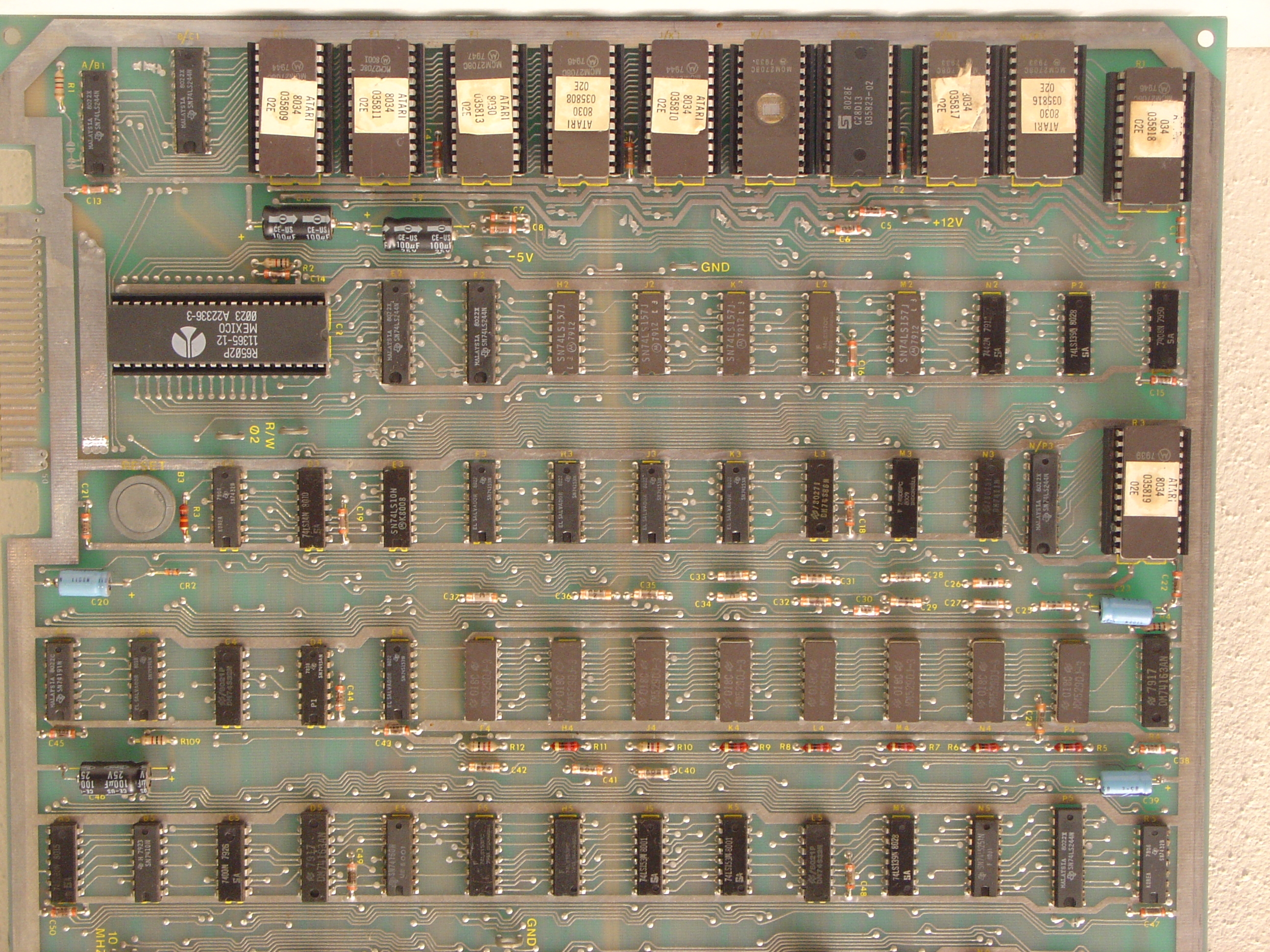

PCB component side detail 1

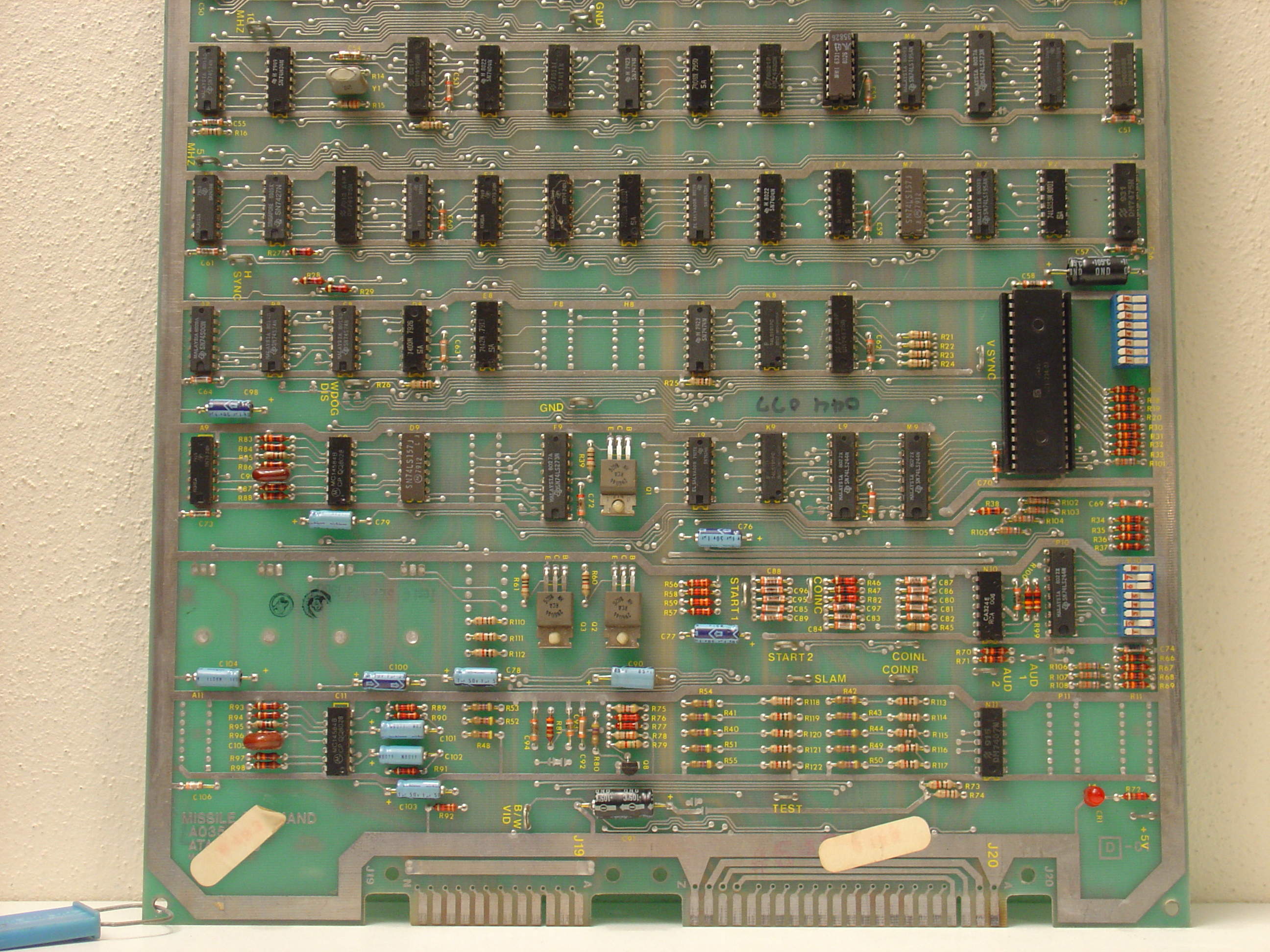

PCB component side detail 2

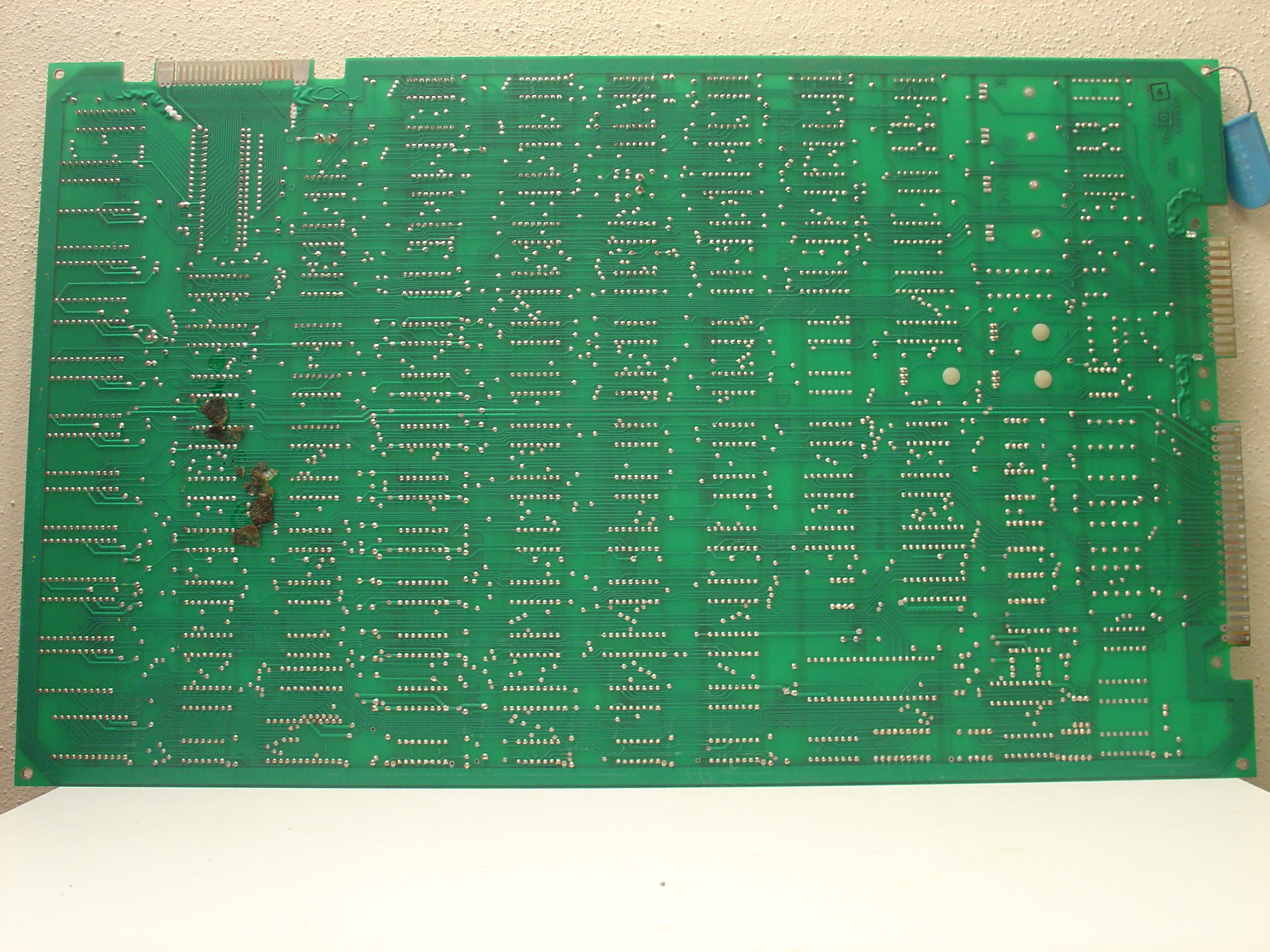

PCB solder side
