Moon Cresta (bootleg)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 28/06/2005 |
| emulator | MisfitMAME 0.122.B |
| dev | Robert |
| name | mooncrs5 on MiSFiTMAME mooncrs5f on HBMAME |
| description | Moon Cresta (bootleg) |
| year | 1980 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80 | MHz | 7a | 8-bit Microprocessor - main |
| 1x | oscillator | 18MHz | 1f |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TMS2758JDL1 | 7, 8 | dumped |
| 5x | TMS2532JDL | 1-2, 3-4, 5-6, 9-10, 11-12 | dumped |
| 1x | MMI6331 | 6l | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 5x | 93425 | 1n-t |
| 2x | MM2114 | 7n, 7p |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x trimmer (volume)
1x 6x2 switches DIP
Notes
FB/B
It's a clone of "Moon Cresta (bootleg set 2)"
Files
-

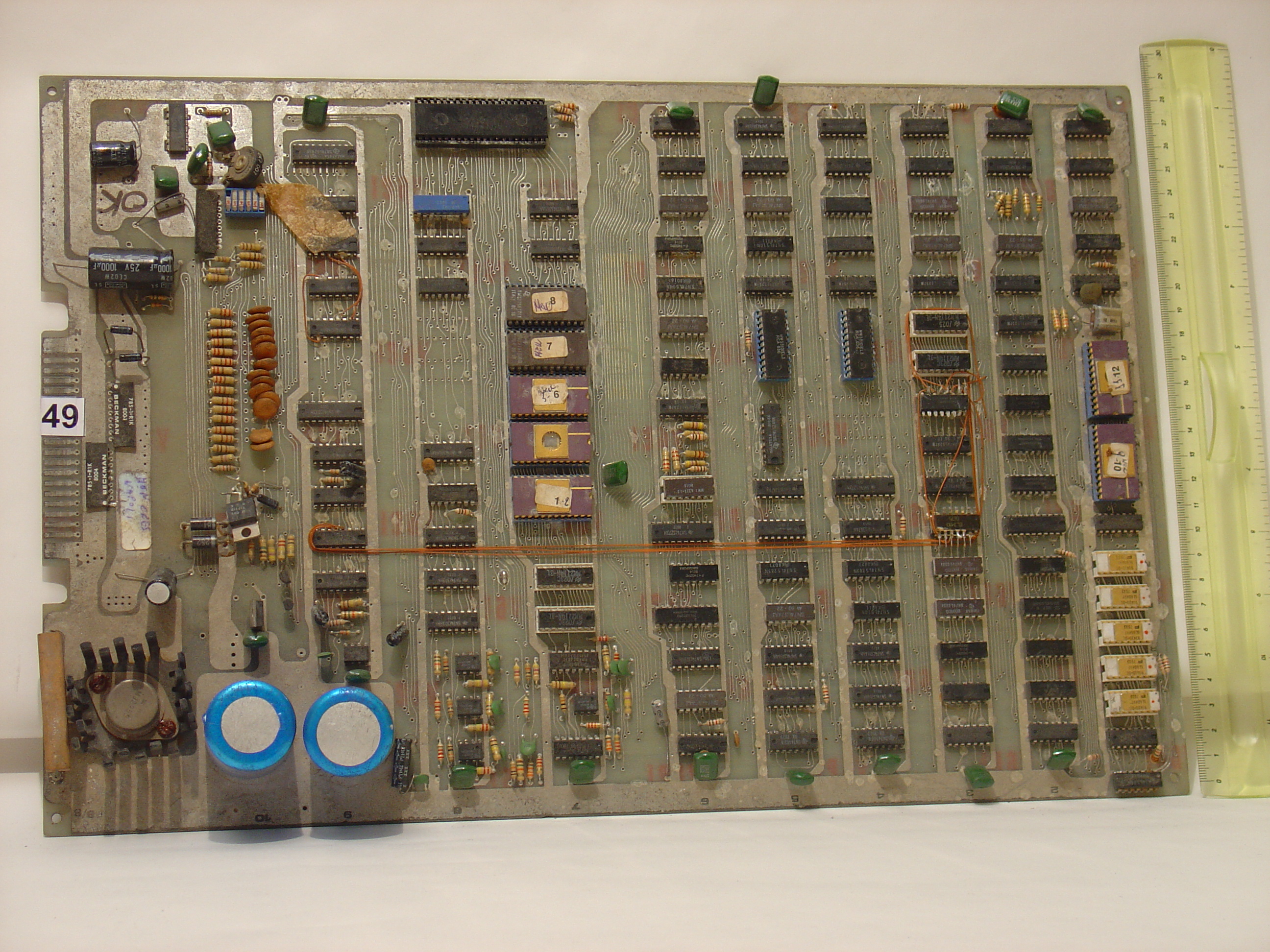

PCB component side -

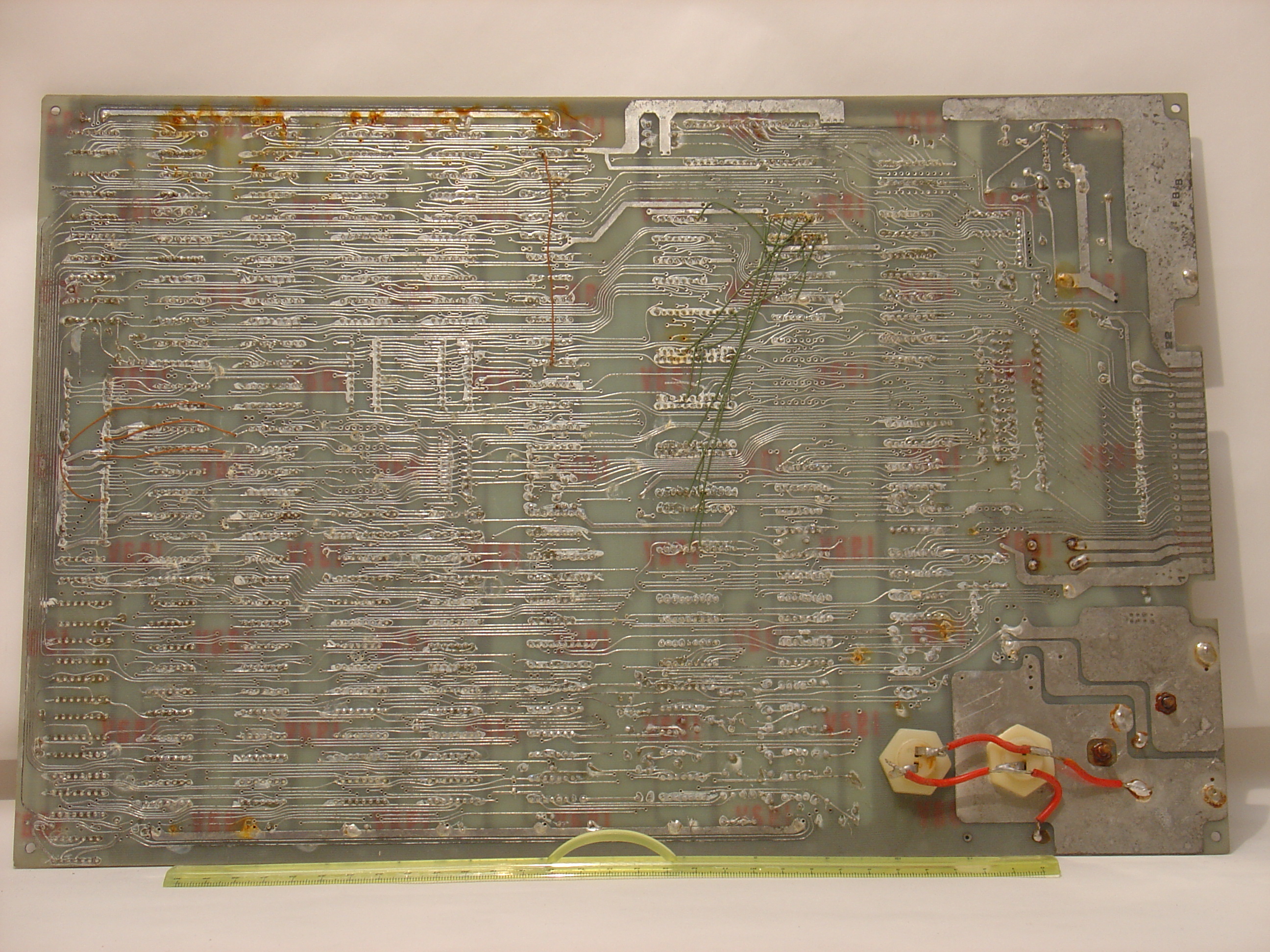

PCB solder side -
PROM
78
