Ms. Pacman -2

EMU Infos

dumper	f205v
date	17/10/2006
emulator	MisfitMAME 0.122.A
dev	Robert

PCB Infos

name	mspacit on MiSFiTMAME
description	Ms. Pacman -2
year	1983
manufacturer	Midway MFG

Technical references

CPUs

QTY	Type	clock	position	function
1x	MK3880N-41RL-Z80-CPU			8-bit Microprocessor - main
1x	LM358N			Dual Operational Amplifier - sound
1x	oscillator	18MHz

ROMs

QTY	Type	position	status
6x	MCM2532C	1-6	dumped
2x	HN462716	7,9	dumped
1x	TMS2516JL	8	dumped
1x	MK2716J	10	dumped
3x	MMI6301		dumped
1x	DM74S288N		dumped

RAMs

QTY	Type	position

PLDs

QTY	Type	position	status

Others

1x 22x2 edge connector
1x trimmer (volume)
1x 8x2 switches DIP

Notes

This PCB has been manufactured in Italy.
Title and gameplay are identical to original Midway game, but copyright year is "1983".
It runs on the same hardware as "Pac-Gal"

Files

•

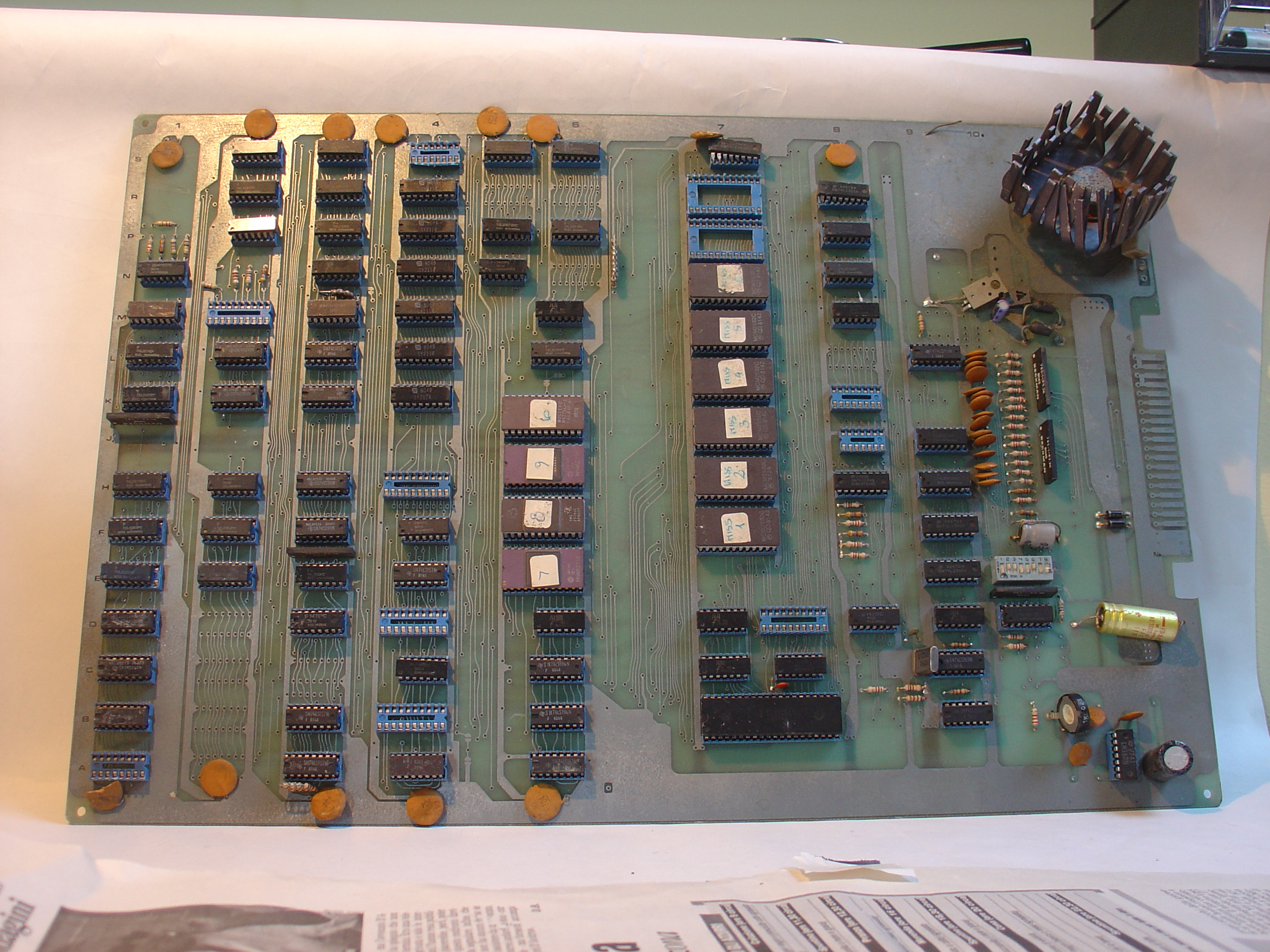

  PCB component side
•

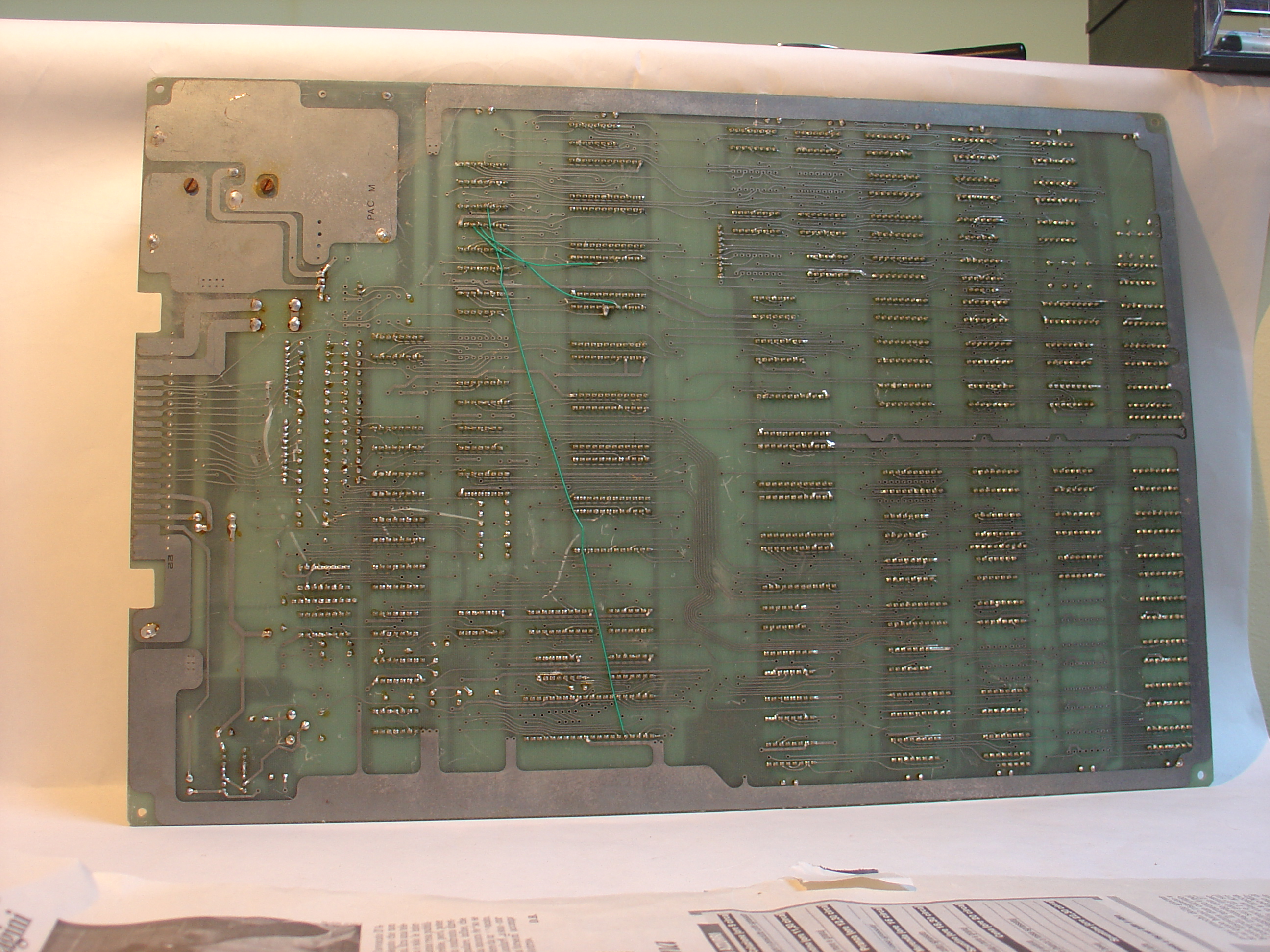

  PCB solder side
