Ms Pac-Man (Elmac bootleg, earlier)
From Citylan
Jump to navigationJump to search
| dumper | IZ8DWF |
| date | 07/06/2024 |
| emulator | MAME 0.267 |
| dev | Osso |
| name | mspacmane on Arcade Database |
| description | Ms Pac-Man (Elmac bootleg, earlier) |
| year | 1983 |
| manufacturer | Midway MFG Co - Elmac |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | 2716 | 5f,5h,5l,7n | dumped |
| 1x | 2716 | 5e | not dumped, broken |
| 5x | 2732 | 7f,7h,7j,7k,7m | dumped |
| 1x | N82S115 | 2 | dumped |
| 1x | N82S115 | 2 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
Notes
PCB is labelled: "miss puckman"
update 20240611: redumped PROMs
update 20240928: added PCB pic
Files
-

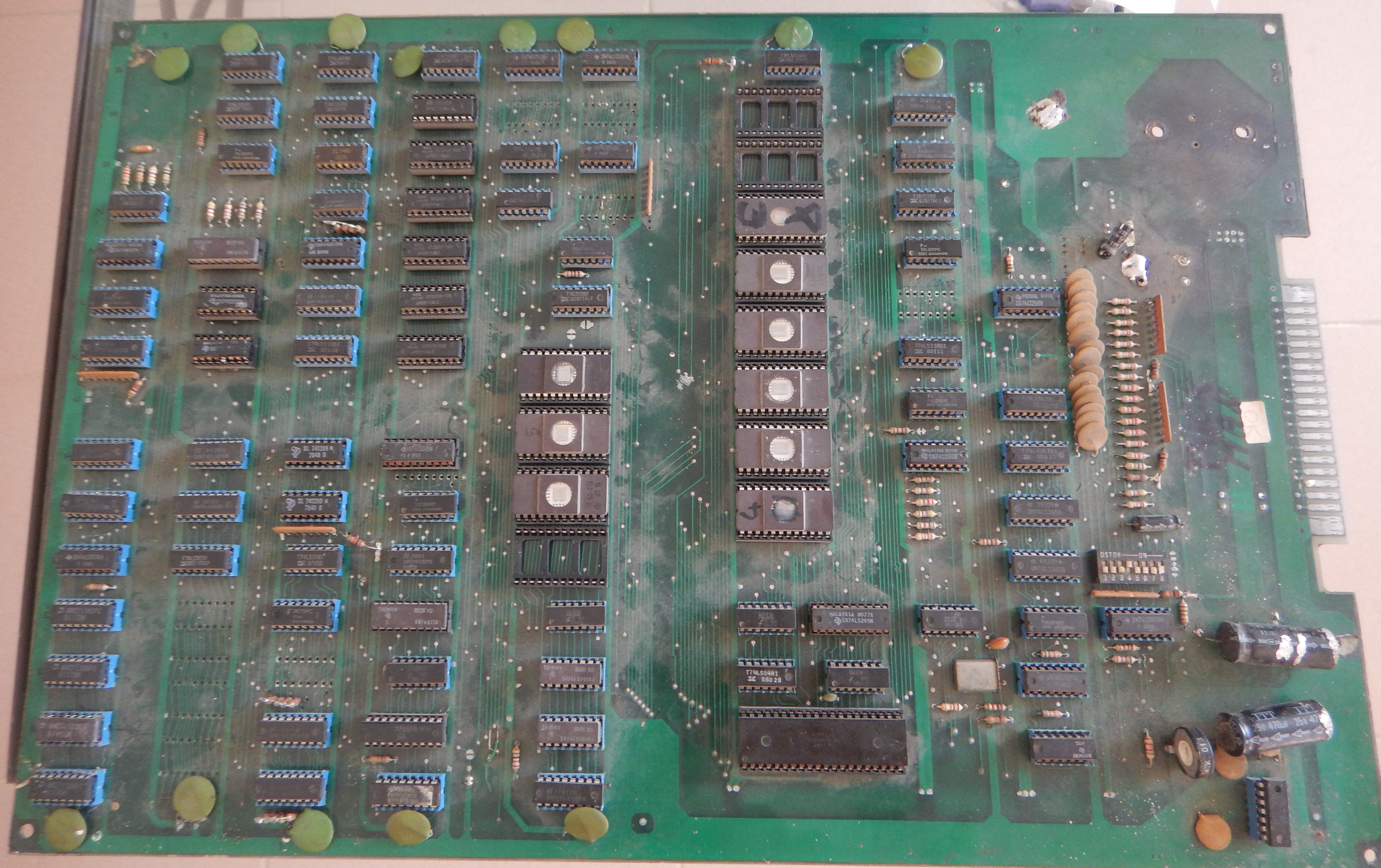

PCB component side -

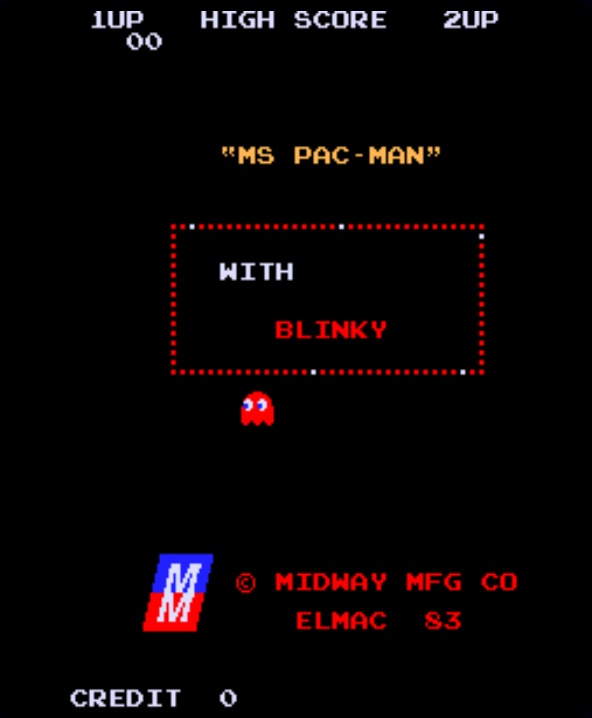

Title -
PROMs
