Multi Game (Italian, Versione 3.8.6T - 1.5.6, 25-AUG-97) (V378?)
From Citylan
Jump to navigationJump to search
| dumper | Tirino73 |
| date | 22/10/2015 |
| emulator | MAME 0.169 |
| dev | David Haywood |
| name | gambl186b on Arcade Database |
| description | Multi Game (Italian, Versione 3.8.6T - 1.5.6, 25-AUG-97) (V378?) |
| year | 1997.08.25 |
| manufacturer | EGD |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 80186XL20 | main CPU | ||
| 1x | 8751 | 8-bit Microcontroller - main (internal ROM not dumped) | ||
| 1x | Cirrus Logic CL-5424 | VDP | ||
| 1x | upD7759C | ADPCM Speech Synthesizer LSIs - sound | ||
| 3x | upD71055C | Programmable Peripheral Interface | ||
| 2x | upD71051C | Serial Control Unit | ||
| 1x | MAX691CPE uPSC | Microprocessor Supervisory Circuits (powered by a 3,6V lithium battery) | ||
| 1x | oscillator | 32MHz | for 80186XL20 | |
| 1x | oscillator | 14.31818MHz | for CL-5424 | |
| 1x | oscillator | 11.058MHz | for 87c51 | |
| 1x | oscillator | 1MHz | for upd7759 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 27C1001 | SE3 - SO3 | dumped - main program |
| 1x | 27C1001 | SOUND3 | dumped - ADPCM samples |
| 2x | 27C4001 | IE3 - IO3 | dumped - GFX |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | 43256 | Main/work 64kb |
| 1x | 43256 | MCU 32kb |
| 1x | MB814260-60 | Video 256kbx16 |
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
Files
-

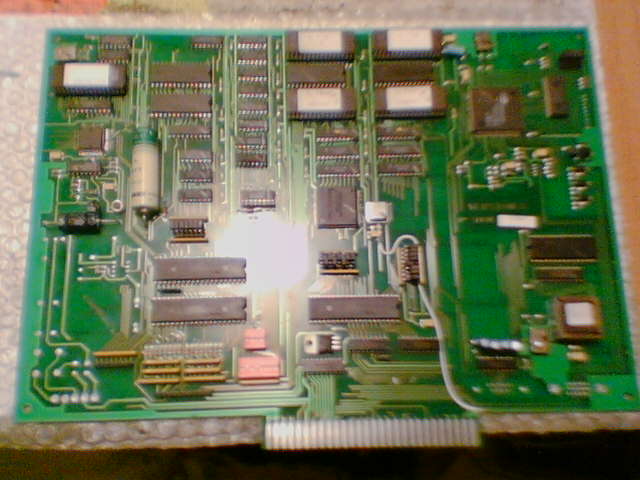

PCB component side -
Read me
