Naomi Bios epr-21578e
From Citylan
Jump to navigationJump to search
| dumper | Corrado Tomaselli |
| dump date | 18/01/2008 |
| emulator | MAME 0.122u7 |
| dev | Brian Troha |
| name | naomi on Arcade Database |
| description | Naomi Bios epr-21578e |
| year | 1998 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C160 | ic27 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
It's a NAOMI motherboard.
Files
-

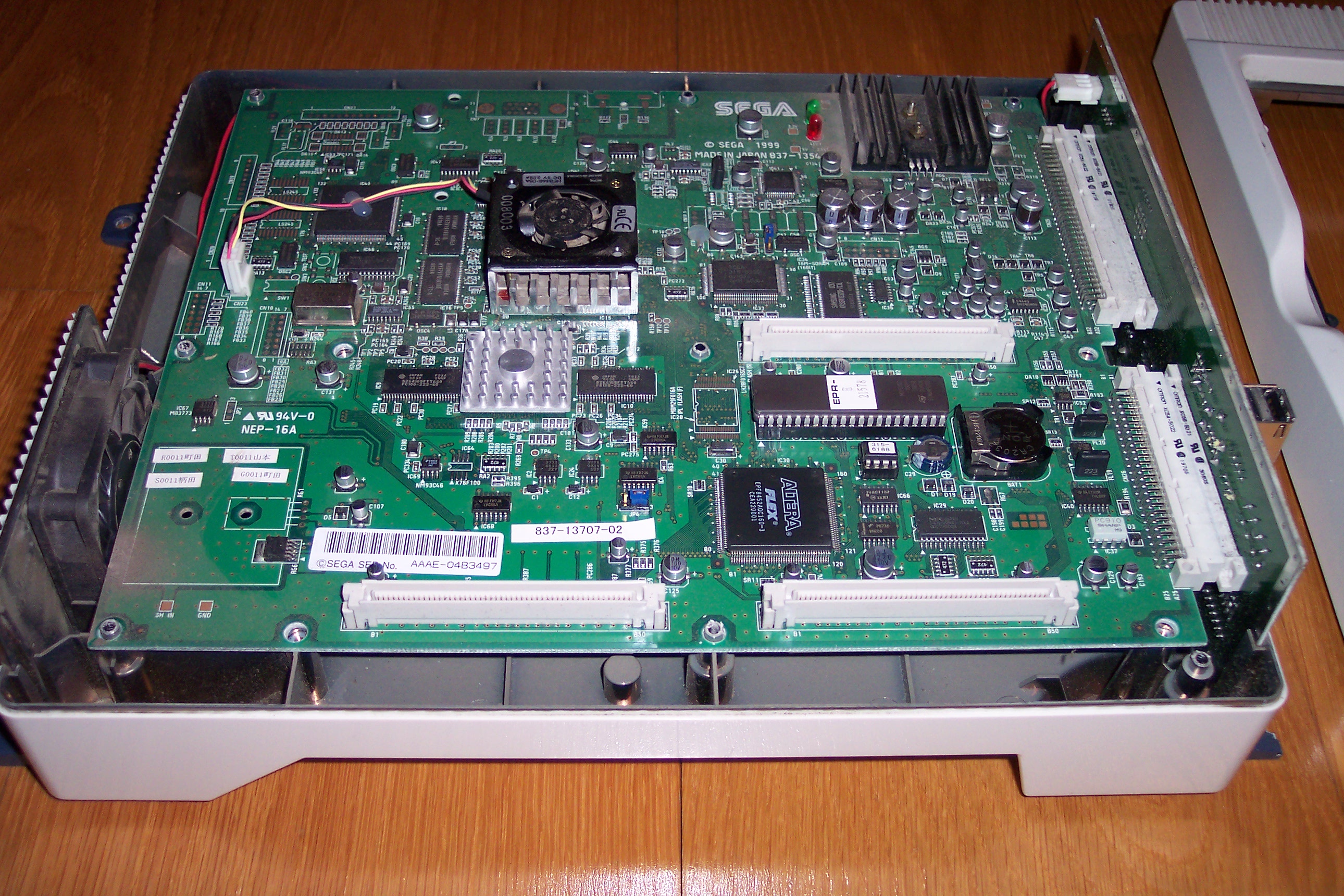

PCB component side -

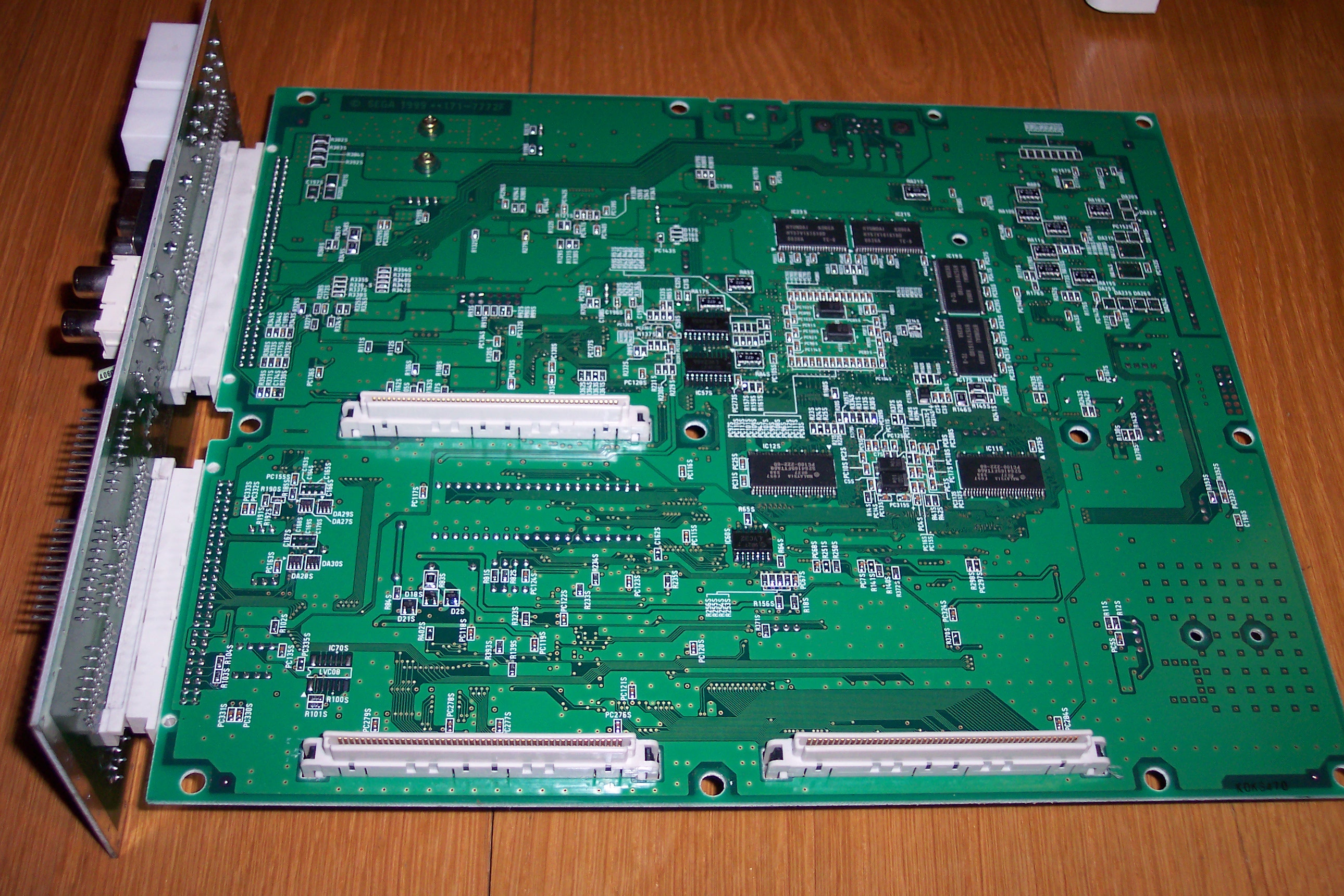

PCB solder side -

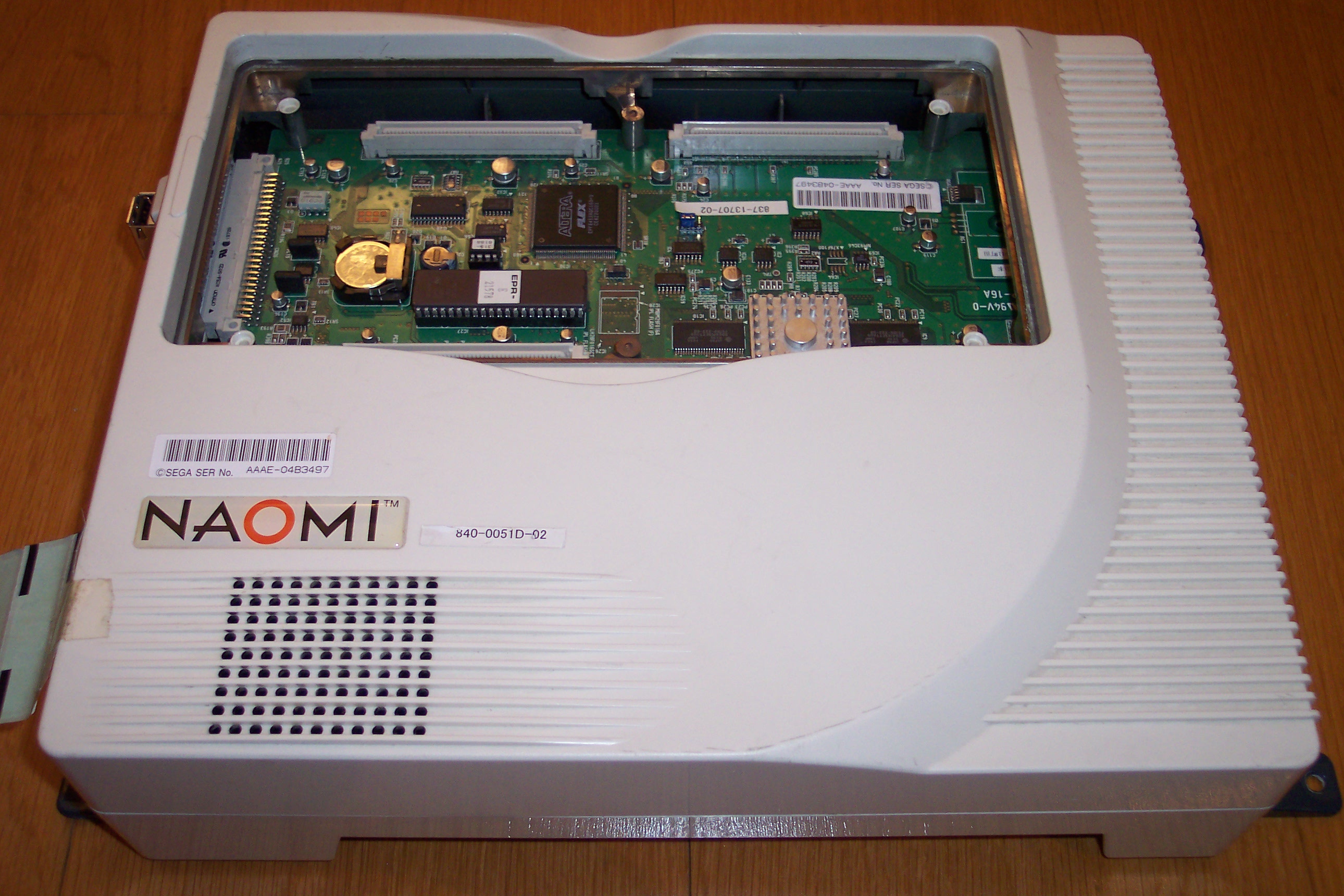

open case -

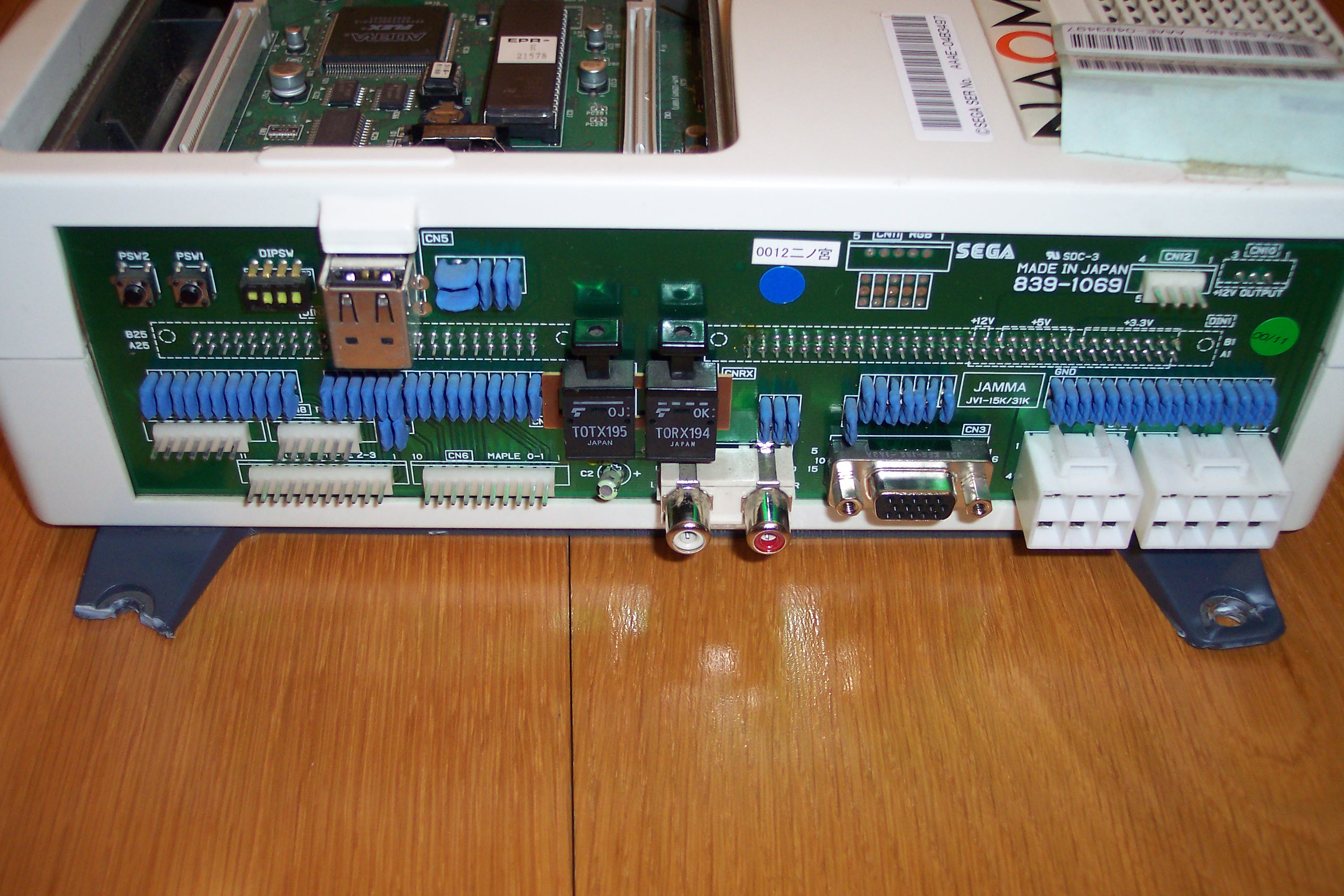

backside connectors
