EMU Infos
| dumper |
f205v
|
| dump date |
21/10/2009
|
| emulator |
MAME 0.135
|
| dev |
f205v
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 1x |
Z8400APS |
|
|
8-bit Microprocessor - main
|
| 1x |
Z8430AB1 |
|
|
8-bit Microprocessor - sound
|
| 3x |
AY-3-8910 |
|
|
Programmable Sound Generator - sound
|
| 1x |
TDA2002 |
|
|
Audio Amplifier - sound
|
| 2x |
oscillator |
unmarked |
|
|
ROMs
| QTY
|
Type
|
position
|
status
|
| 8x |
HN482764G |
1,7,8,9,11,12,13,14 |
dumped
|
| 6x |
HN4827128G |
2,3,4,5,15,16 |
dumped
|
RAMs
PLDs
Others
1x 18x2 edge connector
2x red LEDs
1x trimmer (volume)
2x 8x2 switches DIP
Notes
Files
-

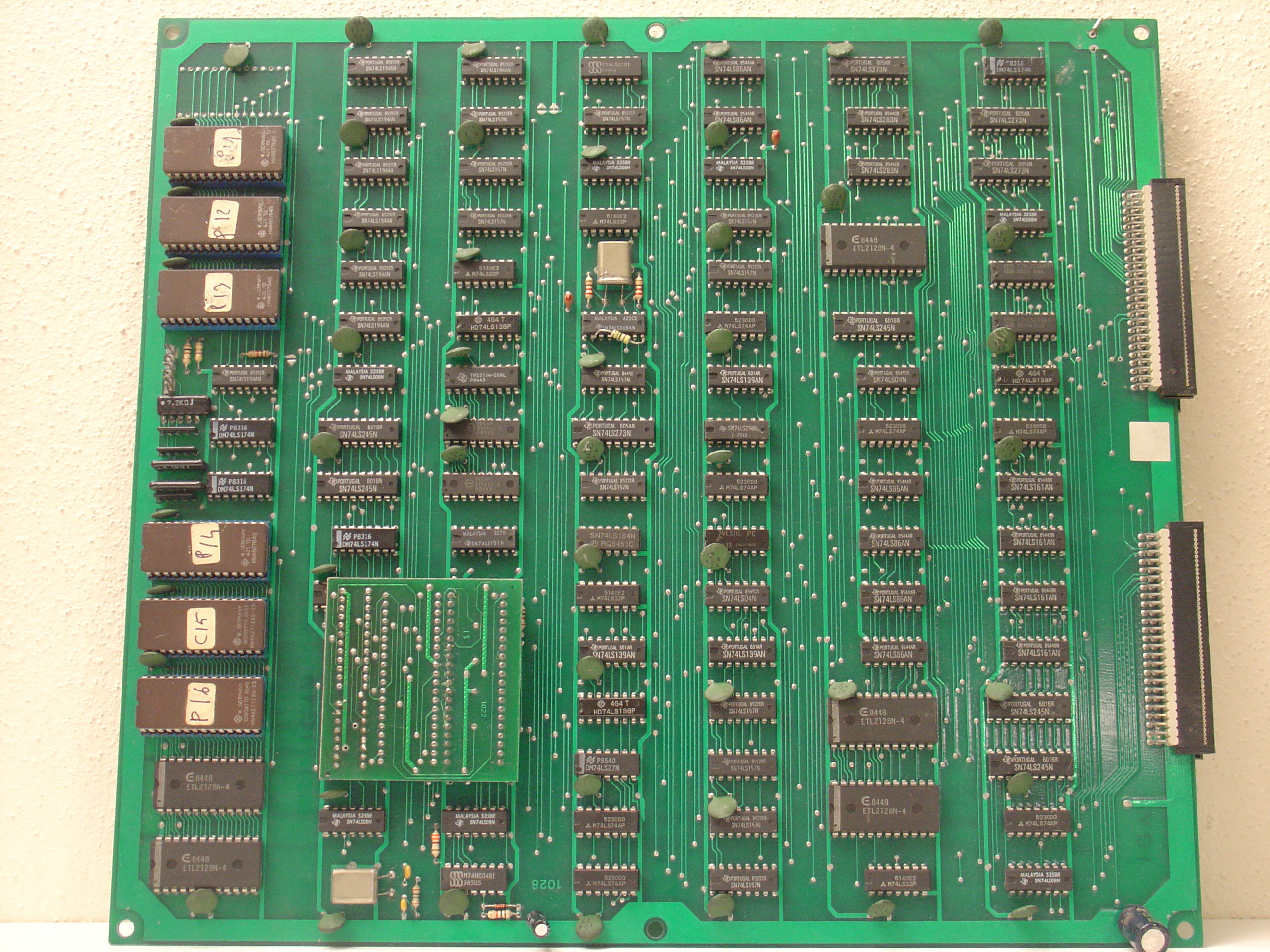

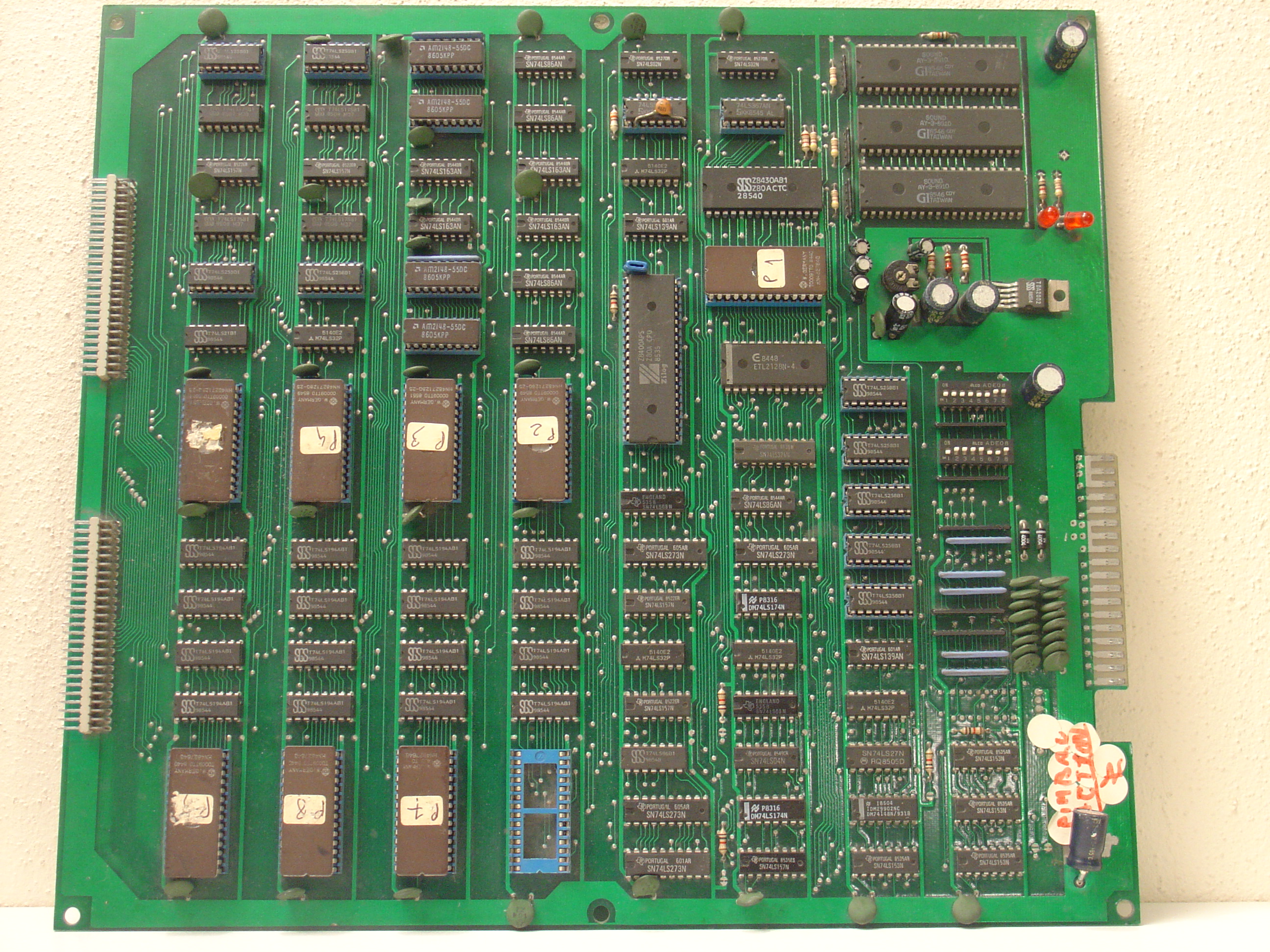

PCB component side
-

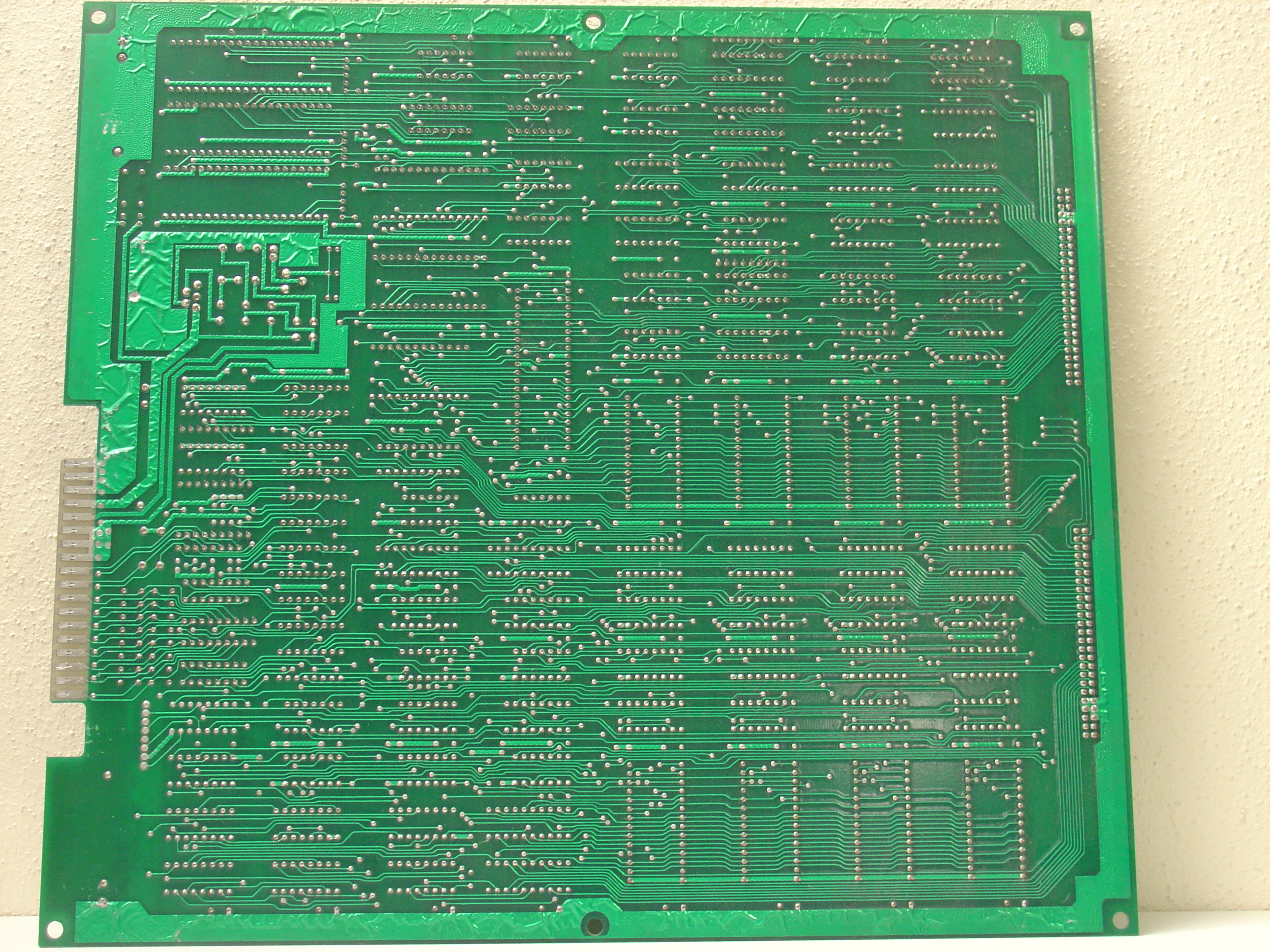

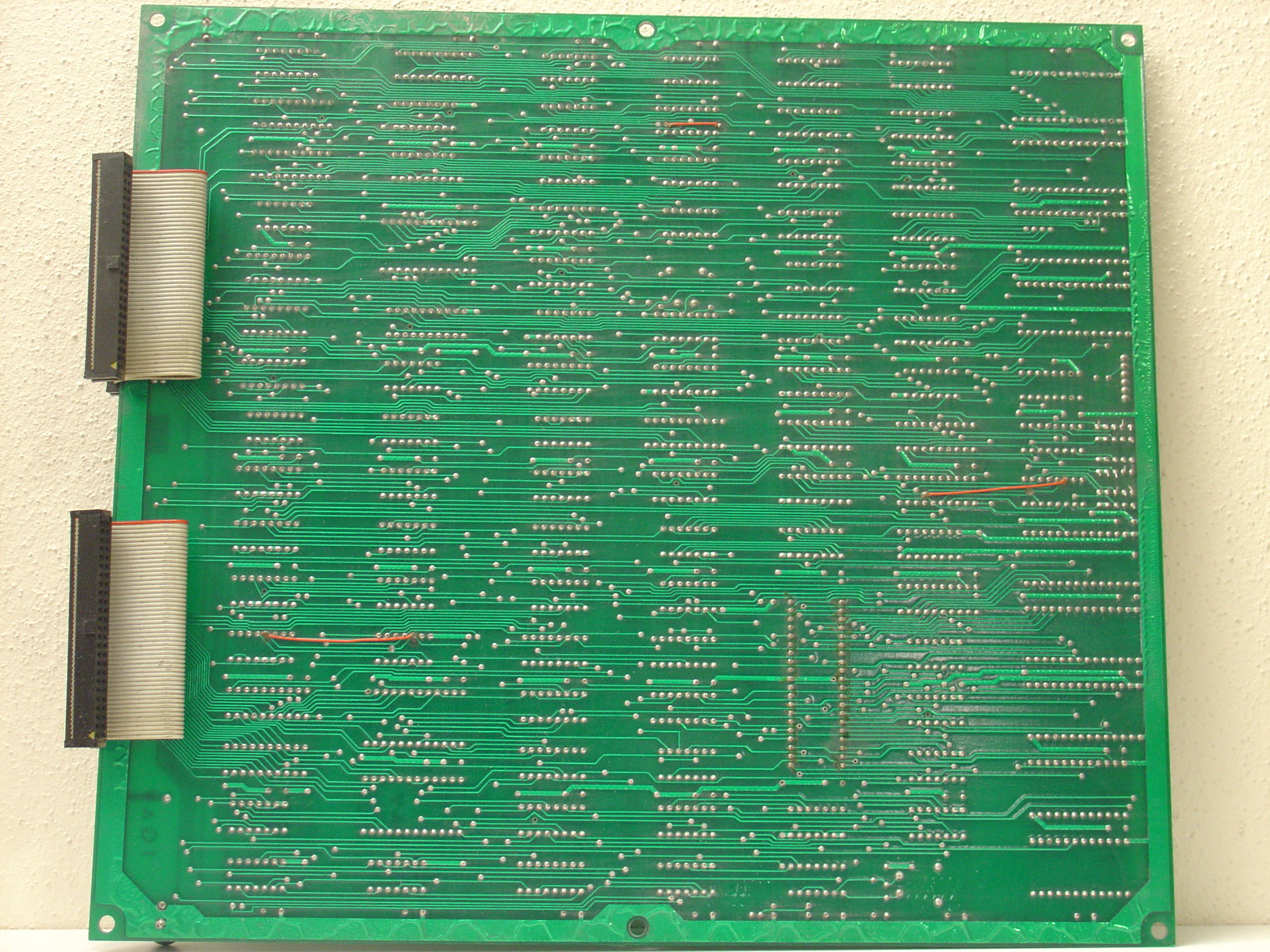

PCB solder side
-
PCB component side
-
PCB solder side
853
PCB component side
PCB solder side
PCB component side
PCB solder side
