Queen Slot

EMU Infos

dumper	Corrado Tomaselli, Quaglia
dump date	27/11/2008
emulator	MAME 0.128u6
dev	David Haywood

PCB Infos

name	queen on Arcade Database
description	Queen Slot
year	2004
manufacturer	STG - Videomatic

Technical references

CPUs

QTY	Type	position	function
1x	VIA EPIA5000EAG	motherboard
1x	VT8231 South Bridge	on MB
1x	VIA Eden Processor	on MB
1x	VIA EPIA Companion Chip VT1612A	on MB	Audio CODEC
1x	VIA EPIA Companion Chip VT6103	on MB	Networking

Oscillators
processor speed is 533MHz

ROMs

QTY	Type	position	status
1x	epia BIOS	on MB	dumped
1x	solid state HD	on MB	dumped

RAMs

QTY	Type	position
1x	128MB bank (max installable is 1GB)	on MB

PLDs

QTY	Type	position	status

---

Others

1x VGA
1x S-VIDEO
1x RCA yellow

Notes

manufacturer website

---

UPDATE 2009-04-24
A different release of the CHD has been dumped by Kold666

Files

•

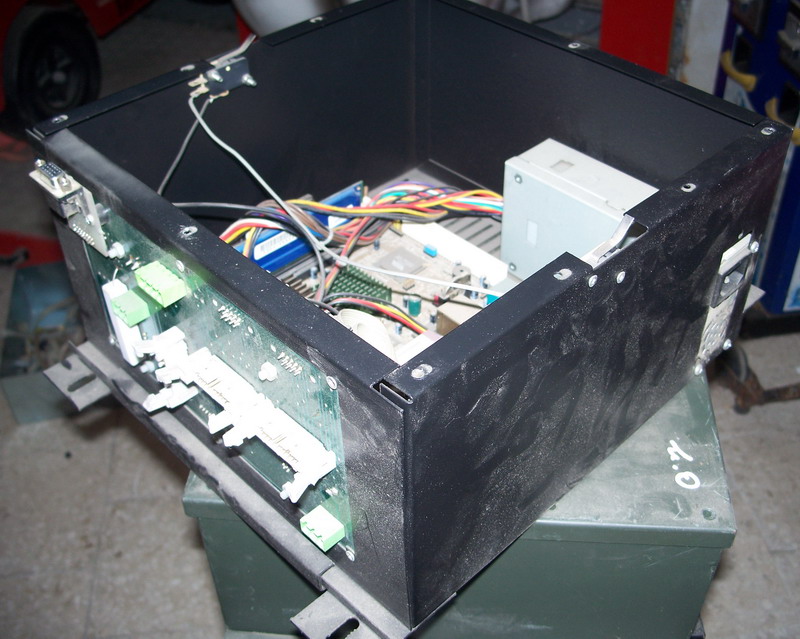

  Full harness 1
•

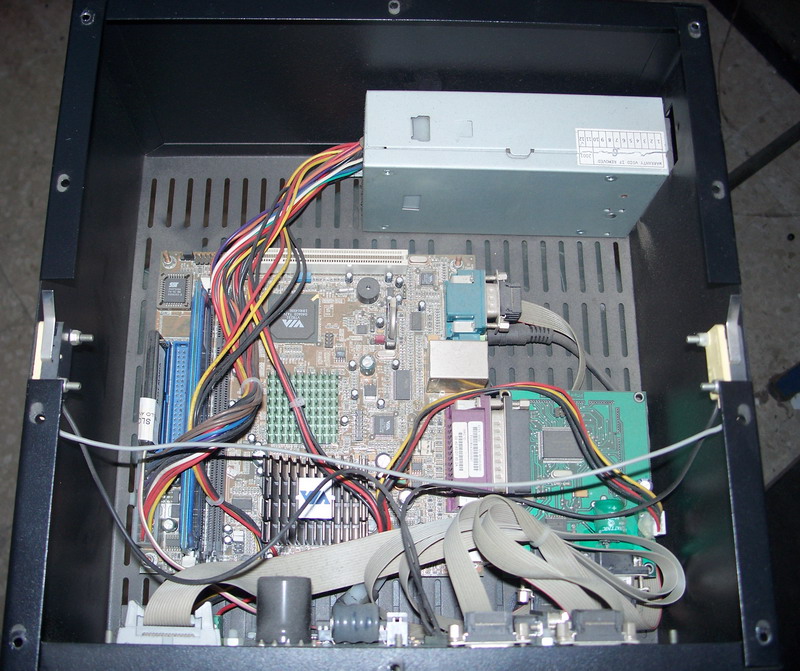

  Full harness 2
•

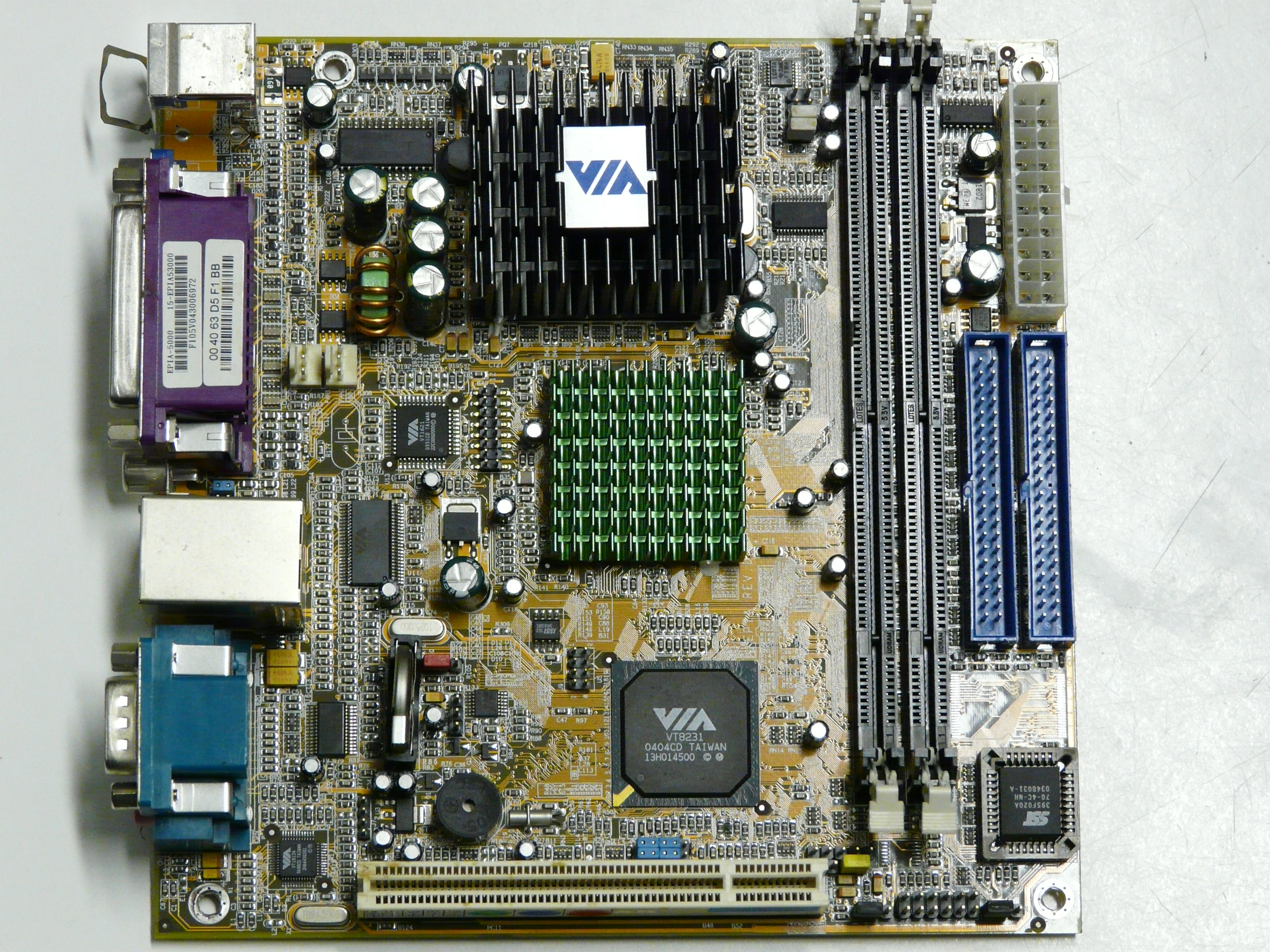

  main PCB component side
•

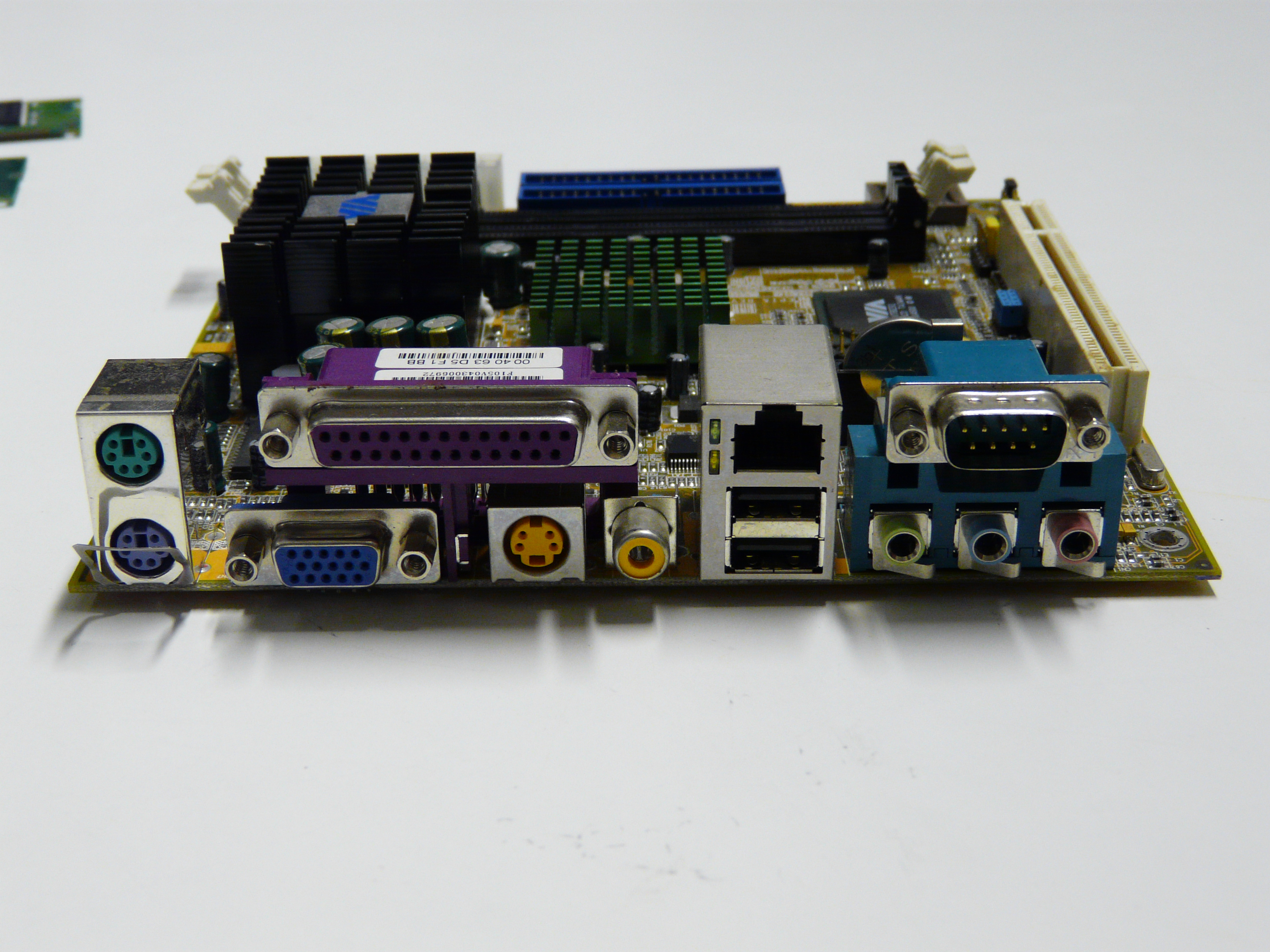

  main PCB connectors
•

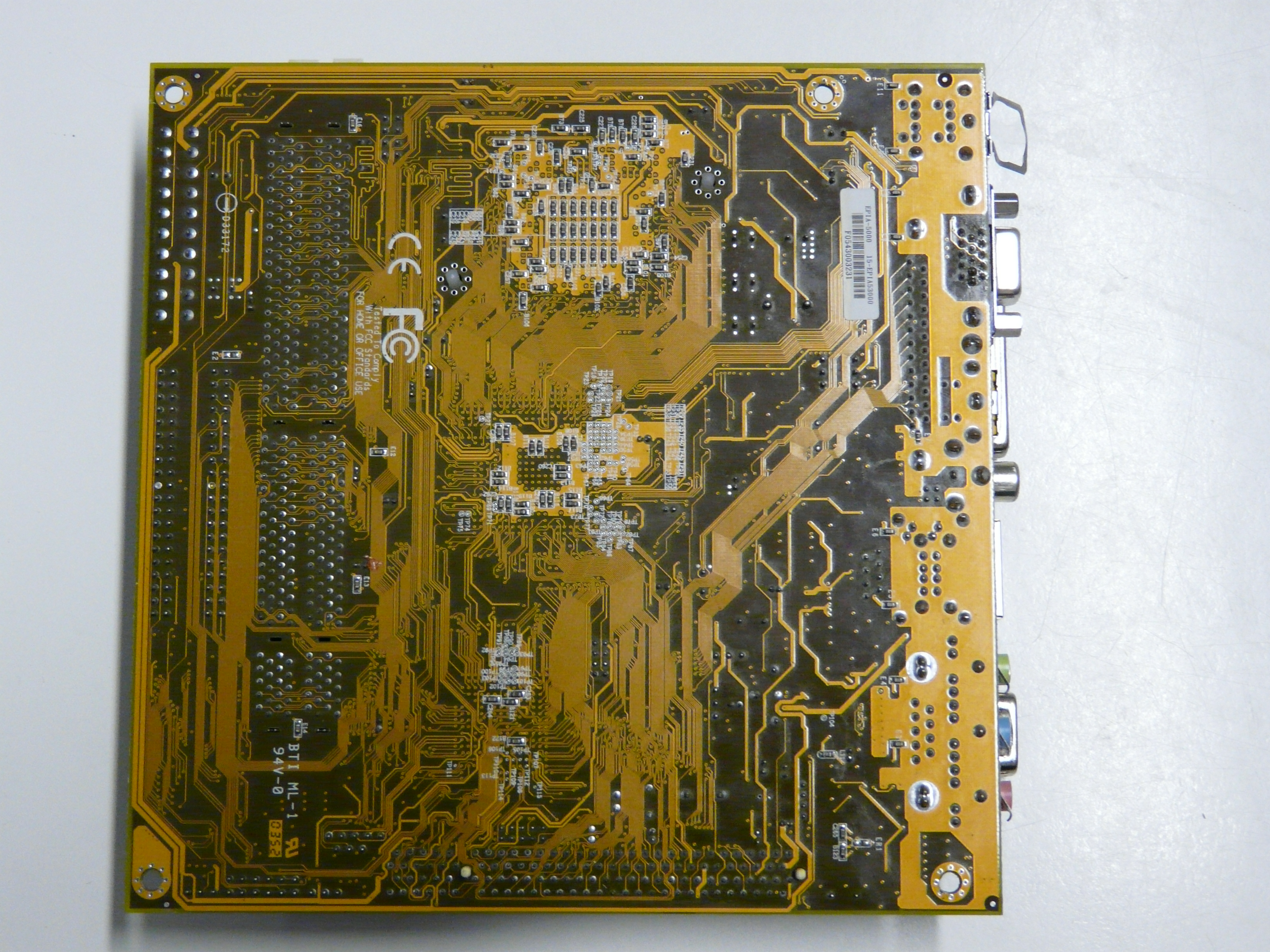

  main PCB solder side
•

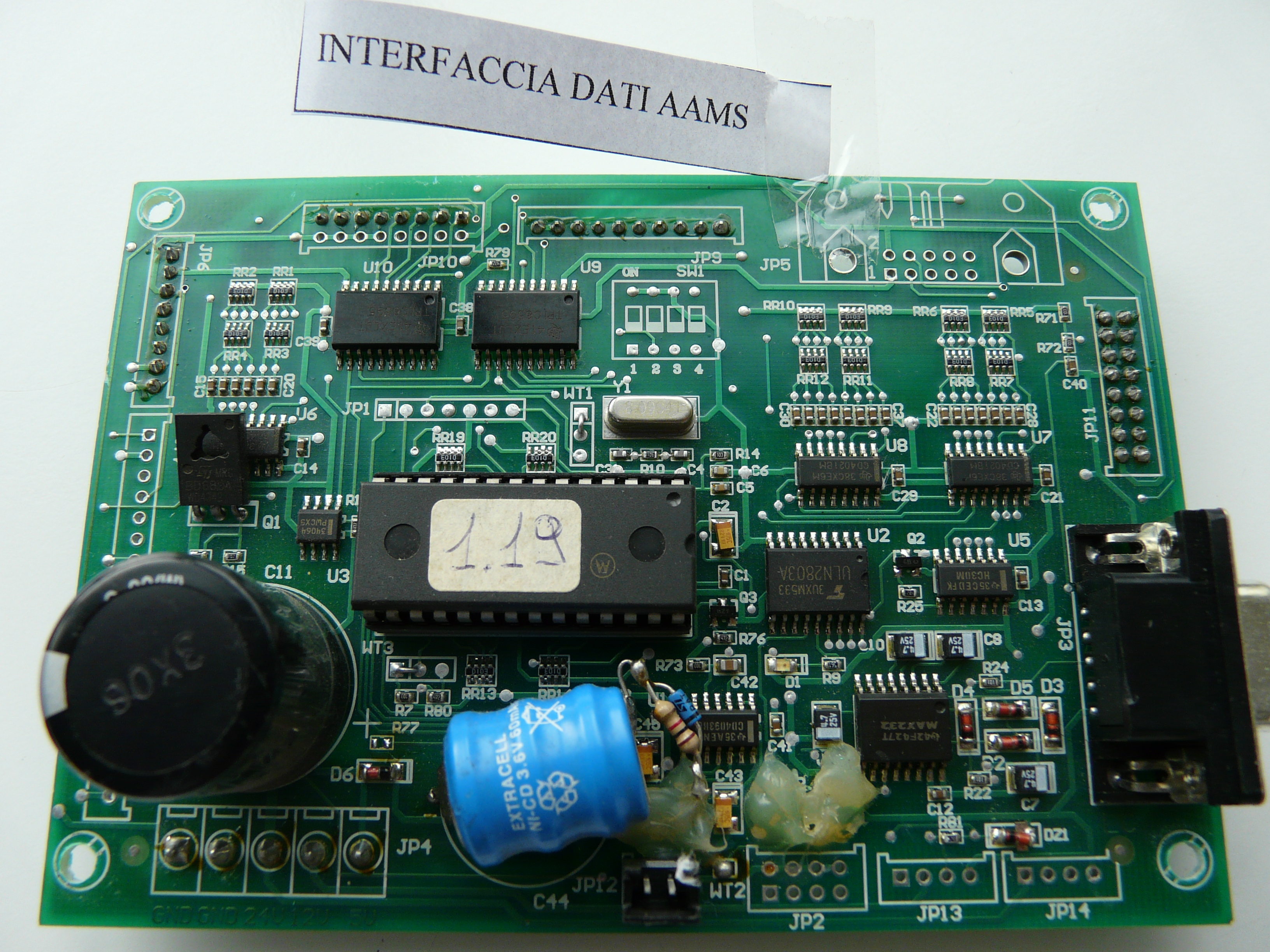

  AAMS PCB component side
•

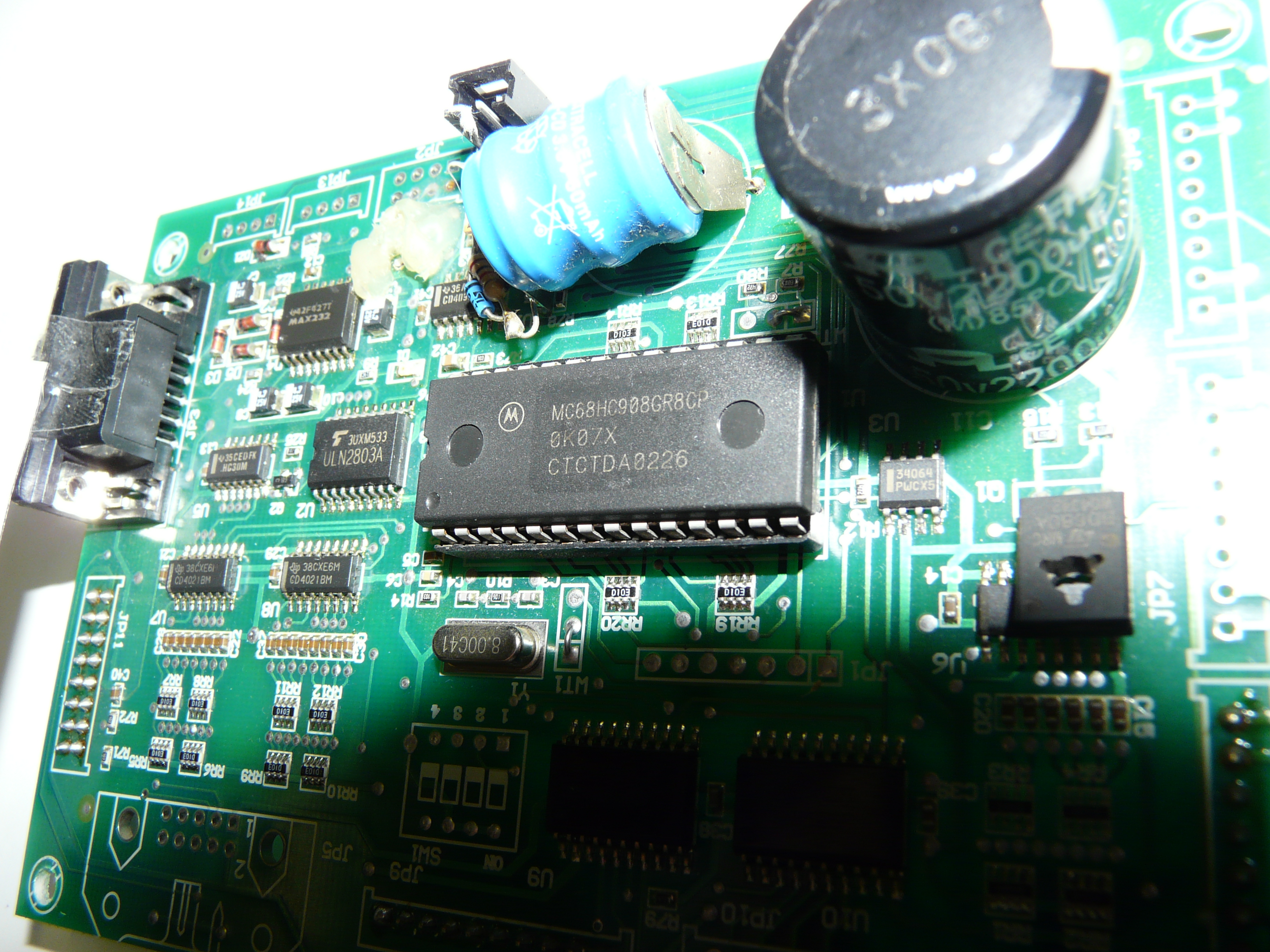

  AAMS PCB detail
•

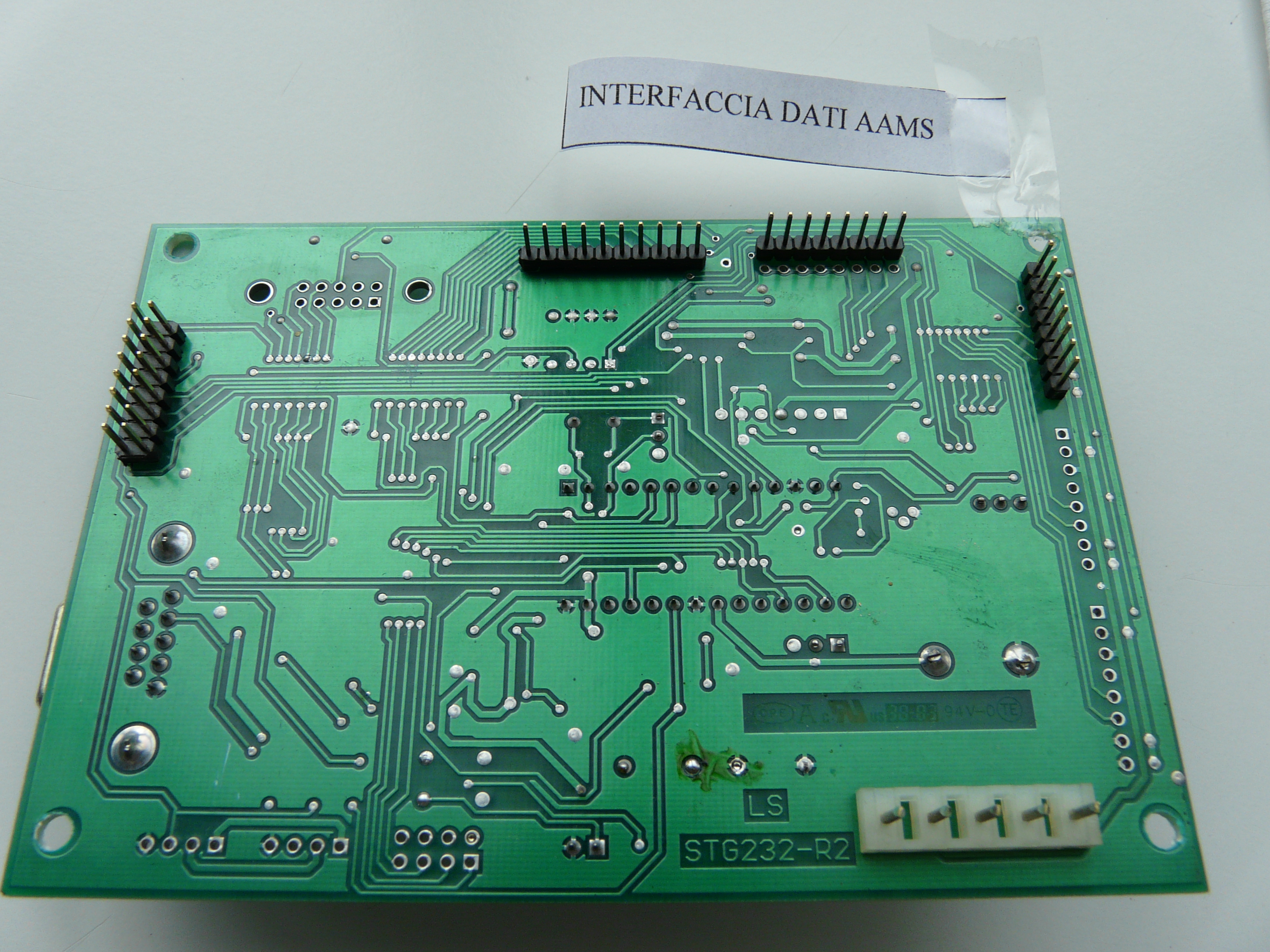

  AAMS PCB solder side
•

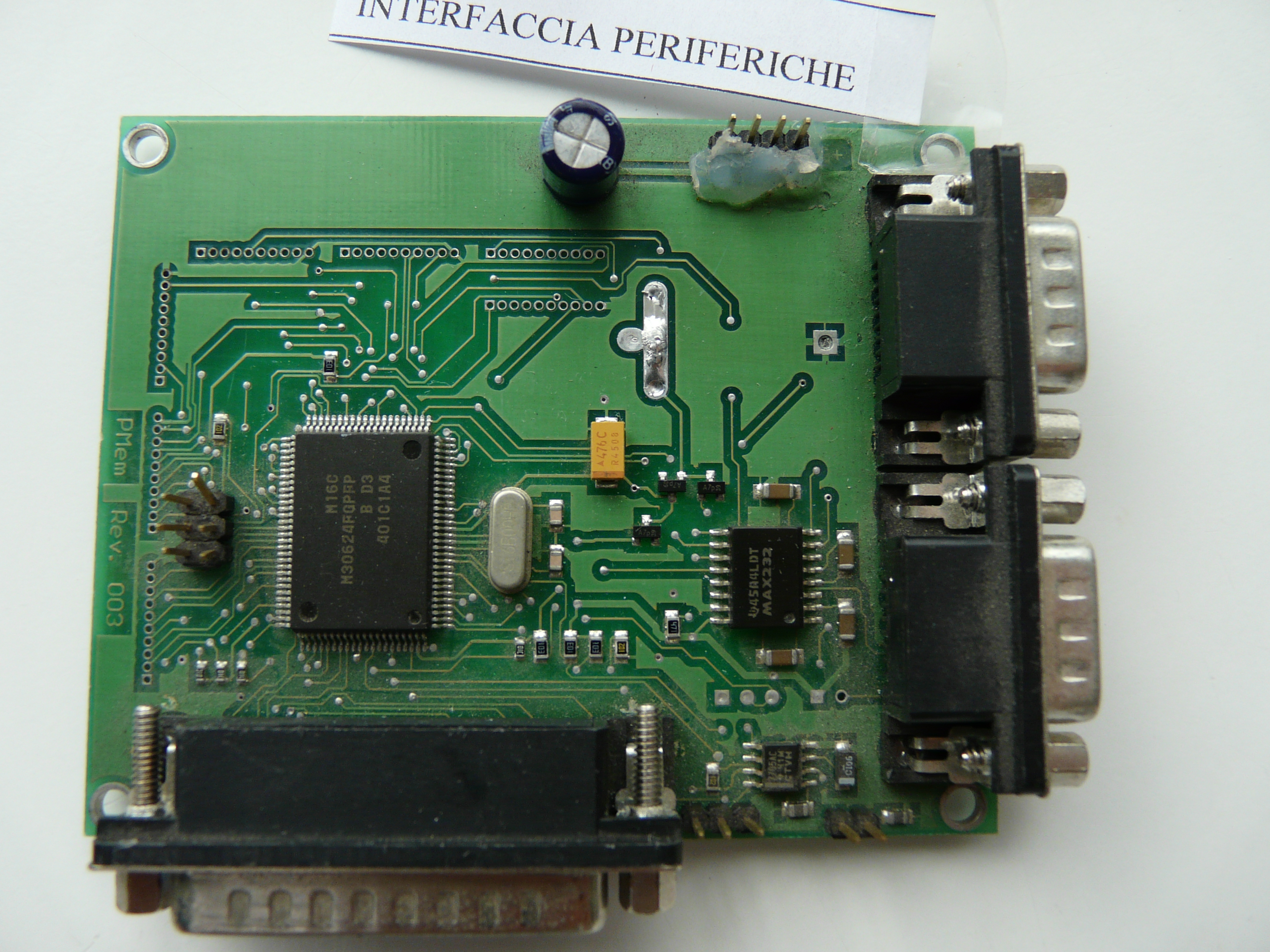

  peripherals PCB component side
•

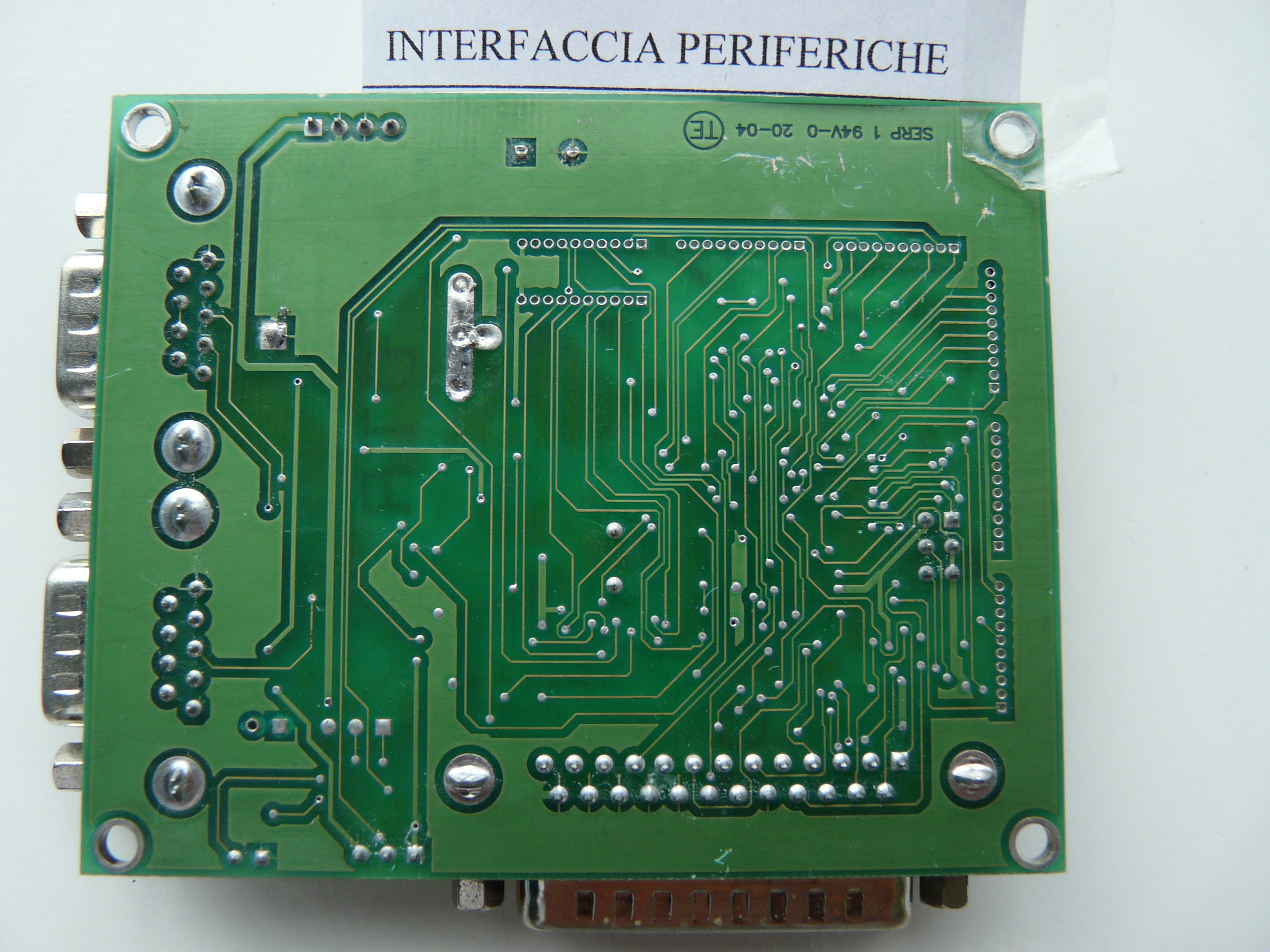

  peripherals PCB solder side
•

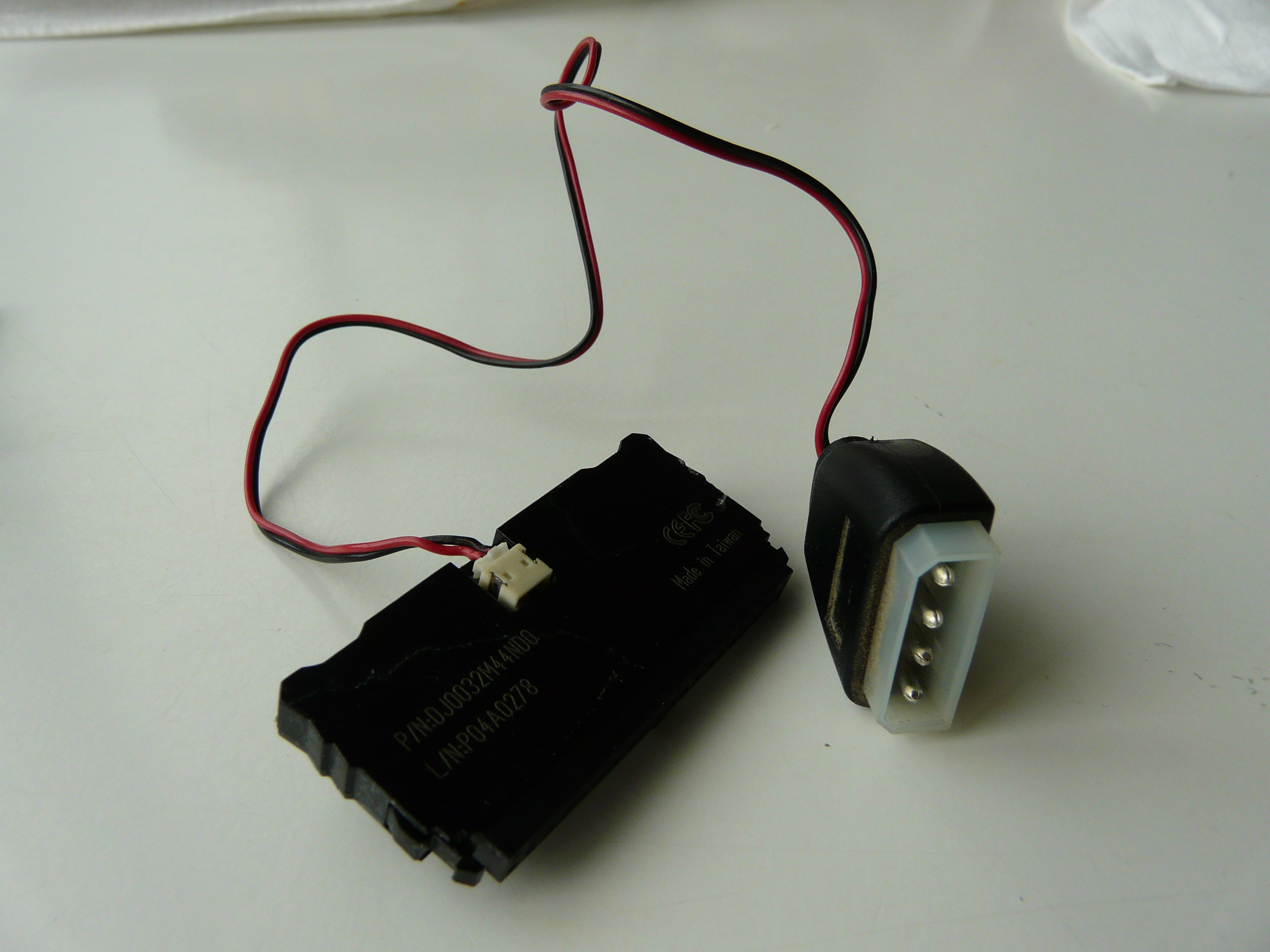

  Flash disk 1
•

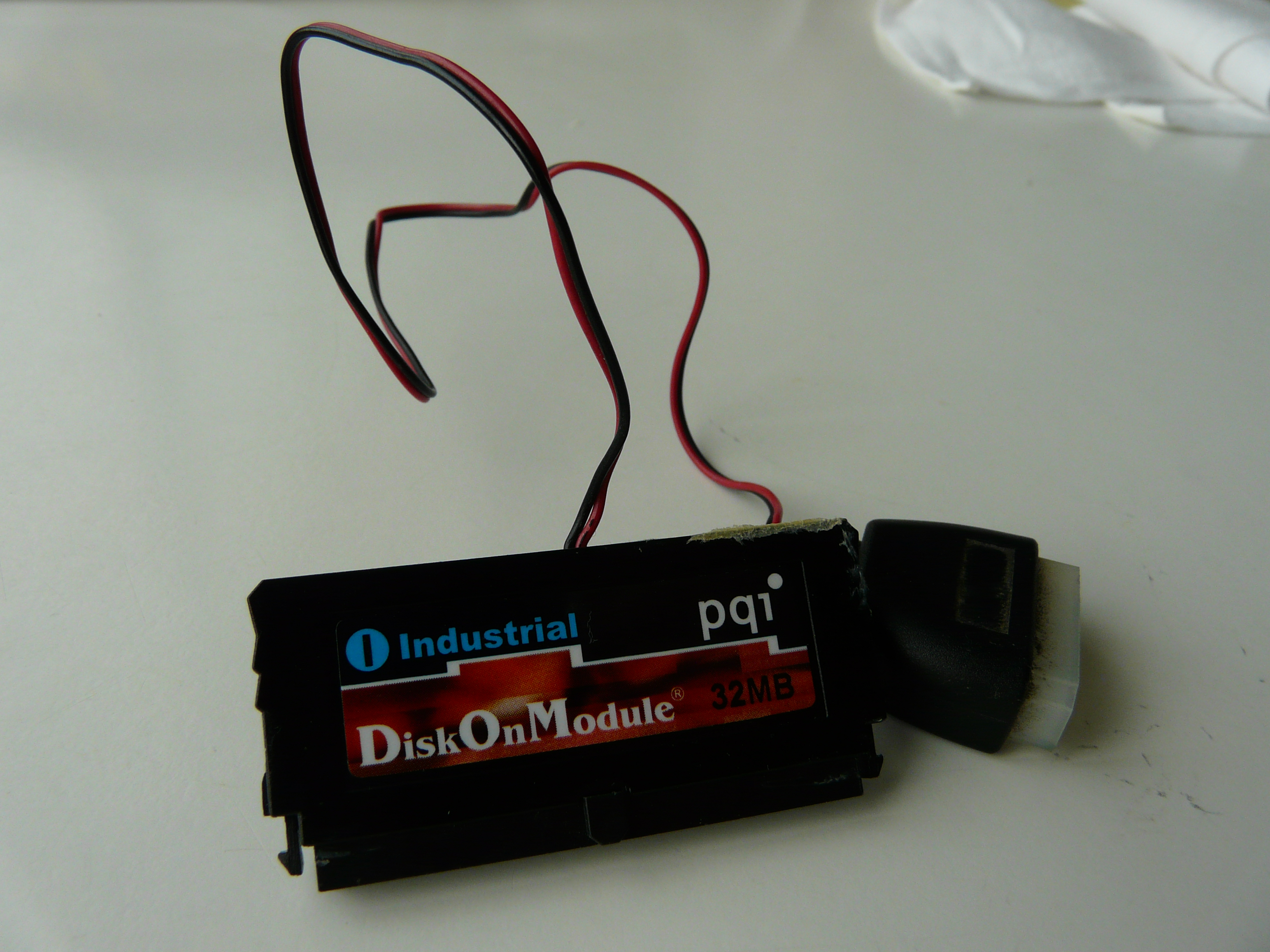

  Flash disk 2
•

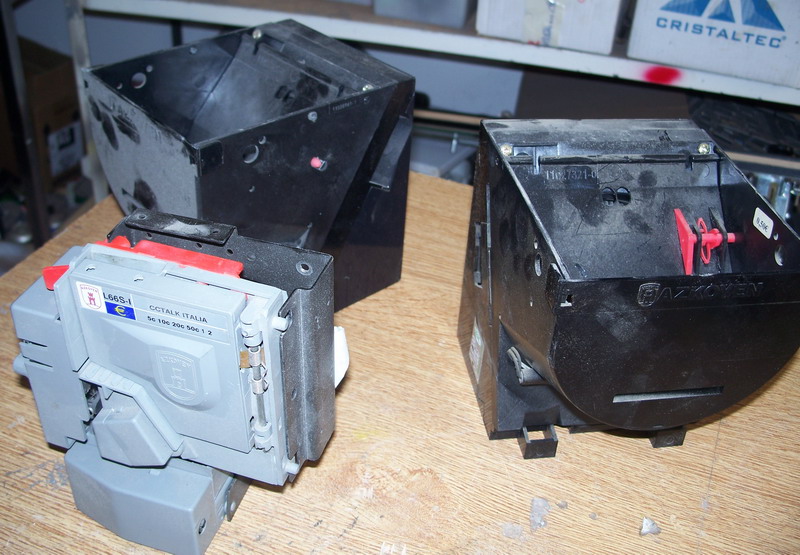

  Hopper
•

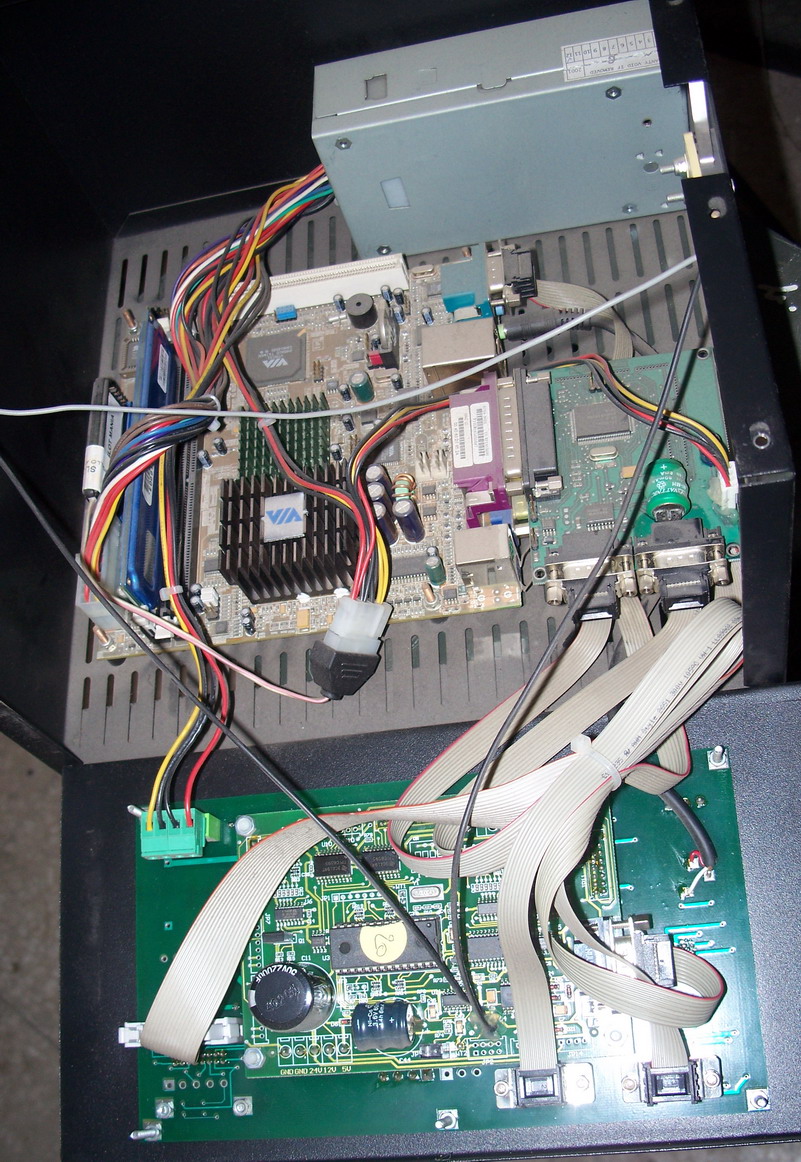

  Cable connections 1
•

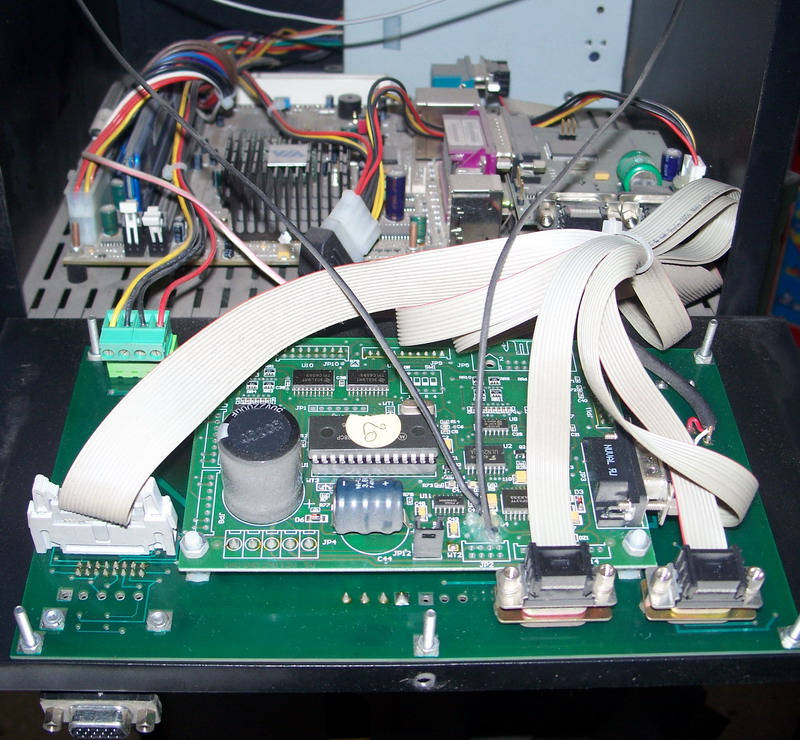

  Cable connections 2
•

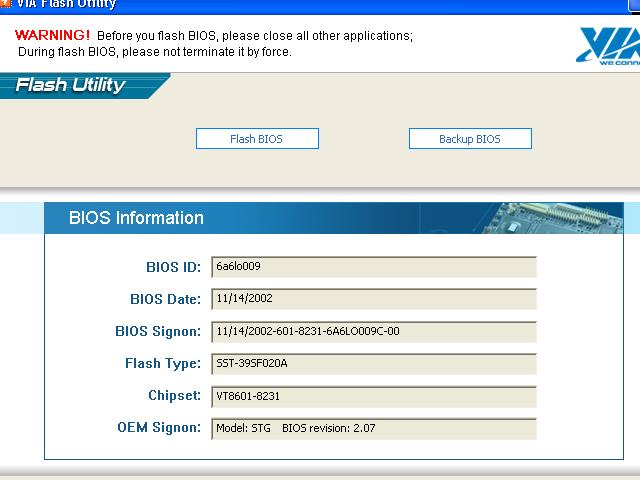

  BIOS detail
•
  Motherboard PDF
•
  manual
•
  manual update
•
  manual upgrade
•
  schematics
•
  operator instruction

Boot Sequence
