Royal Card (German, set 5)

EMU Infos

dumper	f205v
date	18/09/2005
emulator	MAME 0.100u2
dev	Roberto Fresca

PCB Infos

name	royalcrdd on Arcade Database
description	Royal Card (German, set 5)
year	1991
manufacturer	TAB-Austria

Technical references

CPUs

QTY	Type	clock	position	function
1x	R65C02P2			8-bit Microprocessor - main
1x	HD6845SP			CRT Controller (CRTC)
2x	EF6821P			Peripheral Interface Adapter PIA
1x	WB5300			Programmable Sound Generator - sound
1x	oscillator	16.000MHz

ROMs

QTY	Type	position	status
1x	D27256	1	dumped
1x	S27C256	2	dumped
1x	TMS27C256	r2	dumped
1x	N82S147AN		dumped

RAMs

QTY	Type	position
1x	HM6264P-15
1x	HM6116LP-3

PLDs

QTY	Type	position	status
1x	PEEL18CV8P-15		read protected
1x	PEEL18CV8P-15		dumped
1x	PALCE16V8H-25PC/4		read protected

Others

1x 22x2 edge connector
1x 18x2 edge connector
1x trimmer (volume)
1x 8x2 switches DIP
1x battery 3.6V

Files

•

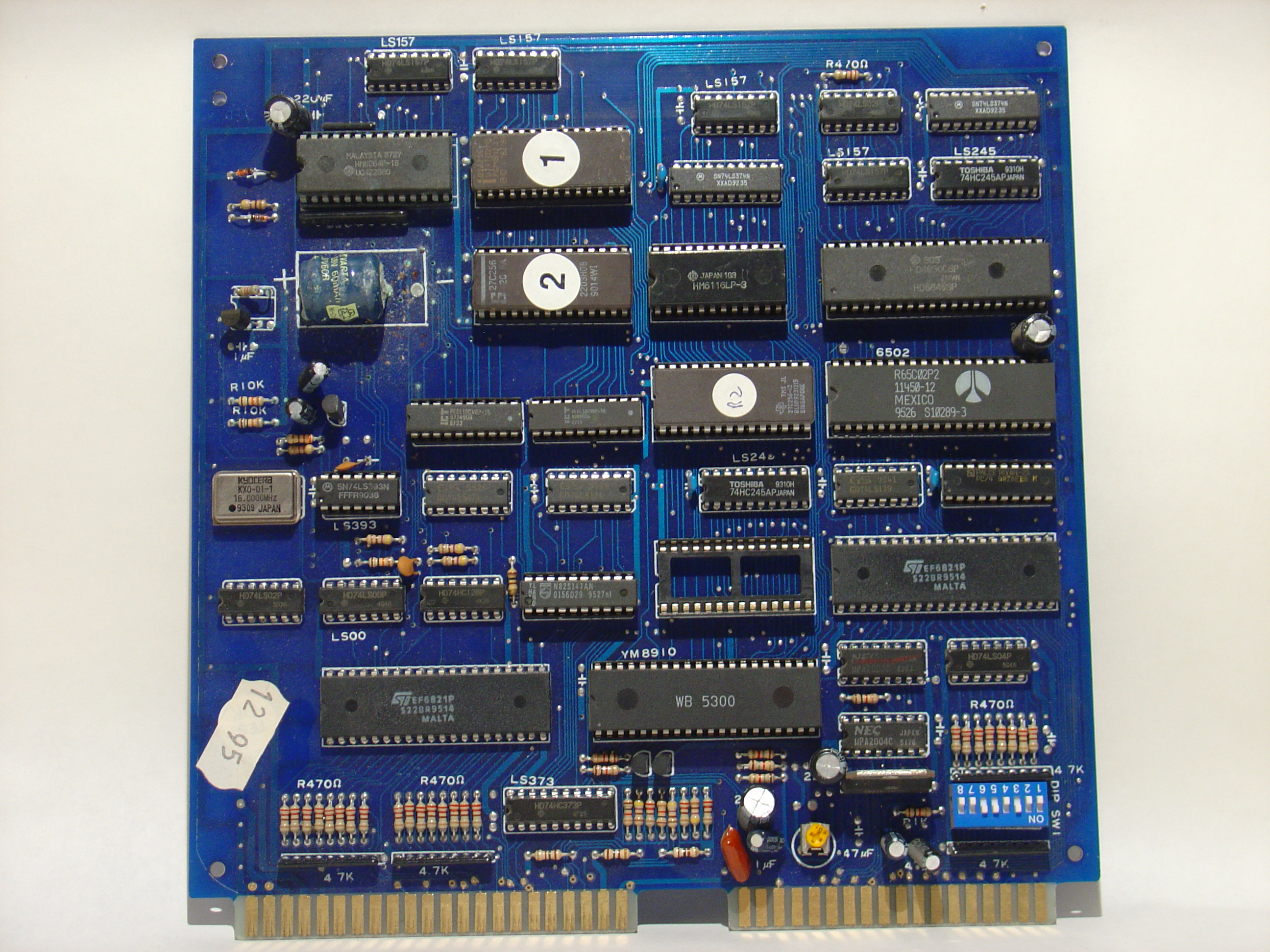

  PCB component side
•

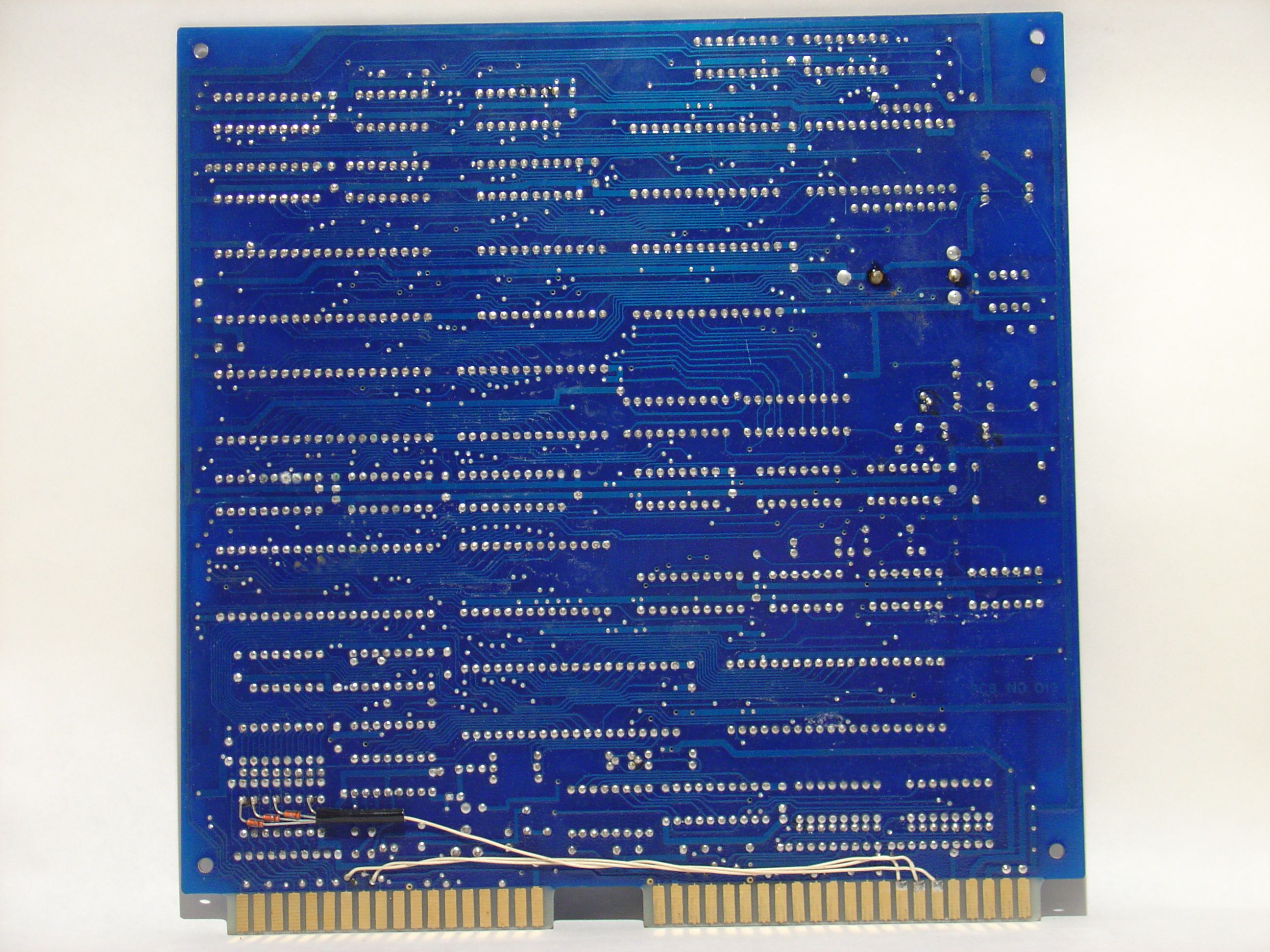

  PCB solder side
•

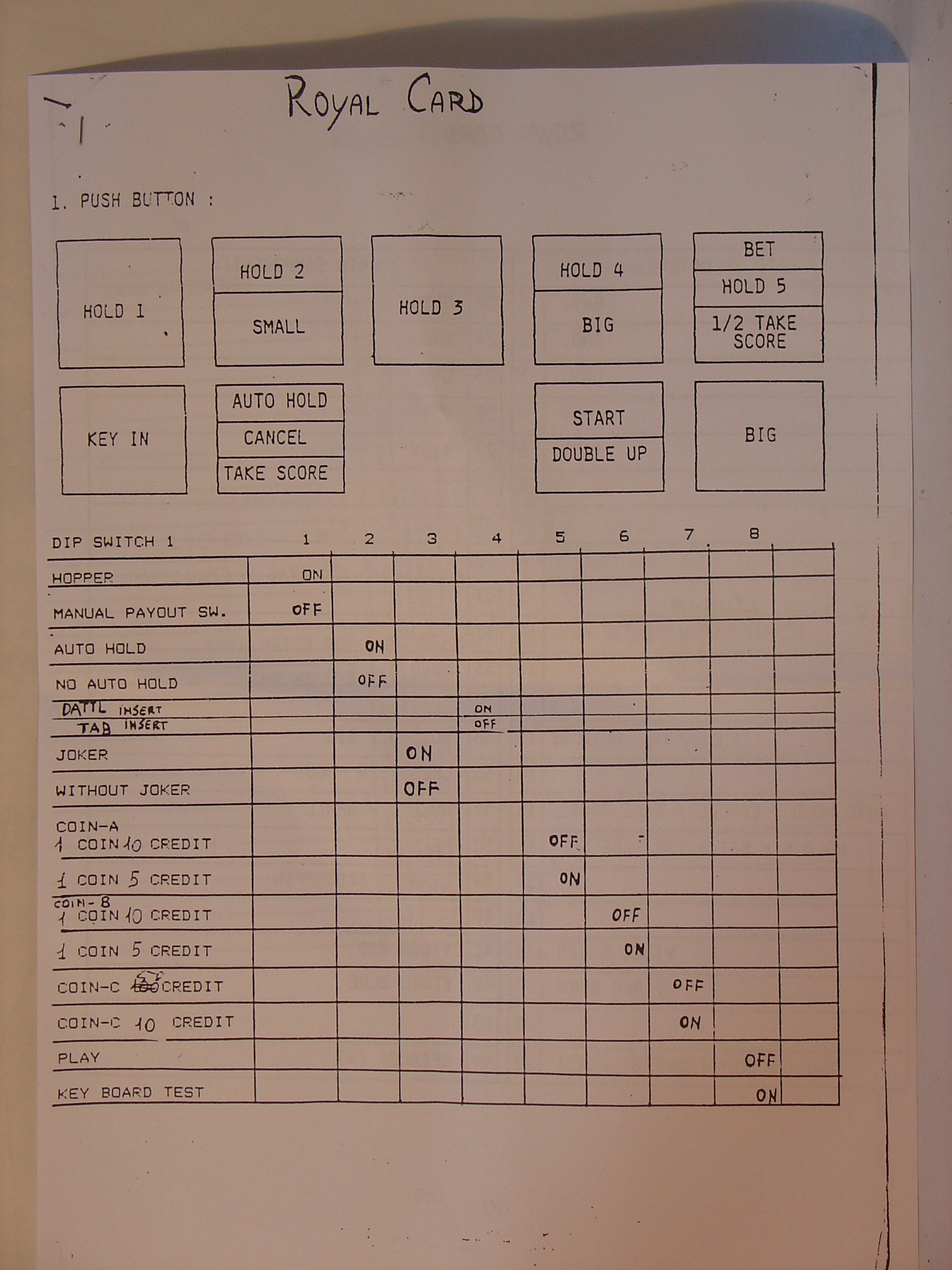

  Dip switches
•

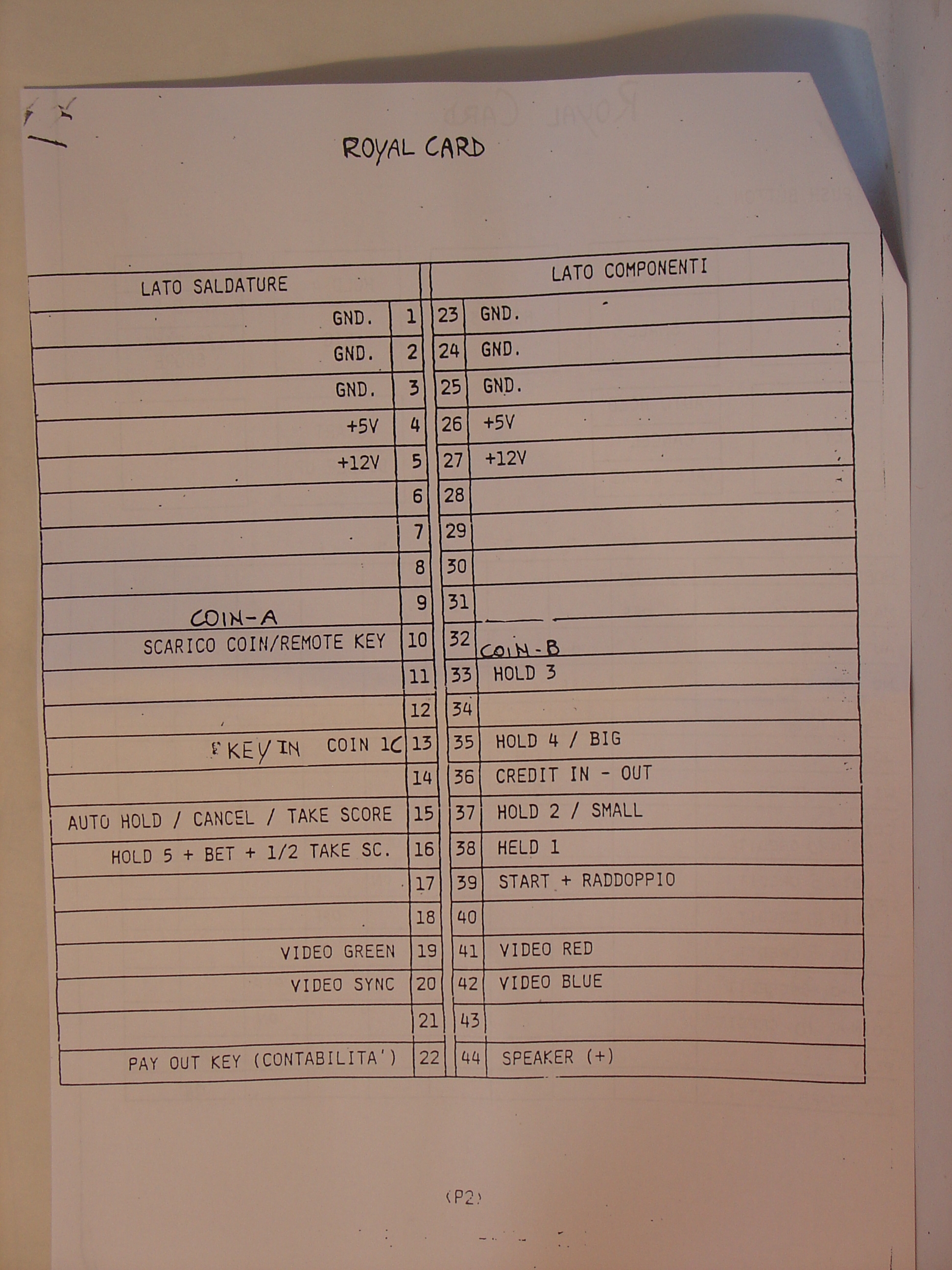

  Connector 1
•

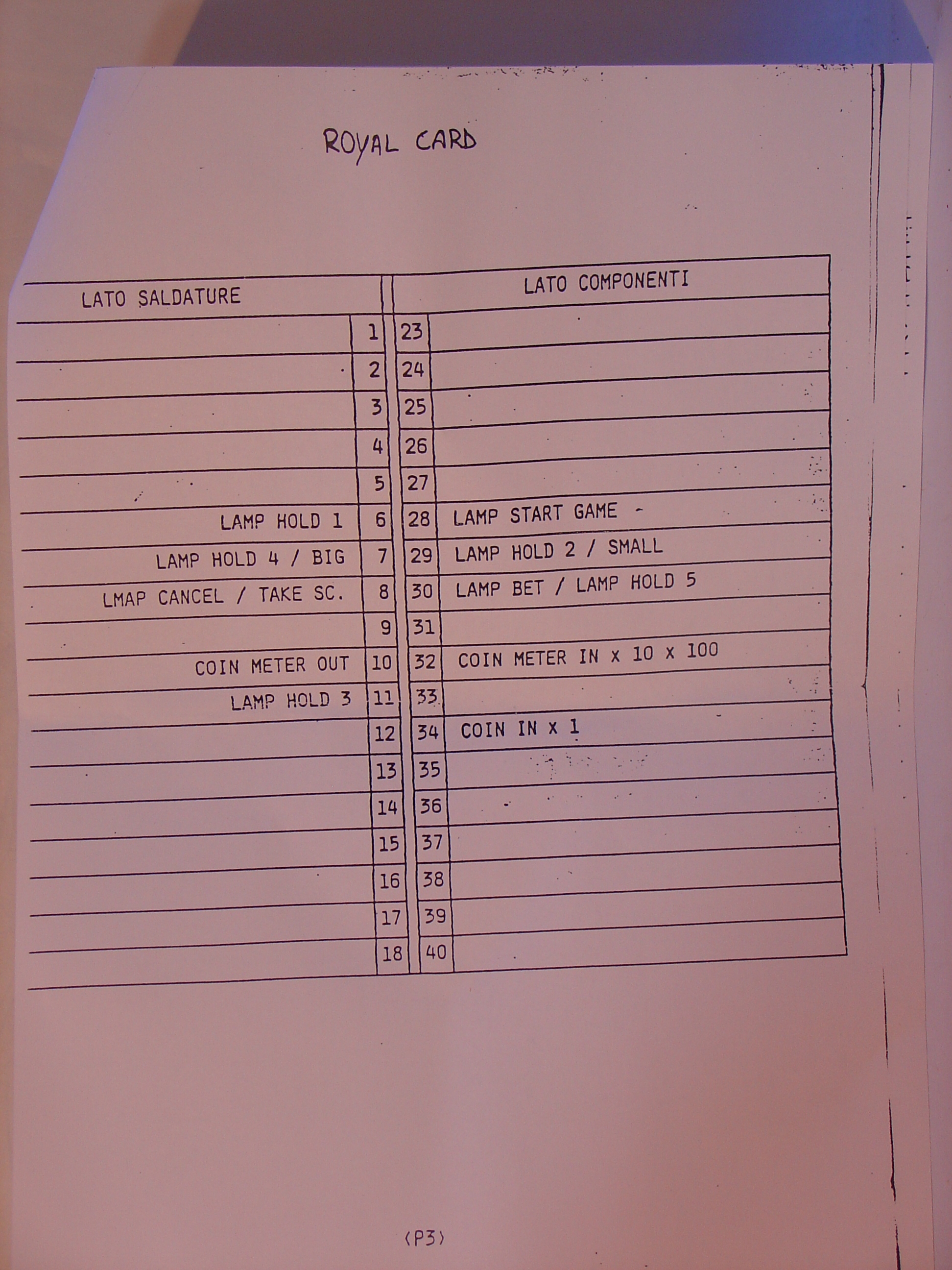

  Connector 2
