Royal Card (German, set 6)

EMU Infos

dumper	f205v
date	02/09/2005
emulator	MAME 0.99u8
dev	Roberto Fresca

PCB Infos

name	royalcrde on Arcade Database
description	Royal Card (German, set 6)
year	1991
manufacturer	TAB Austria

Technical references

CPUs

QTY	Type	clock	position	function
1x	R65C02P2			8-bit Microprocessor - main
1x	HD6845SP			CRT Controller (CRTC)
2x	EF6821P			Peripheral Interface Adapter PIA
1x	KC89C72			Programmable Sound Generator - sound
1x	TDA2003			Audio Amplifier - sound
1x	oscillator	16.000MHz

ROMs

QTY	Type	position	status
3x	TMS27C512		dumped
1x	AM27S29APC		dumped

RAMs

QTY	Type	position
1x	KM62256ALP-10
1x	HM6116-3L

PLDs

QTY	Type	position	status
1x	PALCE16V8H-25		read protected

Others

1x 28x2 edge connector
1x 10x2 edge connector
1x 3 legs connector (solder side, connected to trimmer)
1x trimmer (volume)
1x 8x2 switches DIP
1x battery 3.6V

Notes

PCB is marked: "LC 0-917 BIS" on component side
PCB is marked: "LS 0-917 BIS" on solder side
PCB is labeled: "7/97" on sodler side

Files

•

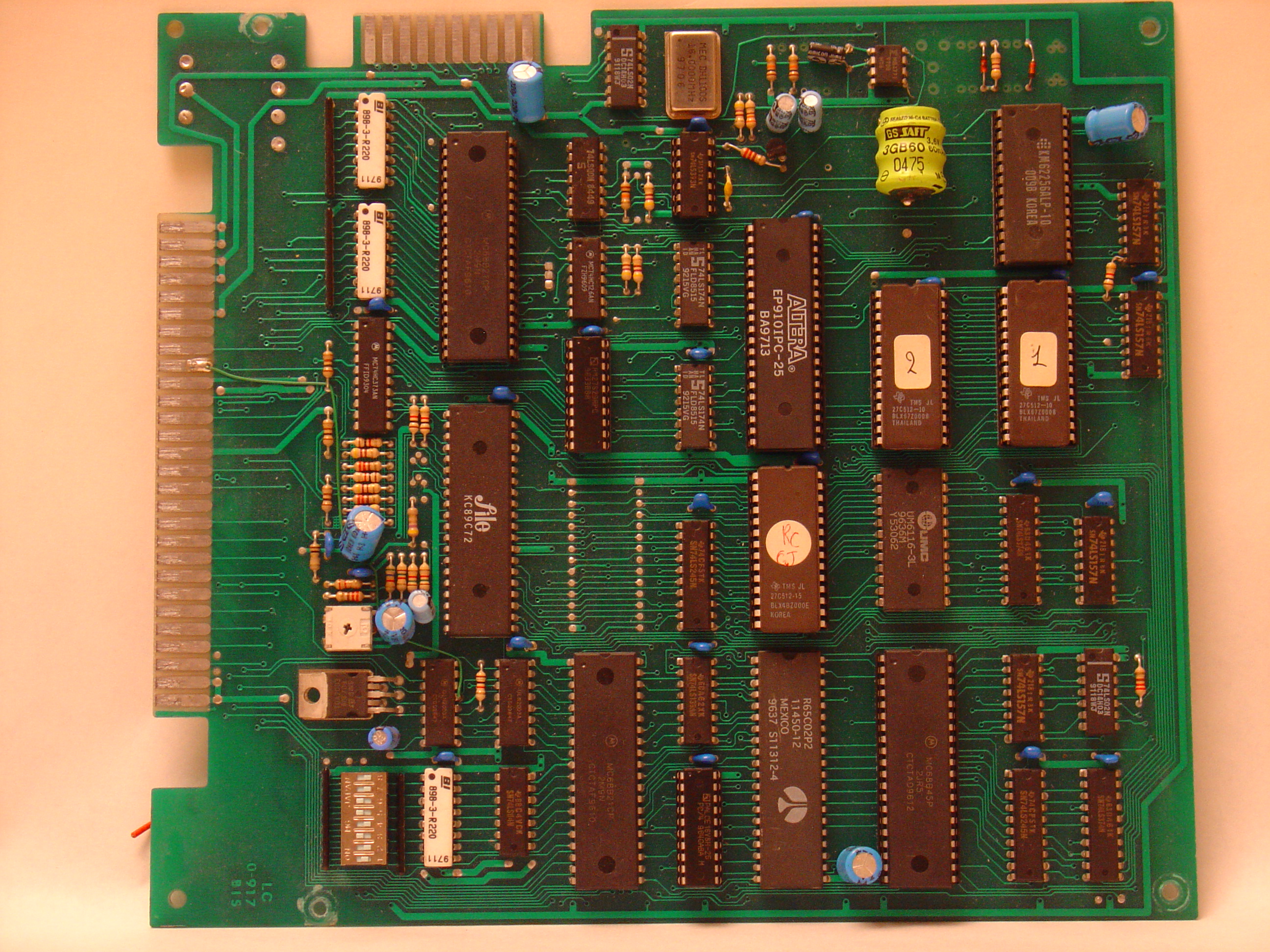

  PCB component side
•

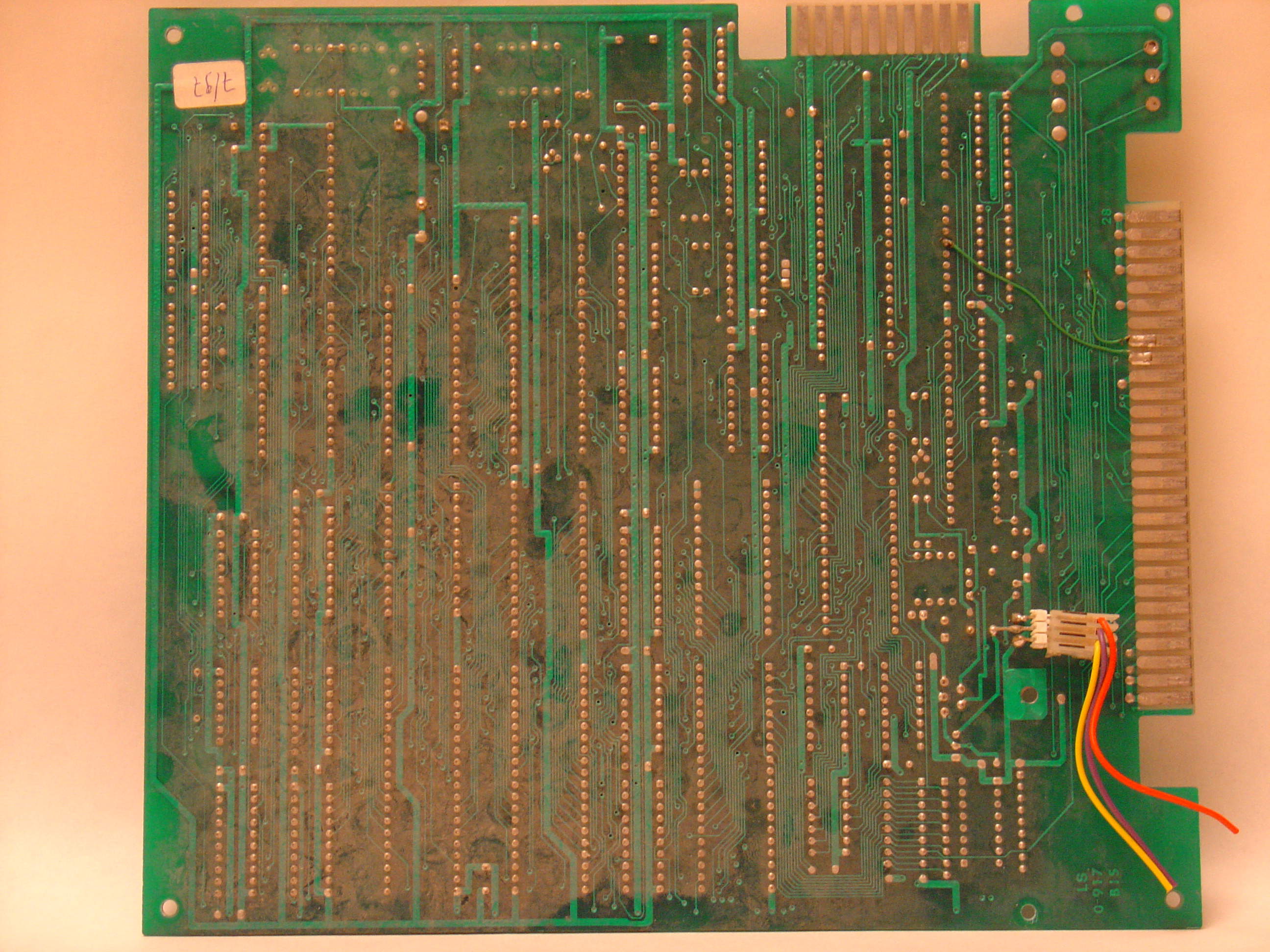

  PCB solder side
•

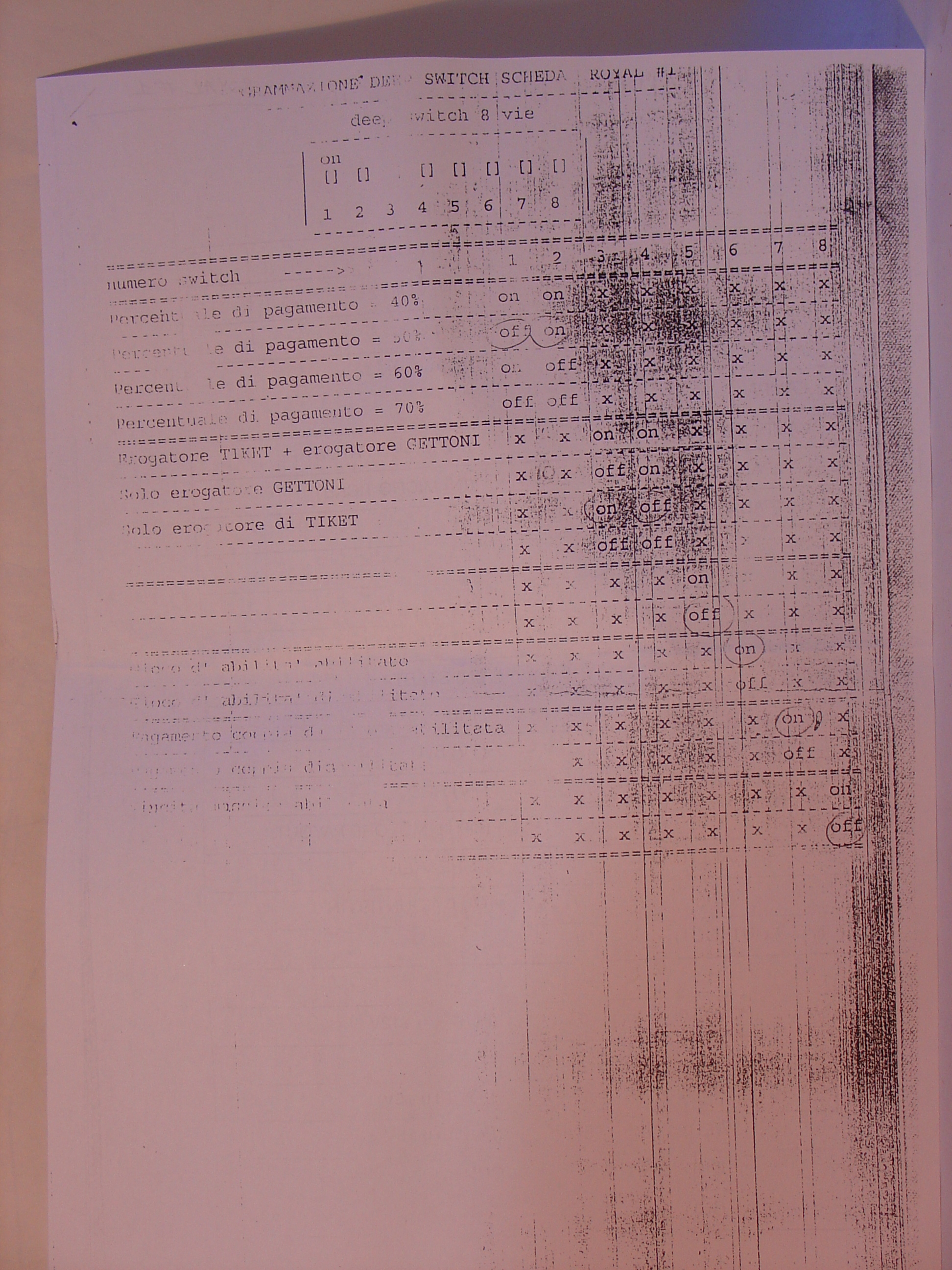

  Dip switches
•

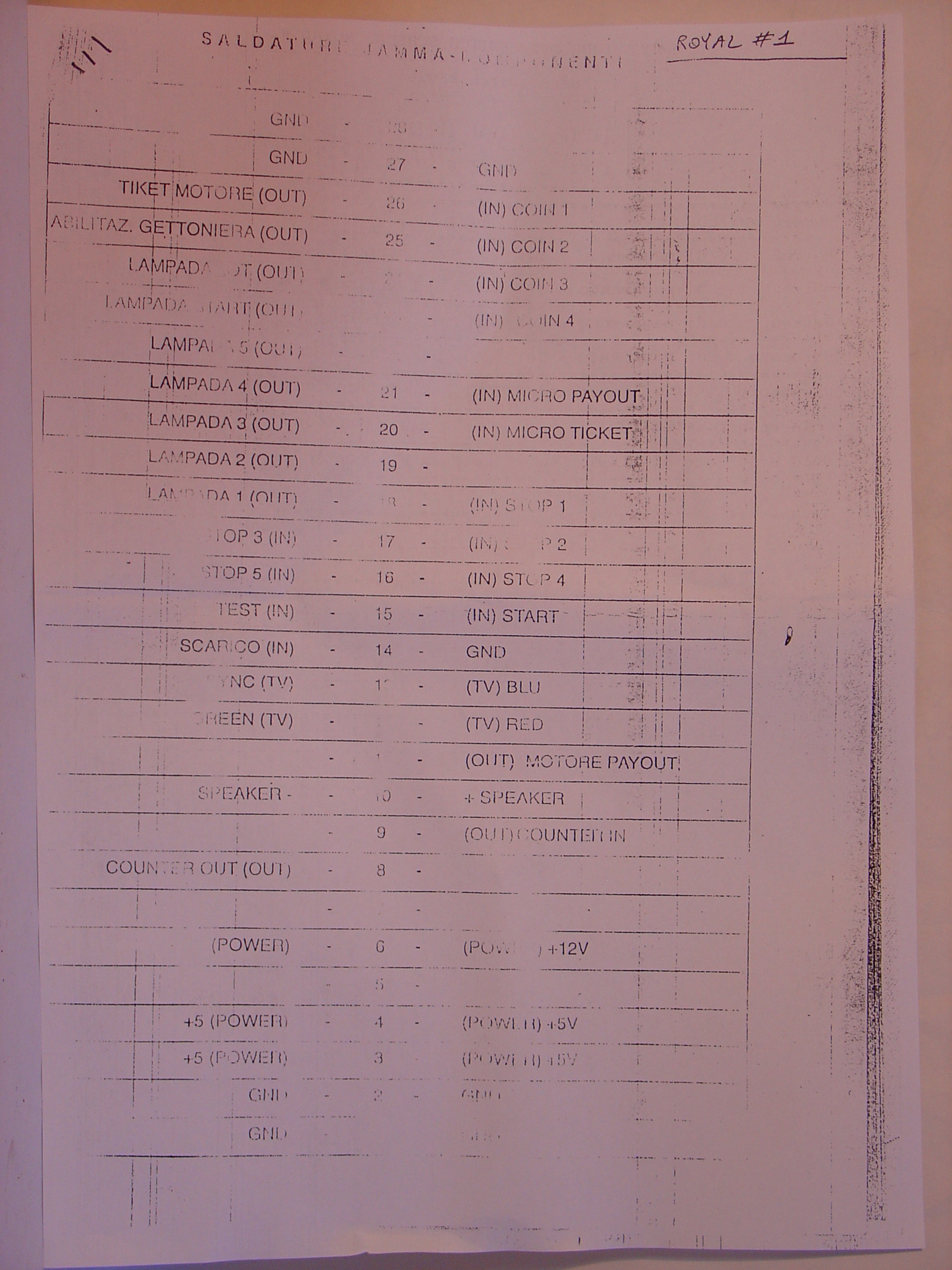

  Connector
