Samba de Amigo ver. 2000 (Japan)
From Citylan
Jump to navigationJump to search
| dumper | Guru |
| date | 06/09/2009 |
| emulator | MAME 0.140u2 |
| dev | R. Belmont |
| name | samba2k on Arcade Database |
| description | Samba de Amigo ver. 2000 (Japan) |
| year | 2000.12.03 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | 23600.ic22 | dumped |
| 11x | MaskROM 128Mb TSOP48 | MPR-23589.ic1 - MPR-23599.ic11 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71V256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
| 1x | EPM7032 315-6319A | ic27 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8132B
Cart N°: 840-0047C
Protection IC: SEGA 315-5881 (317-0295-COM)
Key: 0x281702cf
Files
-

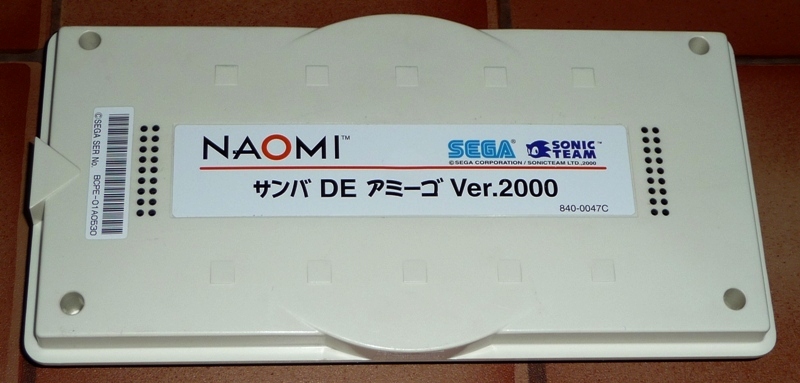

Cart
