Sega Strike Fighter (Rev A, no training mode)

EMU Infos

dumper	Arzeno Fabrice
date	23/11/2014
emulator	MAME 0.156
dev	MetalliC

PCB Infos

name	sstrkfgta on Arcade Database
description	Sega Strike Fighter (Rev A, no training mode)
year	2001.11.06
manufacturer	Sega

Technical references

CPUs

QTY	Type	clock	position	function
1x	oscillator	28.000	osc1

ROMs

QTY	Type	position	status
1x	M27C322	EPR-23786A.ic22	dumped
20x	27w064	MPR-23302.ic1 - MPR-23321.ic20s	dumped
1x	X76F100	ic37	dumped

RAMs

QTY	Type	position
2x	CY7C199-12VC	ic44,ic45

PLDs

QTY	Type	position	status
1x	315-6213	ic41	read protected

Notes

It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0035C
Protection IC: SEGA 315-5881 (317-0281-COM)
Key: 0x28132303
have no training mode, "Rev. A" label on PCB, cart case have no revision label

Files

•

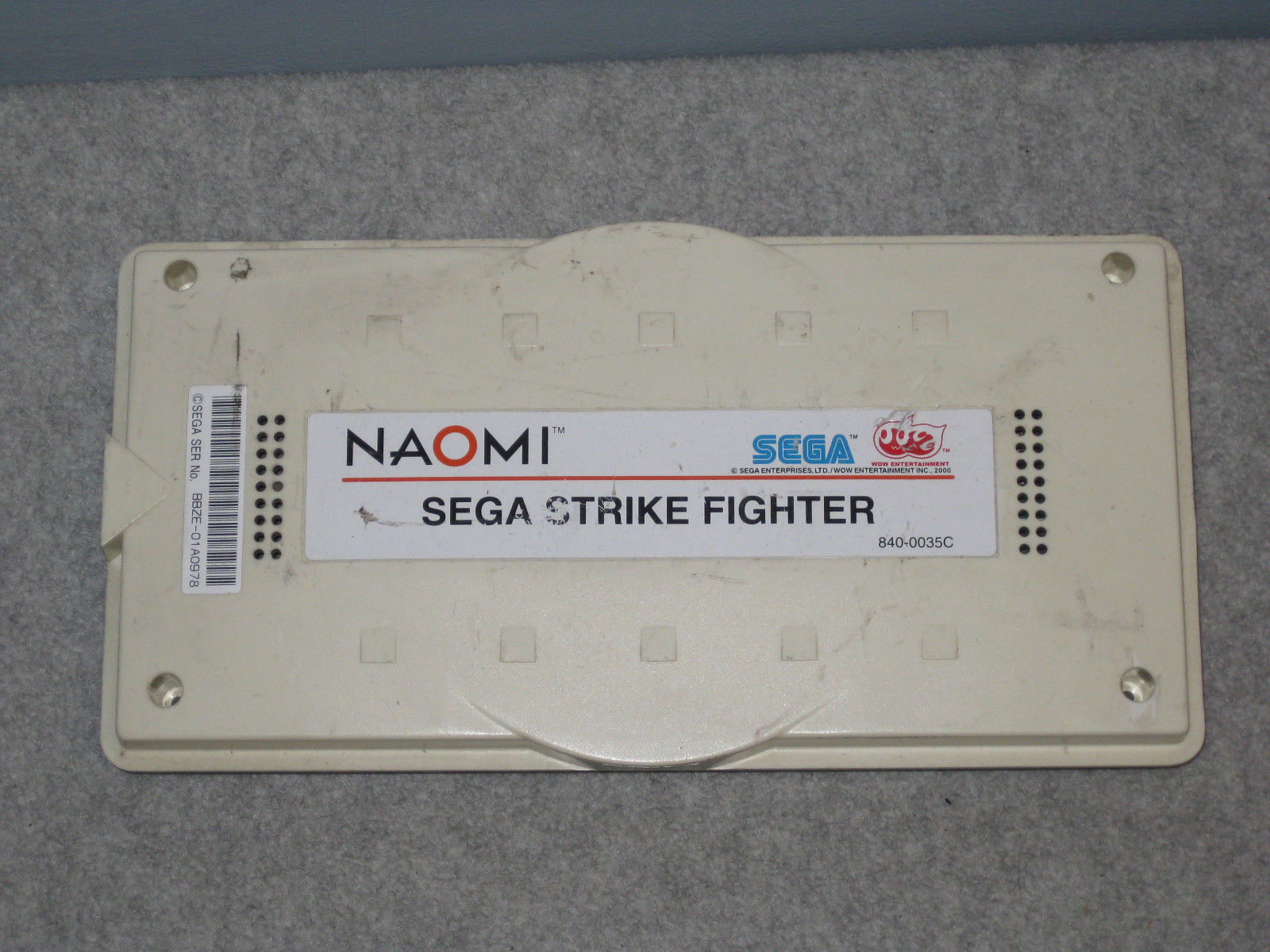

  Cart
•

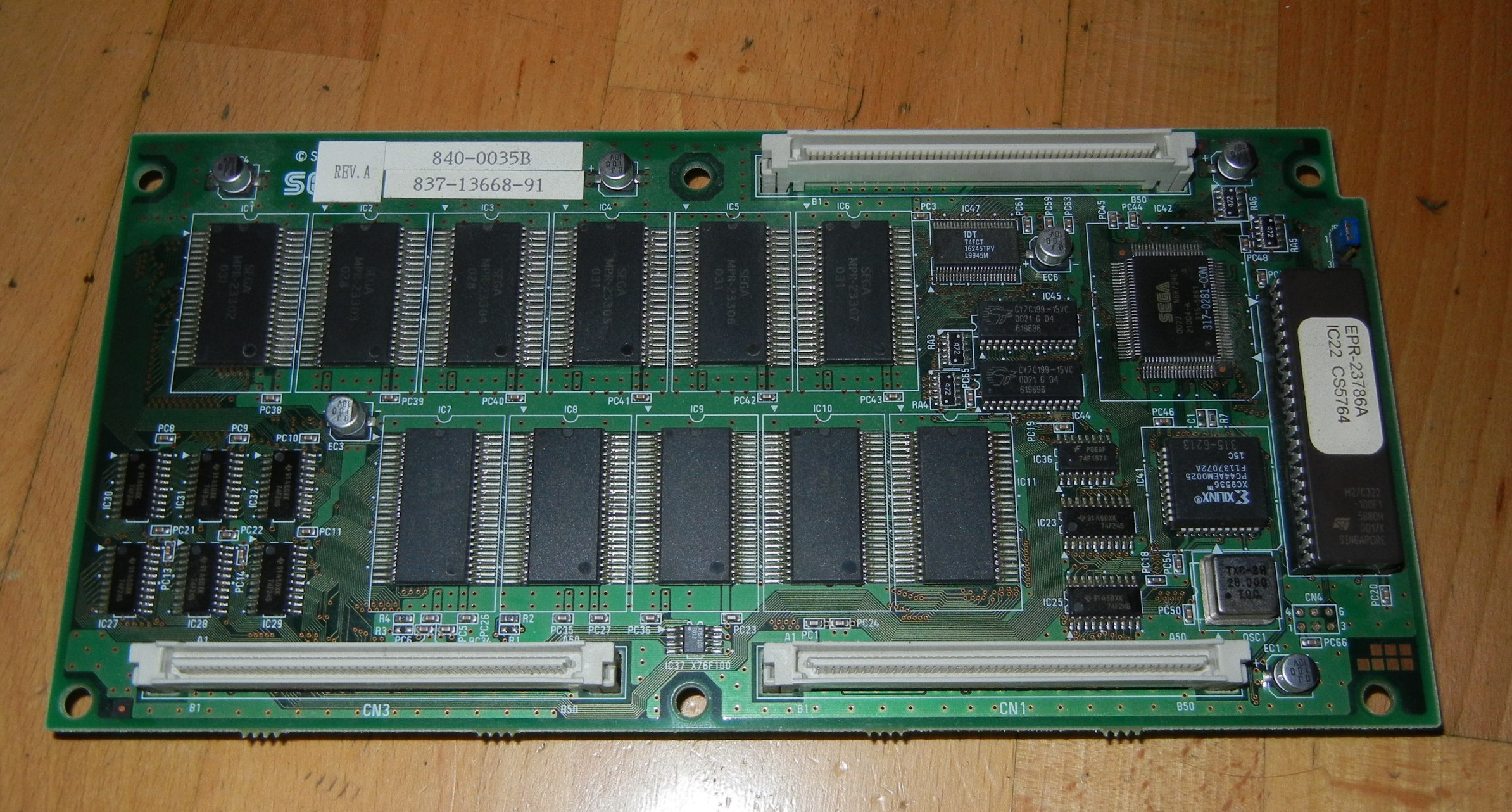

  PCB component side
•
