Shinobi (Star bootleg set 2, System 16A)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 13/12/2009 |
| emulator | FB Neo v1.0.0.03 |
| dev | JacKc |
| name | shinobls on FB Neo |
| description | Shinobi (Star bootleg set 2, System 16A) |
| year | 1987 |
| manufacturer | Star |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P10 | 7k main PCB | 16/32-bit Microprocessor - main | |
| 1x | YM2151 | 4s main PCB | FM Operator Type-M (OPM) - sound | |
| 1x | Z0849994PSC | 3s main PCB | 8-bit Microprocessor - sound | |
| 1x | D8255AC | 2s main PCB | Programmable Peripheral Interface | |
| 1x | YM3012 | 2v main PCB | D/A Converter (DAC) - sound | |
| 2x | TL084C | 2w,2x main PCB | sound | |
| 1x | D7751C | 10v ROMs PCB | sound | |
| 1x | TMP8243PI | 11x ROMs PCB | sound | |
| 1x | oscillator | 10.000 | main PCB | |
| 1x | oscillator | 16.000 | main PCB | |
| 1x | oscillator | 25.1748 | main PCB |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27256 | 1 main PCB | dumped |
| 7x | TMM24512 | 2,3,4,5,6,7,8 main PCB | dumped |
| 9x | TMM24512 | 9,10,11,12,13,14,15,16,17 ROMs PCB | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | TMM2064P | 4k,4o - main PCB |
| 2x | TMM2016BP | 6a,7a - main PCB |
| 1x | M5M5117P | 5t - main PCB |
| 4x | TMM2064P | 1a,1b,3a,3b - ROMs PCB |
| 2x | M5M5117P | 1c,1d - ROMs PCB |
| 2x | MCM2018N45 | 4r,4s - ROMs PCB |
| 6x | UM2148-1 | 8e,8g,8h,9e,9g,9h - ROMs PCB |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TIBPAL16L8 | 2i,7f - main PCB | read protected |
| 2x | N82S153N | 5s,7h - main PCB | not dumped |
| 2x | TIBPAL16R6 | 4j,4k - ROMs PCB | read protected |
| 1x | TIBPAL16R6 | 4p - ROMs PCB | dumped |
| 3x | TIBPAL16L8 | 1k,2x,10t - ROMs PCB | read protected -> extracted with CmD's PALdumper |
| 1x | AMPAL16R4 | 2w - ROMs PCB | dumped |
Others
main PCB:
1x 28x2 edge connector
3x 25x2 flat cable connector to ROMs PCB
1x trimmer (volume)
1x red led
2x 8x2 switches DIP
6x PK8701 DIP20 (3e,3f,4e,4f,5e,5f)(unknown function)
ROMs PCB:
3x 25x2 flat cable connector to main PCB
Notes
Not working
This board is slightly different from the set already in MAME.
update 20250422: from Osso This is a mix of ROMs from shinobls on Arcade Database and shinoblb on Arcade Database
Files
-

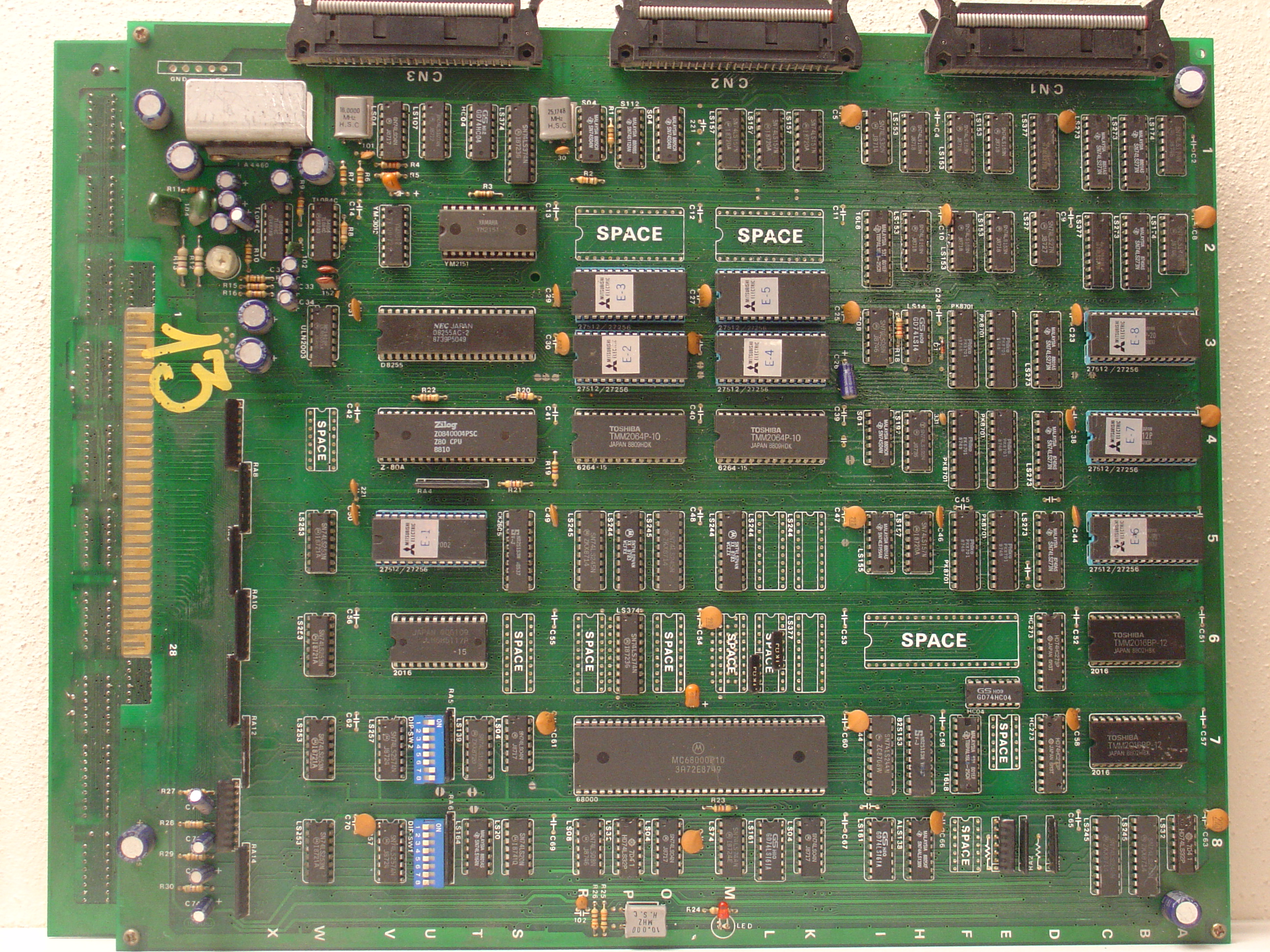

main PCB component side -

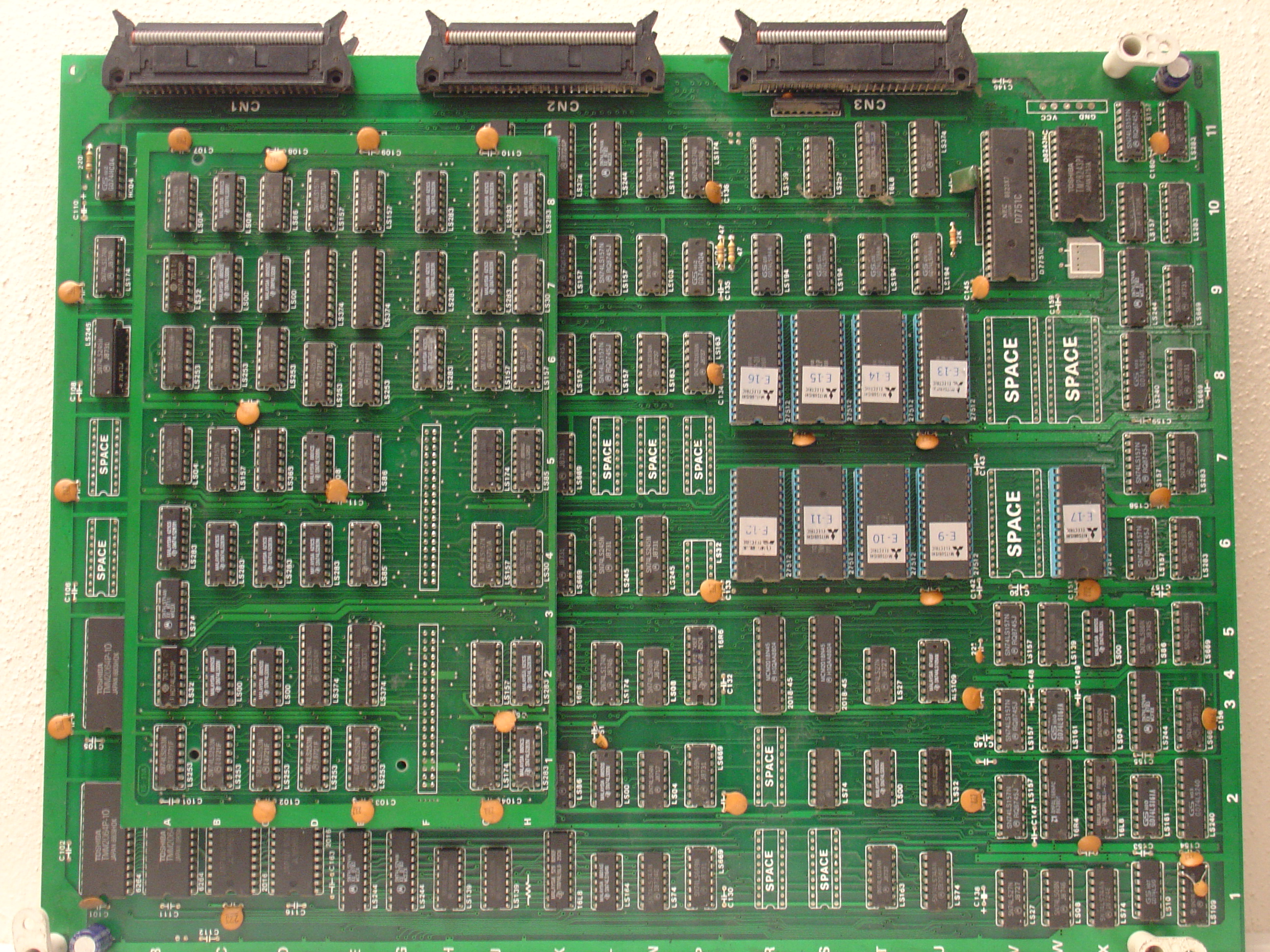

ROMs PCB component side -
Readme
