Sprint 1
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 14/10/2006 |
| emulator | MAME 0.31 |
| dev | Mike Balfour |
| name | sprint1 on Arcade Database |
| description | Sprint 1 |
| year | 1978 |
| manufacturer | Atari (Kee Games) |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 6502 | 8-bit Microprocessor - main | ||
| 1x | oscillator | 12069 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 8x | TMS2708JL | 1-8 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x trimmer (volume)
1x trimmer (unknown)
1x 8 switches dip
Notes
This is a bootleg PCB, with half size EPROMs. Content is identical to game supported by MAME
Files
-

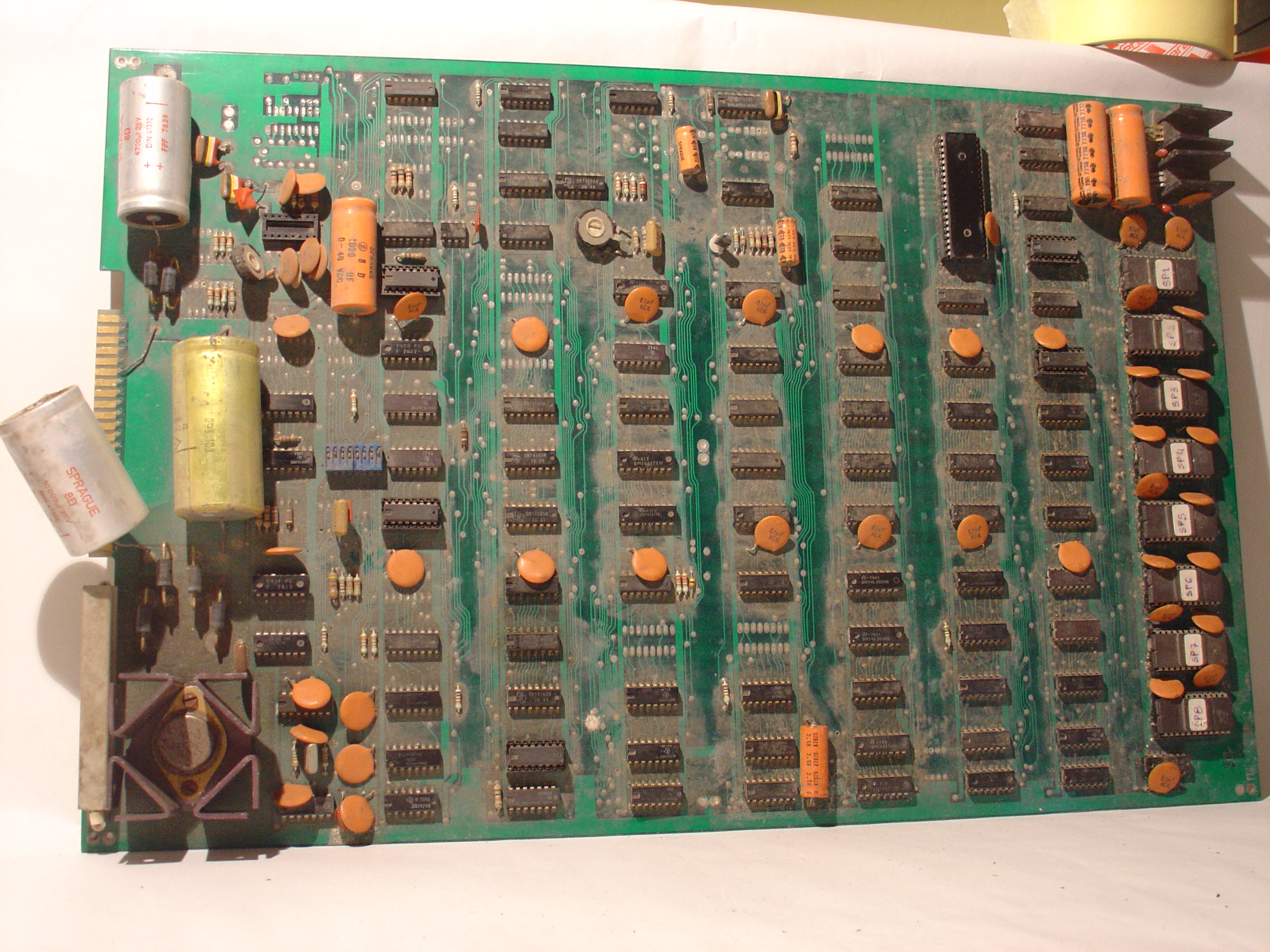

PCB component side -

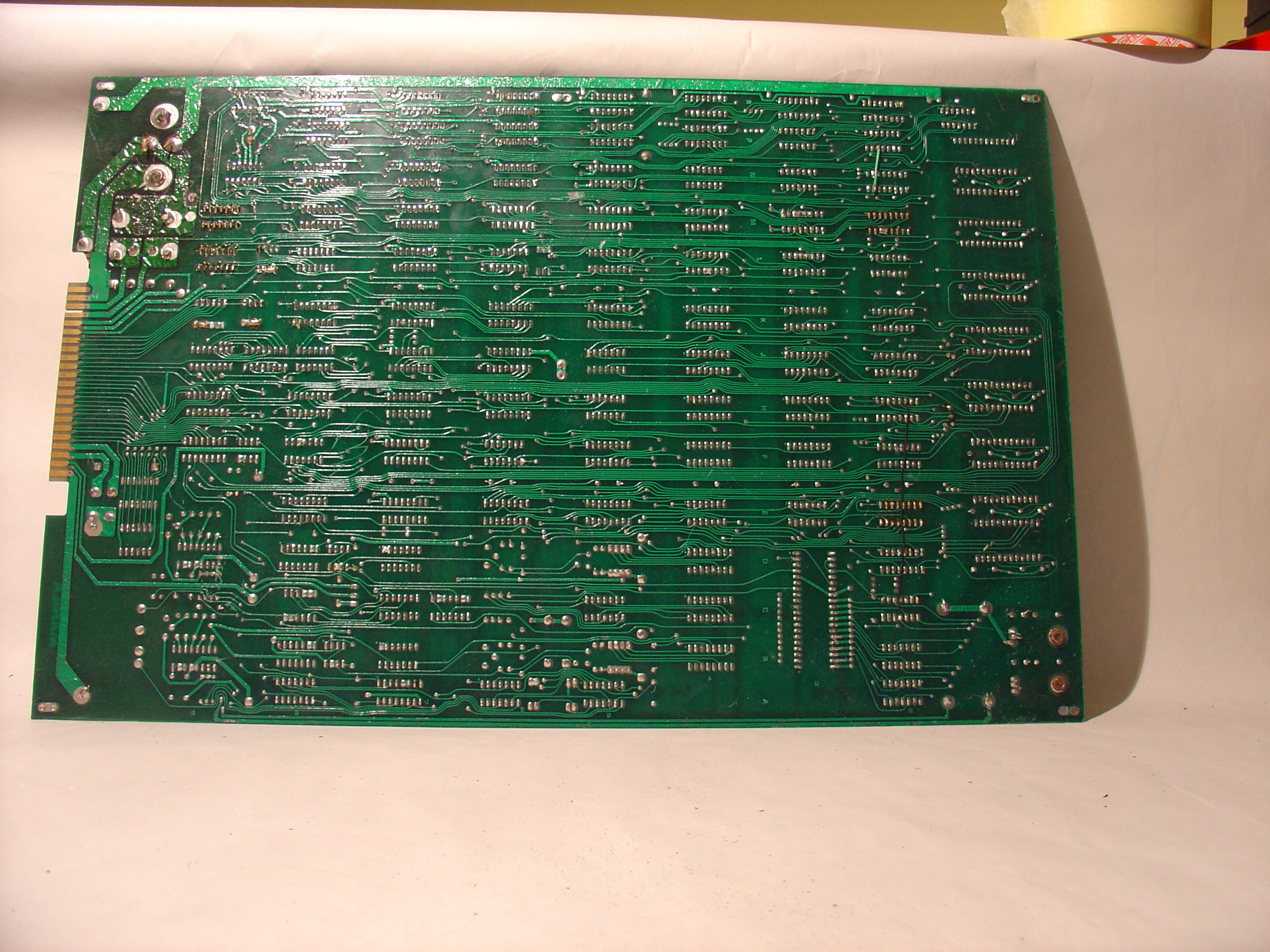

PCB solder side
