Street Fighter II': Champion Edition (L735 Test Rom, bootleg, set 10)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 15/01/2010 |
| emulator | FB Neo v1.0.0.03 |
| dev | Dinkc64 |
| name | sf2amf12 on FB Neo |
| description | Street Fighter II': Champion Edition (L735 Test Rom, bootleg, set 10) |
| year | 1992 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P10 | 16/32-bit Microprocessor - main | ||
| 1x | Z8400APS | 8-bit Microprocessor - sound | ||
| 1x | M6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 2x | GL324 | Quad Operational Amplifier - sound | ||
| 1x | uPC1242H | - | Audio Amplifier - sound | |
| 1x | CY5001 | FM Operator Type-M (OPM) - sound | ||
| 1x | CY5002 | D/A Converter (DAC) - sound | ||
| 1x | oscillator | 16.000 | ||
| 1x | oscillator | 12.000 | ||
| 1x | oscillator | 3.579545 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | M27512 | 2,7 | dumped |
| 1x | TMS27C010A | 3 | dumped |
| 1x | AM27C010 | 5 | dumped |
| 4x | D27C010 | 8a,8b,9,10 | dumped |
| 1x | AM27C020 | 1 | dumped |
| 12x | TC574000 | mask 1-12 | dumped |
| 1x | AM27C040 | 4 | dumped |
| 1x | M27C040 | 6 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 7x | UM6116K-3 | |
| 4x | SYC6116L-45TP | |
| 4x | HY62256AP-10 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PALCE16V8H-25PC/4 | dumped | |
| 10x | PALCE16V8H-25PC/4 | read protected | |
| 6x | HY18CV8S-30 | read protected | |
| 9x | PALCE20V8H-25PC/4 | read protected | |
| 2x | PALCE22V10H-25PC/4 | read protected |
Others
1x 28x2 edge connector
1x trimmer (volume)
3x 8x2 switches DIP
Notes
It's very similar to "SF2MKOT", without the "NIGHTMARE CRACK" in the title screen
update 20240218: thanks to Maru79 and Dink, I redumped all maskROMs at correct size.
update 20241114: thanks to Robert, I redumped maskROM 02, this time it is correct.
update 20250507: thanks to Robert, I redumped maskROM 02, this time it is correct. Game is now supported in FB Neo, with a slightly different ROM loading setting, but with identical content.
Files
-

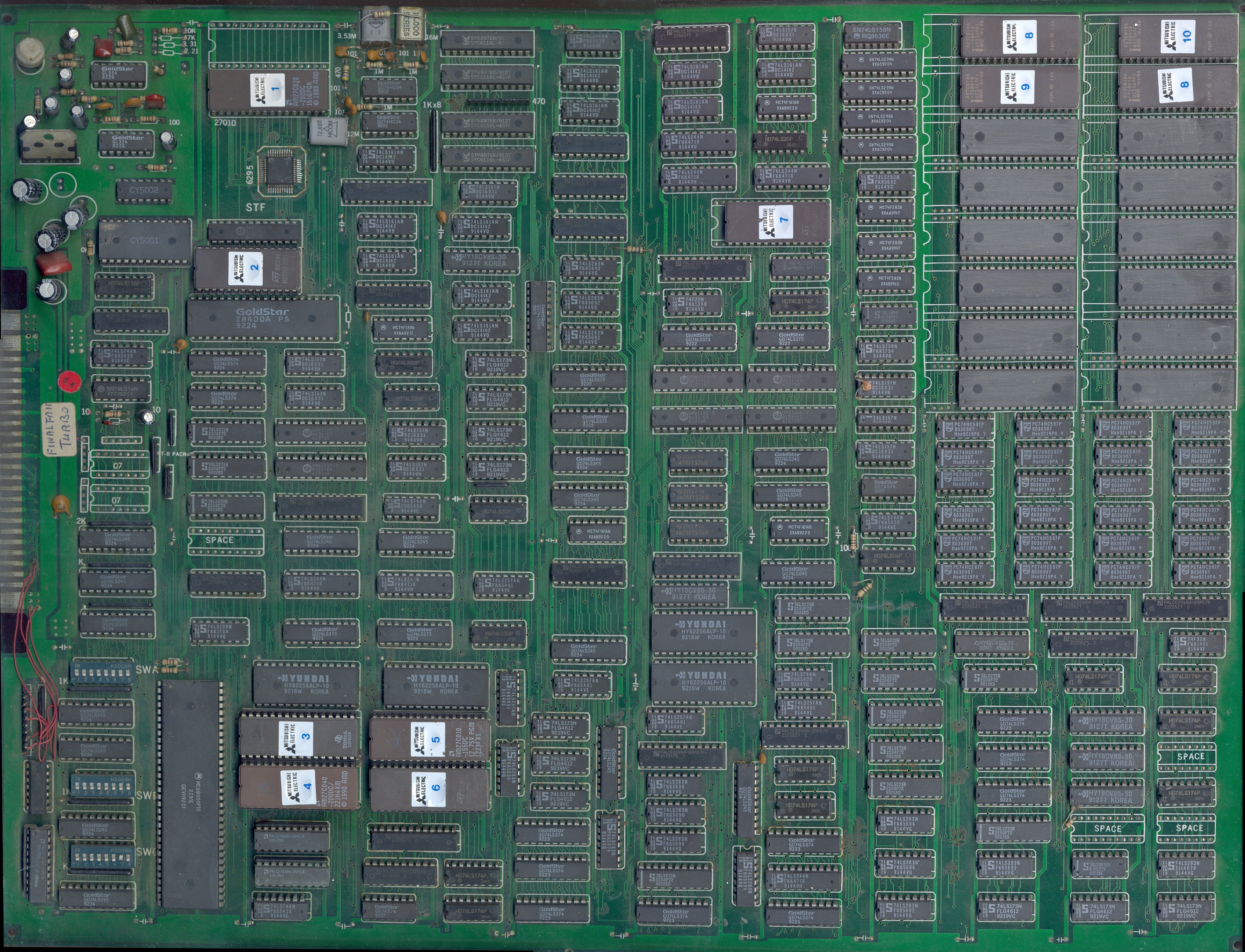

PCB component side -

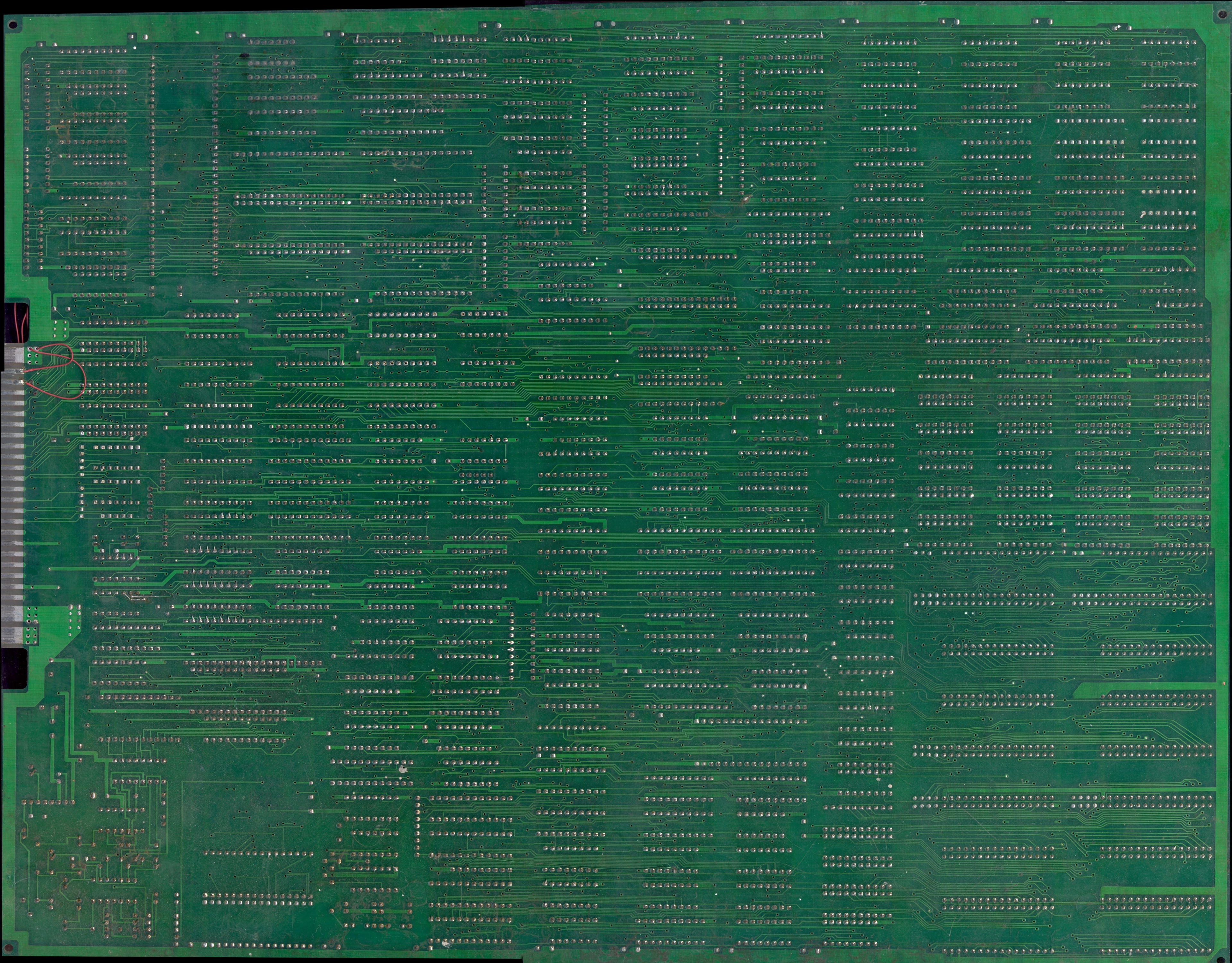

PCB solder side -
PLDs
