Street Fighter II': Champion Edition (L735 Test Rom, bootleg, set 9)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Maru79 |
| date | 06/03/2022 |
| emulator | FB Neo v1.0.0.03 |
| dev | JacKc |
| name | sf2amf10 on FB Neo |
| description | Street Fighter II': Champion Edition (L735 Test Rom, bootleg, set 9) |
| year | 1992 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | 7.988MHz(@15) | 16/32-bit Microprocessor - main | |
| 1x | Z0840006PSC-Z80CPU | 3.577MHz(@6) | 8-bit Microprocessor - main | |
| 1x | M6295 | 997.4kHz(@5) - 997.4Hz(@6) PIN 3 HI or LO ? | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | YM2151 | 1.788MHz(@23) - 3.577MHz(@24) | FM Operator Type-M (OPM) - sound | |
| 1x | YM3012A | 1.788MHz(@2) | D/A Converter (DAC) - sound | |
| 1x | CA324E | - | Quad Operational Amplifier - sound | |
| 1x | HA17324 | - | Quad Operational Amplifier - sound | |
| 1x | uPC1242H | - | Audio Amplifier - sound | |
| 1x | oscillator | 16.000MHz | ||
| 1x | oscillator | 12.000MHz | ||
| 1x | oscillator | 3.579545 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | 27512 | 6,24,25,27,28,30 | dumped |
| 6x | 27010 | 21,23,26,27,29,30 | dumped |
| 4x | AM27C040 | 22,24,A-L | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | HY2116-10 | |
| 2x | UM6116K-3 | |
| 6x | SYC6116L-45TP | |
| 4x | HY62C256P-C |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 5x | PALCE16V8H-25PC/4 | 3,8,12,13,19 | dumped |
| 9x | PAL16L8ACN | 1,2,5,6,10,14,15,16,23 | dumped |
| 2x | PALCE22V10H-25PC/4 | 4,18 | dumped |
| 4x | HY18CV8S-30 | 11,26,27,28 | dumped |
| 9x | GAL20V8-25LNC | 7,9,17,20,21,22,24,25,29 | dumped |
Others
1x 28x2 JAMMA edge connector
1x 10 legs connector
1x trimmer (volume)
3x 8x2 switches DIP (SWA,SWB,SWC)
Notes
PCB is labeled "9354" and "O.K" on component side
This set is very similar to both Street Fighter II': Champion Edition (Alpha Magic-F, bootleg) and Street Fighter II': Champion Edition (L735 Test Rom, bootleg, set 1)
PAL numbering in accordance with "PCB component side notes.jpg"
Files
-

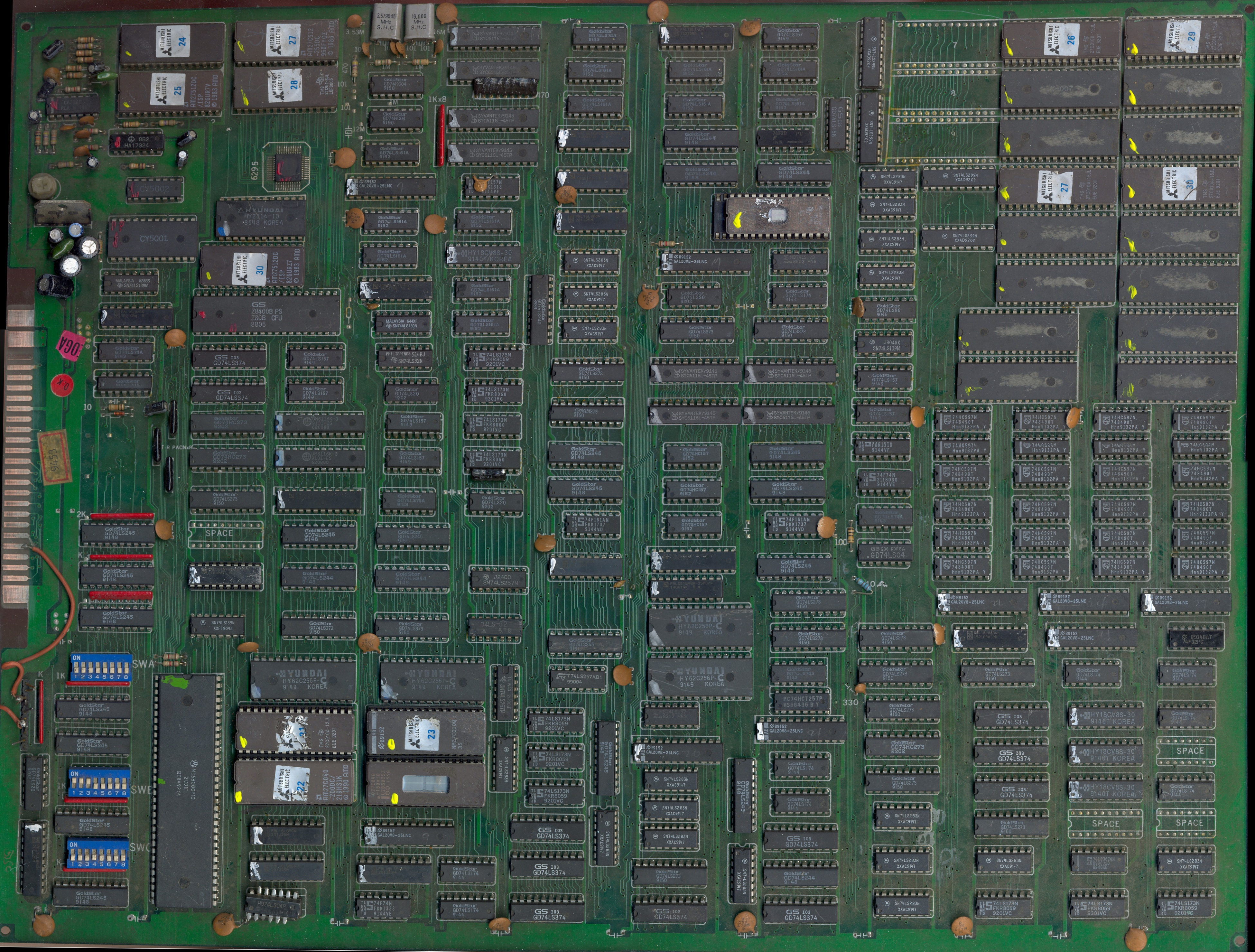

PCB component side -

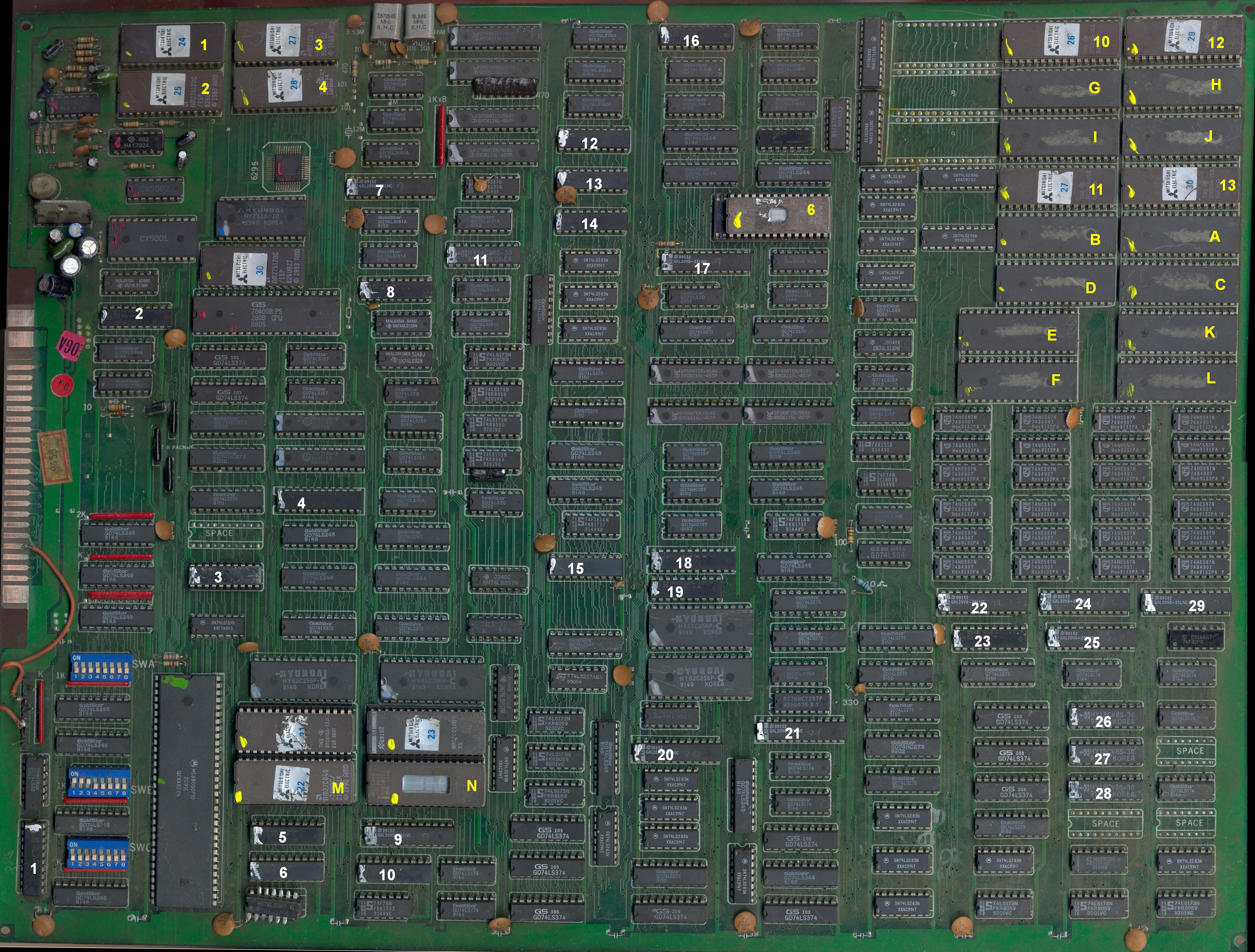

PCB component side notes -

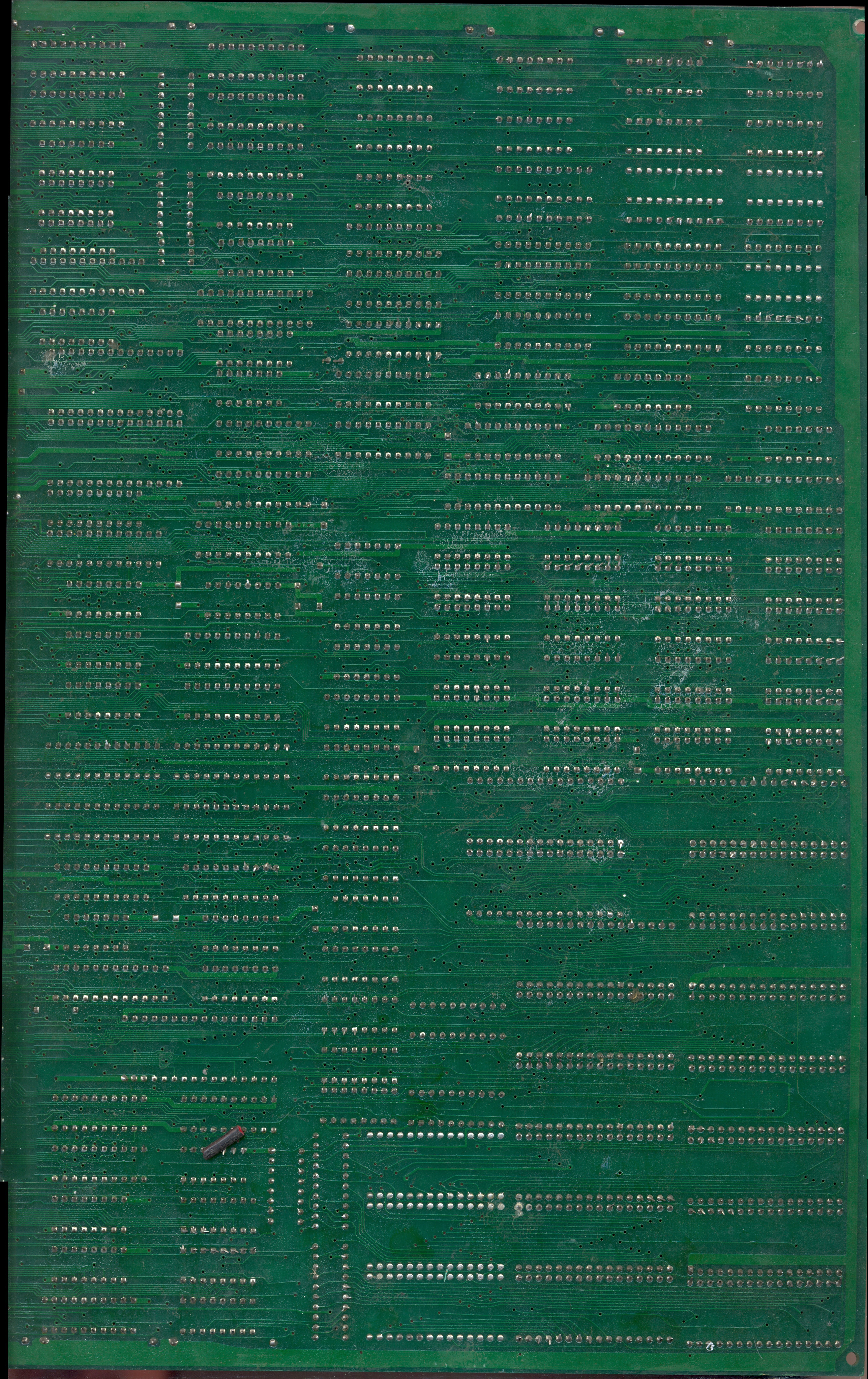

PCB solder side 1 -

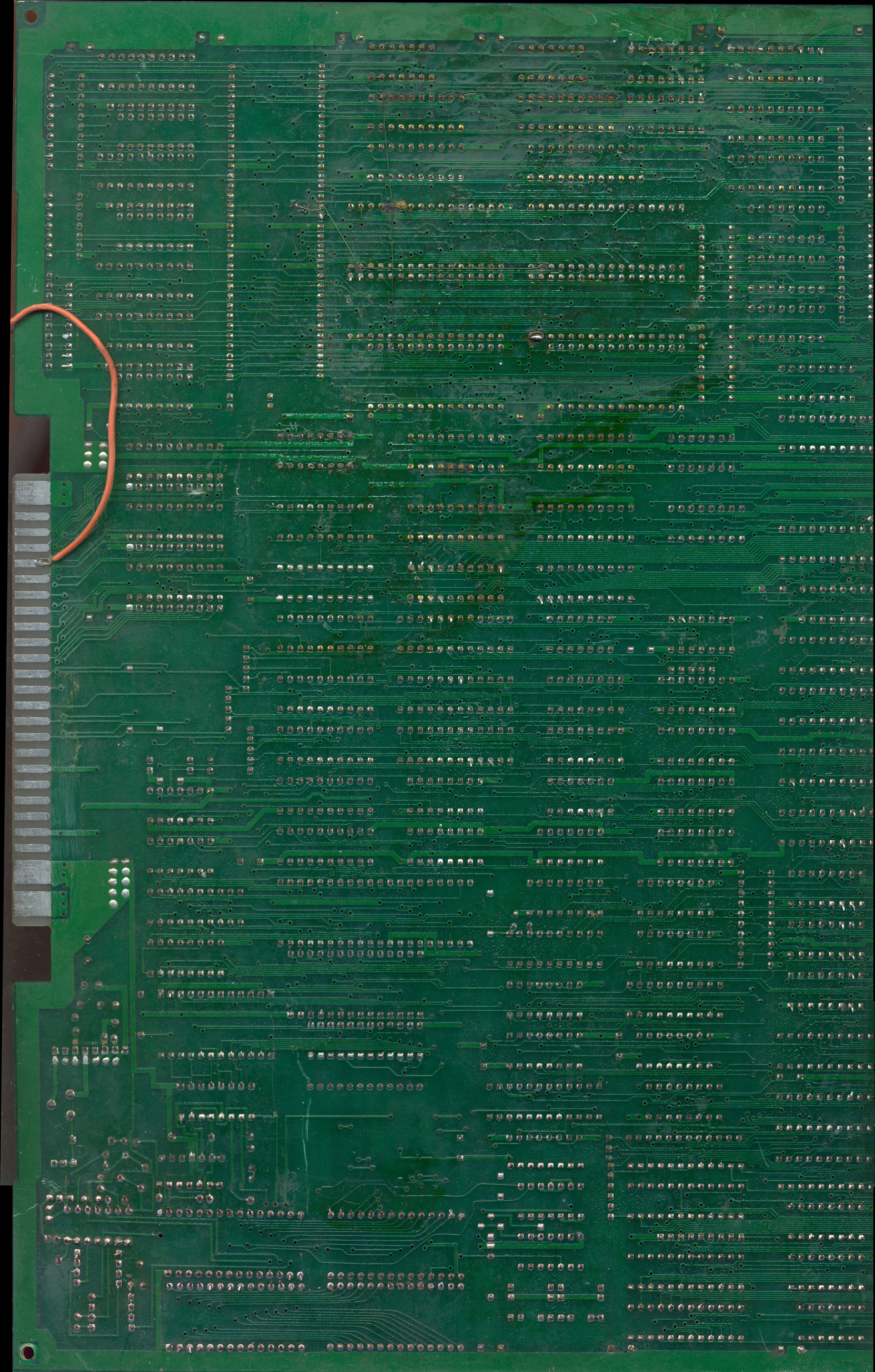

PCB solder side 2
