Street Fighter II': Magic KO Turbo!! - Nightmare Crack (set 2)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Maru79 |
| date | 12/11/2022 |
| emulator | HBMAME 0.245.9 |
| dev | Robbbert |
| name | sf2mkot01 on HBMAME |
| description | Street Fighter II': Magic KO Turbo!! - Nightmare Crack (set 2) |
| year | 1992.04.30 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P10 | 11.99MHz(@15) | 16/32-bit Microprocessor - main | |
| 1x | Z0840006PSC-Z80CPU | 3.577MHz(@6) | 8-bit Microprocessor - main | |
| 1x | M6295 | 997.4kHz(@5) - 997.4Hz(@6) PIN 3 HI | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | YM2151 | 1.788MHz(@23) - 3.577MHz(@24) | FM Operator Type-M (OPM) - sound | |
| 1x | YM3012A | 1.788MHz(@2) | D/A Converter (DAC) - sound | |
| 2x | LM324N | - | Quad Operational Amplifier - sound | |
| 1x | uPC1242H | - | Audio Amplifier - sound | |
| 1x | oscillator | 16.000MHz | ||
| 1x | oscillator | 12.000MHz | ||
| 1x | oscillator | 3.579545 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | M27C1001 | 1,2,9,10,17,18 | dumped |
| 2x | 27C512L | 3,8 | dumped |
| 2x | D27C010A | 4,6 | dumped |
| 2x | M27C4001 | 5,7 | dumped |
| 12x | AM27C040 | 11,12,13,14,15,16 19,20,21,22,23,24 |
dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | MS62256L-10PC | |
| 9x | MCM2018AN35 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | GAL16V8-25LNC | read protected | |
| 11x | PALCE16V8H-25PC/4 | read protected | |
| 4x | HY18CV8S-25 | read protected | |
| 9x | PALCE20V8H-25PC/4 | read protected | |
| 2x | PALCE22V8H-25PC/4 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 10 legs connector (MOLEX 10P)
1x trimmer (volume)
3x 8x2 switches DIP (SWA,SWB,SWC)
Notes
PCB is marked "STF" on component side
PCB is labeled "30-04-92" on component side
Files
-

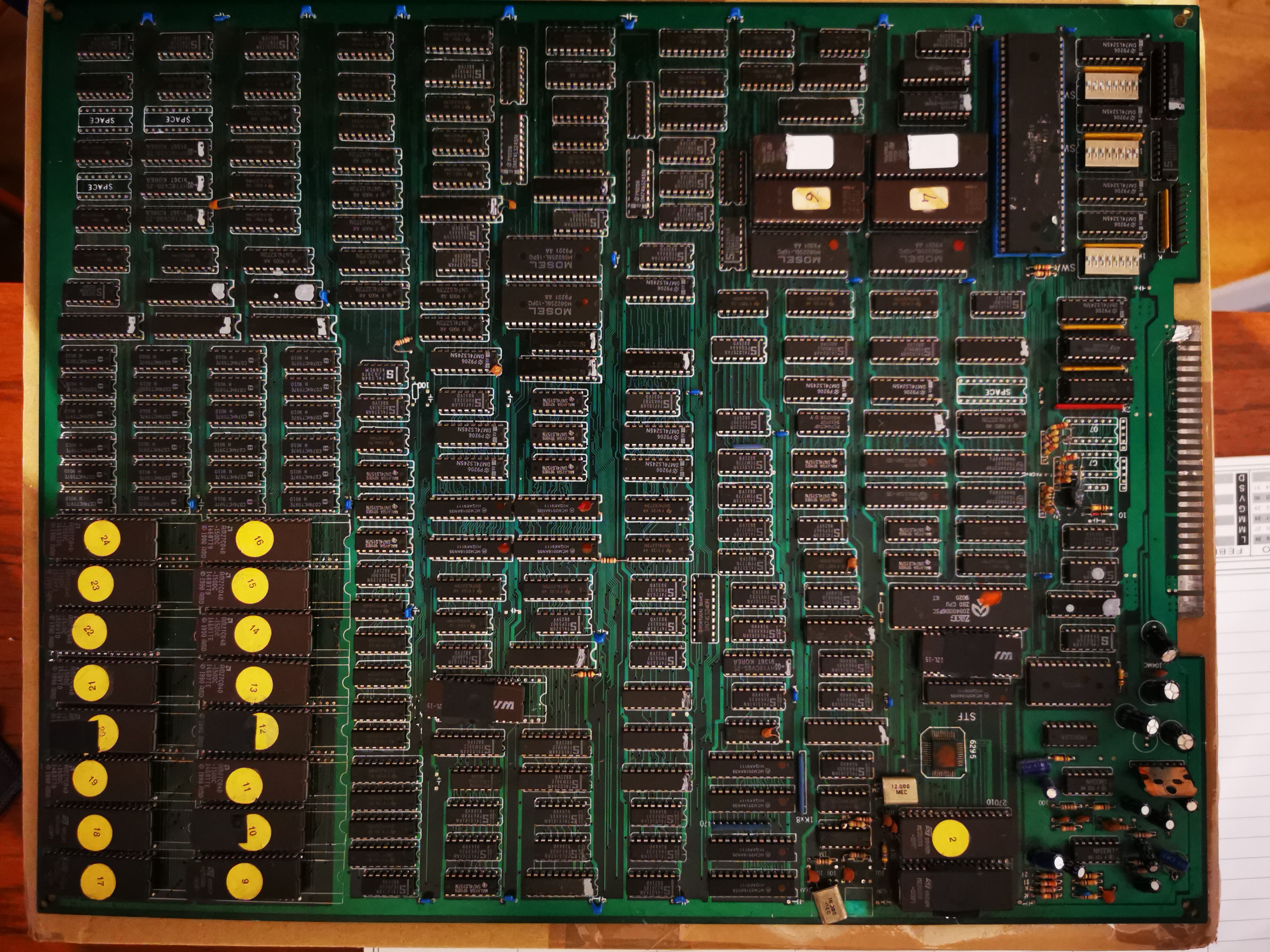

PCB component side -

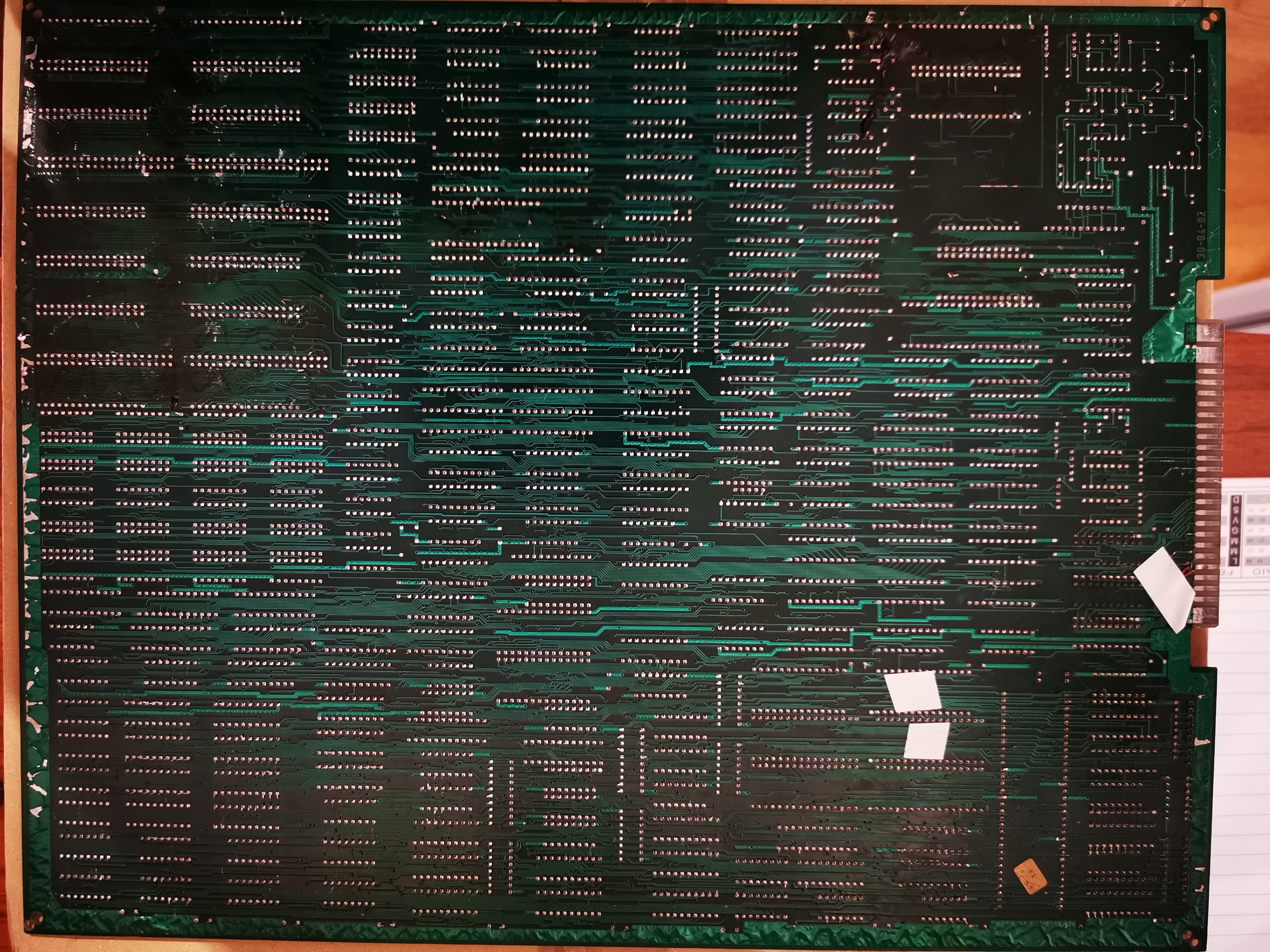

PCB solder side -

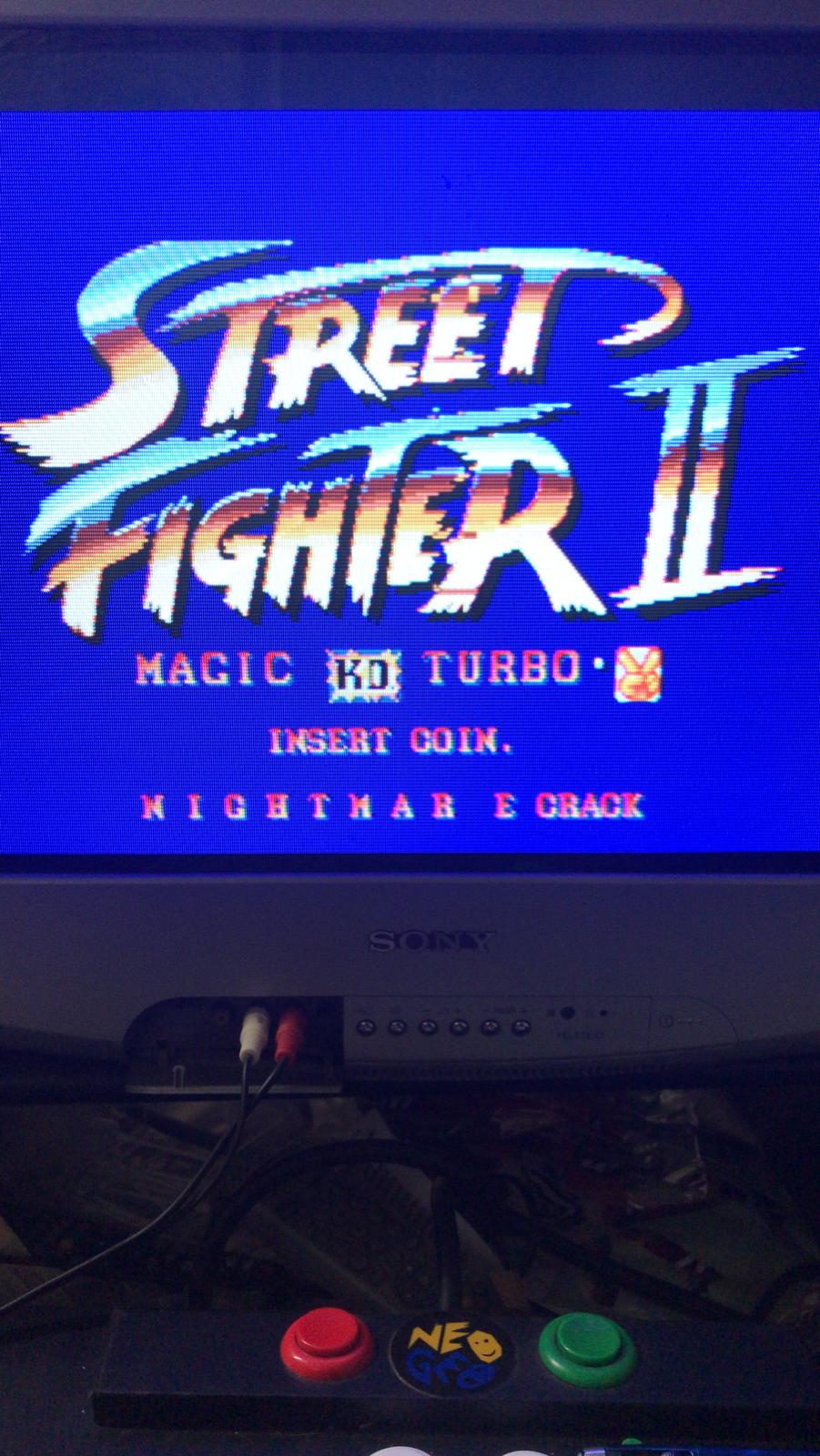

title
