Super Shot (set 2)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 17/12/2016 |
| emulator | MAME 0.275 |
| dev | Osso |
| name | sshota on Arcade Database |
| description | Super Shot (set 2) |
| year | 1979 |
| manufacturer | Model Racing |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | INS8060N | 2b | 8-bit Microprocessor - main | |
| 1x | oscillator | 1.1289 KHz | 1d |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 10x | 2708 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | MM2114 | 4a,5a,14b,15b |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
2x trimmer (8d)
1x 8 DIP switches bank (11d)
Notes
PCB is marked "CS233" and "12900153"
update 20250127: Thanks to Osso, I did a full redump.
Files
-

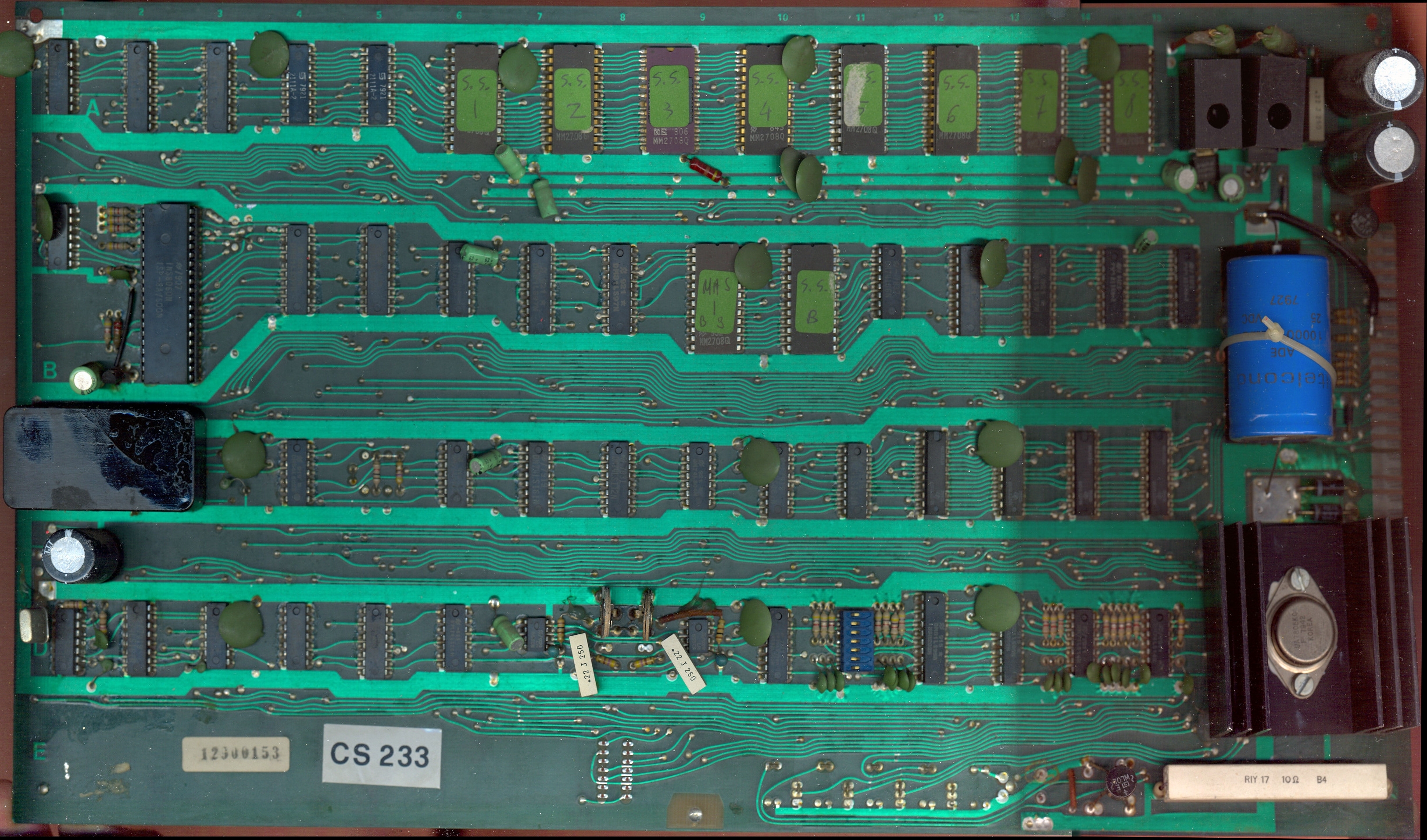

PCB component side -

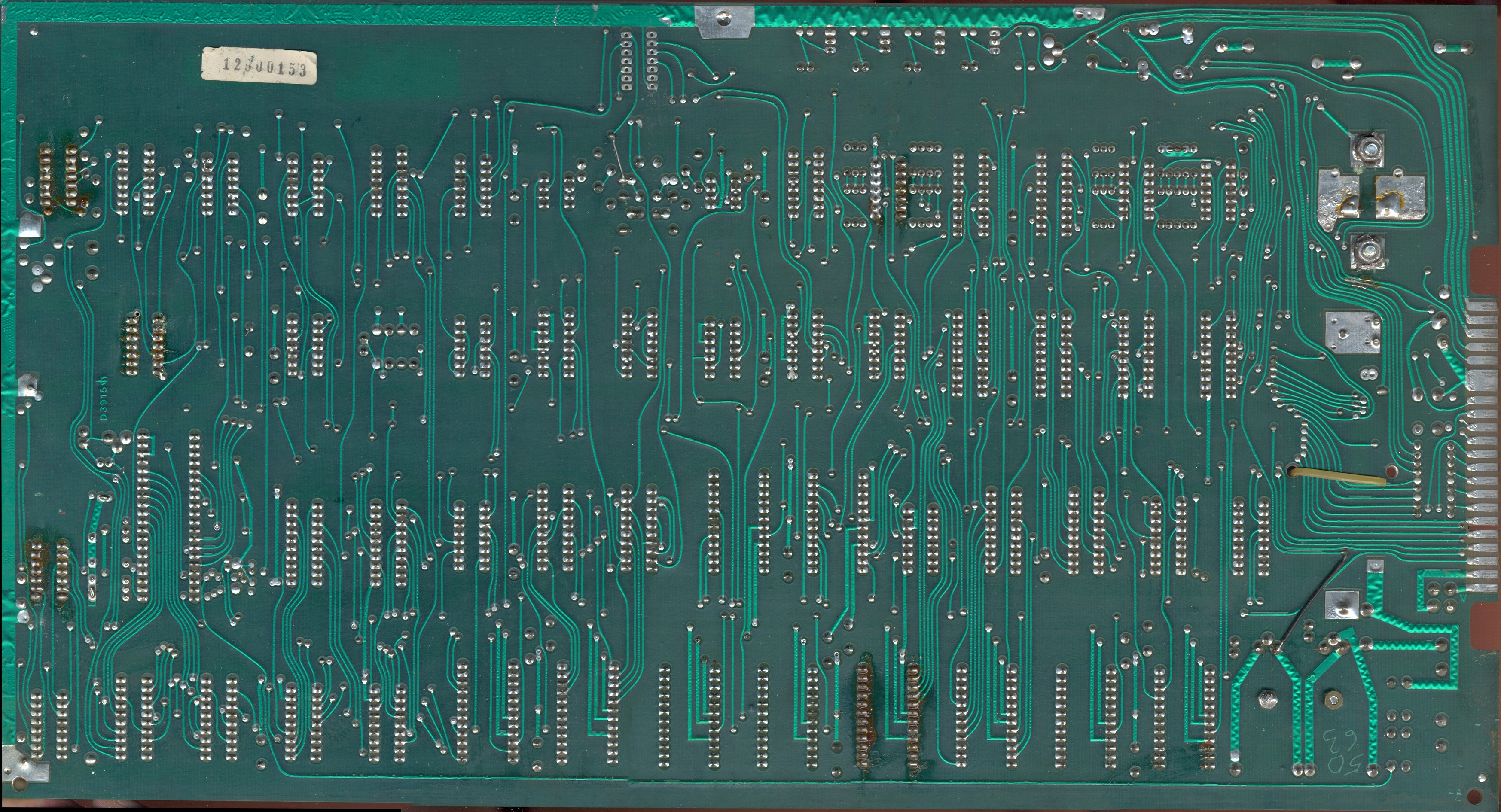

PCB solder side
