Thunder Hoop (Ver. 1, Checksum 02a09f7d)
From Citylan
Jump to navigationJump to search
| dumper | Mike Coates |
| date | 28/12/2004 |
| emulator | MAME 0.84 |
| dev | Pierpaolo Prazzoli, Brian Troha, Mike Coates |
| name | thoop on Arcade Database |
| description | Thunder Hoop (Ver. 1, Checksum 02a09f7d) |
| year | 1992.04.28 |
| manufacturer | Gaelco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | C15 | 16/32-bit Microprocessor - main | |
| 1x | M6295 | D6 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | - | C2 | Dual Operational Amplifier - sound |
| 1x | TDA1510AQ | - | A3 | Audio Amplifier - sound |
| 1x | oscillator | 24.000MHz | A20 | |
| 1x | oscillator | 26.000MHz | F1 | |
| 1x | blu resonator | C6 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | AM27C020 | 2.D16 | dumped |
| 1x | M27C4001 | 1.D18 | dumped |
| 5x | 27080 | SOUND.C1, C-09.H10, C-10.H9, C-11.H7, C-12.H6 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 8x | MCM2018AN35 | D11,D12,H21,H22,I1,I2,I3,I4 |
| 2x | KMBLS-1062256 | D17,D20 |
| 2x | CY7C185-45PC | H12,H13 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TPC1020AFN-084C | F8,F13 | read protected |
| 2x | GAL16V8A-25LP | F2,J16 | read protected |
| 2x | PALCE20V8H-25PC/4 | D21,H11 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)(C4)
2x 8 DIP switches banks (SW1.B16, SW2.B18)
Notes
PCB is marked: "COMP", "(C) 1992 ALL RIGHTS RESERVED" and "gaelco REF. 922804/1 MADE IN SPAIN" on component side
PCB is marked: "sold" on solder side
update 20220113: better description
Files
-

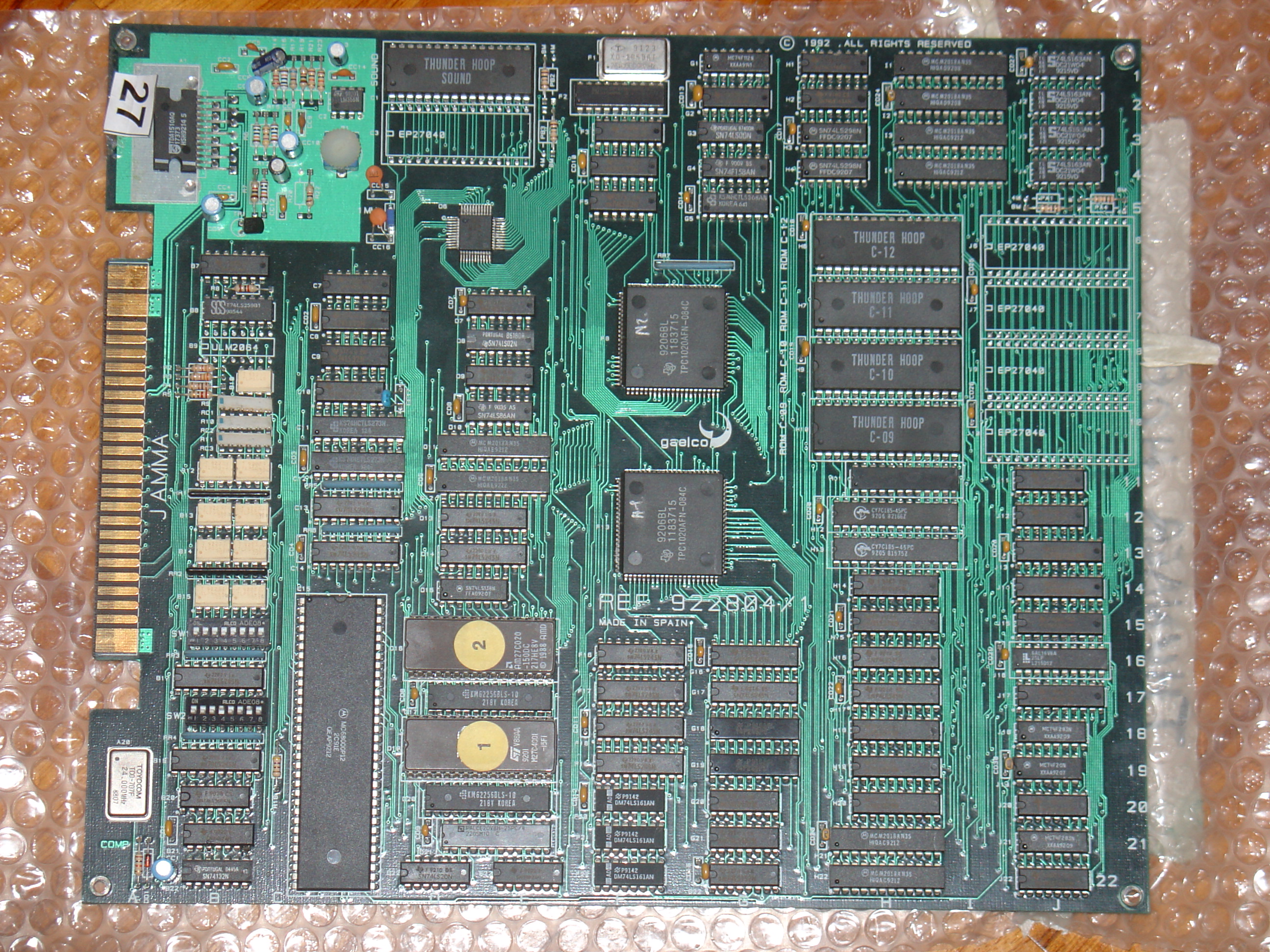

PCB component side -

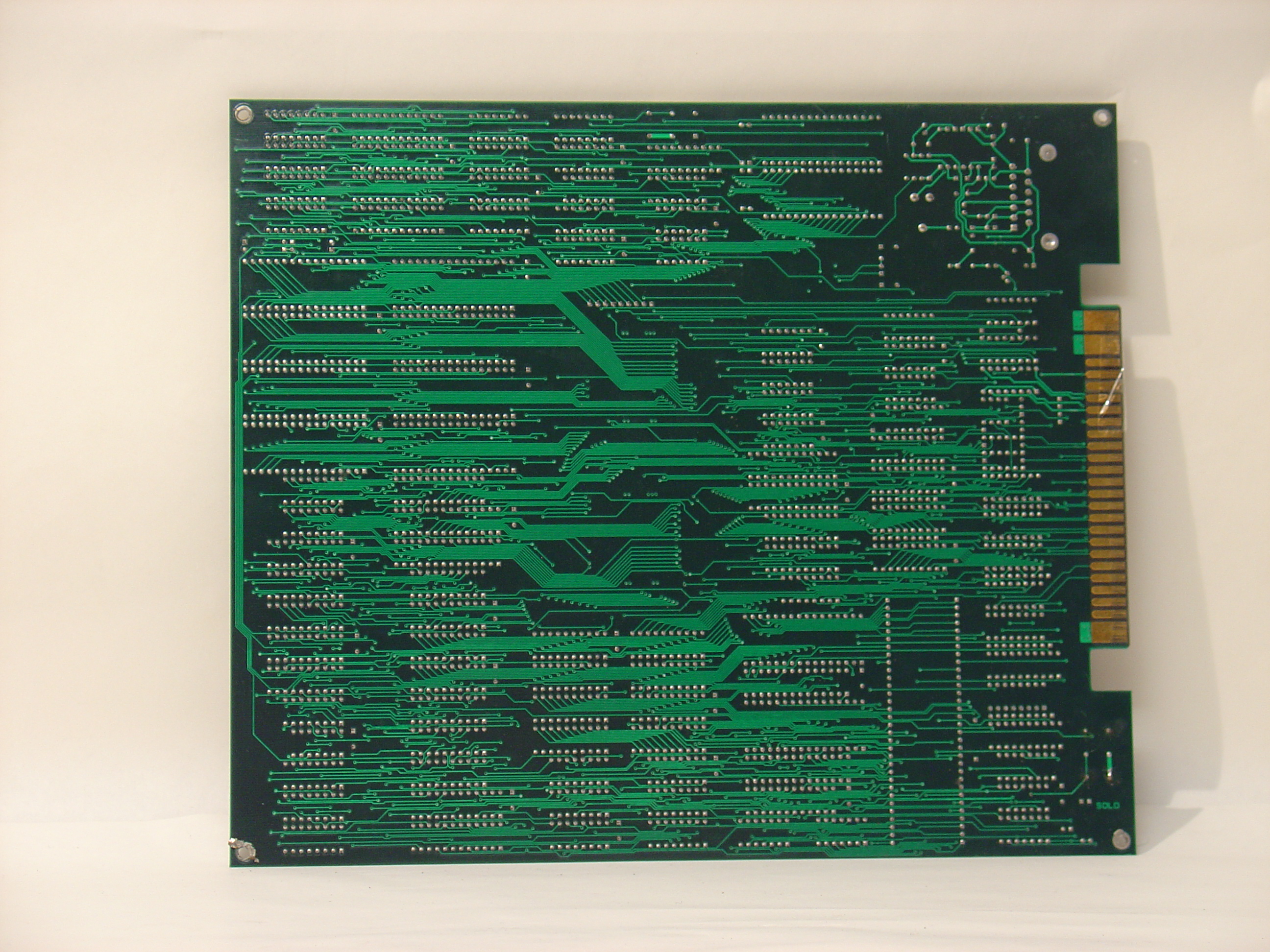

PCB solder side
